Integrated Solar Garden Light RST-30
RST-30 is an all-in-one solar garden light for residential roads, parks, gardens and pedestrian paths.
It combines solar generation, battery storage and LED lighting in one fixture for simplified outdoor lighting.
Key Specifications
- ✓2,800 lm LED output
- ✓30 W monocrystalline solar panel
- ✓144 Wh LiFePO4 battery
- ✓5-7 rainy days when fully charged
- ✓3-5 m mounting height | 20-30 m spacing
RST-30 Technical Specifications
Review the RST-30 output, solar charging system, battery capacity and installation requirements before confirming project suitability.
| Type | RST-30 |
| Lamp Head | |
| LED quantity | 100 pcs |
| Luminous flux | 2,800 lm |
| LED lifespan | 50,000 hours |
| IP rating | IP65 |
| Color temperature | 3,000-7,500 K |
| Color rendering index | Ra ≥ 70 |
| Solar Panel | |
| Solar panel power | 30 W / 5 V |
| Solar panel material | Monocrystalline silicon |
| Battery and Lighting Performance | |
| Battery type | LiFePO4 |
| Battery capacity | 144 Wh / 45 Ah |
| Battery cycle life | More than 2,000 charge and discharge cycles |
| Lighting time when fully charged | 5-7 rainy days |
| Intelligent power control | IPC 5.0 |
| Remote control | 6 working modes: DEMO, OFF, L, M, T and U |
| Installation | |
| Pole top diameter | Ø60 mm |
| Recommended mounting height | 3-5 m |
| Recommended installation spacing | 20-30 m |
| Working temperature | -20°C~60°C（Charge above 0°C） |
| Product dimensions | 598 × 278 × 55 mm |

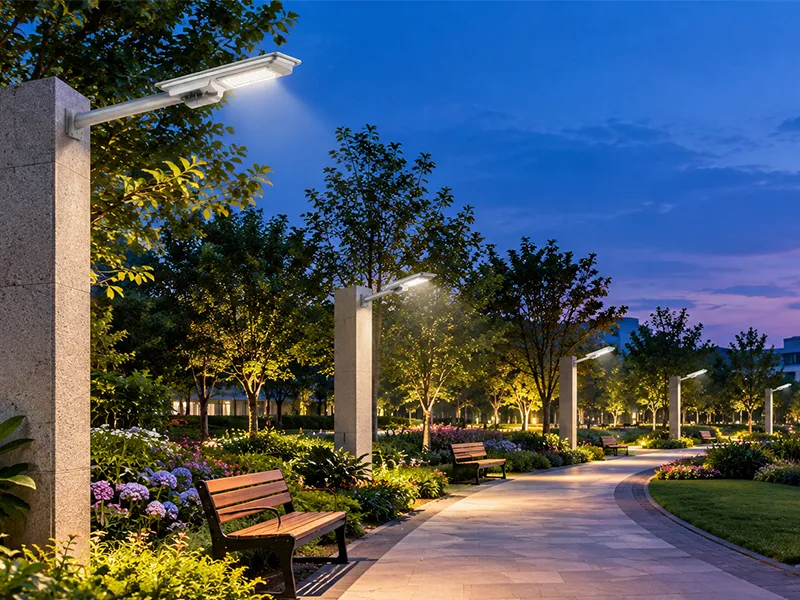

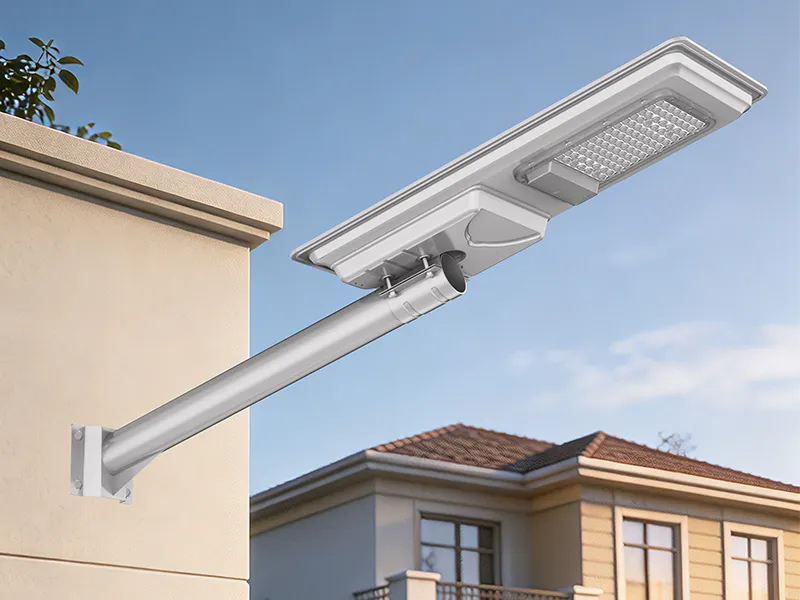

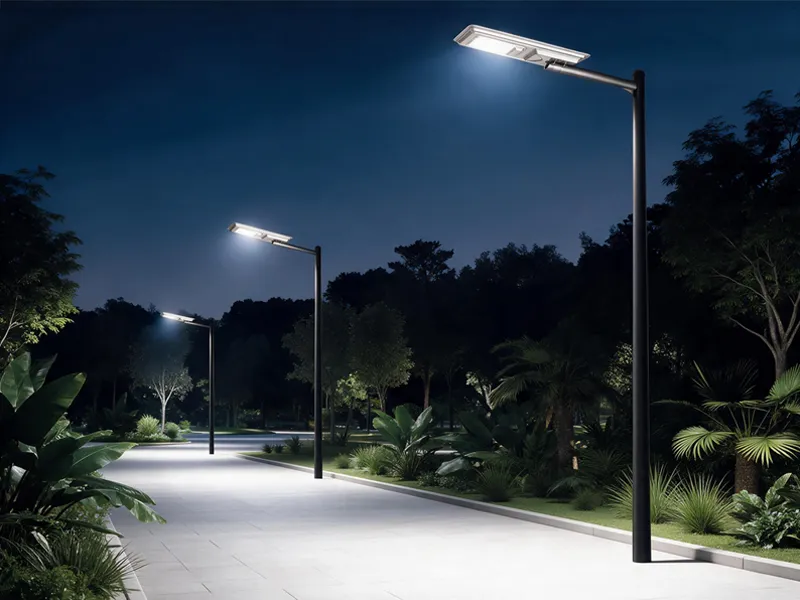

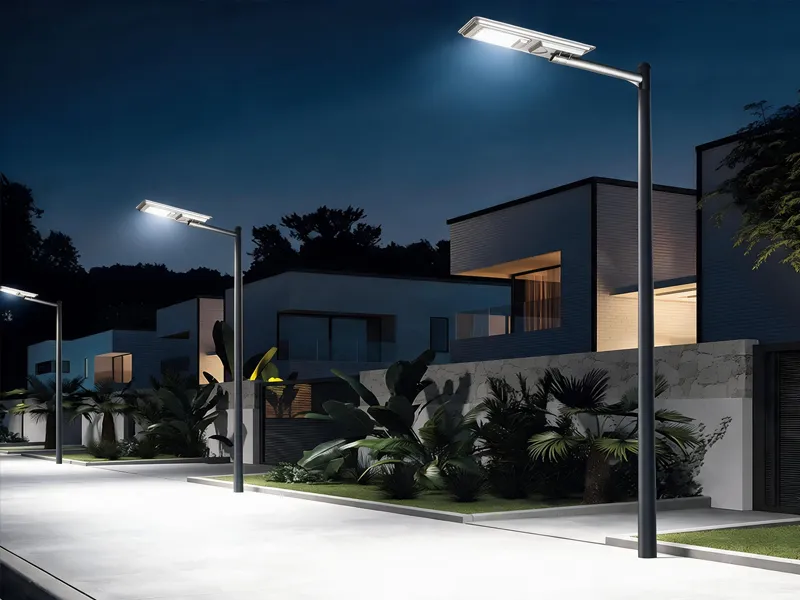

RST-30 Applications for Residential and Public Outdoor Areas
RST-30 is designed for small outdoor lighting projects that require independent solar lighting. Review the site layout, solar exposure, mounting height and lighting schedule before confirming the installation plan.
RST-30 Project Support and Technical Documents
Share your site information with RoadSmart so we can review the RST-30 configuration, installation conditions and required technical documents for your project.
1. Project Requirements
● Installation location
● Mounting height and pole spacing
● Nightly lighting hours
2. Configuration Review
● 2,800 lm lighting output
● 30 W solar panel and 144 Wh battery
● Project suitability assessment
3. Installation Guidance
● Ø60 mm pole connection
● 3-5 m recommended mounting height
● 20-30 m recommended spacing
4. Documentation and Handover
● RST-30 specification PDF
● Installation and dimension information
● Remote control operation guidance
Need a Customized Solar Street Light Solution
Send us your project requirements, including road width, pole height, installation location, lighting time and quantity. Our team will help recommend a suitable Solar Star Light II configuration.
Request a Professional Solution
Please submit your project details on the right. Our team will provide a professional solution and quote via email within 24 hours.
FAQ
Q: What information is needed for an RST-30 project recommendation?
Please provide the installation location, road or pathway width, pole height, pole spacing, nightly lighting hours, quantity and available drawings or site photos. RoadSmart can then review the suitable RST-30 configuration.
Q: How many rainy days can the RST-30 support?
The RST-30 can provide lighting for 5-7 rainy days when fully charged. Actual performance depends on solar conditions, lighting hours, temperature and the selected lighting mode.
Q: What solar panel and battery does the RST-30 use?
The RST-30 uses a 30 W / 5 V monocrystalline solar panel and a 144 Wh / 45 Ah LiFePO4 battery.
Q: How much light does the RST-30 provide?
The RST-30 provides a luminous flux of 2,800 lm. Final lighting performance depends on the mounting height, pole spacing and site layout.
Q: What projects is the RST-30 suitable for?
The RST-30 is suitable for residential roads, community paths, parks, gardens, courtyards, pedestrian paths and small campus walkways. Final suitability depends on the site layout, lighting schedule and local solar conditions.
