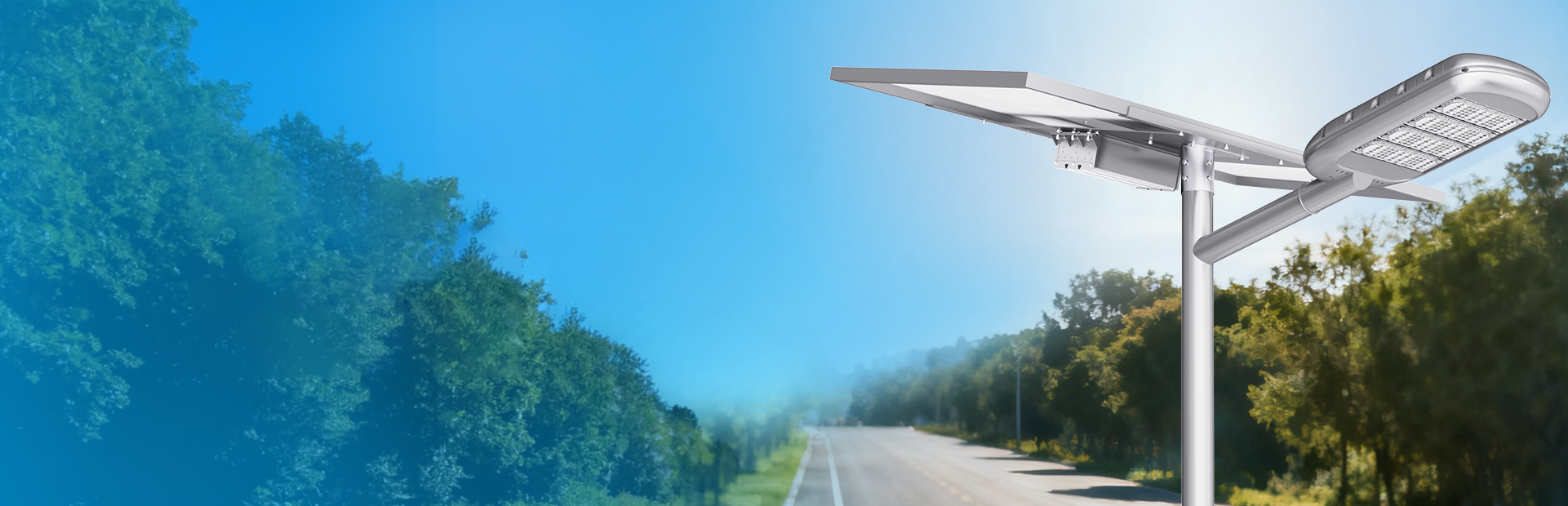

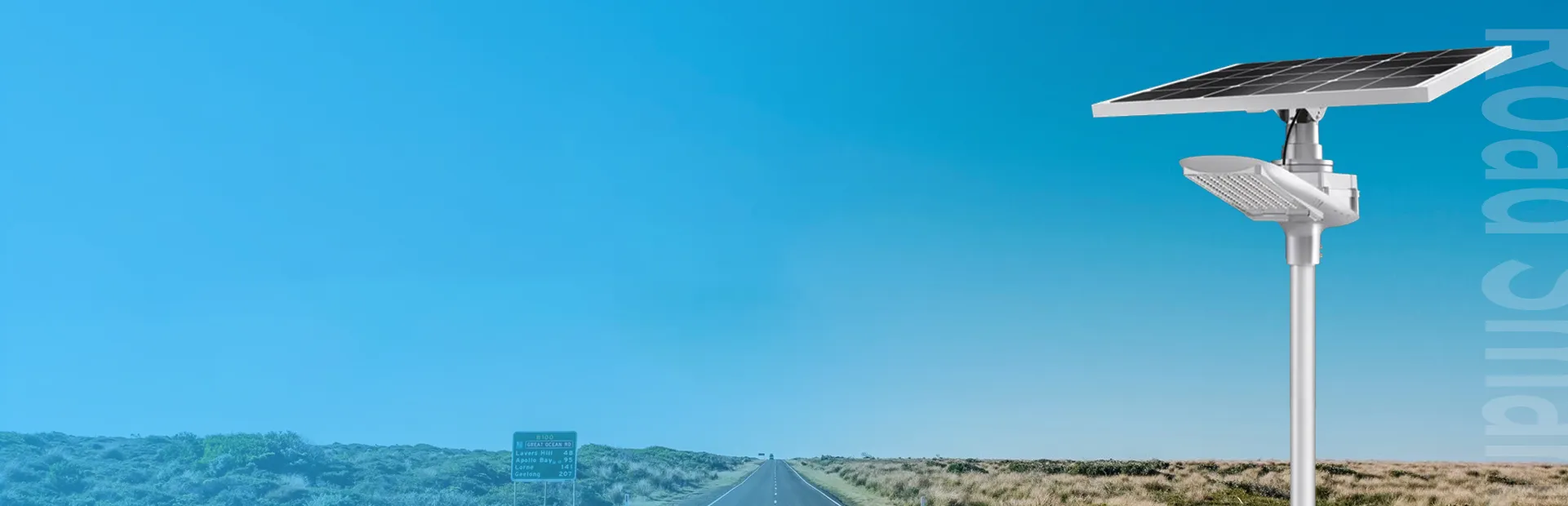

All-In-Two Solar Street Light

  1. Flexible panel mounting:Adjustable tilt angles for maximum sun captureLarger PV modules supported:Higher power for longer backup Optimized for low sun/high latitude regions:More efficient energy harvestEasy maintenance: Panel and lamp head can be serviced independently

Get a Free Lighting Simulation



INTEGRATED ALL IN TWO SOLAR STREET LIGHT SPECIFICATION

ProductTypeLampLED qtySolar panelLiFePO4 Lithium batteryMounting heightWarranty
Solar Sailing LightⅡRS-SL80P30W
4100-4300LM
140pcs6V/60W192WH6-7m/¢60mm3years
RS-SL100P40W
6000-6300Lm
140pcs18V/80W256WH7-8m/¢60mm3years

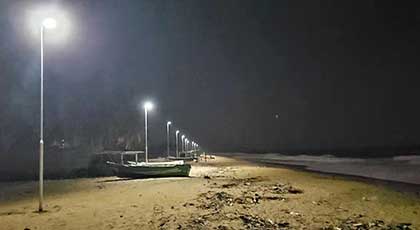

RS-SL120P50W
6800-7200LM
140pcs18V/80W320WH7-8m/¢60mm3years
RS-SL120-A60W
8500-9000LM
140pcs18V/100W384WH8-10m/¢60mm3years
Solar Sailing Light ⅢRS-SL200P80W
11900-12600LM
140pcs18V/120W512WH8-10m/¢76mm3years
RS-SL300P100W
13600-14400LM
140pcs18V/150W576WH9-10m/¢76mm3years

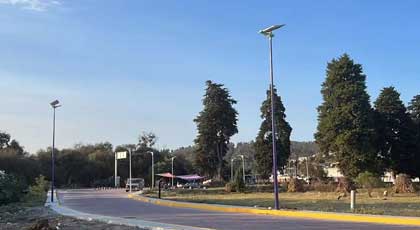

Solar Flyhorse LightRS-FH100

30W

5800-6100LM

150pcs18V/100W380WH7-8m/¢76mm3years
RS-FH120

40W

7500-7700LM

150pcs18V/120W460WH7-8m/¢76mm3years
RS-FH150

50W

9100-9300LM

150pcs18V/150W610WH8-10m/¢76mm3years
Solar Moon LightSC-ML-R4012W
1500-1800LM
150pcs40W144WH3-5m/¢60mm2years


All In Two Solar Street Light Project Calculator

Road Parameters

Additional Settings

Your Project Solution

Recommended number of lighting fixtures:
Recommended Power:
Lithium Battery Capacity:
PV Solar Panel Power:
Recommended Mounting Method:
Recommended Installation Height:
Recommended Installation Distance:
Estimated Illumination Flux:
Recommended Products:


* Calculations are based on industry standard data and are for reference only. Actual results may vary depending on specific environmental conditions and configurations. Please contact us for a detailed analysis tailored to your needs.

All-in-One vs All-in-Two Solar Street Light

Choose the right solution based on your project needs, site conditions, and maintenance requirements.

All-in-One Solar Street Light

Easy & Fast Installation
All components integrated into one unit, no wiring needed, just mount on the pole.


Rotating Angle Design
The illumination area and angle of light can be adjusted reasonablyaccording to the width of the road.


Patent Bat-wing Lens
Patent design Bat-wing with polarized lens, lighting angle 150°*70°,creates broader lighting area, more uniform and comfortable.

IPC 5.0 Technology
The high-precision 5.0 version intelligent power control technology,Al intelligently judges the recent weather conditions and rationallyplans the discharge power, making rainy days last longer..

Best For
Various scenes in low-latitude overseas locations, including roads, tourist attractions, factories, squares, and highways.

All-in-Two Solar Street Light

High Efficiency LED Chips
Using high efficiency 140pcs of 5050 LED chips, optimizedbrightness, single lumen value>190lm/w,with the aluminum chipbase makes excellent heat dissipation.

Intelligent Temperature Control
Automatically Switch off function by software at temperature limit toprotect battery from long time high temperature working. Heating upfunction to protect battery at Low temperature atmosphere. Extendlonger lifetime of the whole system.

Flexible Angle Rotation
The solar panels can rotate vertically and horizontally at multiple angles to meet installation requirements for different dimensions and road types.

4-Pin Patented Interface
Power-off power consumption in the μA range ensures worry-free long-term storage and transportation..

Best For
New rural roads, tourist attractions, parks, squares, residential areas, urban slow lanes/narrow lanes, etc..

Get Your Free Solar Lighting Solution Quote

Engineering Support for EPC & Municipal Projects

IES/LDT Files for Lighting Simulation

Photometric files are available to support lighting simulation, pole spacing validation, and light distribution analysis during your project evaluation phase.

Custom Layout & Design Input Support

Share your project details (road width, pole height, pole spacing, target lux, daily runtime, and location), and we’ll recommend the optimal all-in-two series and configuration tailored to your needs.

Configuration-Specific Technical Documentation

We provide full datasheets, technical specifications, and project-oriented selection guidance based on the exact series and application you’re evaluating.

RFQ & Tender Preparation Support

Our team helps contractors, consultants, municipalities, and distributors review the right model before RFQ submission, ensuring the selected product perfectly matches your real lighting requirements.

Request a Professional Solution

Please submit your project details on the right. Our team will provide a professional solution and quote via email within 24 hours.

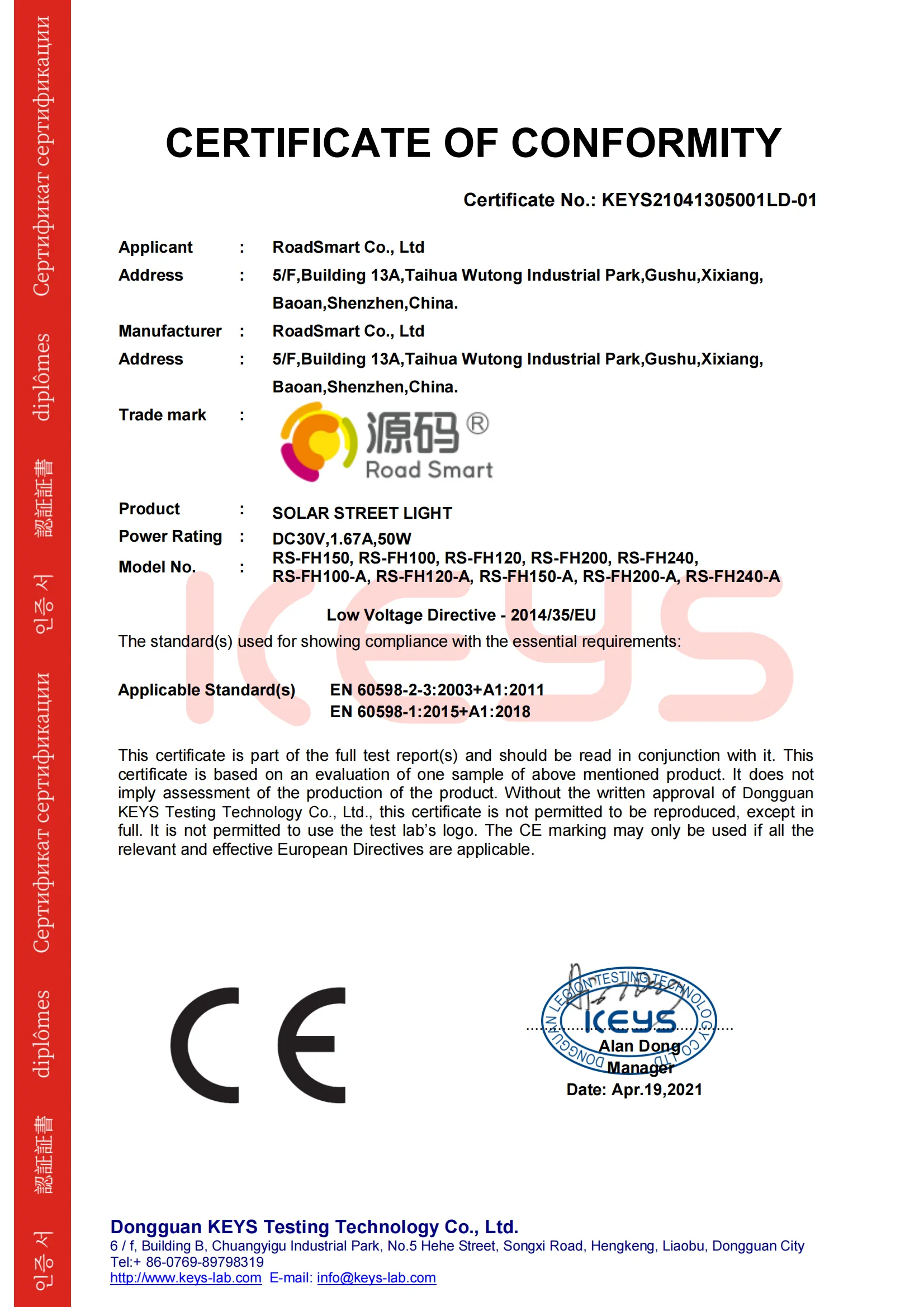

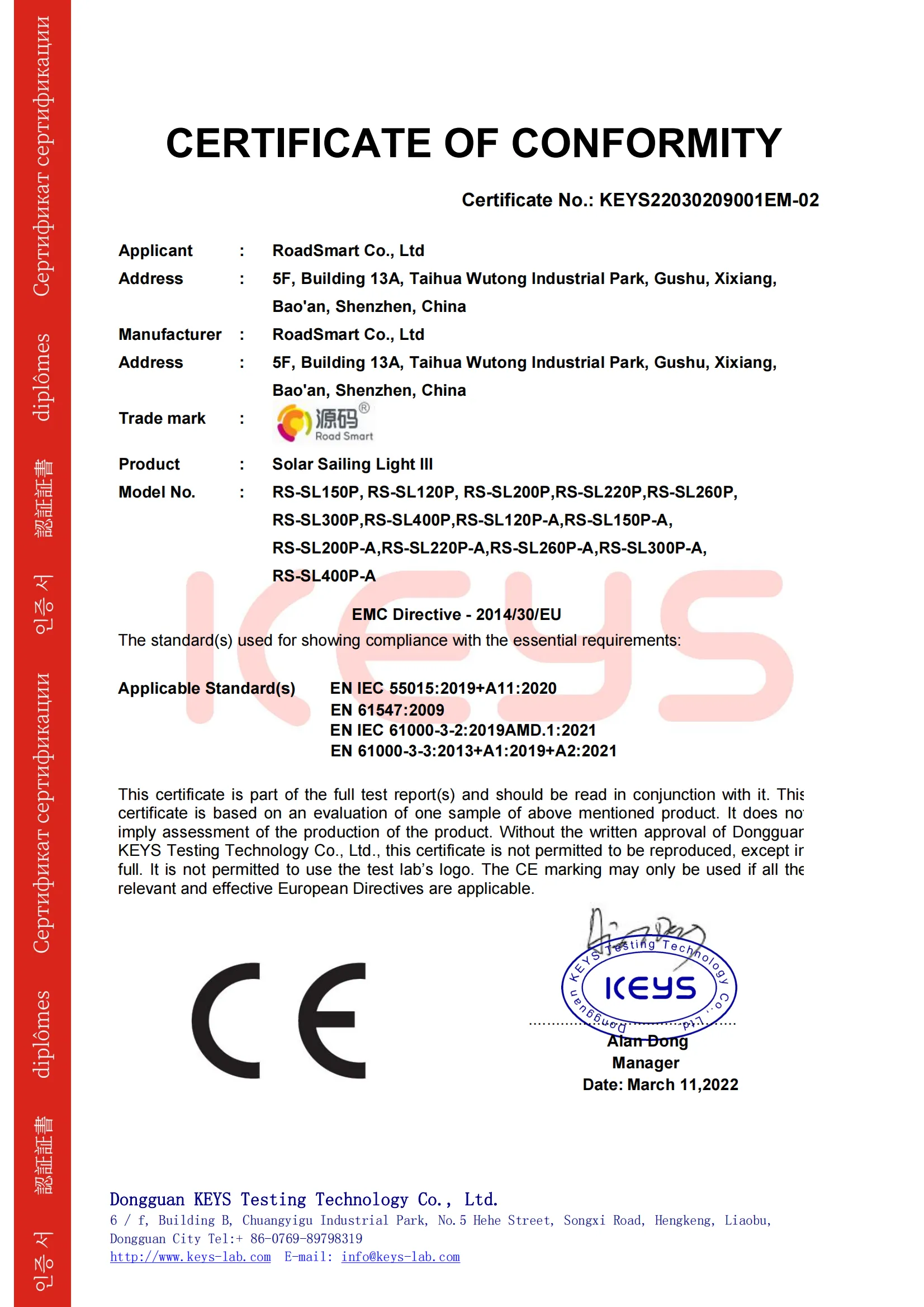

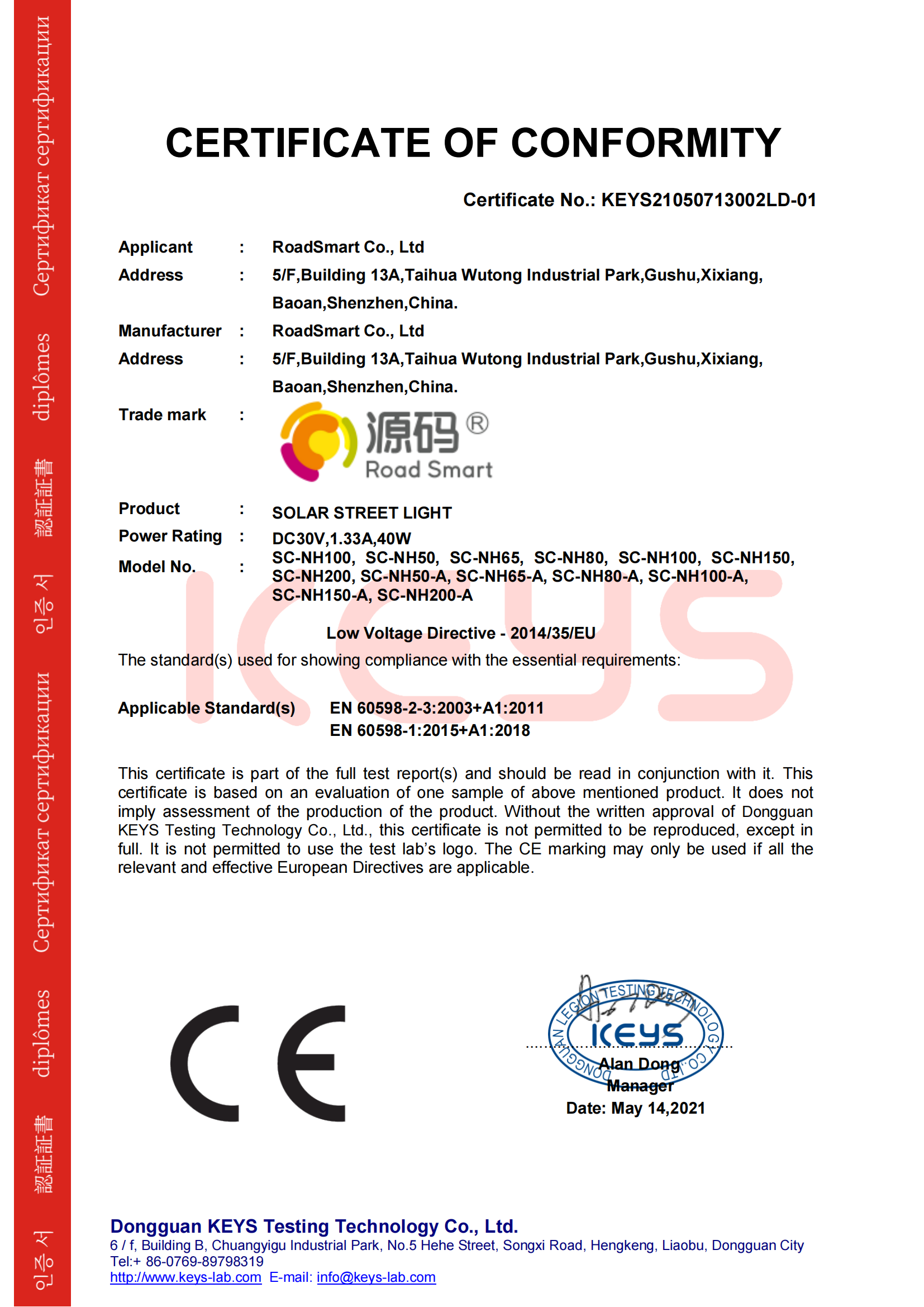

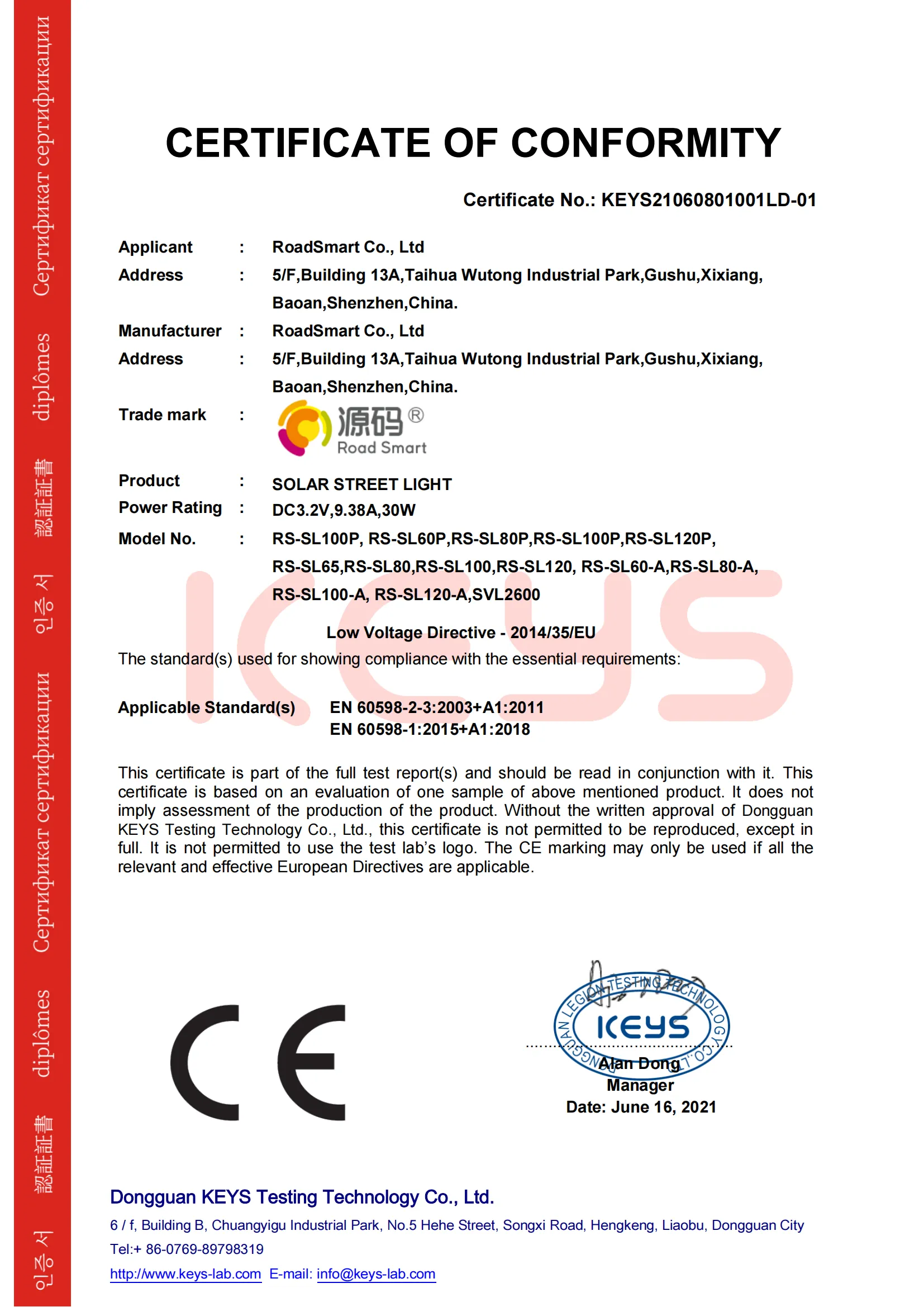

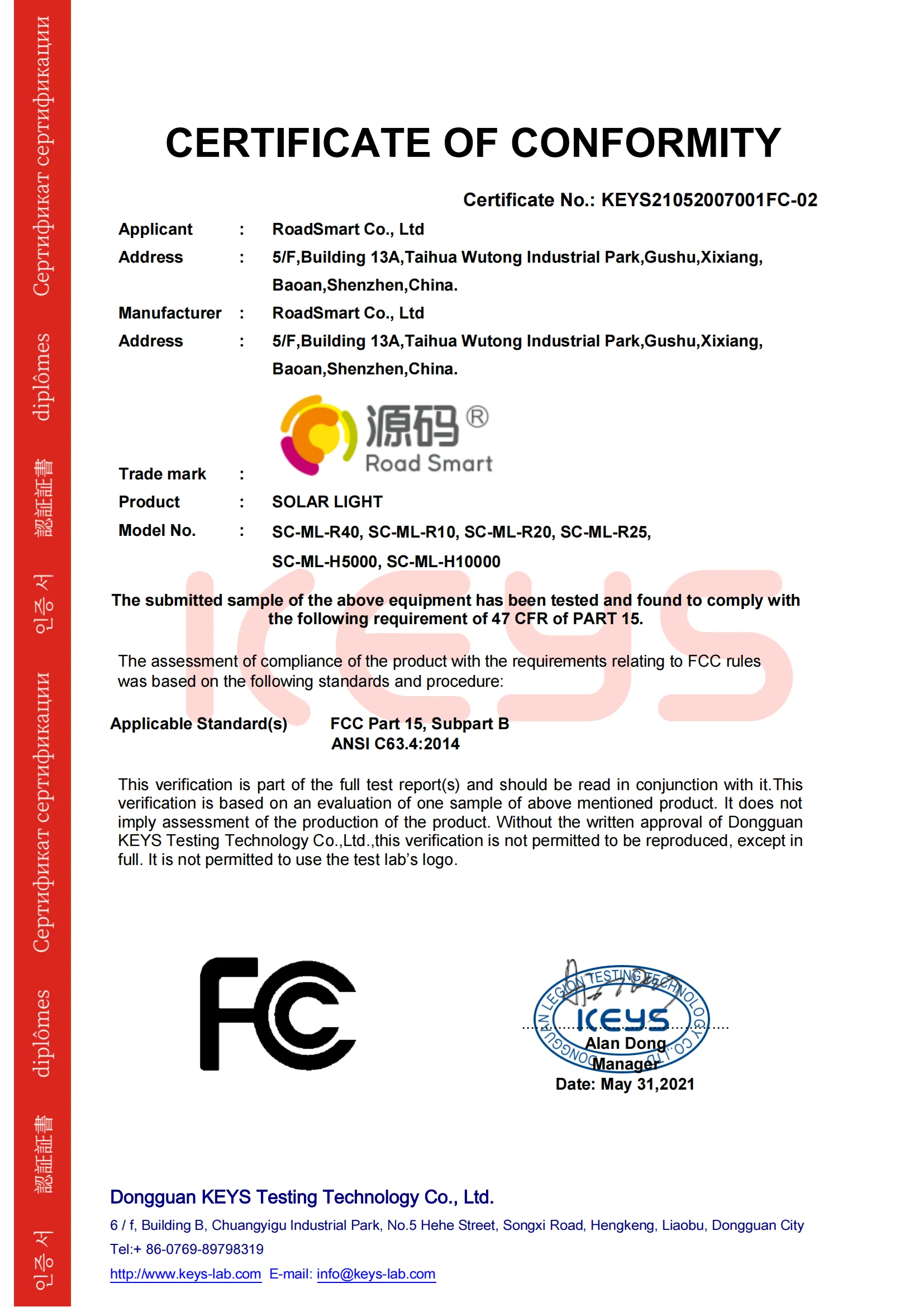

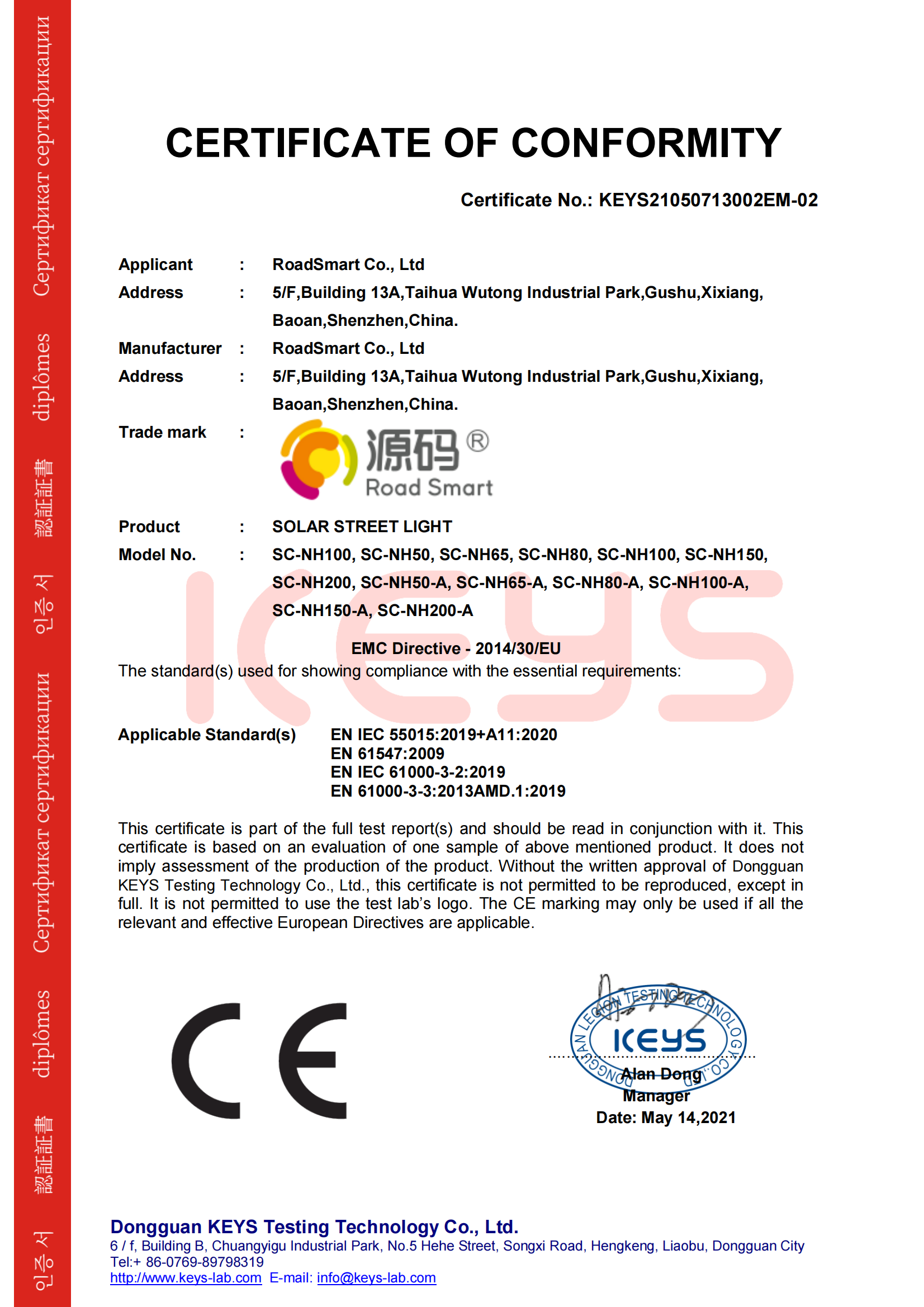

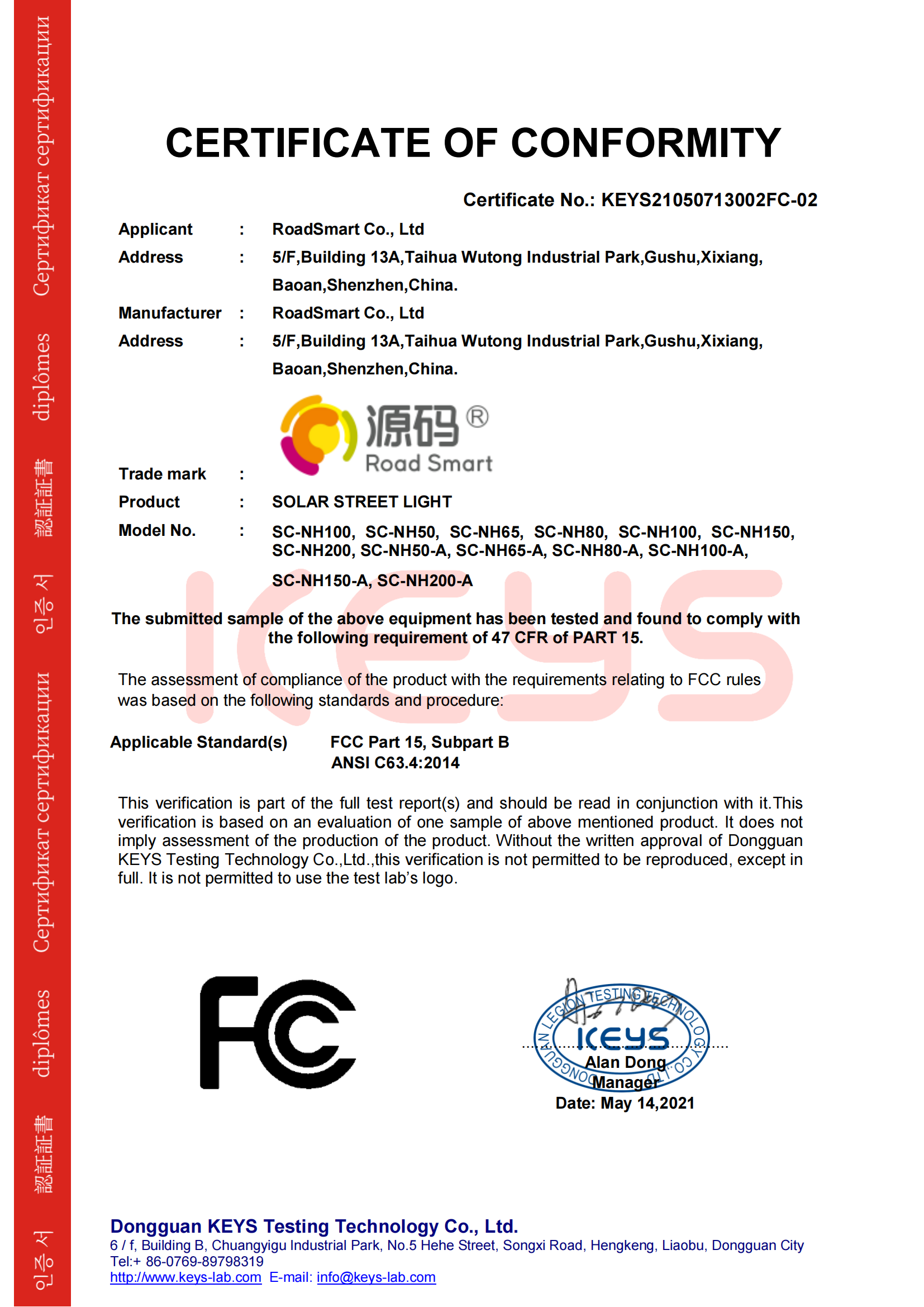

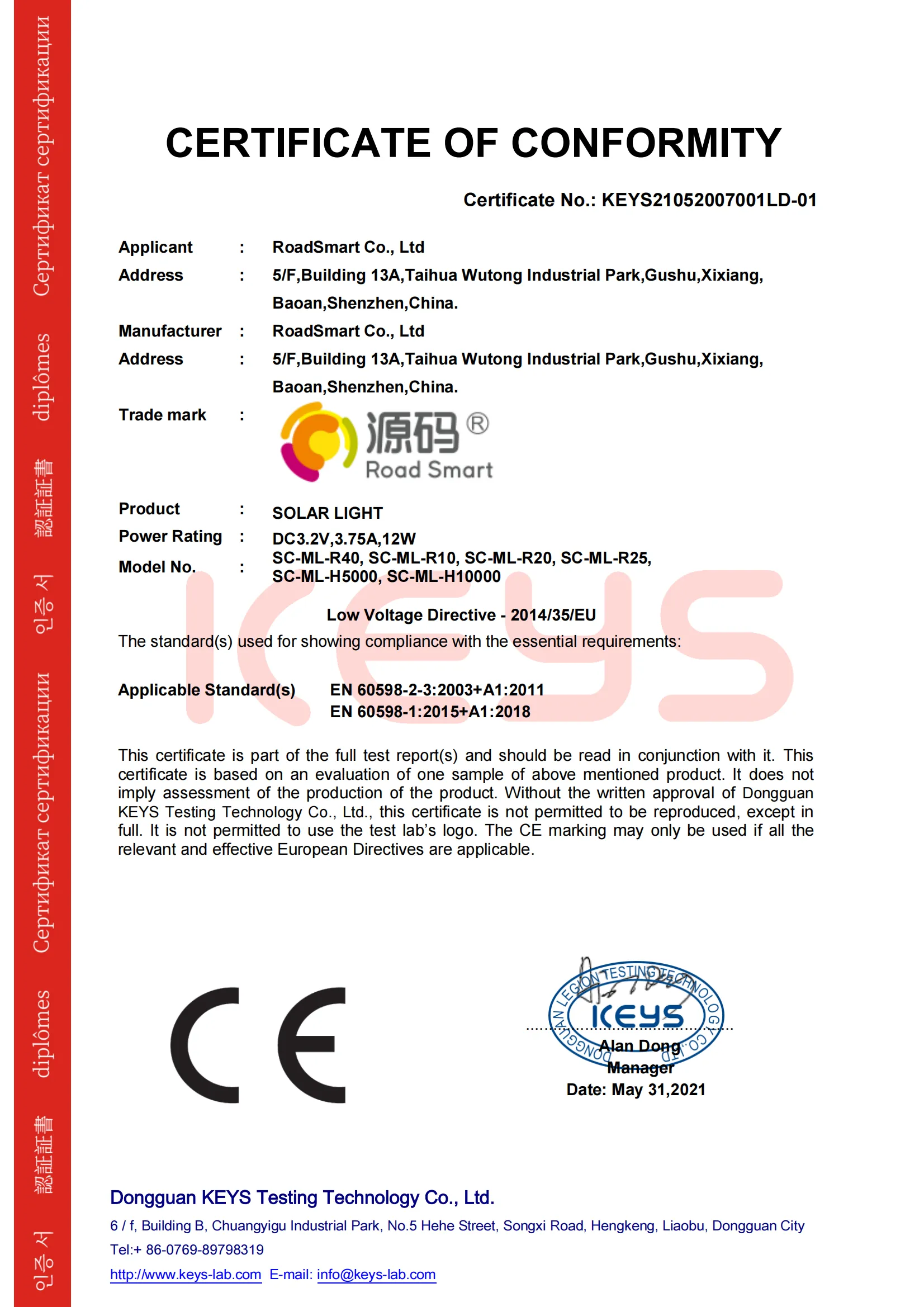

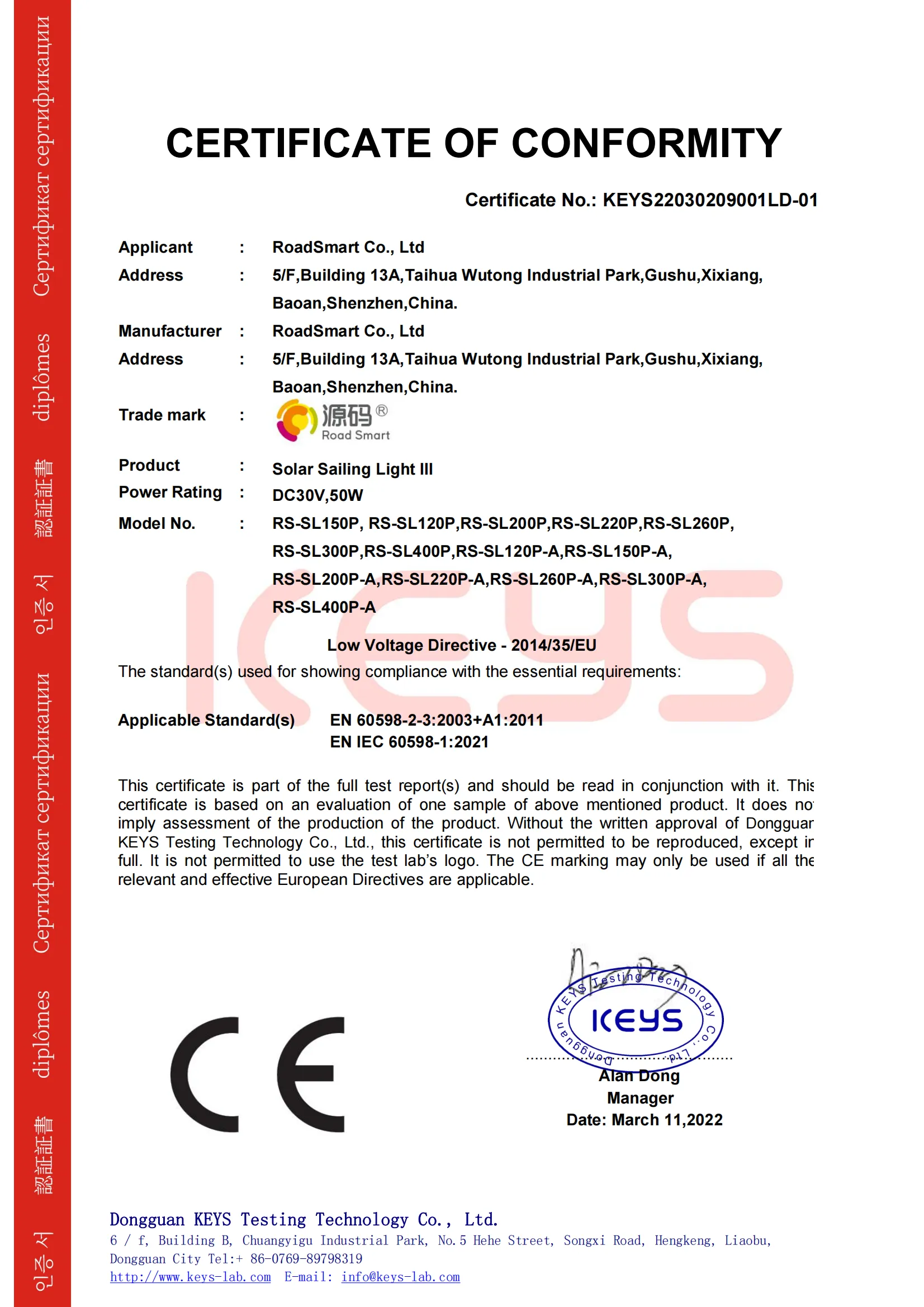

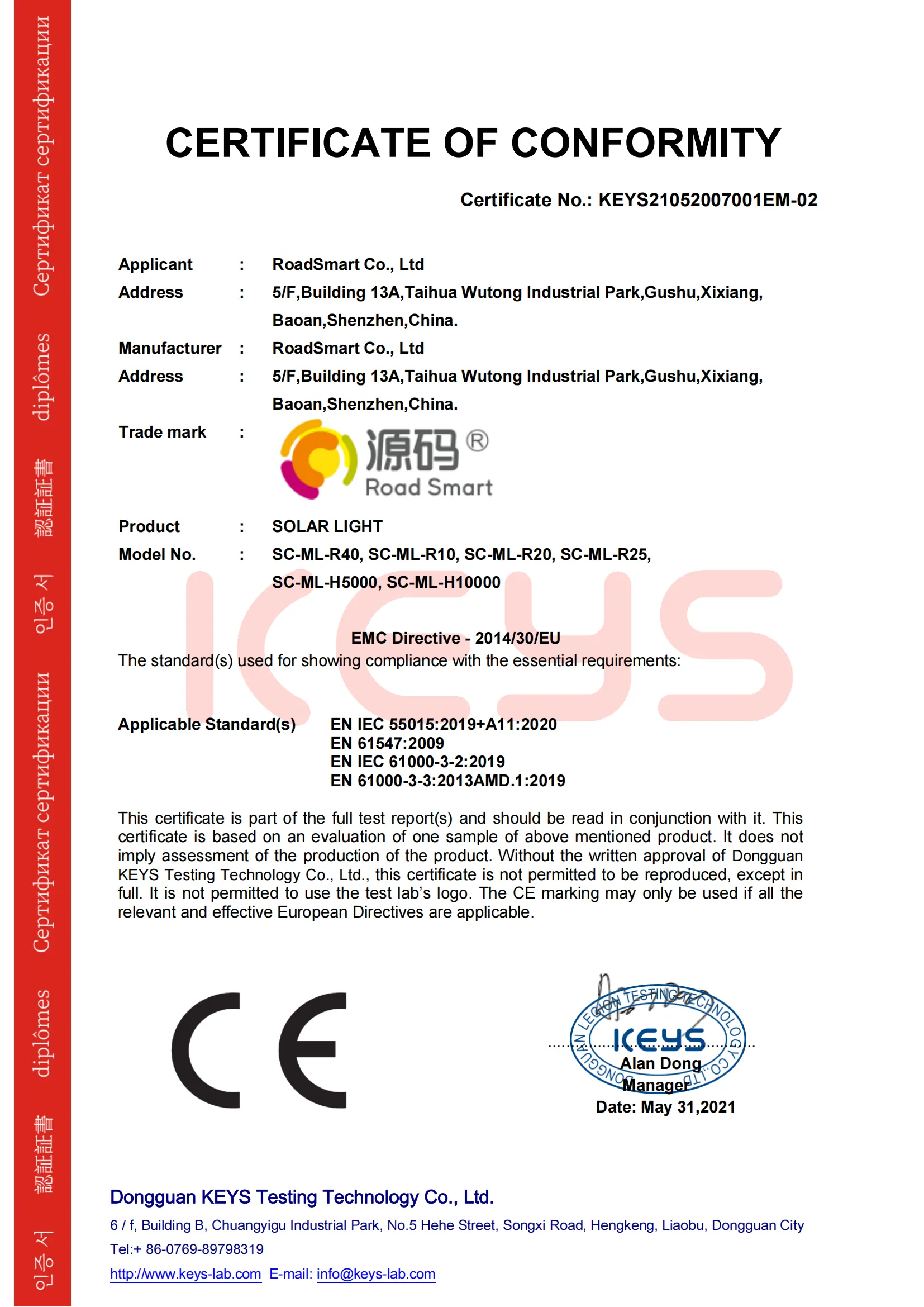

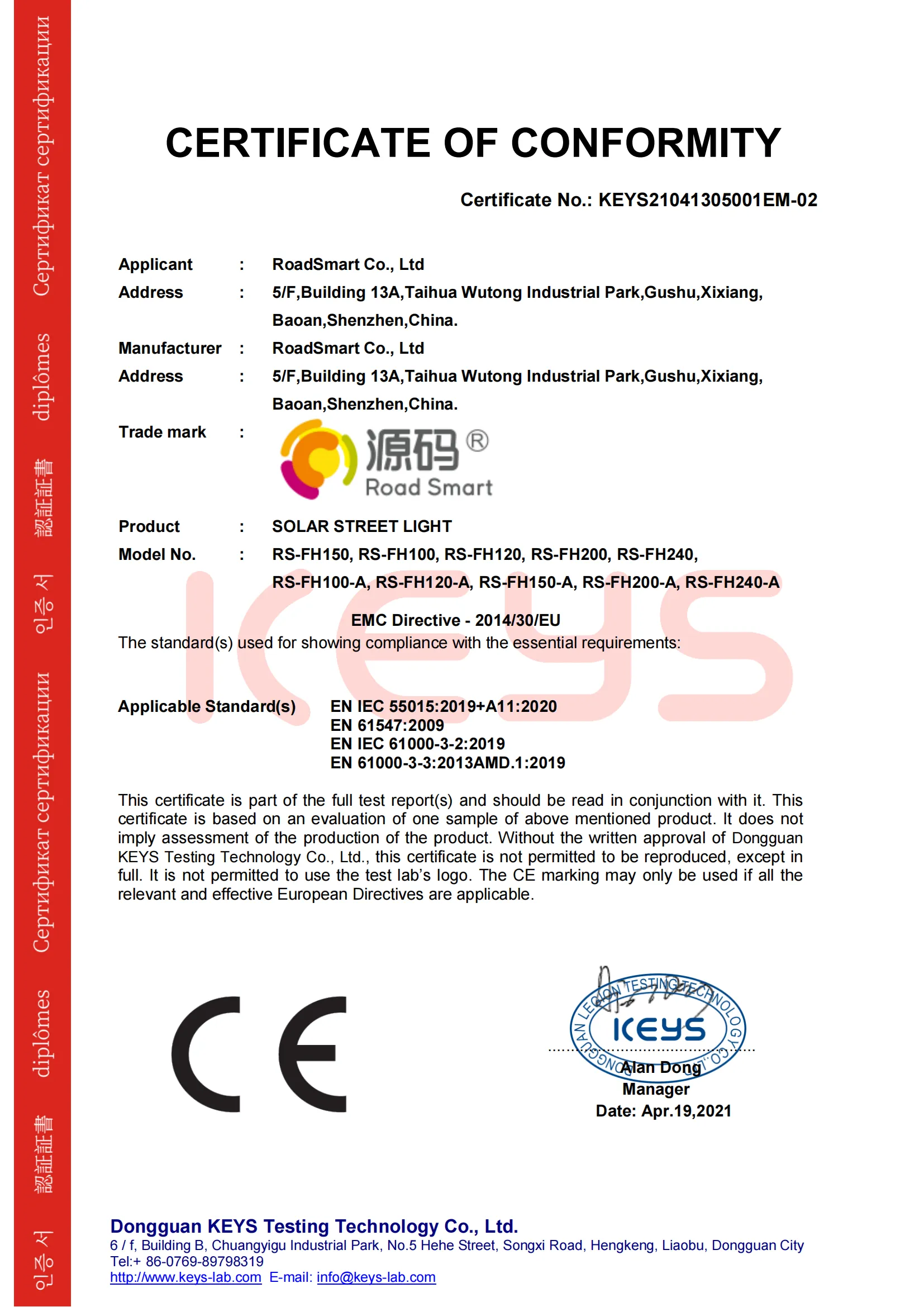

CE

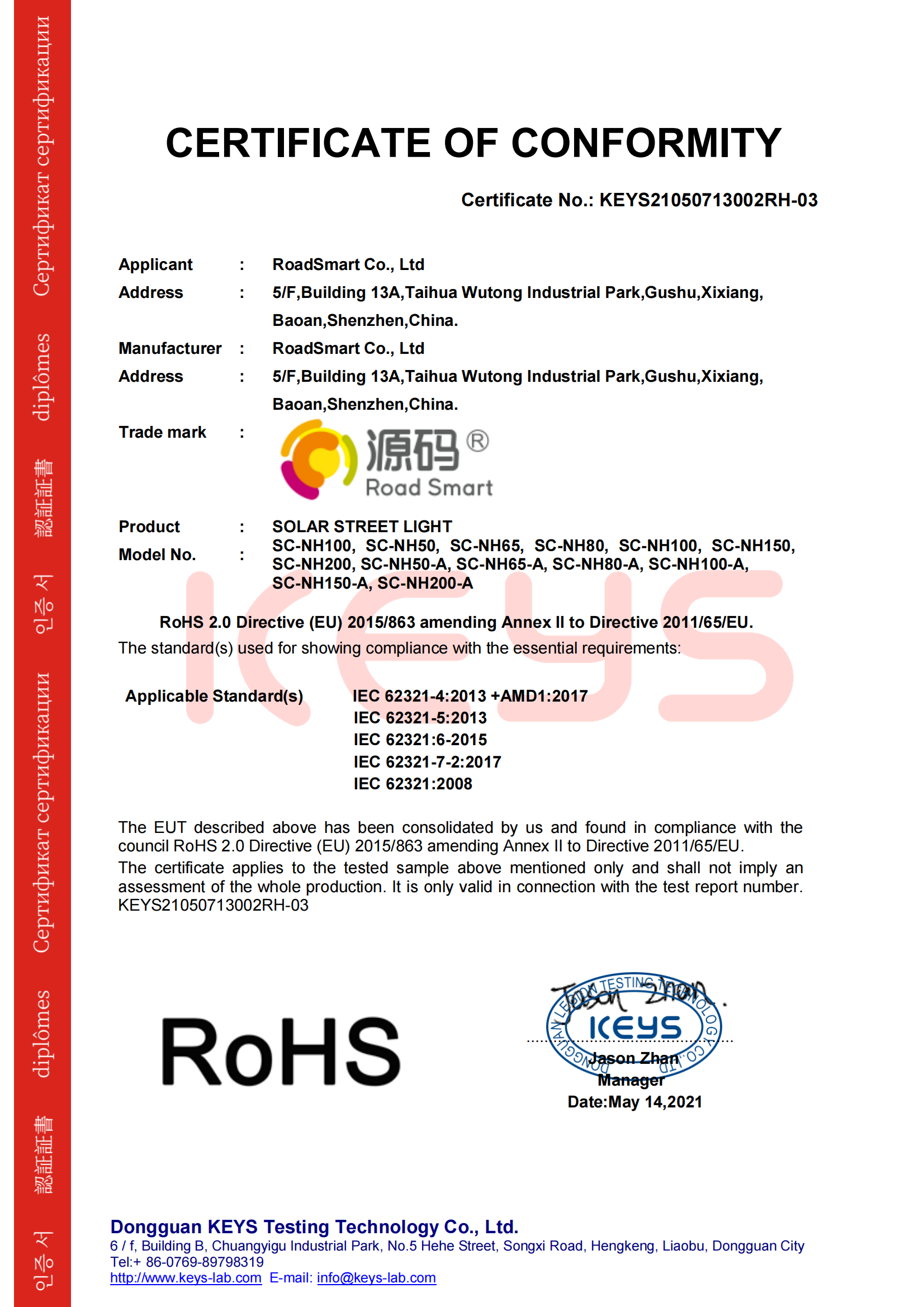

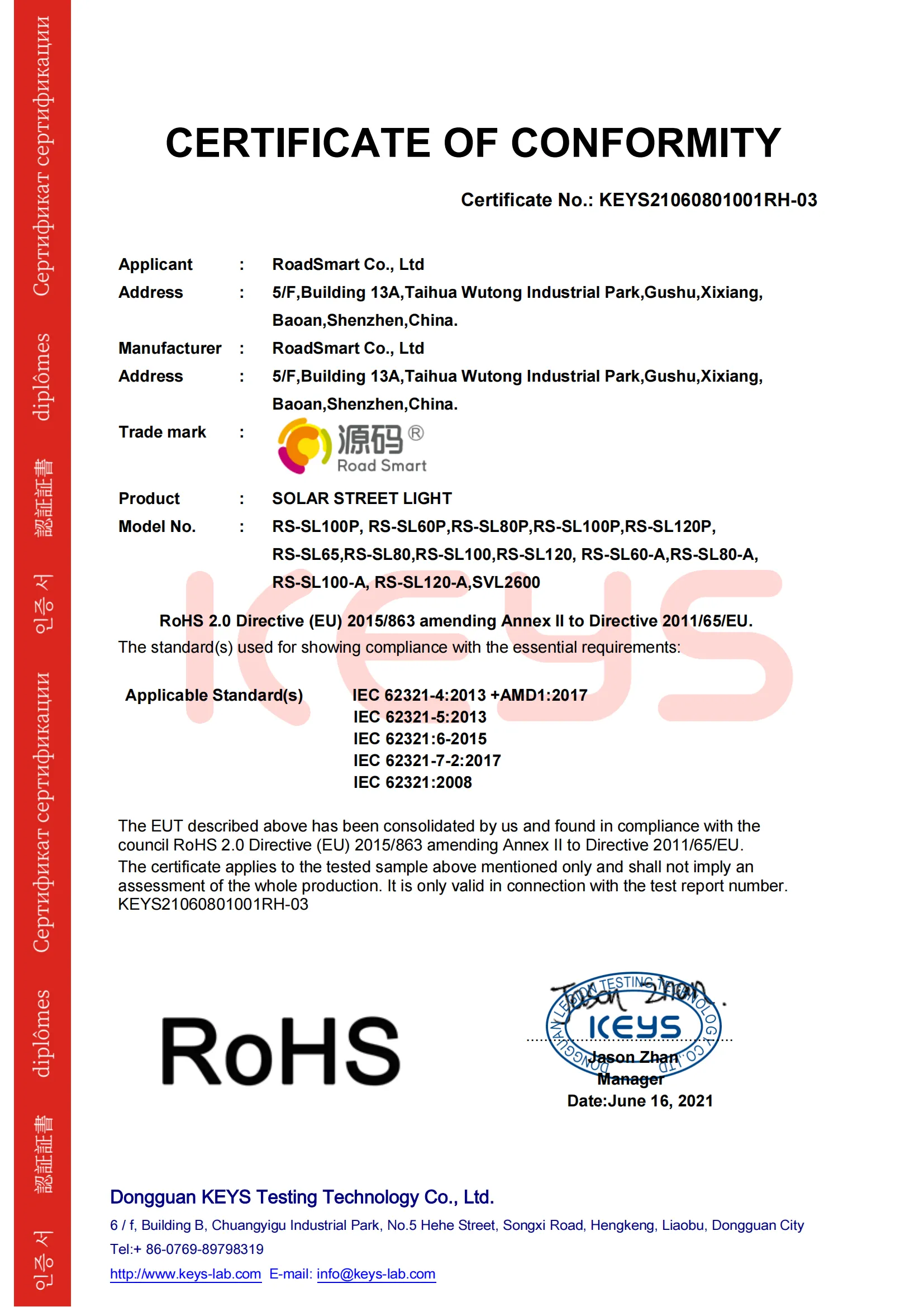

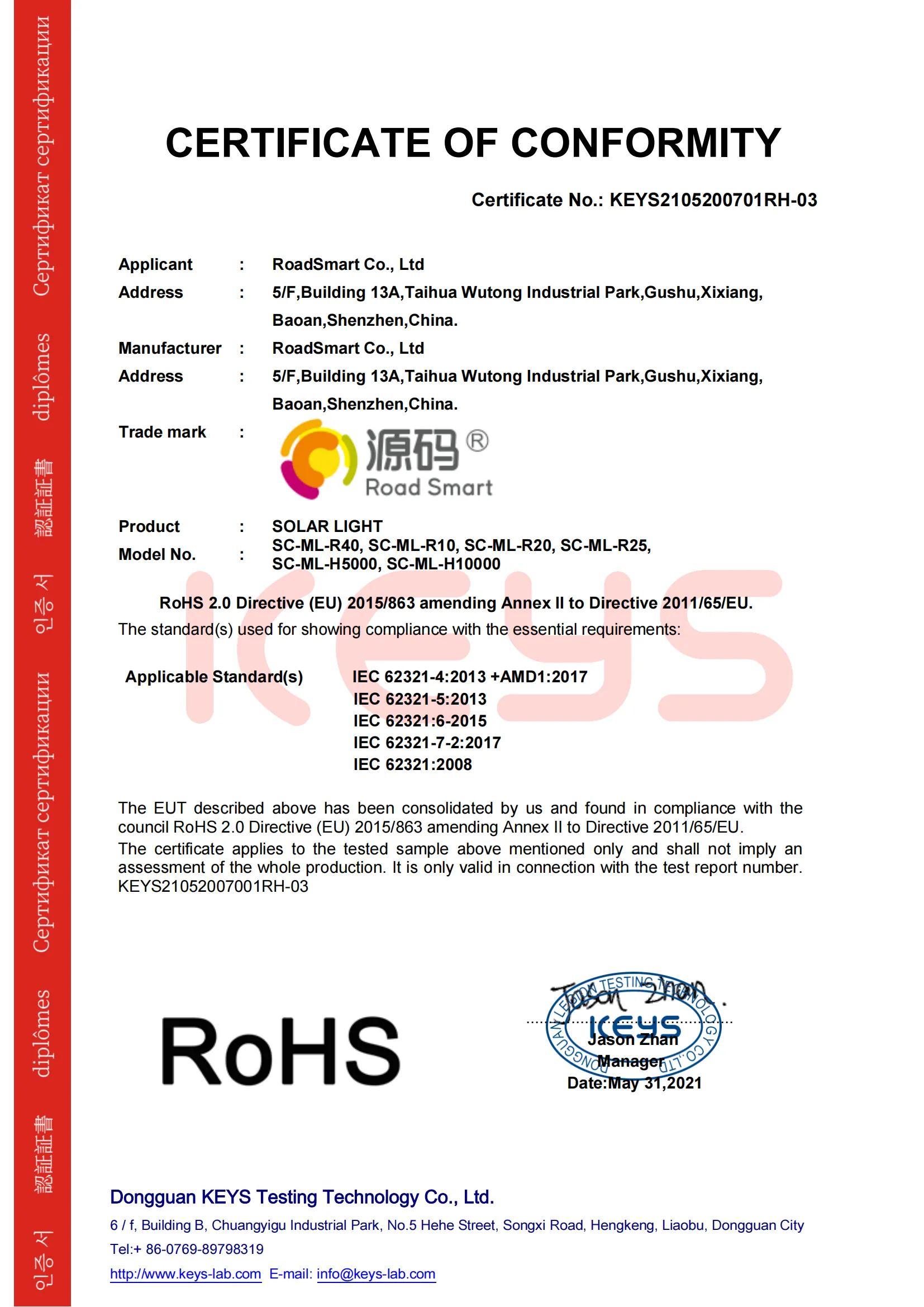

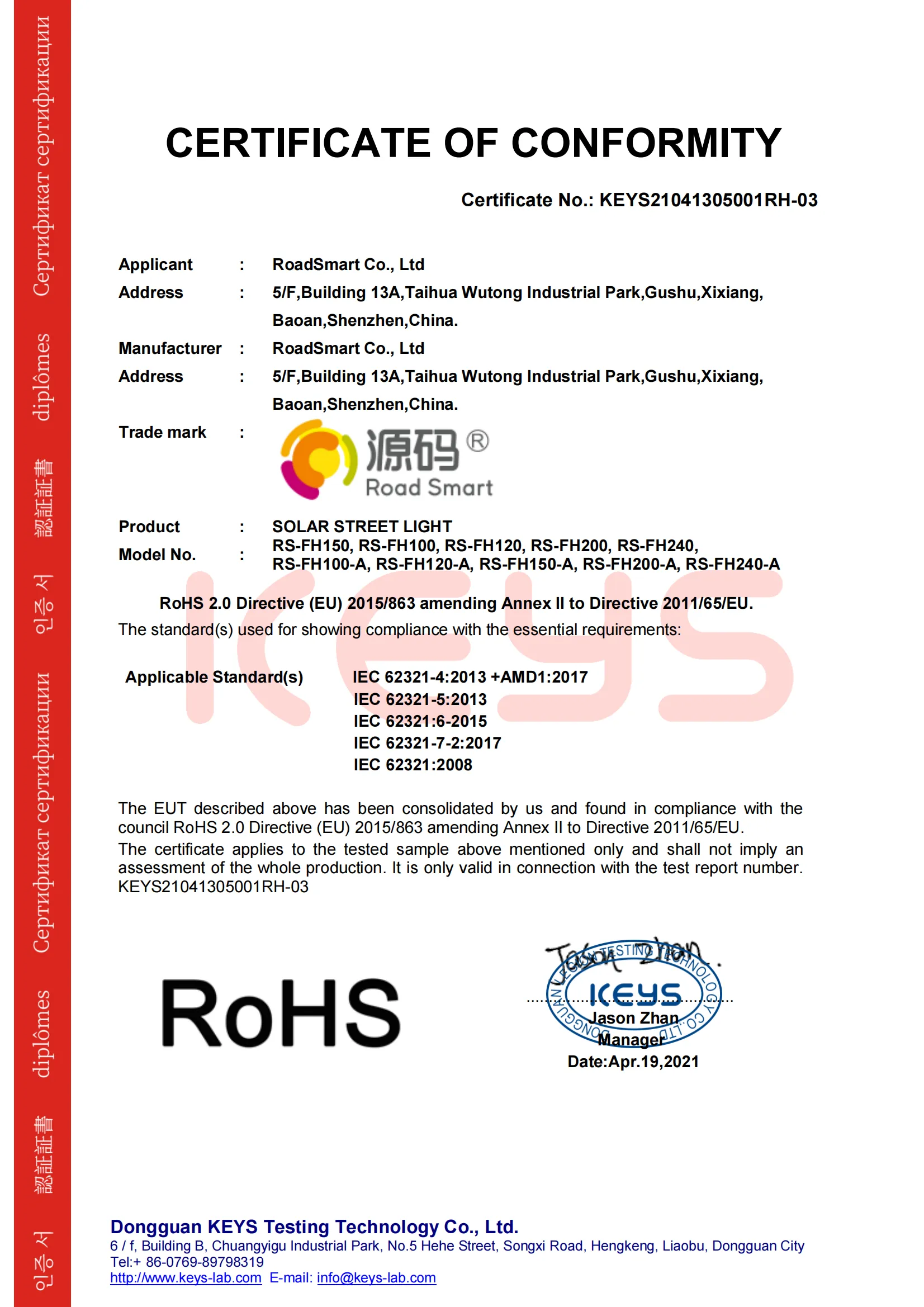

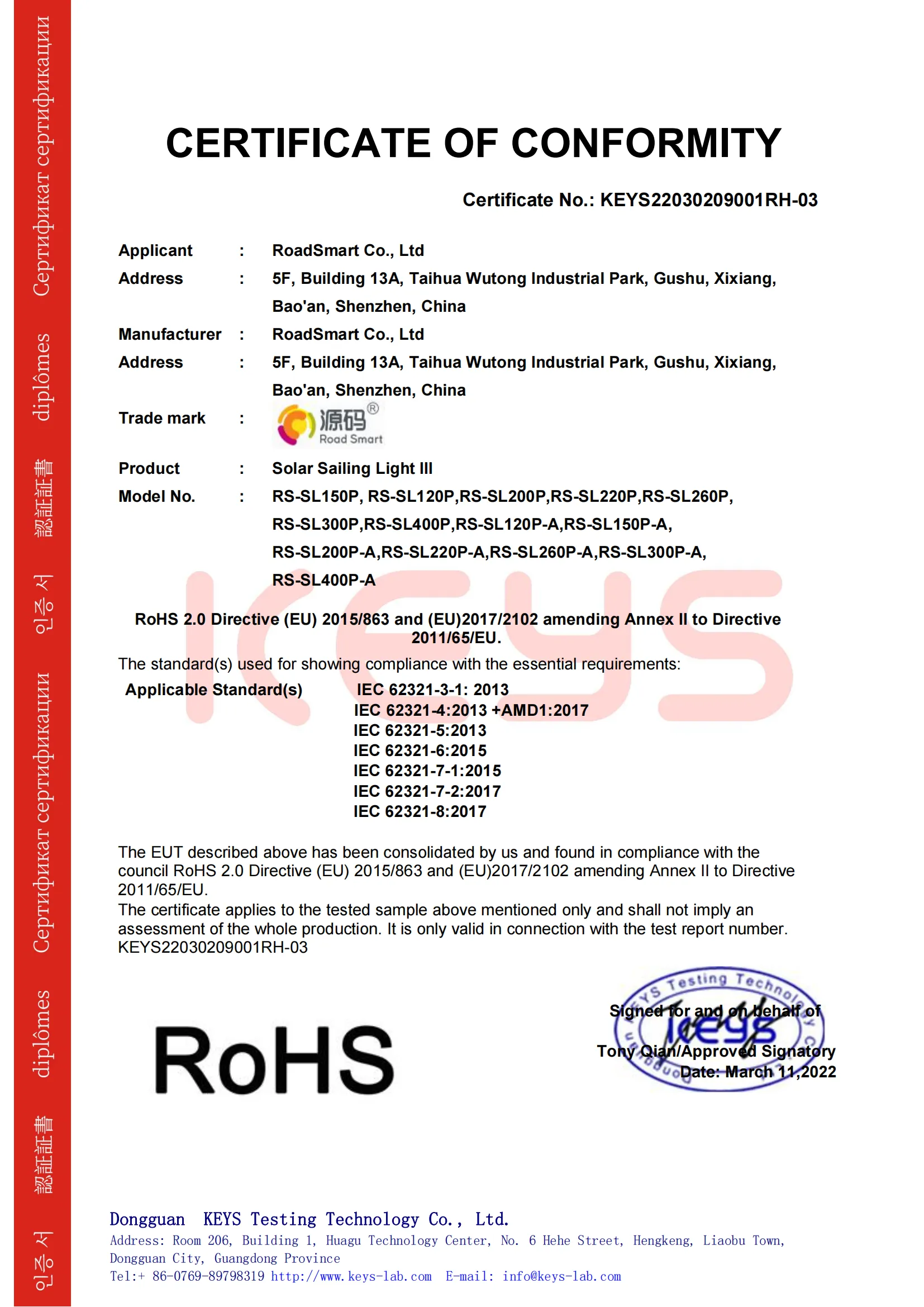

RoHS

IP66

IEC

Please enter a valid Name

    Please enter a valid phone number

    Please enter a valid Company

    Please enter a valid Email

    Please enter a valid Country

    Please enter a valid Message
    Please select a valid file (Max 5MB)

    I have read and understood Roadsmart'sPrivacy Policy.

    Please agree to the privacy agreement



    Integrated All In Two Solar Street Light FAQs for Projects


    Q: How long does an integrated all in two solar street light last?

    A: Most high-quality integrated solar street lights last 5 to 10 years. The LED chips can exceed 50,000 hours, while the LiFePO4 batteries (used in RoadSmart products) typically offer 2,000+ charge cycles, lasting 5–8 years. The solar panels have the longest lifespan, often exceeding 20 years.


    Q: What are the advantages of "All-in-Two" vs. "All-in-One" solar street lights?

    A: The "two-in-one" design integrates the battery and light source into a single unit while maintaining the independence of the solar panel. This allows for adjustable angles of the solar panel, maximizing sunlight exposure and energy utilization. This results in maximum sunlight absorption in high-latitude regions, offering higher charging efficiency and simpler installation compared to fixed "all-in-one" units.

    Q: Can integrated all in two solar street light work during 3–5 continuous rainy days?

    A: Yes. Professional-grade integrated lights feature Intelligent Power Management (IPC5.0) and MPPT controllers. It will intelligently detect recent weather conditions,they can maintain lighting for over 5 rainy days even with limited solar harvest.


    Q: How many lumens are needed for light poles over 6 meters high?

    A: For standard residential or park roads over 6 meters (20 feet) high, 4100 to 14000 lumens of light tubes are recommended. For commercial highways, you may need light tubes with up to 10000 lumens. Integrated dual-lamp solar streetlights have high luminous efficacy (e.g., 210 lumens/watt) and can provide better ground illumination without rapidly depleting battery power.



    Business Development Manager

    Intelligent All-in-Two Solar Lighting for Your Streets

    Our solutions combine patented 3.2V MPPT technology, reliable LiFePO4 batteries, and smart motion sensors for hassle-free installation.
