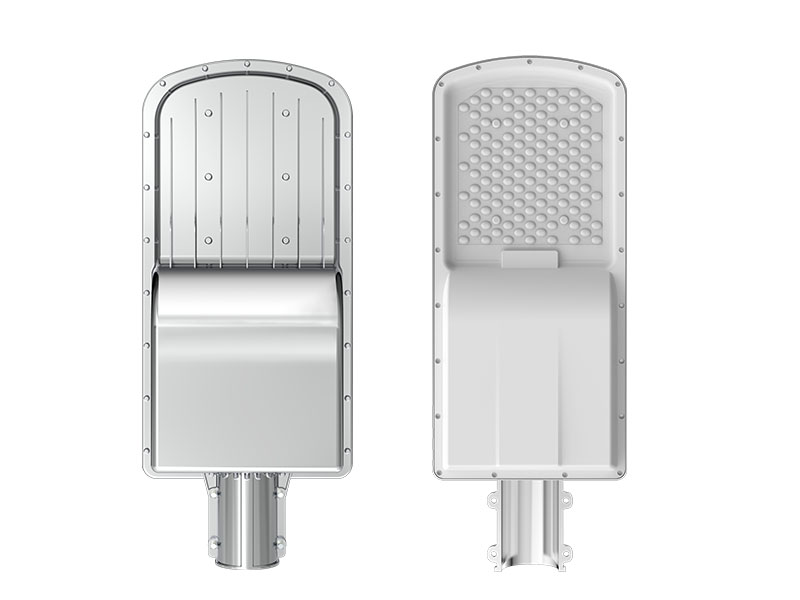

Solar Street Light (YY series)
Solar Star Light HS

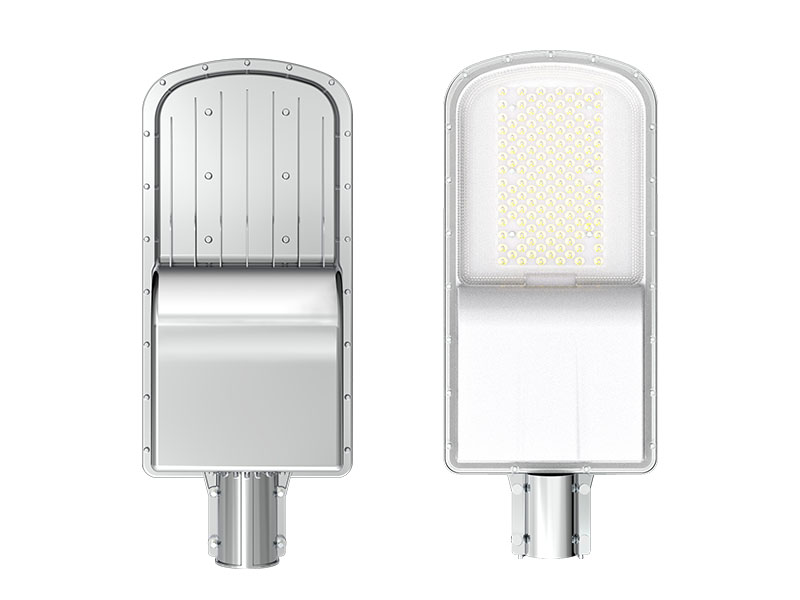

Solar Street Light (YH series)

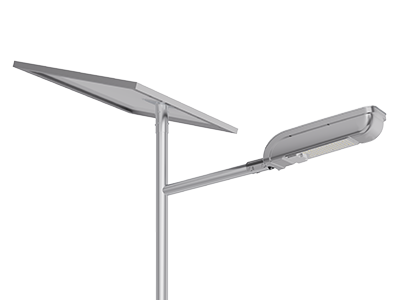

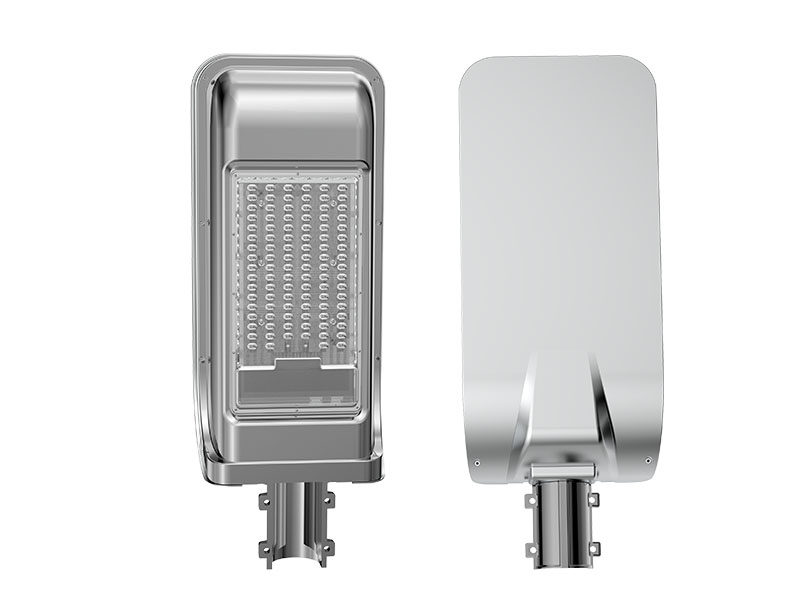

Solar Street Light (YP series)

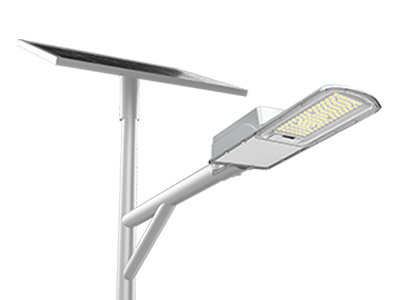

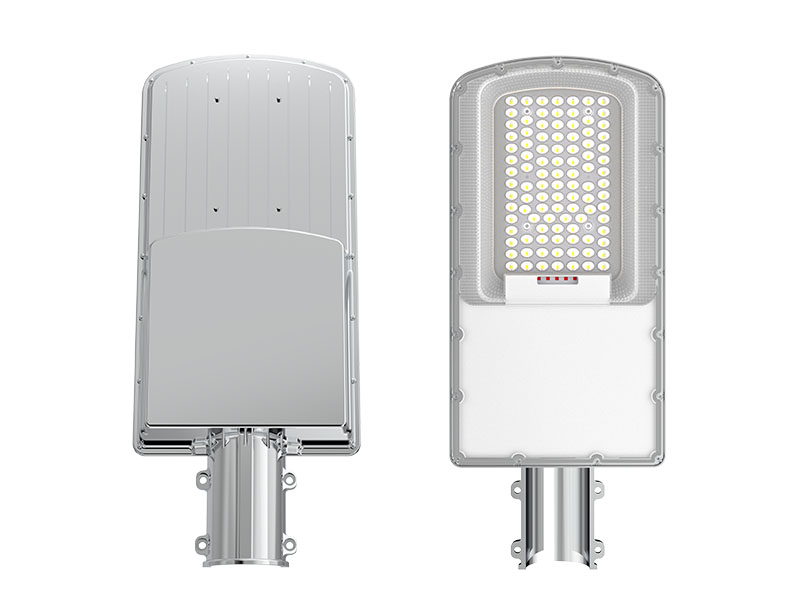

Solar Street Light (YL series) SPLIT SOLAR STREET LIGHT SPECIFICATION
| Product | Type | Lamp | LED qty | Solar panel | LiFePO4 Lithium battery | Mounting height | Warranty |
| YL series | YL-60P | 15W 2500LM | 100pcs | 5V/60W | 128WH/40AH | 3-5m/￠60mm | 2years |
| YYseries | YY-80 | 20W 3400LM | 120pcs | 5V/60W | 192WH/60AH | 5-6m/￠60mm | 3years |
| YY-100 | 30W 4800LM | 120pcs | 5V/80W | 256WH/80AH | 7-8m/￠60mm | 3years | |
| YHseries | YH-100-M | 40W 6400LM | 140pcs | 18V/100W | 320WH/100AH | 7-8m/￠60mm | 3years |
| YH-120-M | 50W 8000LM | 140pcs | 18V/120W | 384WH/120AH | 8-10m/￠60mm | 3years | |
| YPseries | YP-150 | 60W 9600LM | 140pcs | 18V/150W | 512WH/160AH | 8-10m/￠60mm | 3years |
| YP-200-A | 70W 12800LM | 140pcs | 18V/150W | 640WH/200AH | 8-10m/￠60mm | 3years | |
| YP-200 | 70W 12800LM | 140pcs | 18V/200W | 640WH/200AH | 8-10m/￠60mm | 3years | |
| HS series | RS-HS300 | 100W 16000LM | 400pcs | 18V/300W | 1536WH/480AH | 8-10m/￠60mm | 3years |
| RS-HS400 | 130W 20800LM | 400pcs | 18V/2*200W | 1920WH/600AH | 8-12m/￠60mm | 3years |
Core Advantages of Split Type Solar Street Light
Flexible layouts
Split solar street light features independent solar panel orientation and tilt, maximizing solar irradiance, mitigating shading from trees/buildings, and sustaining energy yield across all latitudes and seasons – a key advantage over all-in-one solar street light.
Photometric Compliance
Decoupling the panel from the luminaire in our split solar street light allows custom mounting height and spacing, ensuring uniform, glare-free lighting that meets international road lighting standards for highways and urban streets.
Lifecycle Cost
Modular design of our smart split solar street light enables fast access to batteries and controllers, shortening MTTR, reducing downtime, and lowering the total cost of ownership for large-scale government and engineering projects.
Certifications & Quality Assurance
Certified Manufacturing Excellence
What Our Client Says
We chose RoadSmart's split solar street light for our rural road lighting project. Their OEM customization service perfectly met our brightness requirements (6000LM), and the professional IES files and PVOC certification documents they provided helped us win the government tender smoothly. The logo printing on the lamp body also enhanced our project recognition.
Let's Talk
Quality Commitments for Split Solar Led Street Light
At least 10-Year Lifespan
Core components of our split led solar street light– LiFePO4 battery, solar panel, and MPPT controller – are guaranteed with a 10+ year lifespan, far exceeding industry average standards.
Global Service Network
120+ countries with local partners for our split led solar street lightt – fast on-site technical support, free spare parts consultation, and timely after-sales response for global projects.
Lean Manufacturing
40,000㎡ professional factory with 300,000 sets/year production capacity for split led solar street light – strict QC control, bulk order support, and fast delivery for government tenders and large engineering projects.
Split Led Solar Street Light FAQs
Q: What are the main advantages of split type solar street lights over integrated ones?
Q: Can these split solar lights work in areas with long rainy or cloudy days?
Q: Is the installation of split solar street lights complicated?
Q: What is the typical lifespan of the battery and LED components?
Q: Do your split solar street light meet African import certification requirements?
Q: Can you customize split solar street light for government tenders?
Q: Does your split solar street light have a global after-sales network?
Q: Why is split solar street light cost-effective for remote projects?
