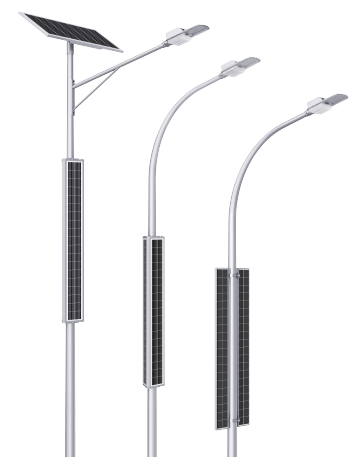

SP Series Vertical Solar Street Light
The SP Series Vertical Solar Street Light is designed for road, parking lot, municipal, and commercial lighting projects. With three-sided vertical solar panels, MPPT control, and an integrated LiFePO4 battery, it supports off-grid lighting while reducing the need for underground cabling. Contractors, EPCs, and project buyers can request a suitable configuration based on their project requirements.
Three-sided vertical solar panels with MPPT control
LiFePO4 battery for off-grid lighting
Customization decorative light strips,panel and light headfor project requirements
SP Series Vertical PV Solar LED Street Light Specifications
The SP240-3 Vertical Solar Street Light is designed for road, parking lot, municipal, and commercial lighting projects. It combines three-sided monocrystalline solar panels, MPPT control, and a 672Wh LiFePO4 battery for off-grid project applications.

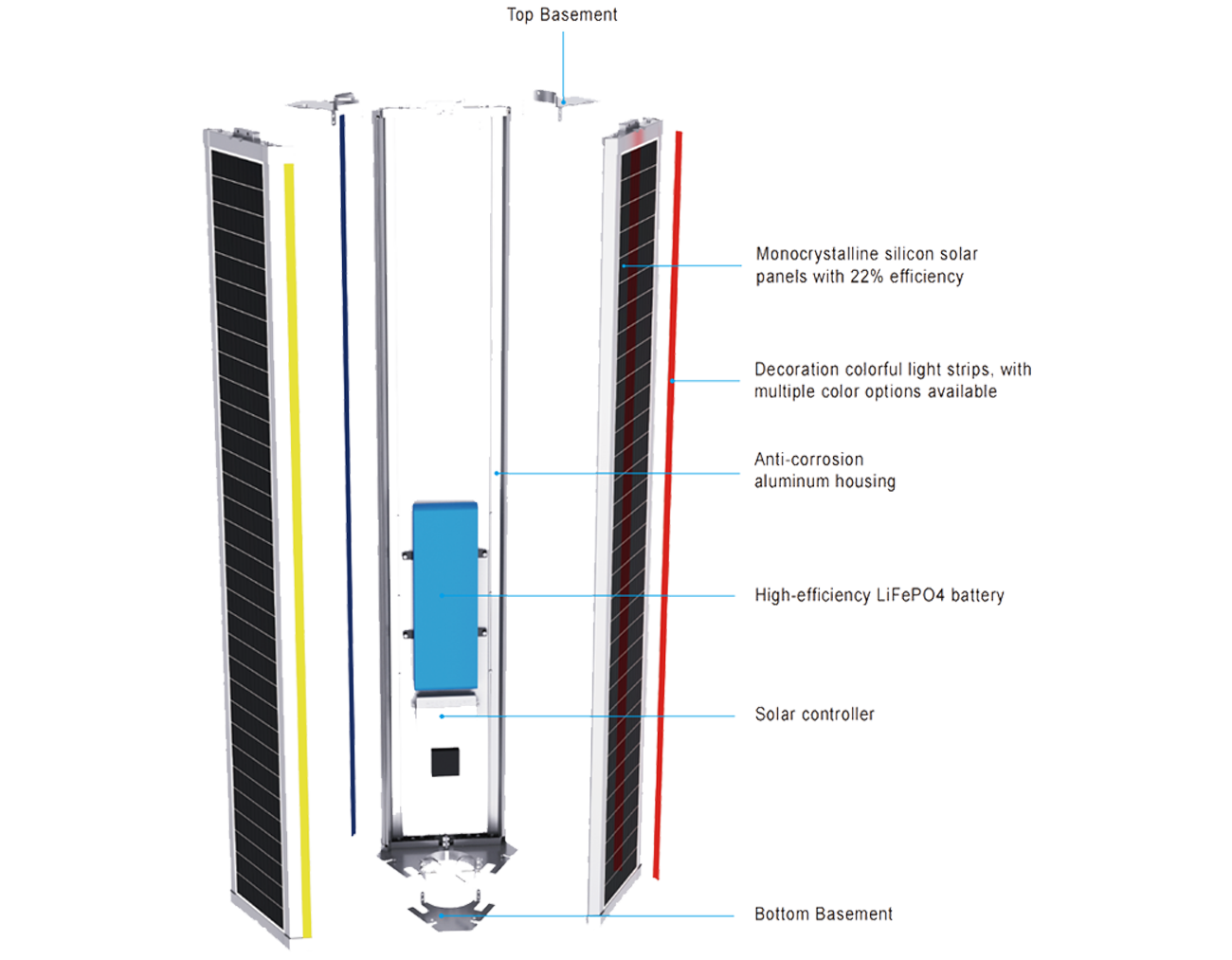

Three-Sided Vertical Solar Panel Design

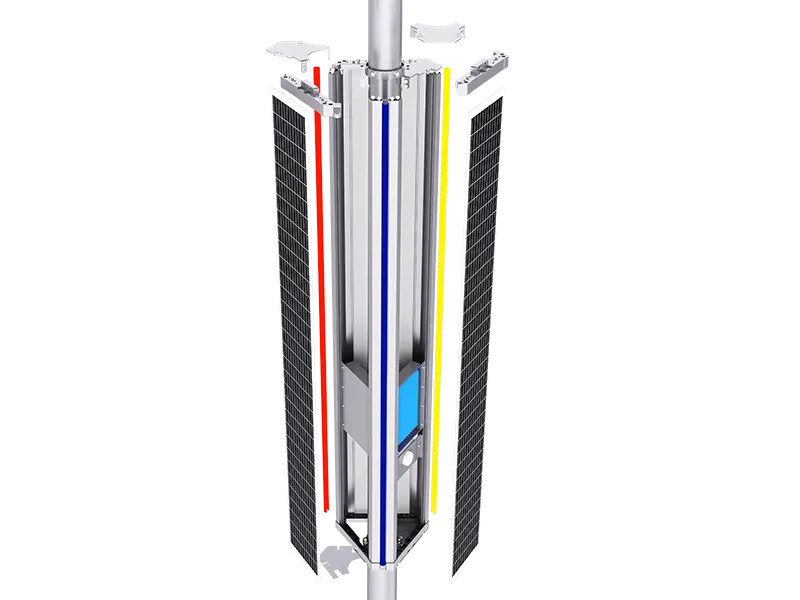

Three solar panels are mounted around the pole to collect sunlight from different directions. The SP Series can be configured for compatible pole retrofit projects based on local solar conditions, lighting mode, and installation requirements.
| Model | SP240-3 |
| LED Luminaire Power | 55W |
| Luminous Flux | 9,000 lm |
| Solar Panel Configuration | 3 × 80W (240W total) |
| Solar Panel Type | Monocrystalline Silicon |
| Battery | LiFePO4, 672Wh |
| Battery Cycle Life | More than 2,000 cycles |
| Lighting Modes | 6 modes by remote control |
| Lighting Time When Fully Charged | 5–7 rainy days* |
| Mounting Height | 8–10m |
| Installation Spacing | 20–40m* |
| Pole Top Diameter | 70–110mm |
| Color Temperature | 3000–7500K |
| Color Rendering Index | Ra ≥ 70 |
| Beam Angle | 125.2° average beam angle |
| IP Rating | IP65 |
| Working Temperature | −20°C to 60°C |
| LED Lifespan | 50,000 hours |
*Lighting time and installation spacing are reference values and vary by lighting mode, local solar conditions, project design, and site requirements.
SP Series Features for Solar Lighting Projects
Compatible Pole Retrofit DesignDesigned for compatible pole-top diameters of 70–110 mm and mounting heights of 8–10 m. Please confirm pole dimensions and structural conditions before installation.

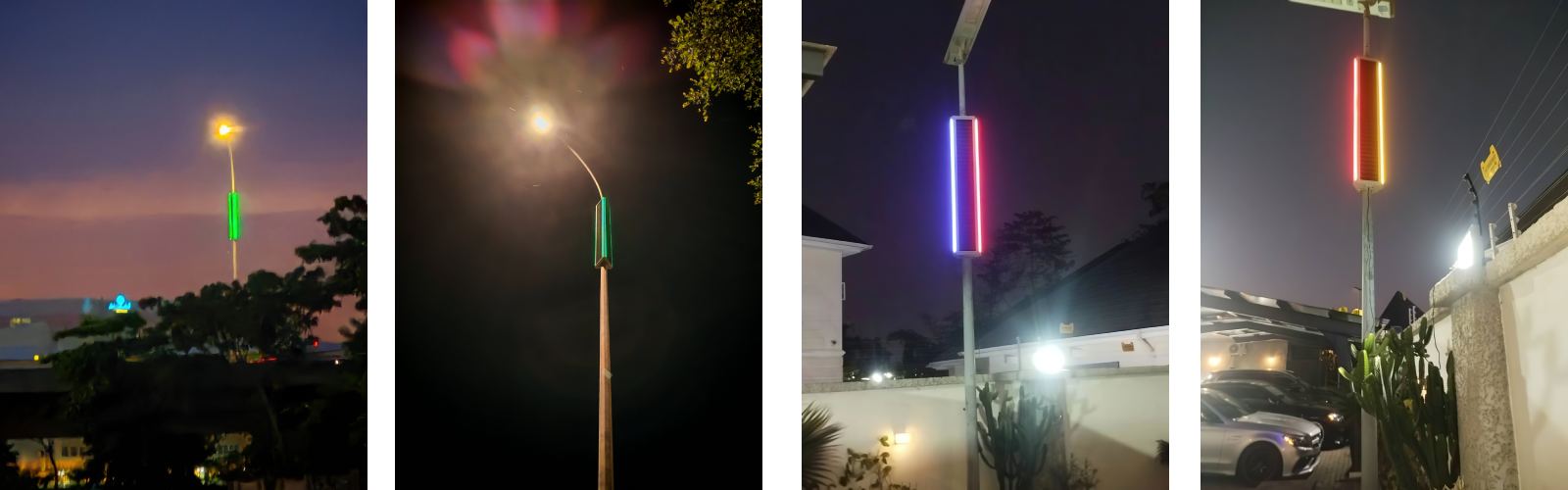

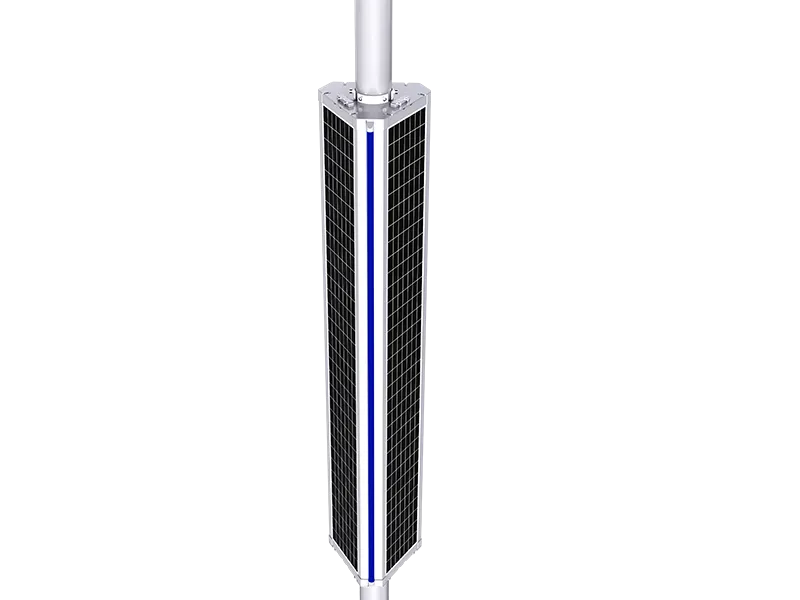

Customizable Decorative Light StripsDecorative light strips are available in multiple color options and can be customized to match different urban, commercial, and landscape lighting projects.
Three-Sided Solar Panels with MPPTThree-sided monocrystalline solar panels and MPPT control support solar energy collection from different directions. Actual output depends on local solar conditions and system configuration.
6 Working Modes for SelectionSix selectable lighting modes help adjust operating schedules and light output according to different project requirements.
LiFePO4 Battery and IP65 HousingThe SP240-3 uses a 672Wh LiFePO4 battery, anti-corrosion aluminum housing, and IP65 protection for outdoor solar lighting applications.
Detail Showcase
Multi-Peak MPPT
Roadsmart's patented solar controller utilizes advanced multi-peak MPPT tracking. It maximizes energy harvesting from the 3-sided monocrystalline silicon solar panels, even under partial shade or low-light conditions.
Read More
IPC 5.0 Technology
Backed by over 10 years of R&D, Roadsmart’s upgraded Intelligent Power Control (IPC 5.0) precisely optimizes battery discharge to ensure reliable lighting through consecutive rainy days.
Read More
ICD Technology
Incorporating premium Grade-A LiFePO₄ batteries, our Intelligent Charge-Discharge (ICD) technology prevents overcharging and extends battery life, maintaining optimal safety and stability.
Read More
Light Efficiency Management
Utilizing patented LED chips with high luminous efficacy and our anti-corrosion aluminum housing, the system optimizes optical distribution to deliver brighter, more uniform road illumination while reducing energy waste.
Read More
Intelligent IOT
Remotely monitor and manage real-time system operation conditions through an intuitive mobile APP or PC platform, simplifying large-scale municipal maintenance and configuration.
Read More
Dual Low-power Consumption
Featuring secure 4-pin plug technology, the system effectively minimizes transportation power consumption to safeguard battery energy during storage and transit.
Read More

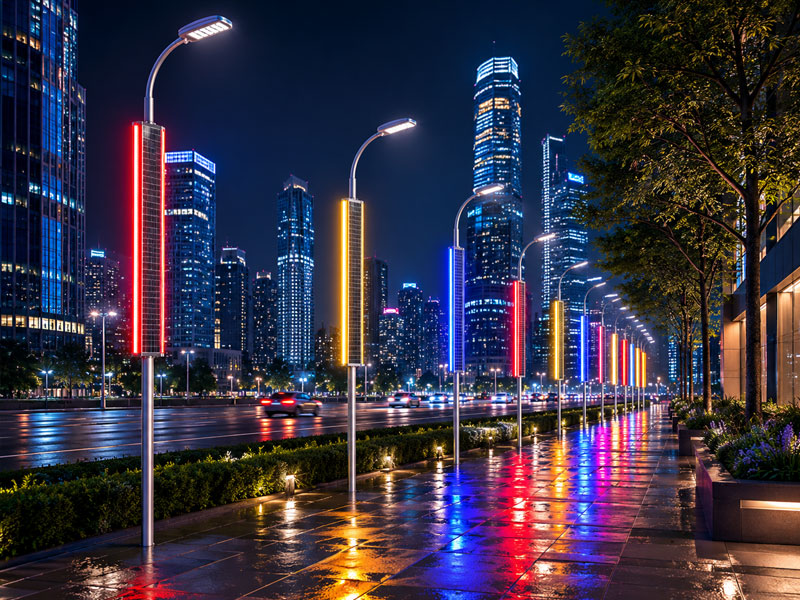

Project Applications for the SP Series

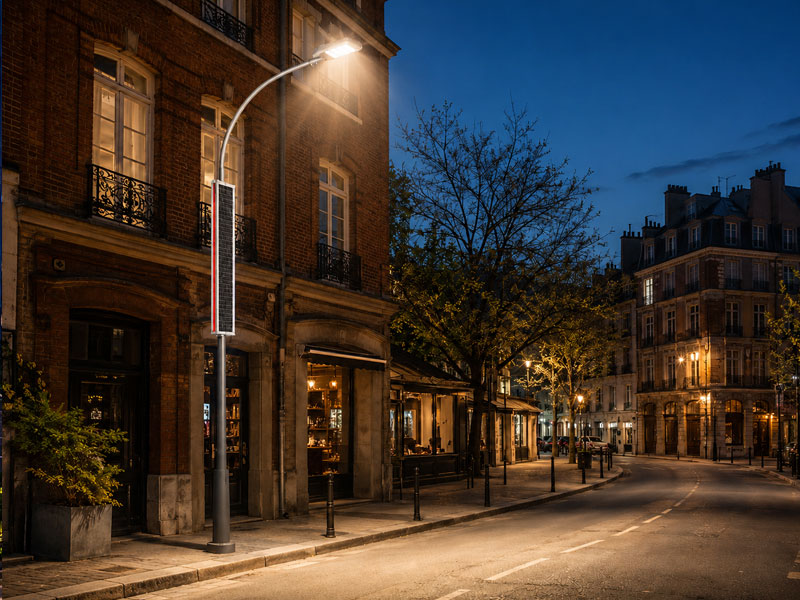

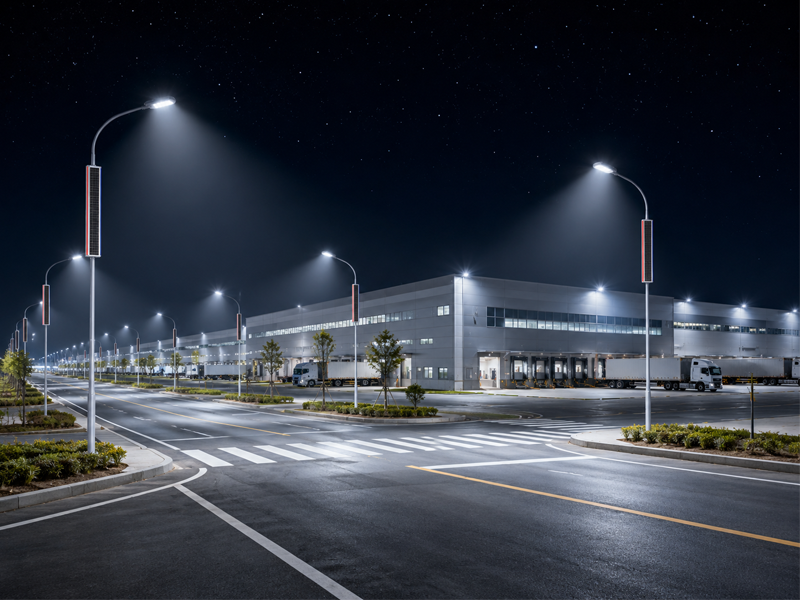

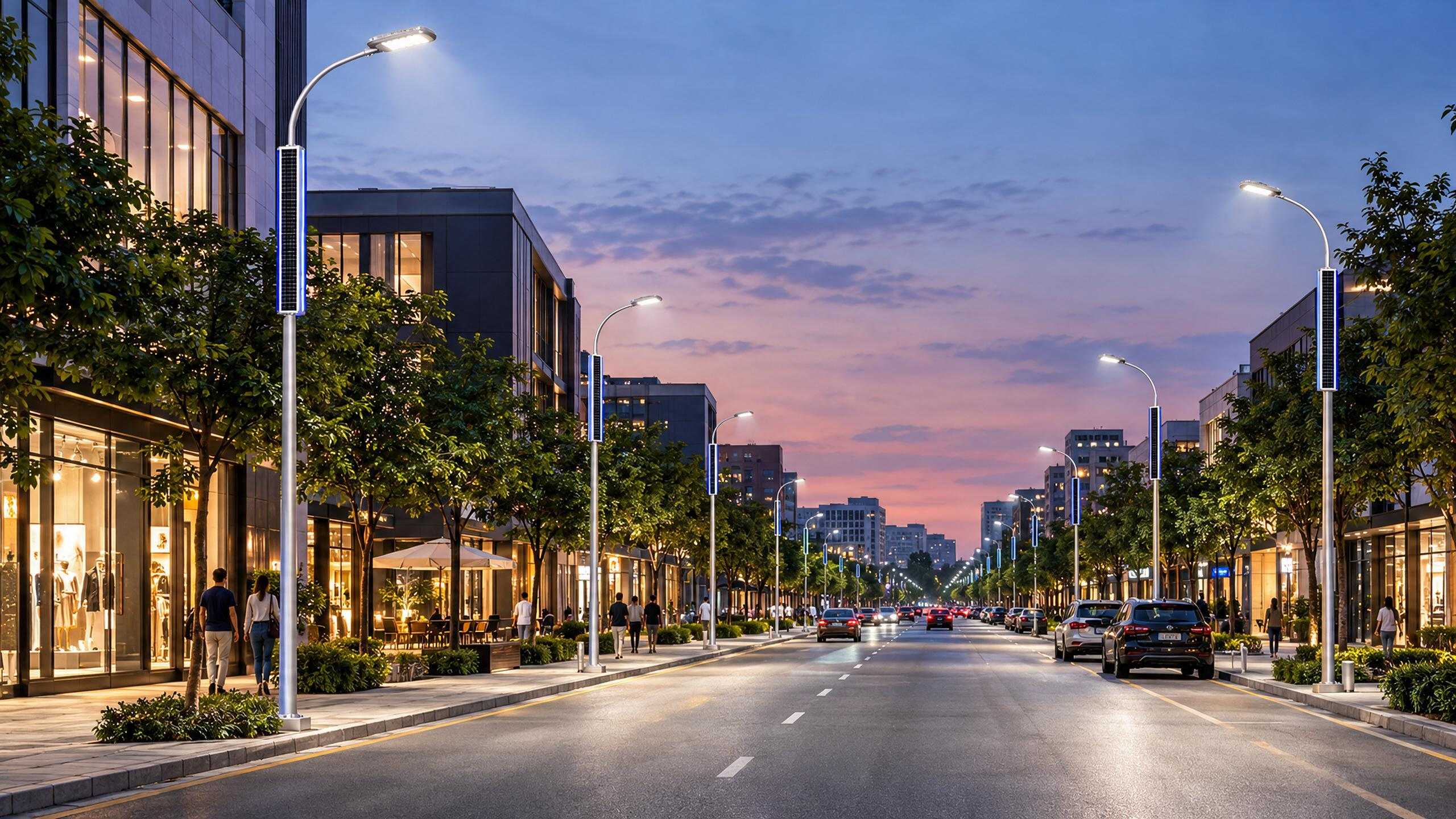

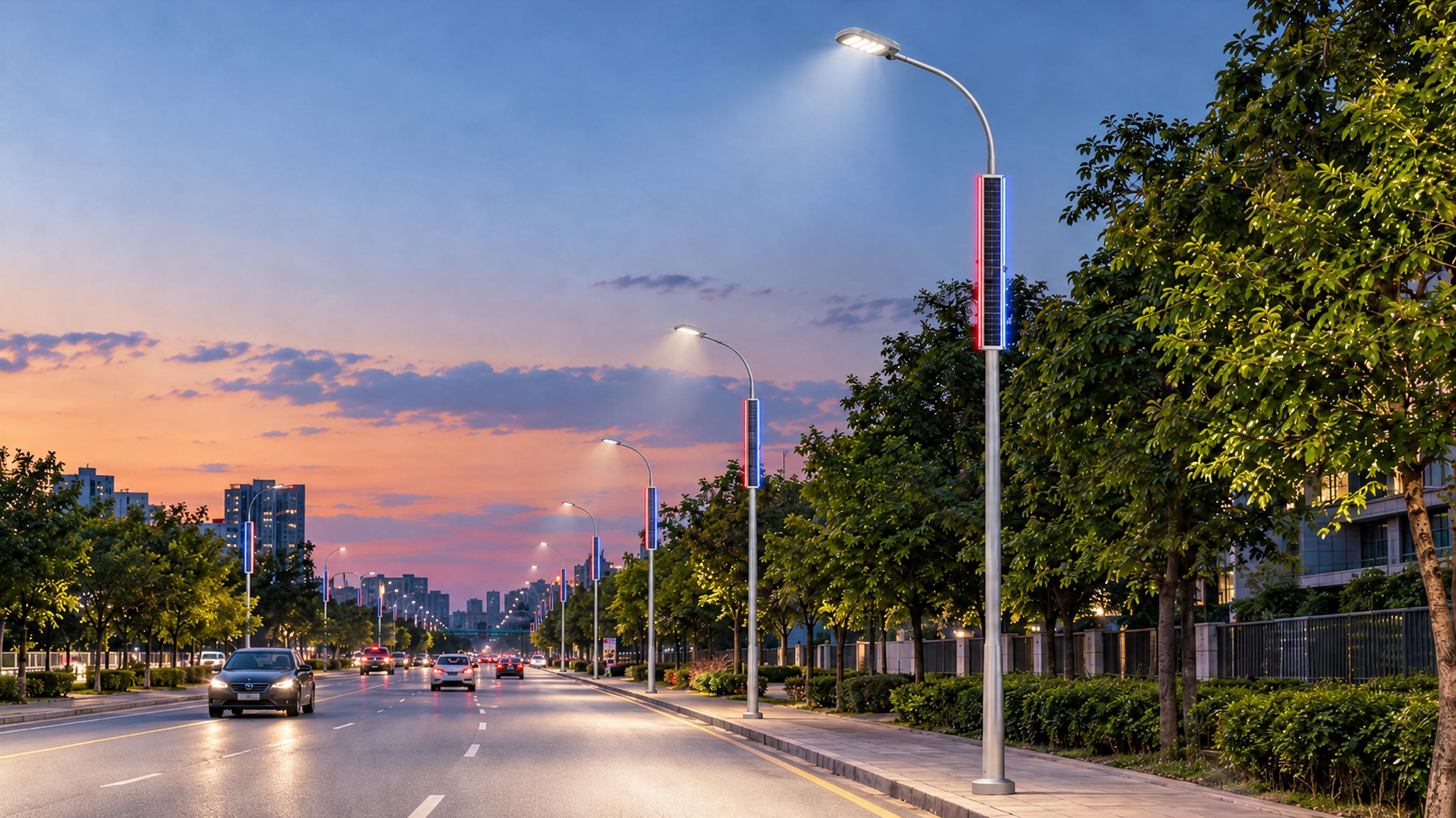

Designed for compatible pole retrofit projects, urban roads, commercial areas, industrial parks, parking areas, and access roads. Final configuration should be confirmed according to pole conditions, lighting requirements, and local site conditions.
Global Project Case Studies
Real-World Performance and Proven Reliability Across Worldwide Infrastructure

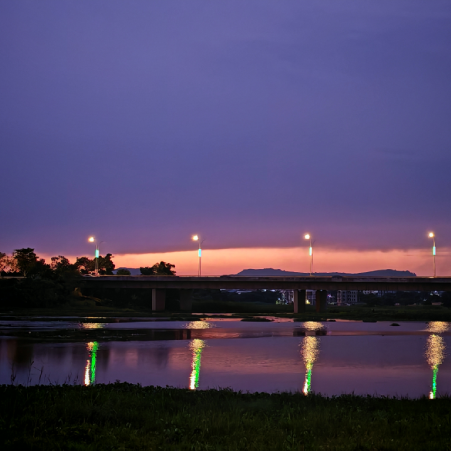

Nigeria Suburban Road Lighting Project: SP240-3 Pole Solar Street Light
Project Details:
Project Type: Suburban Road Lighting Project
Project Location: Nigeria
Solar Streetlight System Data:
·Luminous Flux: 9000 lumens
·Solar Panels: 80 watts * 3
·Battery: 672 Wh Lithium Iron Phosphate Battery
Proven Performance Across Diverse Global Frameworks:
This premium solar pole street light series is engineered to solve core infrastructure pain points: high grid-wiring costs, frequent municipal maintenance, and insufficient lighting during prolonged rainy seasons.
Backed by over 3 years of rigorous market verification and 100+ global engineering projects, this versatile system delivers stable, 365-day uninterrupted lighting with zero major failures. From complex urban road upgrades in Southeast Asia to demanding off-grid highway retrofits across various African nations, Roadsmart’s intelligent technology has consistently secured maximum nighttime safety and earned widespread recognition from municipal authorities worldwide.
Project Execution Flow
From detailed demand analysis to flawless on-site deployment, we ensure your municipal infrastructure projects are delivered with engineering precision.
1、Demand Analysis
● Consultation
● Requirements Confirmation
● Environmental Assessment
2、Solution Design
● Component Selection
● System Configuration
● Preliminary Quotation
3、Raw Material Procurement
● Supplier Selection
● Quality Inspection
● Production
● Packaging
4、Installation
● Civil Works
● Mounting
● System Debugging
5、Client Training
● Operation Training
● Maintenance Workshop
● Documentation Delivery
6、After-Sales Support
● 24/7 Helpdesk
● Preventive Maintenance
● Spare Parts Guarantee
7、Feedback Integration
● KPI Monitoring
● Design Iteration
● Client Satisfaction Surveys
Need a Customized Solar Street Light Solution
Our team will recommend a suitable SP Series configuration and provide a quotation.
Request a Professional Solution
Please submit your project details on the right. Our team will provide a professional solution and quote via email within 24 hours.

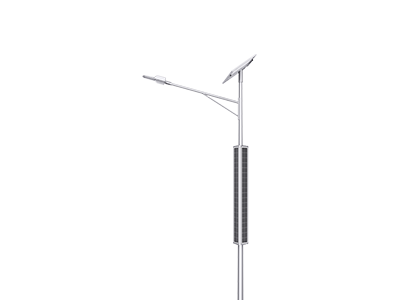

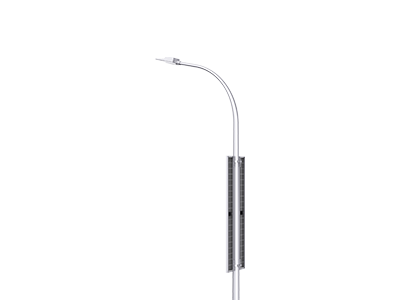

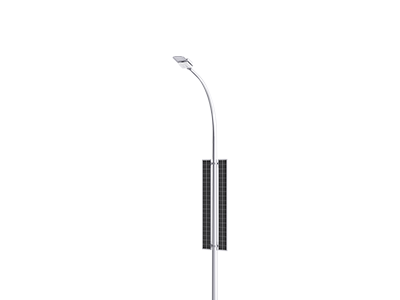

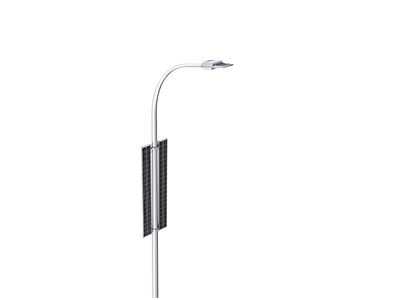

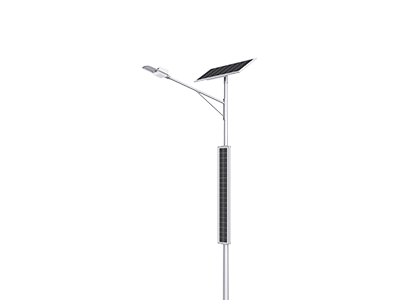

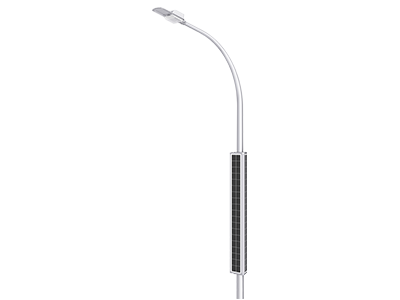

Related Products
FAQ
Q: Why does the SP240-3 use a vertical triangular solar pole instead of traditional top-mounted flat panels?
The 3-sided vertical triangular structure offers distinct advantages: it ensures maximum solar harvesting from all angles throughout the day, prevents snow, dust, and bird droppings from accumulating on the surface, and features low wind resistance. Most importantly, its wraparound design makes it highly compatible with existing curved or vintage poles, making it the perfect choice for seamless municipal road retrofits without replacing the entire pole infrastructure.
Q: What is the purpose of the built-in color LED light strips, and can they be customized?
Yes.Beyond standard road illumination, our patented vertical linear light strips are engineered to enhance urban landscapes and commercial avenue aesthetics at night. These intelligent decorative strips feature Red, Yellow, and Blue as their foundational default colors, delivering vibrant, eye-catching visual accents that successfully elevate the premium feel of any municipal or commercial infrastructure project.
Q: How does the 3-sided monocrystalline solar array maintain reliable performance during continuous rainy days?
Even with its vertical alignment, each of the 3 sides is equipped with premium monocrystalline silicon panels with up to 22% conversion efficiency. Driven by our patented Multi-Peak MPPT tracking and IPC 5.0 intelligent power control, the system effectively captures ambient low-light scattered energy from multiple directions. This advanced hardware-software integration guarantees continuous, 100% uninterrupted dusk-to-dawn lighting for 5 to 7 consecutive overcast nights.
