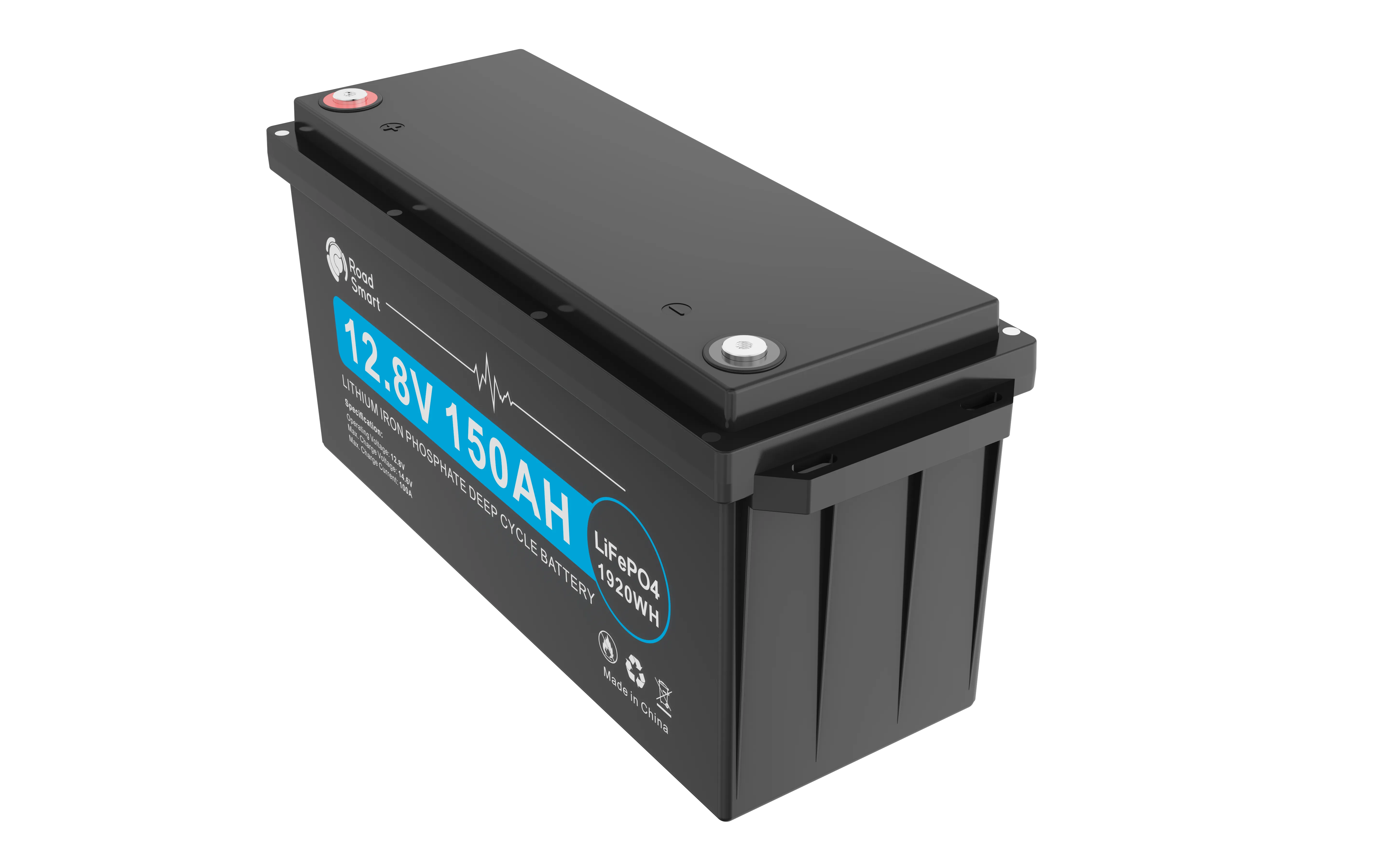

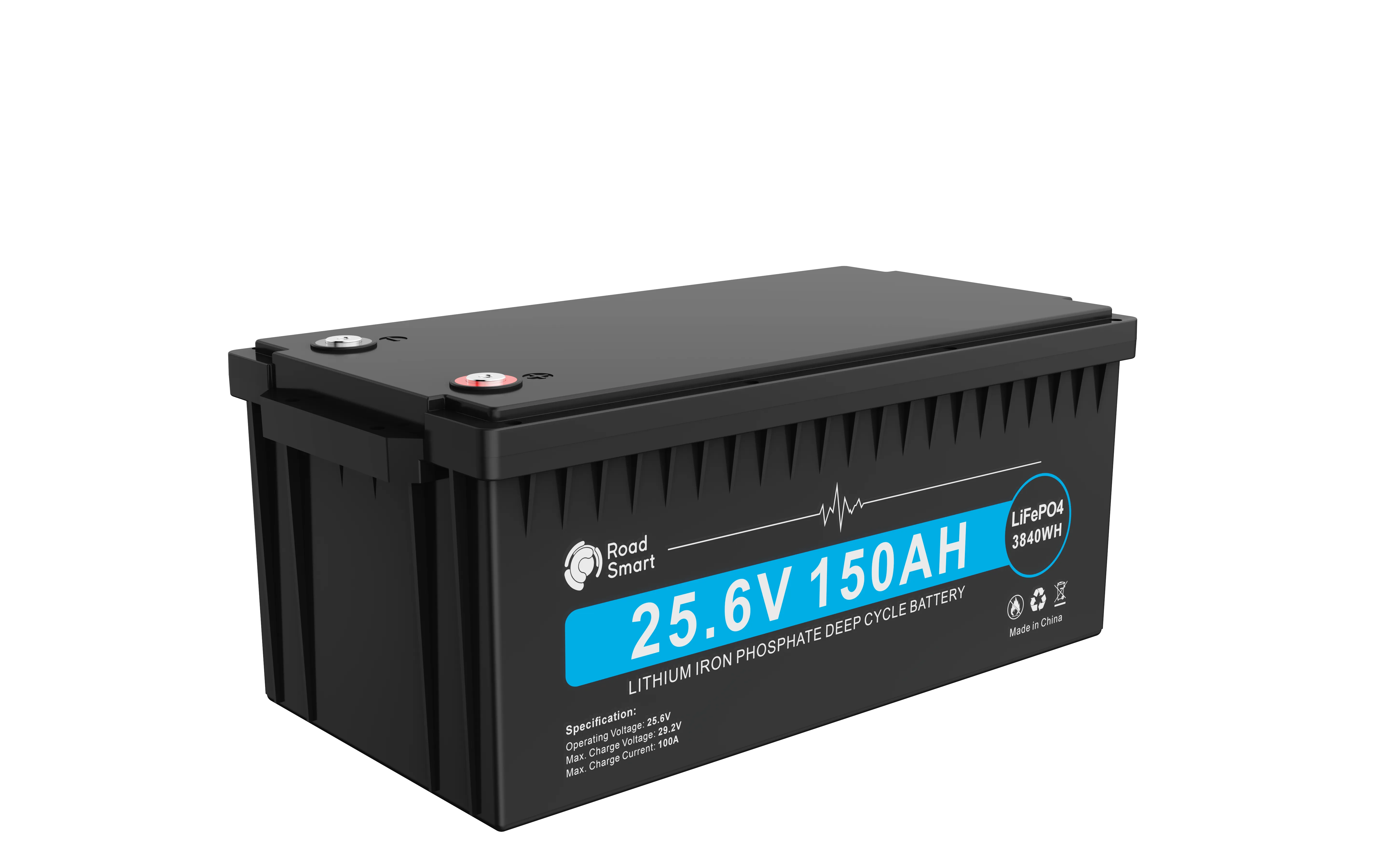

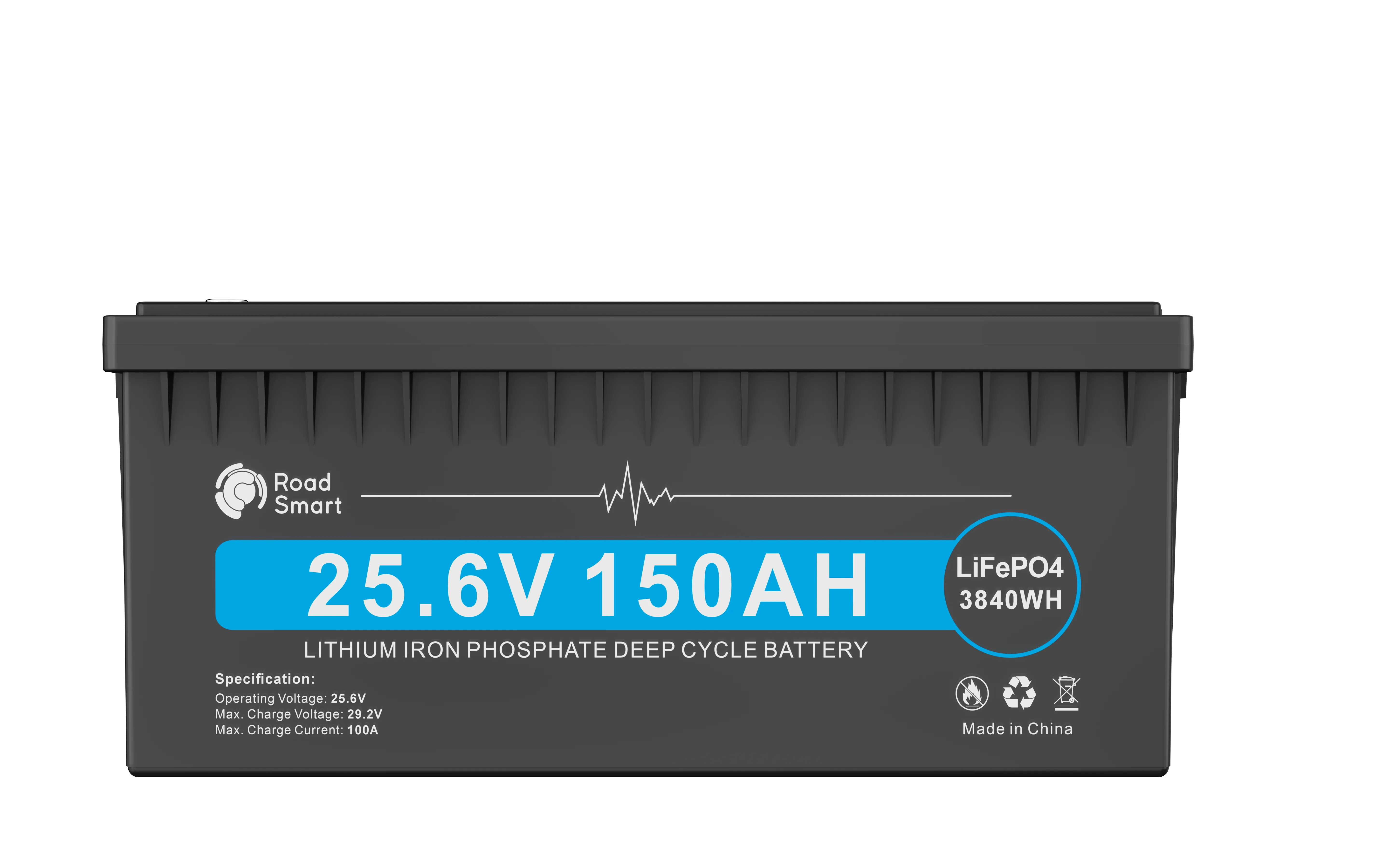

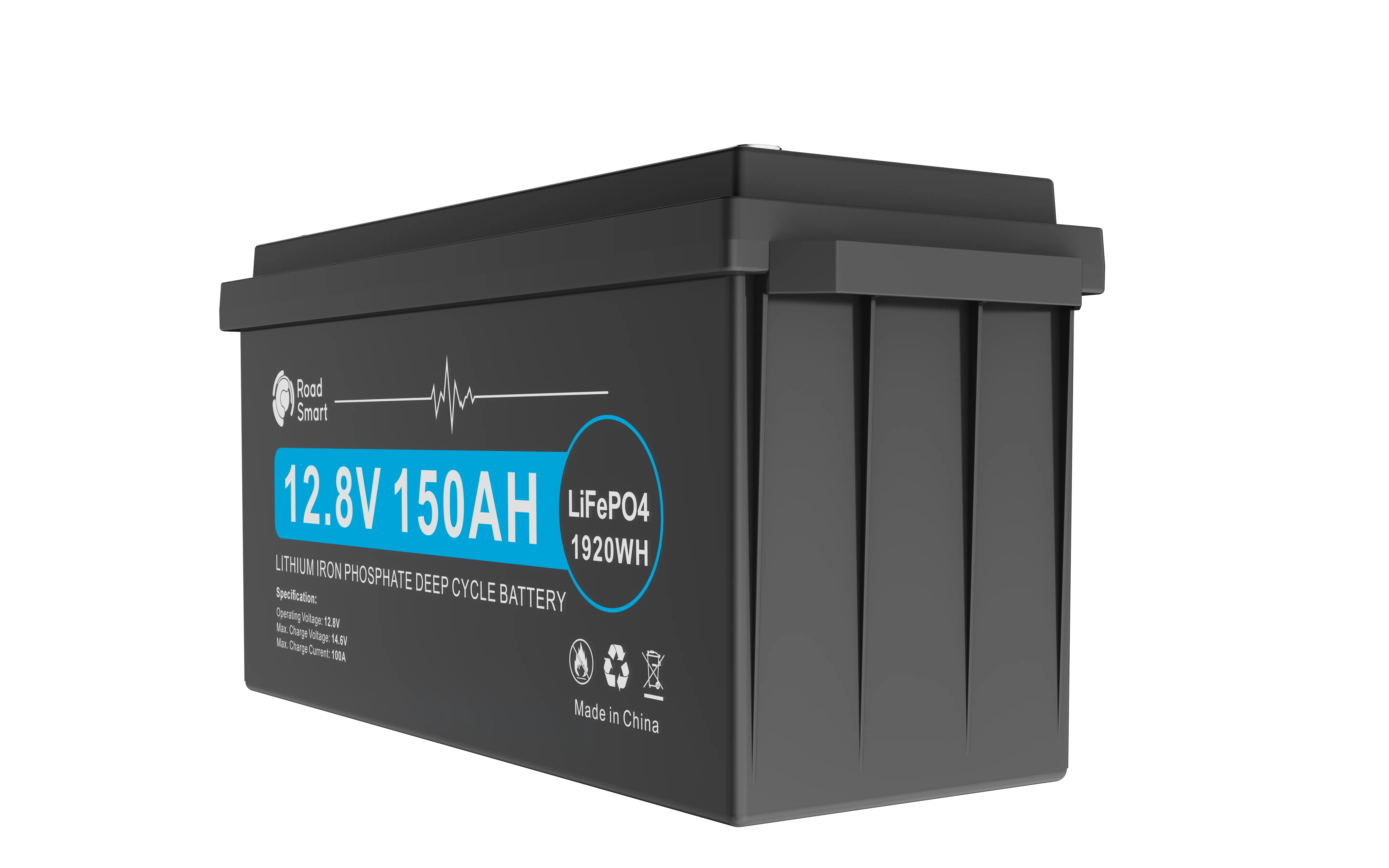

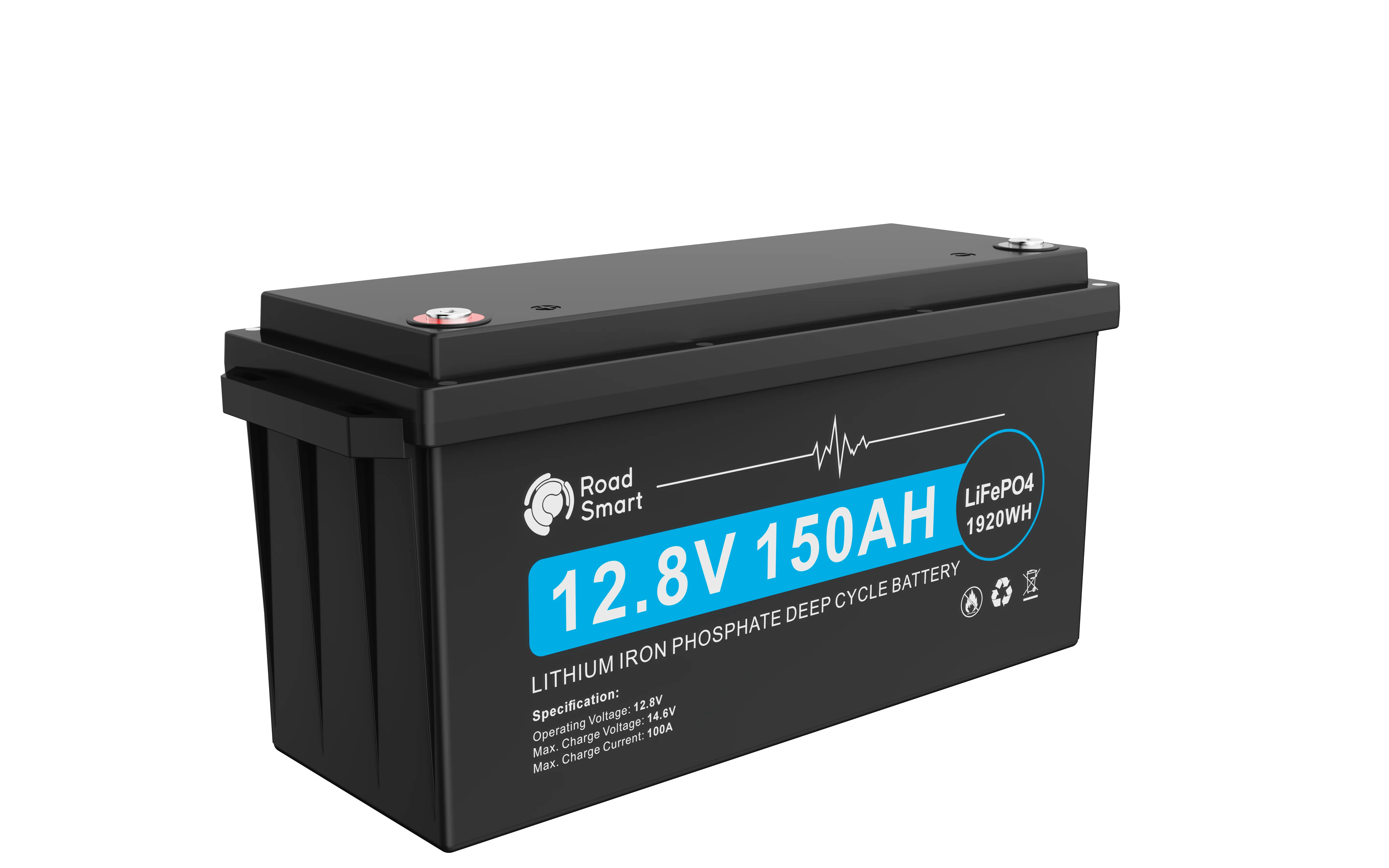

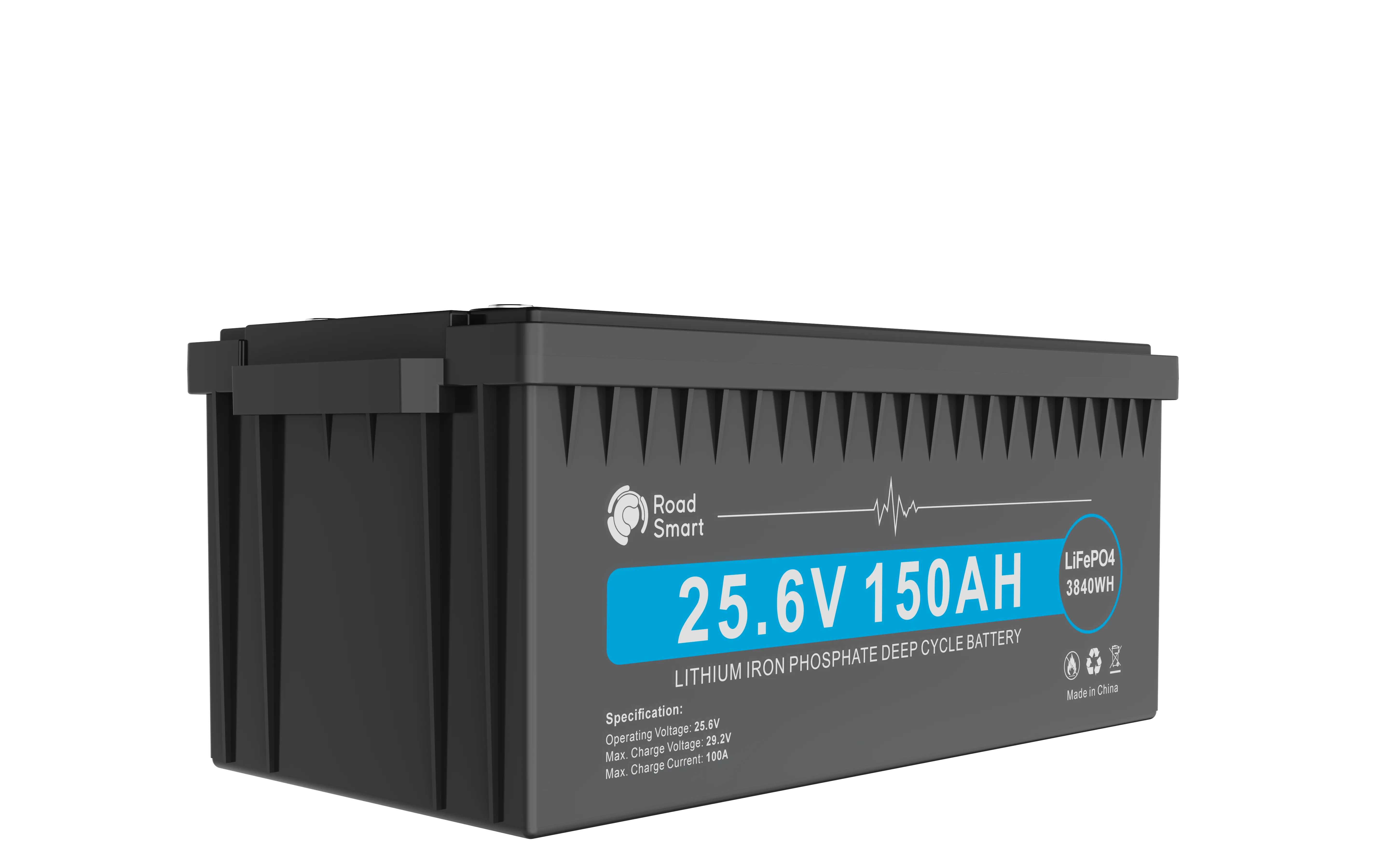

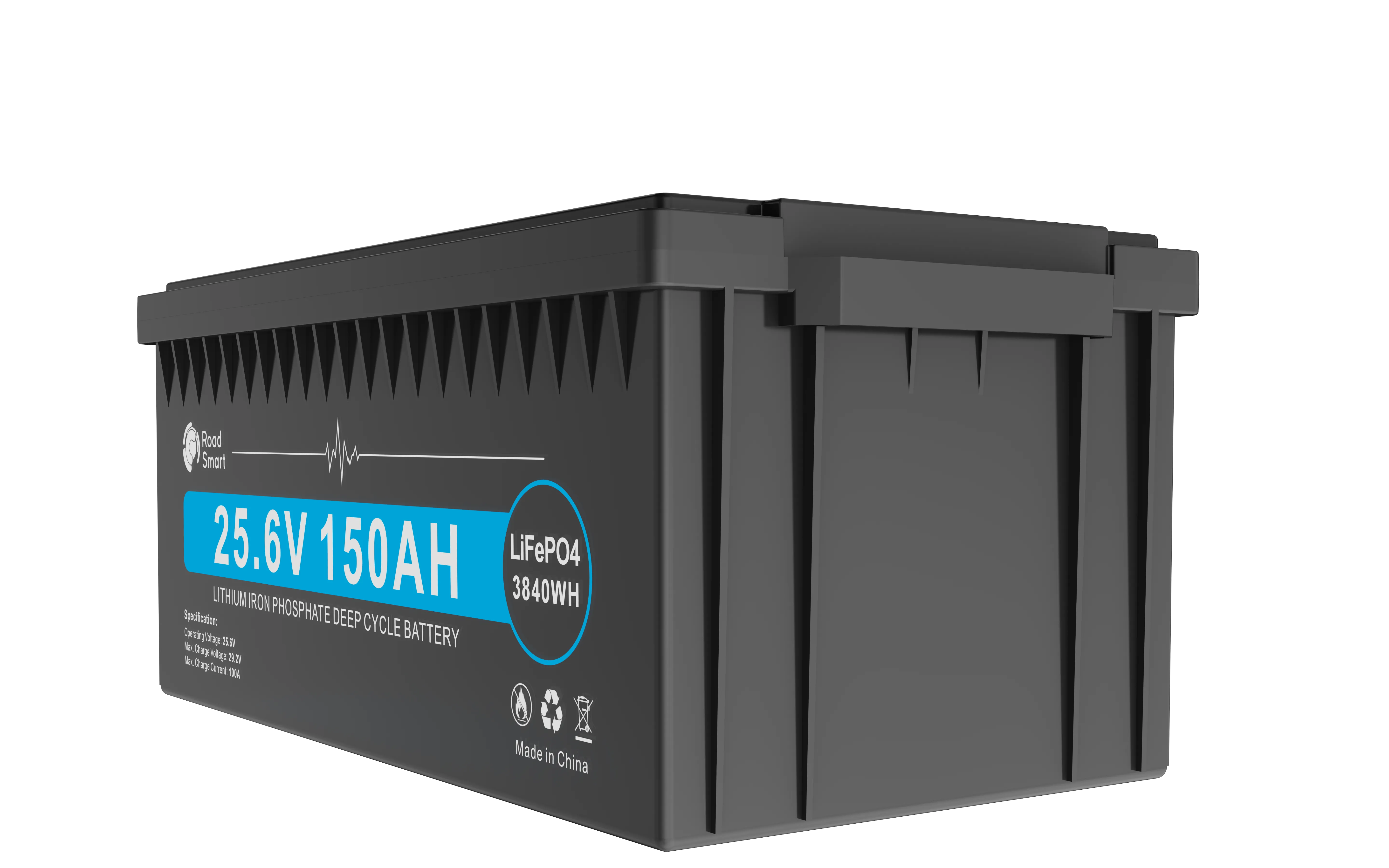

Lithium Iron Phosphate Battery
Rugged LiFePO4 battery modules built for solar, backup power, and embedded systems.
Learn More About：
Micro Solar Storage System
Download:
Lithium Iron Phosphate Battery
Applications:
| Model | RS-150-12 | RS-150-24 |
| Rated Voltage | 12.8V | 25.6V |
| Rated Capacity | 150Ah | 150Ah |
| Battery Power | 1920Wh | 3840Wh |
| Battery Type | LiFePO4 | |
| Max. Series Capacity | 4 | 2 |
| With BMS | Yes | |
| Max. Charging Voltage | 14.6V | 29.2V |
| Over Discharging Voltage | 9.2V | 18.4V |
| Max.continue discharge current | 100A | |
| Max.pulse discharge current | 200A 1Sec. | |
| Max.continue charge current | 100A | |
| Weight | 17.94kg | 35.88kg |

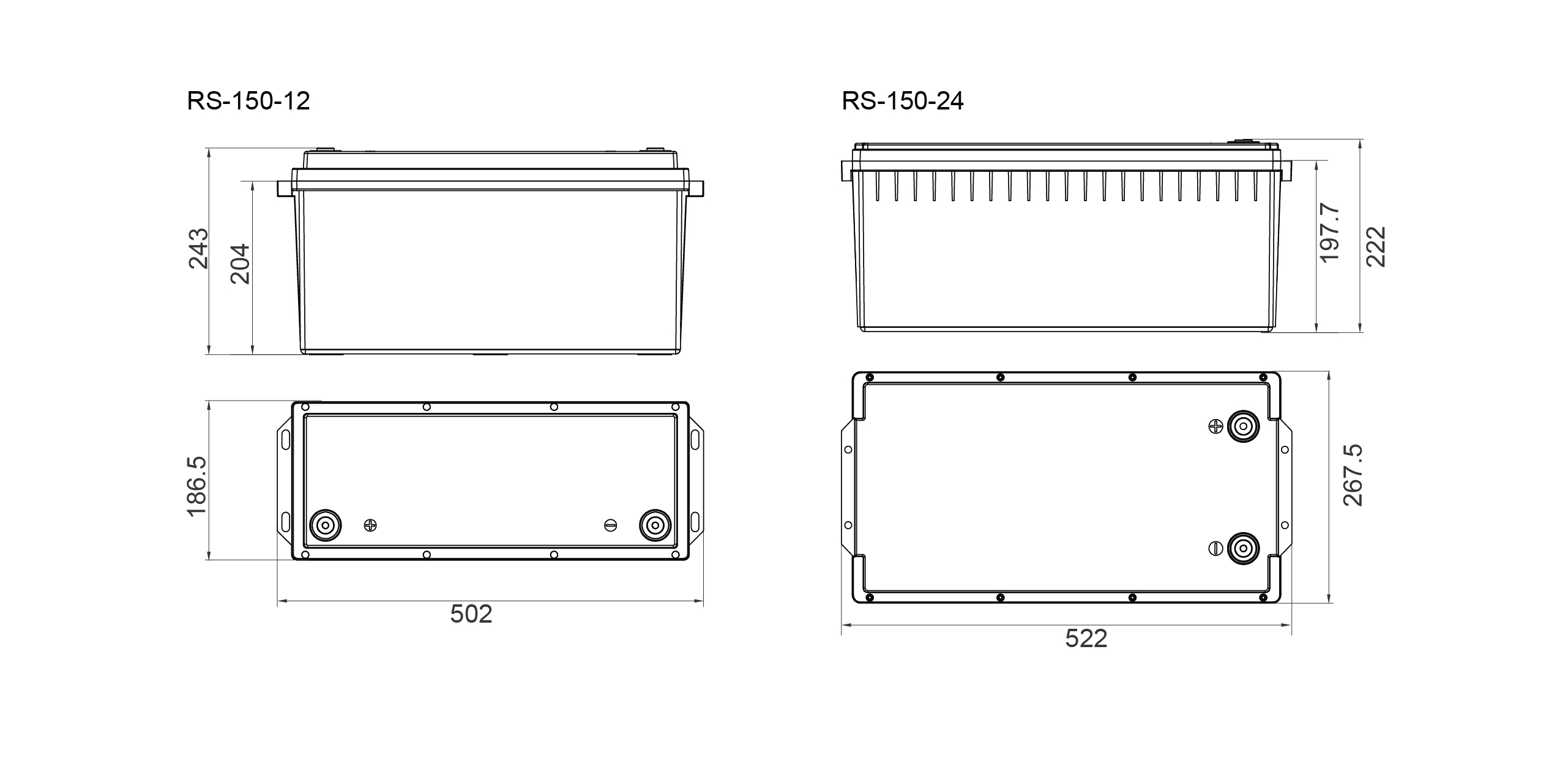

| Dimension（L*W*H） | 502*186.5*243mm | 522*267.5*222mm |
| Work Temperature | -10～+50℃ | |
| Cooling Method | Neutral Cooling | |
| Protection Grade | IP65 | |
| Transportation | UN38.3,MSDS | |
| Protection | Over charge protection,Over discharge protection,Over current protection Shortcircuit protection,Over temperature protection | |
Maximum configurations
4-series (4S) packs: up to 4 in series × 4 in parallel (max 4S4P).
8-series (8S) packs: up to 2 in series × 2 in parallel (max 2S2P).
Read More
Compatibility requirements
Use only RoadSmart packs of the same model for any series/parallel bank. Verify on the label that rated voltage and rated capacity are identical for every pack in the bank.
Read More
State-of-charge equalization
Fully charge or fully discharge all packs first. Use a multimeter to confirm each pack’s voltage is the same (ensure remaining capacity is consistent) before wiring in series and/or parallel.
Read More
Pack condition
Brand-new packs are recommended for building banks. Mixing used (aged) packs can reduce the overall capacity and performance of the whole system.
Read More
Wiring order
Connect in parallel first, then connect those parallel groups in series.
Read More
Disclaimer
For any series/parallel operation, strictly follow the guidelines above. Failure to do so may lead to performance issues or damage; RoadSmart will not be responsible for after-sales service for consequences arising from non-compliance.
Read More
Delivery
1、Demand Analysis
● Consultation
● Requirements Confirmation
● Environmental Assessment
2、Solution Design
● Component Selection
● System Configuration
● Preliminary Quotation
3、Raw Material Procurement
● Supplier Selection
● Quality Inspection
● Production
● Packaging
4、Installation
● Civil Works
● Mounting
● System Debugging
5、Client Training
● Operation Training
● Maintenance Workshop
● Documentation Delivery
6、After-Sales Suppor
● 24/7 Helpdesk
● Preventive Maintenance
● Spare Parts Guarantee
7、Feedback Integration
● KPI Monitoring
● Design Iteration
● Client Satisfaction Surveys
More Intelligent Solar Street Light Models
FAQ
What is the correct wiring order?
Parallel first, then series. Build parallel groups, verify voltages again, then connect those groups in series.
Can I mix different models or capacities?
No. Only use the same model from RoadSmart with identical rated voltage and capacity.
