Sky Square
Sky Square SS-45 is a decorative all-in-one solar garden street light designed for residential streets, parks, pedestrian paths and community outdoor areas. Its integrated solar panel, LiFePO4 battery and LED light source provide a clean appearance and simplified installation for low-height outdoor lighting projects.
- ✓3,400 lm output from a 20 W LED light source
- ✓45 W / 18 V polycrystalline solar panel
- ✓192 Wh / 60 Ah LiFePO4 battery
- ✓2–3 rainy days when fully charged
Sky Square SS-45 Technical Specifications
Review the SS-45 solar panel, LiFePO4 battery, lighting output and installation requirements before confirming project suitability.
| Type | SS-45 |
| Solar Panel | |
| Power | 45 W / 18 V |
| Material | Polycrystalline silicon |
| Solar cell efficiency | 22–24% |
| LiFePO4 Battery | |
| Capacity | 192 Wh / 60 Ah |
| Charge cycle life | 2,000 cycles |
| Lamp Head | |
| Luminous flux | 3,400 lm |
| Light output | 20 W |
| LED quantity | 200 pcs |
| Color temperature | 3,000–7,500 K |
| Color rendering index | Ra ≥ 70 |
| LED lifespan | 50,000 hours |
| System | |
| Lighting time when fully charged | 2–3 rainy days |
| Operating temperature | -20°C to 60°C |
| Installation | |
| Pole top diameter | Ø76 mm |
| Recommended mounting height | 3–5 m |
| Recommended installation spacing | 20–30 m |

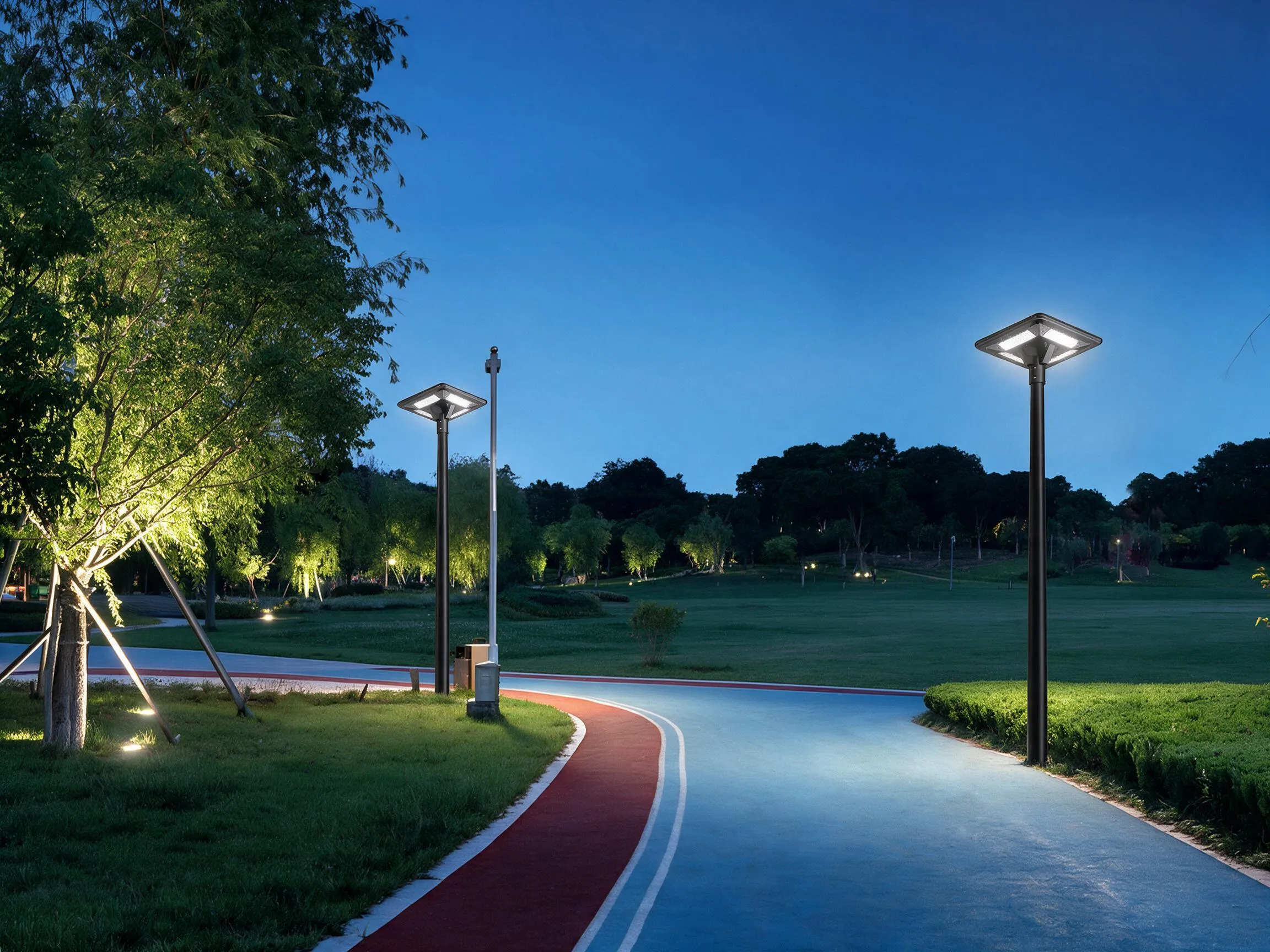

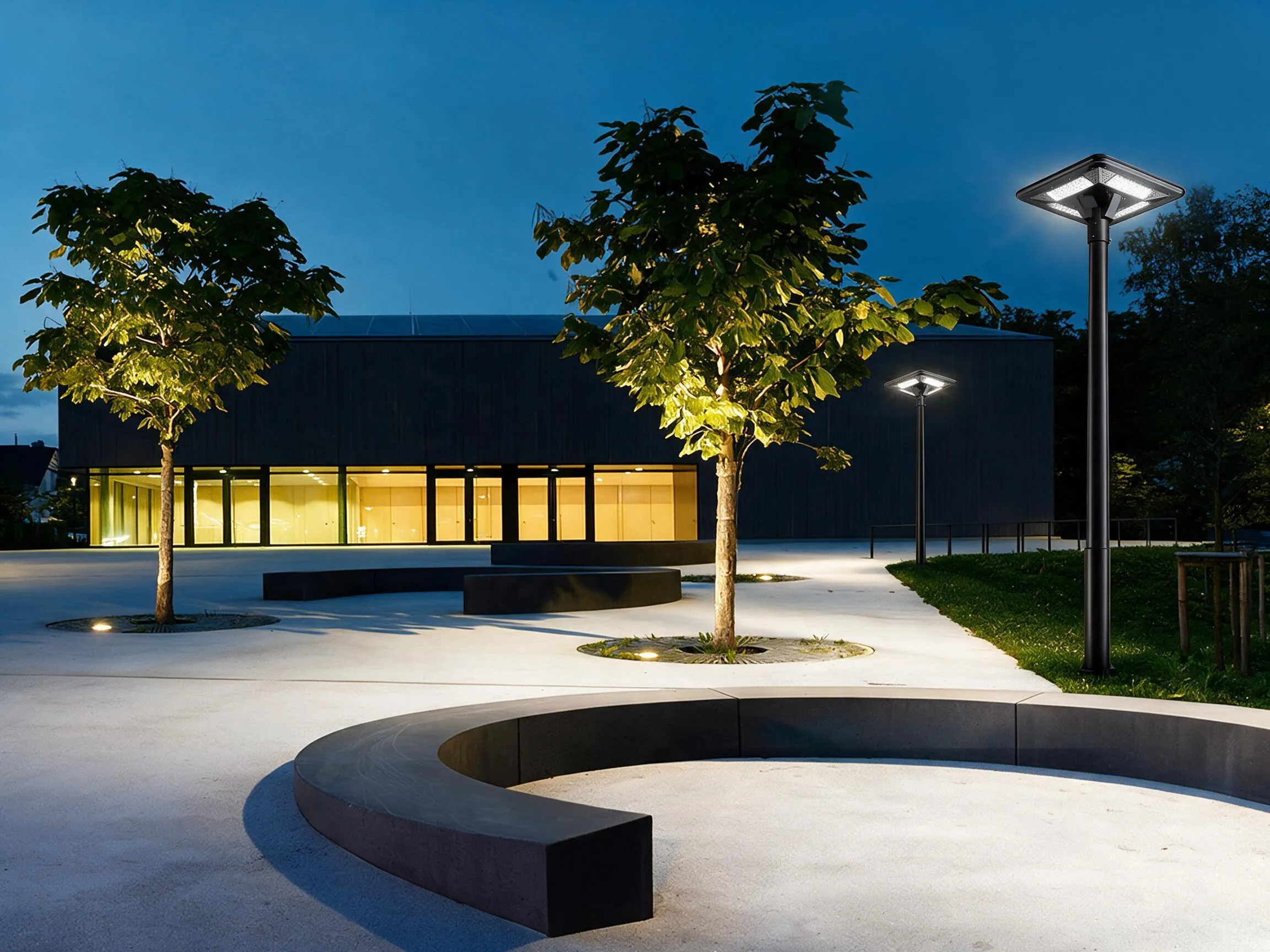

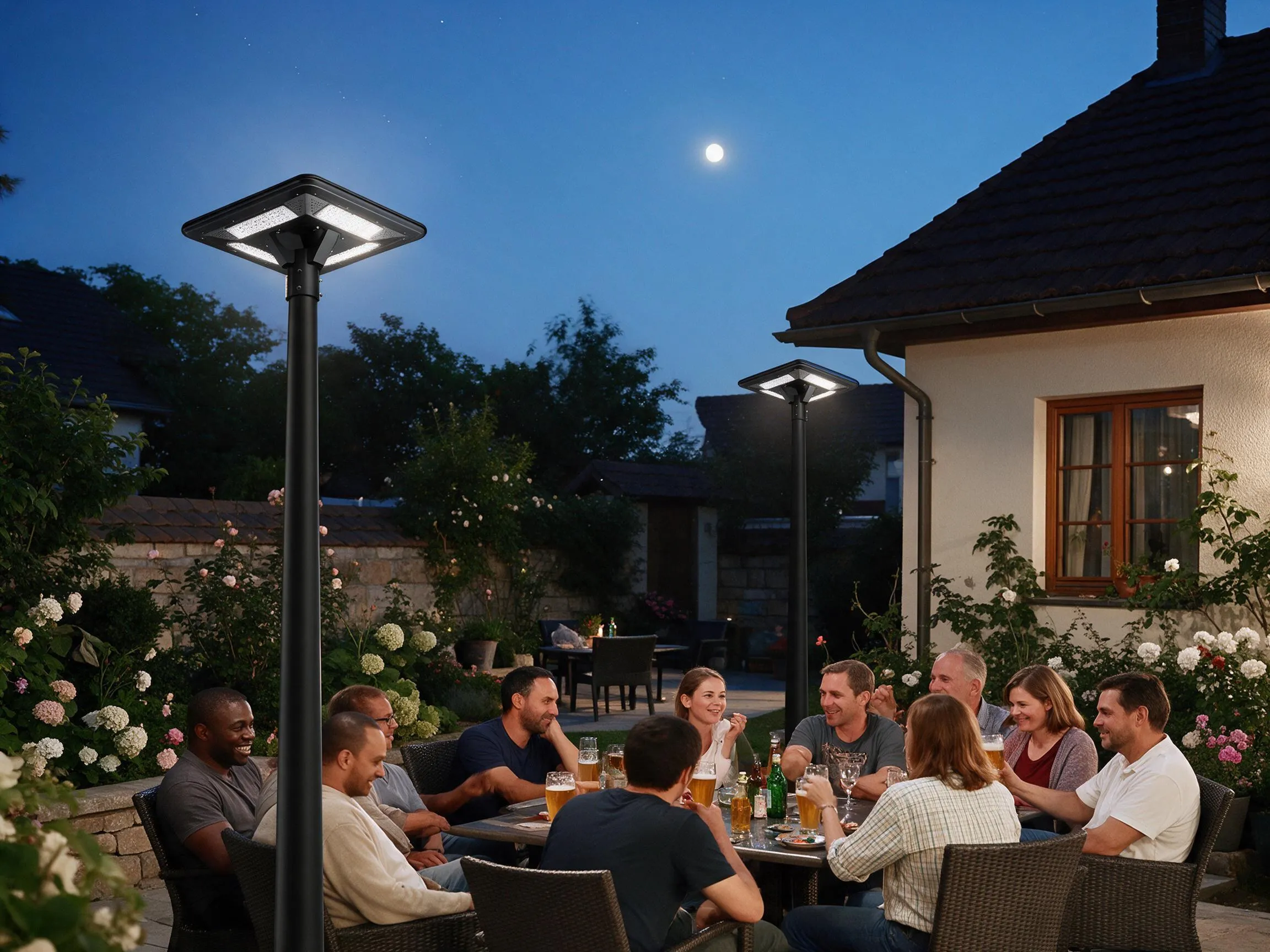

Sky Square SS-45 Applications for Decorative Solar Garden Street Lighting
Sky Square SS-45 is designed for decorative solar garden street lighting in residential communities, parks, courtyards and pedestrian areas. Review solar exposure, pole positions, mounting height and lighting requirements before confirming the layout.
Sky Square SS-45 Project Support and Technical Documents
Share your project information with RoadSmart so we can review the Sky Square SS-45 configuration, installation conditions and required technical documents.
1. Project Requirements
● Installation location and application area
● Pole height and installation spacing
● Required lighting hours and quantity
2. Configuration Review
● 3,400 lm output from a 20 W LED light source
● 45 W / 18 V polycrystalline solar panel
● 192 Wh / 60 Ah LiFePO4 battery
3. Installation Guidance
● Ø76 mm pole top diameter
● 3–5 m recommended mounting height
● 20–30 m recommended installation spacing
4. Documentation and Handover
● SS-45 product specification PDF
● Product dimensions and pole interface information
● Installation and project configuration details
Request an RST-30 Project Recommendation
Share your installation location, road or pathway width, pole height, pole spacing, nightly lighting hours and required quantity. If available, upload a site plan or project photos. RoadSmart will review the information and recommend a suitable RST-30 configuration.
Request a Professional Solution
Please submit your project details on the right. Our team will provide a professional solution and quote via email within 24 hours.
Related Products
FAQ
Q: What projects is the RST-30 suitable for?
The RST-30 is suitable for residential roads, community paths, parks, gardens, courtyards, pedestrian paths and small campus walkways. Final suitability depends on the site layout, lighting schedule and local solar conditions.
Q: How much light does the RST-30 provide?
The RST-30 provides a luminous flux of 2,800 lm. Final lighting performance depends on the mounting height, pole spacing and site layout.
Q: What solar panel and battery does the RST-30 use?
The RST-30 uses a 30 W / 5 V monocrystalline solar panel and a 144 Wh / 45 Ah LiFePO4 battery.
Q: How many rainy days can the RST-30 support?
The RST-30 can provide lighting for 5-7 rainy days when fully charged. Actual performance depends on solar conditions, lighting hours, temperature and the selected lighting mode.
Q: What information is needed for an RST-30 project recommendation?
Please provide the installation location, road or pathway width, pole height, pole spacing, nightly lighting hours, quantity and available drawings or site photos. RoadSmart can then review the suitable RST-30 configuration.
