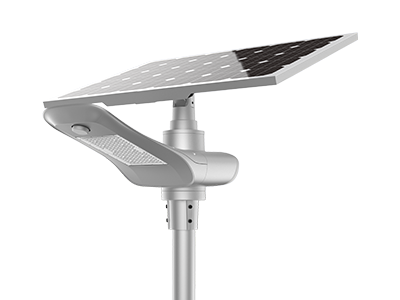

All-In-Two Solar Street Light
Solar Flyhorse Light

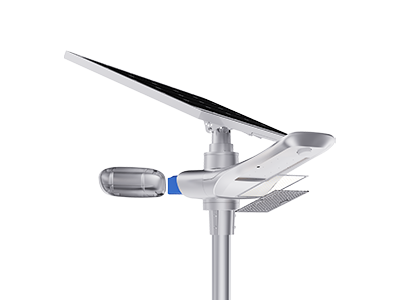

The Flyhorse Series is a All-in-Two solar street light featuring an adjustable solar panel, smart MPPT controller, and professional bat-wing optics. Designed for maximum sunlight absorption and stable constant-current output, it is the ideal lighting solution for global road projects and commercial hubs.
Learn More About：
All-In-Two Solar Street Light
Download: Solar Flyhorse Light
Applications:
Flyhorse Series: Engineering & Installation Showcase
Watch the video below to see our patented bat-wing lens performance and the 5-minute fast deployment design in action.
Flyhorse Series All-in-Two Solar Street Light Specifications
Check the detailed technical parameters of theFlyhorse series below to find the perfect configuration for your project.
| Type | RS-FH100 | RS-FH120 | RS-FH150 |
| Solar Panel | 100W / 18V | 120W / 18V | 150W / 18V |
| LiFePO4 Battery | 380WH | 460WH | 610WH |
| Charge Cycle Times | 2000 times | ||
| Luminous Flux | 5800-6100LM | 7500-7700LM | 9100-9300LM |
| Lamp Power | 30W | 40W | 50W |
| LED qty | 150pcs | ||
| Lifespan of LED | 50000hrs | ||
| Color Temperature | 3000-6000K | ||
| Light Distribution | Patented Bat-wing Lens with Polarized Light | ||
| Lighting time(full charged) | 5-7 rainy days | ||
| Working temperature | -20℃~60℃ (Charge above 0℃) | ||
| Top diameter of pole | 76mm | ||
| Mounting height | 7-8m | 7-8m | 8-10m |
| Installation spacing | 20-40m | ||
Advantages
Patented Multi-Peak MPPT TechnologyEquipped with RoadSmart's new patented solar controller, the system adopts advanced multi-peak MPPT technology. Compared to traditional PWM controllers, it tracks the maximum power point in real-time, increasing energy utilization by 15% to 20% and ensuring high charging efficiency even under partial shade.
Intelligent IPC 5.0 Weather AdaptationPowered by our high-precision IPC 5.0 version intelligent power control technology, the light uses AI to automatically judge recent weather conditions. By rationally planning discharge power, it guarantees an ultra-long battery autonomy of 5–7 continuous rainy days.
Smart Charge & Discharge ManagementFeaturing double protection via integrated software and hardware alongside intelligent equalization technology, the heavy-duty LiFePO4 battery achieves stable cycle charging and discharging for more than 2,000 times, securing a system lifespan of over 10 years.
Intelligent Temperature Control SystemA built-in thermal protection switch automatically manages software operations at extreme temperature limits. It includes an automatic heating function to protect the battery in low-temperature atmospheres, ensuring reliable operation in harsh outdoor environments from -20℃ to 60℃
High-Lumen Professional OpticsIntegrated with our premium LED chips and patented bat-wing lens with polarized light, it delivers exceptional brightness up to 200 lm/W. It ensures uniform ground illumination and wider pole spacing without dark zones, optimized perfectly for highways, industrial parks, and municipal road projects.

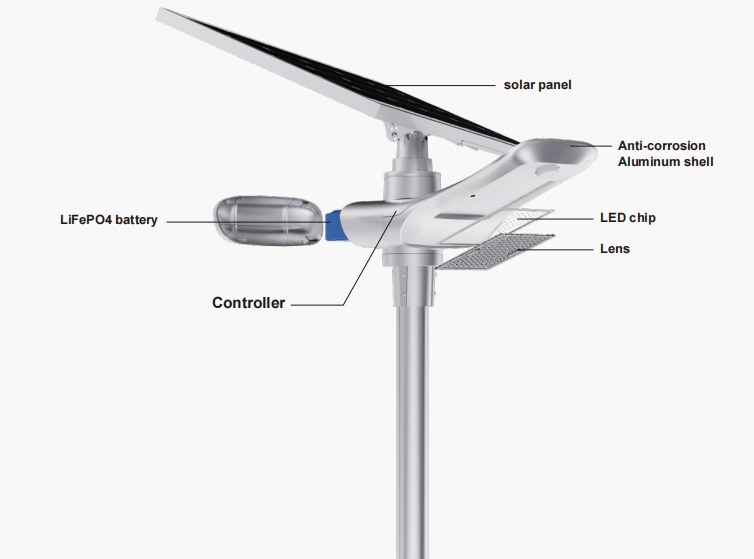

Detail Showcase
Solar Panel
Tilt-mounted mono panel maximises energy capture on existing poles.
Read More
Anti-corrosion Aluminum Shell
Powder-coated housing resists salt spray, rain and UV exposure.
Read More
LED Chip
High-efficiency 3030 / 5050 LEDs provide broad, glare-free illumination.
Read More
LiFePO₄ Battery
Grade-A cells ensure long service life and deep-cycle durability.
Read More
Controller
AI-driven IPC balances power for week-long bad-weather operation.
Read More
Lens
Patented bat-wing optic widens the beam, eliminating dark zones on roadways.
Read More
Applications and Solar Lighting Solutions
Discover the versatile engineering capabilities of the Flyhorse Series. As a premium, fast-deploy All-in-Two solar street light solution, it is specifically engineered to meet strict international bidding specifications and lighting standards across diverse global outdoor environments.

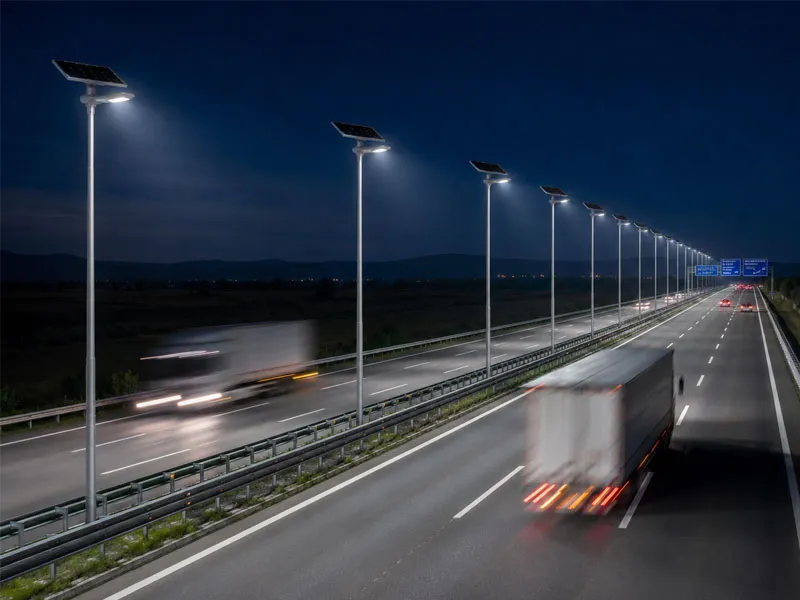

Highways & Municipal Expressways
Equipped with our patented bat-wing lens with polarized light, the Flyhorse series delivers uniform, glare-free ground illumination and wider pole spacing. It eliminates dangerous dark zones on high-speed roadways, significantly cutting down overall project installation costs for municipal contractors.

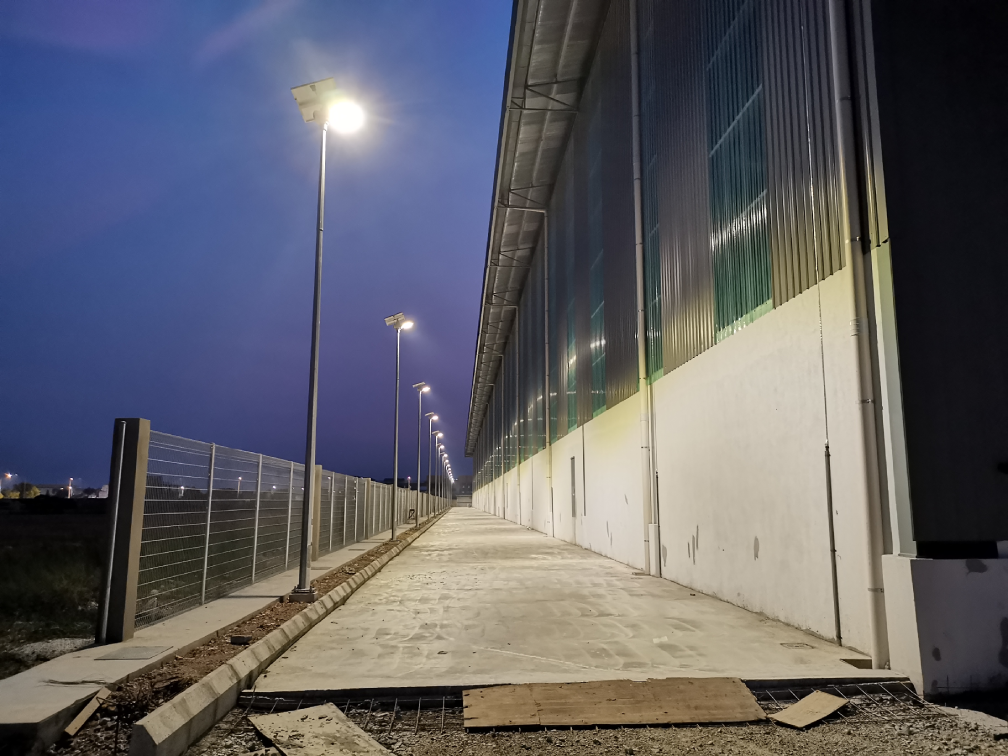

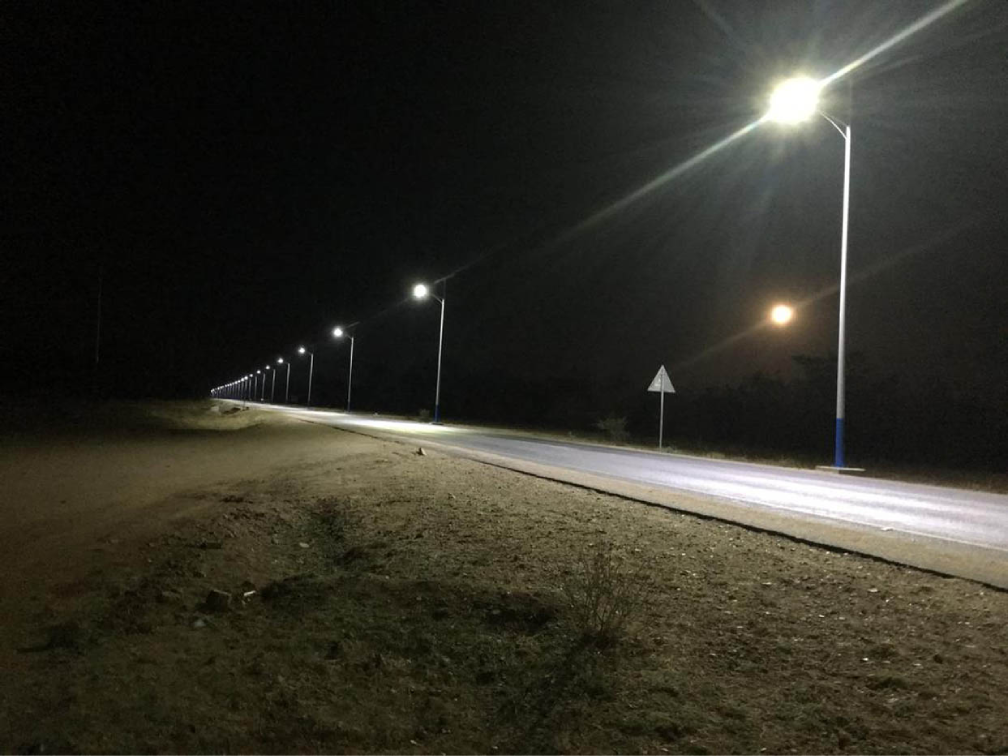

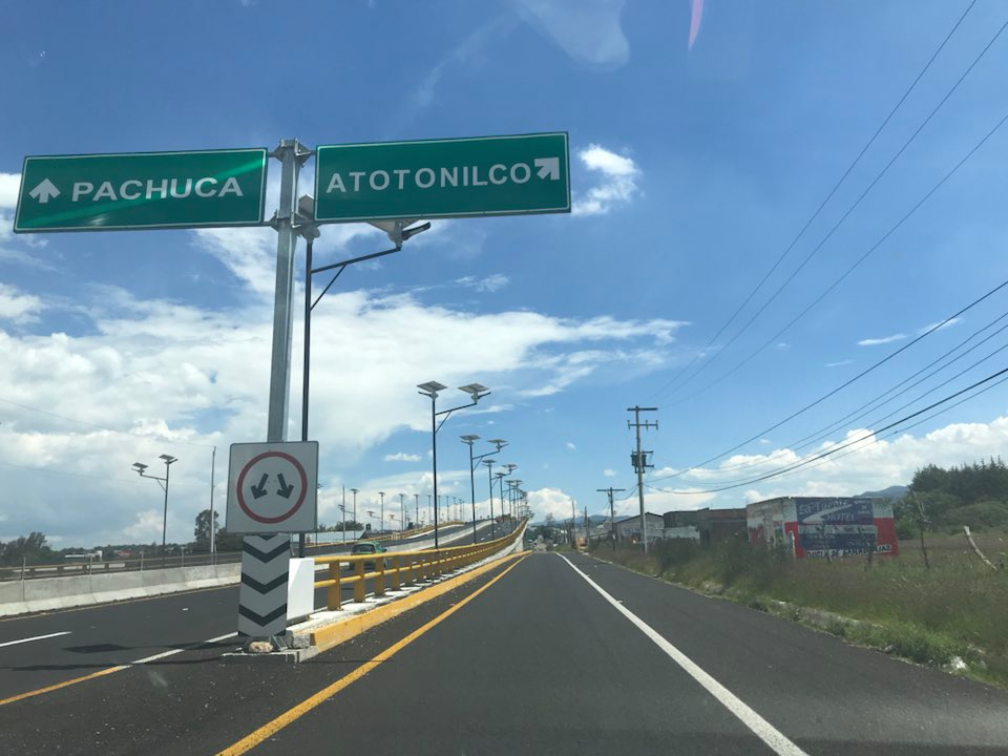

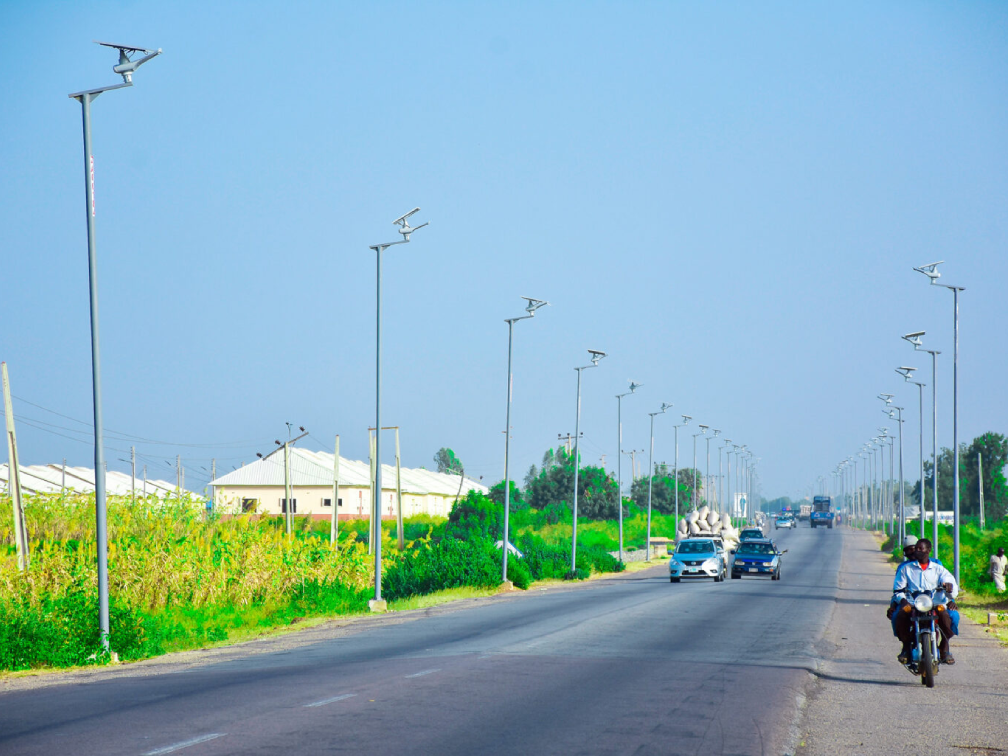

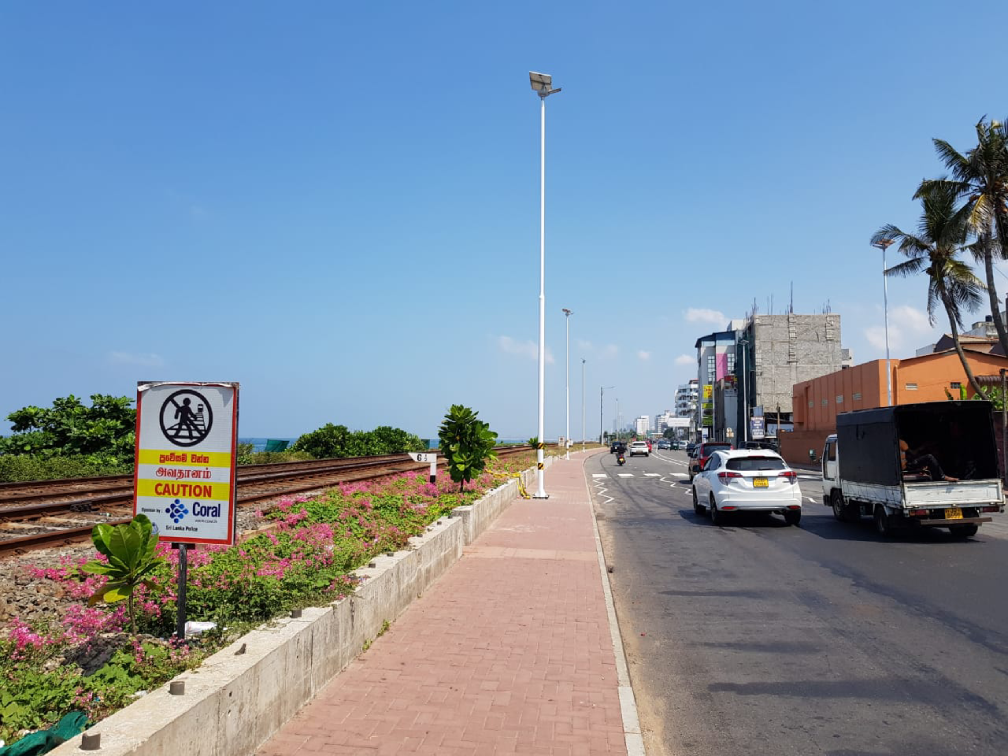

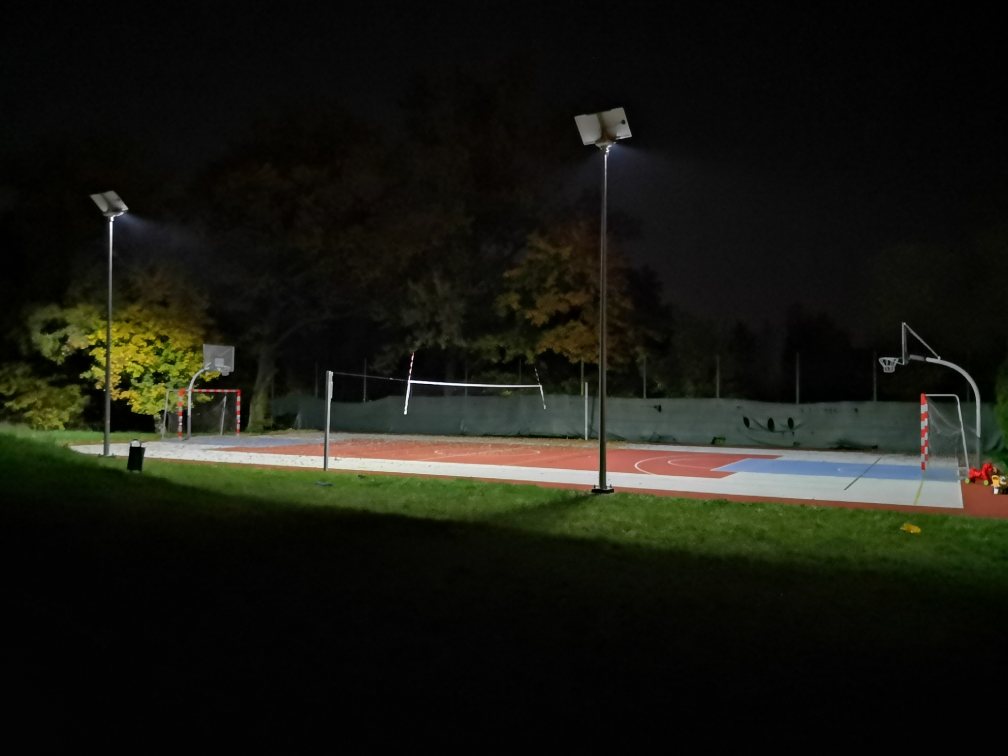

Global Engineering Projects
Proven Performance Worldwide: The Flyhorse Series delivering reliable, maintenance-free solar illumination for international municipal roads and commercial bidding contracts.
Our Project Service Workflow
1、Demand Analysis
● Consultation
● Requirements Confirmation
● Environmental Assessment
2、Solution Design
● Component Selection
● System Configuration
● Preliminary Quotation
3、Raw Material Procurement
● Supplier Selection
● Quality Inspection
● Production
● Packaging
4、Installation
● Civil Works
● Mounting
● System Debugging
5、Client Training
● Operation Training
● Maintenance Workshop
● Documentation Delivery
6、After-Sales Support
● 24/7 Helpdesk
● Preventive Maintenance
● Spare Parts Guarantee
7、Feedback Integration
● KPI Monitoring
● Design Iteration
● Client Satisfaction Surveys
Need a Customized Solar Street Light Solution
Send us your project requirements, including road width, pole height, installation location, lighting time and quantity. Our team will help recommend a suitable Solar Star Light II configuration.
Request a Professional Solution
Please submit your project details on the right. Our team will provide a professional solution and quote via email within 24 hours.

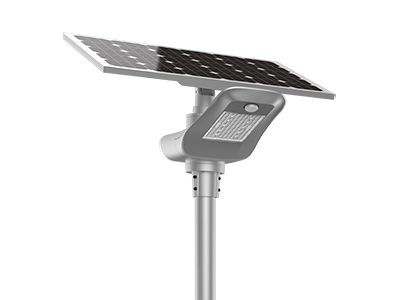

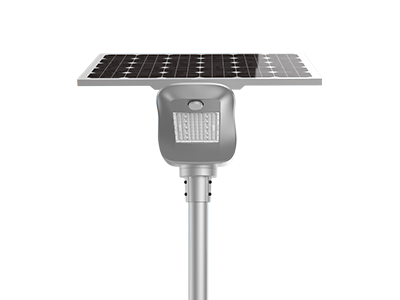

Related Products
FAQ
Q: What makes the Flyhorse Series ideal for industrial parks and highways?
Yes. Engineered with patented bat-wing polarized lenses, the Flyhorse series delivers uniform road illumination, eliminates dark zones, and allows wider pole spacing, significantly reducing the total project budget for contractors.
Q: How efficient is the installation process for the Flyhorse All-in-Two solar street light?
Thanks to its premium plug-and-play modular wiring and pre-configured bracket system, the Flyhorse series is designed for swift and seamless field deployment. By eliminating traditional underground trenching and heavy grid cabling, it minimizes on-site labor requirements and allows contractors to complete large-scale project installations rapidly.
Q: Is the Flyhorse Series an All-in-Two solar street light?
Yes. The Flyhorse features a professional All-in-Two structure where the heavy-duty LiFePO₄ battery, MPPT controller, and LED source are securely integrated into the main luminaire, while the high-efficiency solar panel is mounted separately to allow flexible tilt-angle adjustments for maximum solar absorption.
