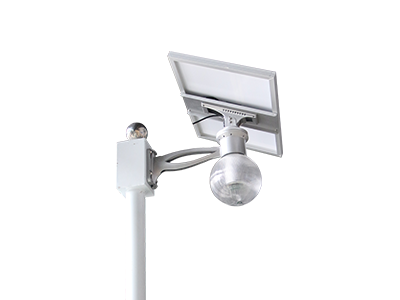

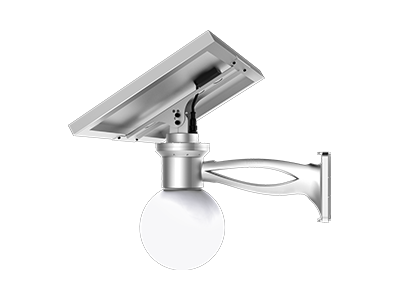

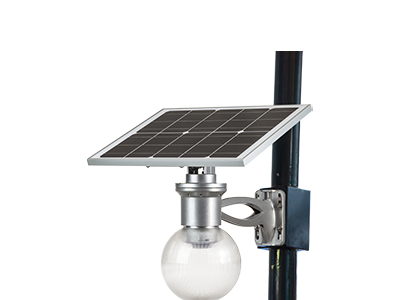

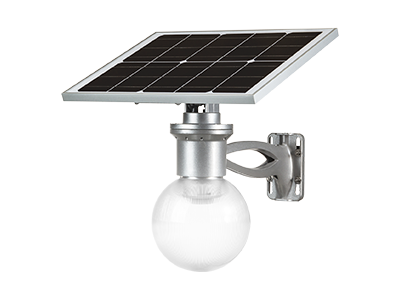

Moon Series All-in-Two Solar Garden Light
Engineered with an adaptable All-in-Two design, corrosion-resistant aluminum alloys, and IP65 weather-sealed electronics, this solar garden light ensures long-term reliability and optimal energy harvesting in harsh environments.
Learn More About：
All-In-Two Solar Street Light
Applications:
Moon Series All-in-Two Technical Specifications
Explore the complete configuration data for our All-in-Two solar lighting system. Built with premium optics and architectural-grade materials for sustainable project development.
Type | SC-ML-R40 |
Solar Panel Power | 40W/4.5V |
Material | Monocrystalline silicon |
Solar cell efficiency | 19-20% |
Battery Capacity | 144WH/45AH |
Charge cycle times | 2000 times |
Luminous flux | 1500-1800lm |
Light output | 12W |
LED qty | 30pcs |
LED chip | Bridgelux 160lm/w |
Color temperature | 3000-7500K |
CRI | ≥70Ra |
Material of lamp head | Die-cast aluminum |
Lifespan | 50000hrs |
Light control voltage | 1V |
Lighting time(full charged) | 2-3 rainy days |
Operation temperature | -20℃~60℃ |
| Top diameter of pole | 60mm |
| Mounting height | 3-5m |
| Installation spacing | 8-10m |
Advanced Technology & Engineering Advantages
Dual-Axis Rotating Solar PanelEngineered with a highly flexible All-in-Two structure, the monocrystalline solar panel can be adjusted both vertically and horizontally. This allows project installers to optimize the tilt angle based on local latitude, maximizing sunlight absorption and daily energy yields.
Mode Memory ManagementTo simplify large-scale municipal operations, the integrated controller features an automated mode memory function. Contractors only need to configure the lighting profiles once, achieving permanent setup and eliminating ongoing manual re-programming field costs.
IPC 5.0 TechnologyFeaturing our high-precision Intelligent Power Control (IPC 5.0) system, the fixture utilizes smart algorithms to assess recent weather patterns. By rationally calculating and planning the discharge efficiency, it significantly extends battery autonomy during prolonged rainy periods.
Advanced Charge & Discharge ManagementBuilt with dual software and hardware protective layers alongside intelligent cell-equalization technology, the power management system safely achieves over 2,000 charging cycles, drastically cutting down long-term battery replacement overheads.
Modular All-in-Two IntegrationCombining the flexibility of a split system with the compact footprint of an integrated fixture, this unique architectural design minimizes shipping volumes and dramatically accelerates on-site installation, reducing project labor costs.

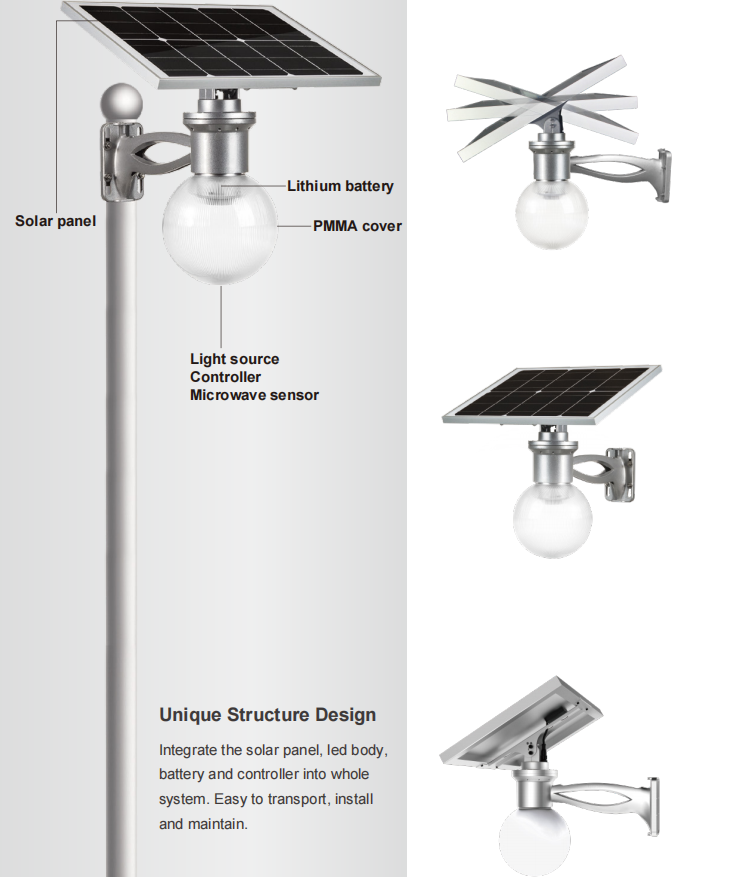

Precision Component & Structural Details
Lithium Battery
Sealed LiFePO₄ pack delivers long cycle life and stable night-long power.
Read More
PMMA Cover
UV-resistant diffuser shields the LEDs and casts a soft, 360° glow.
Read More
Solar Panel
High-efficiency mono-crystalline disc on the top surface harvests daylight energy.
Read More
Light Source
Low-power SMD LEDs mounted on an aluminum core board for superior heat dissipation.
Read More
Controller
Integrated single-string MPPT regulates charge and discharge for maximum autonomy.
Read More
Microwave Sensor
Radar module detects motion and automatically raises brightness when people approach.
Read More

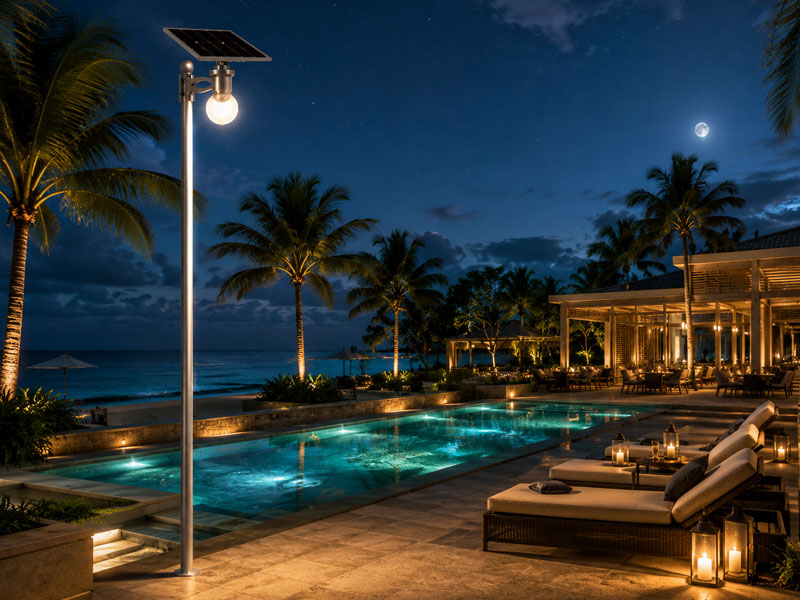

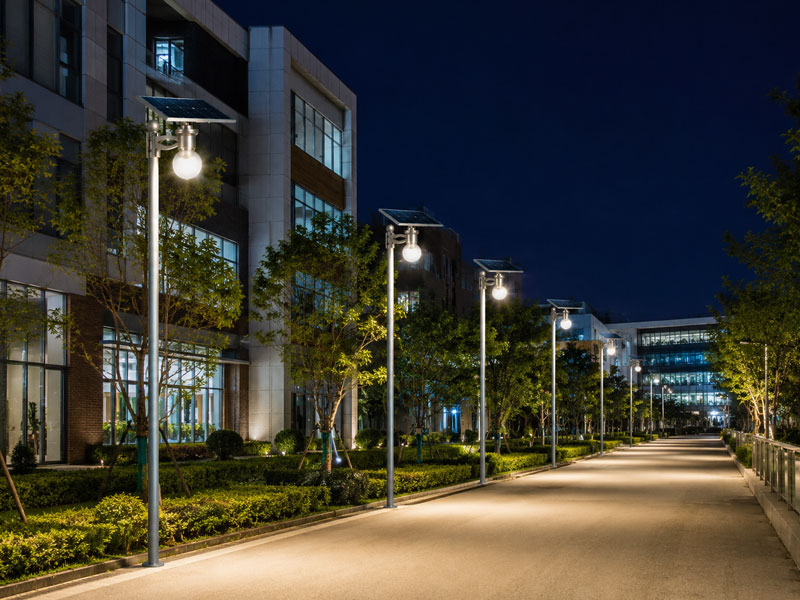

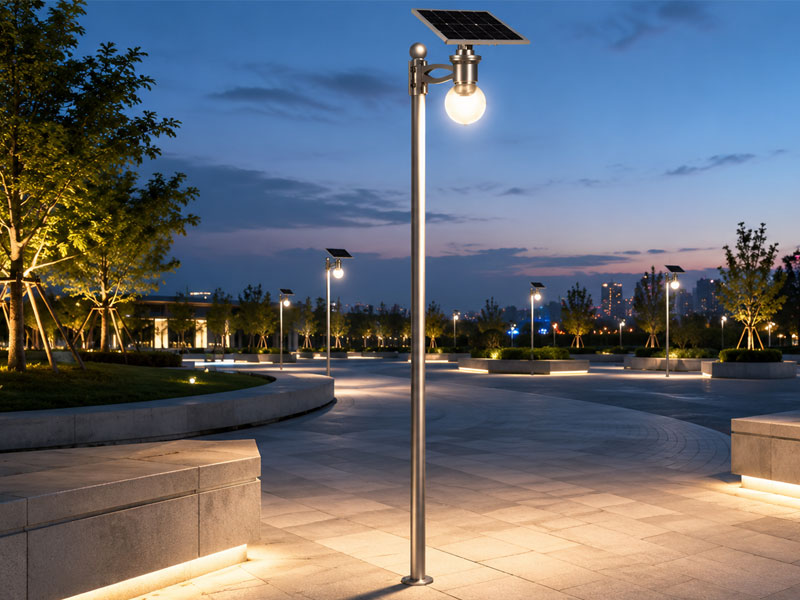

Applications and Solar Lighting Solutions
The following are premium operational environments for the Moon Series All-in-Two solar garden lights. This commercial-grade system is highly adaptable to pedestrian-centric infrastructure, architectural landscapes, and municipal outdoor spaces requiring reliable, aesthetically refined lighting solutions.

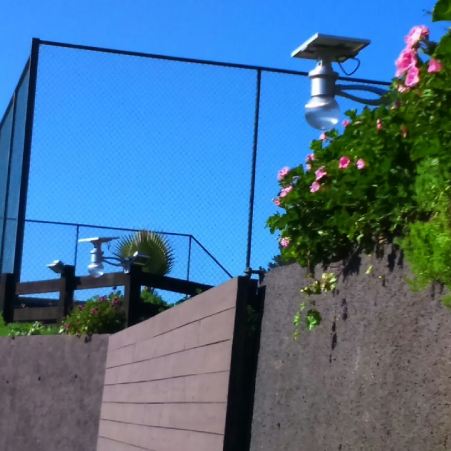

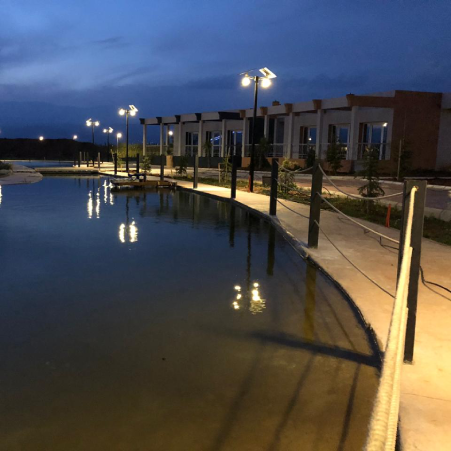

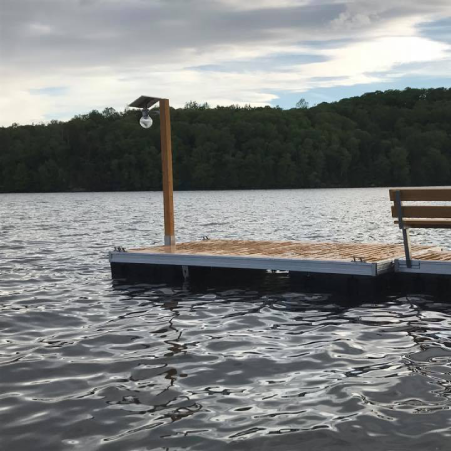

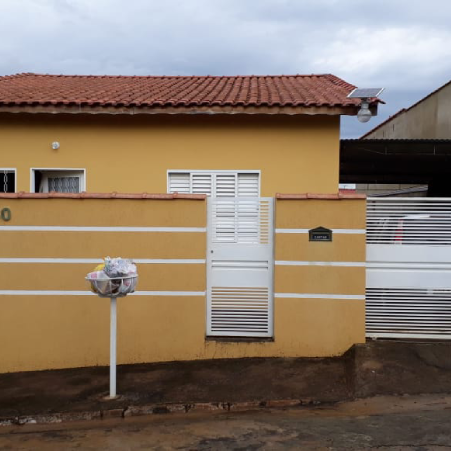

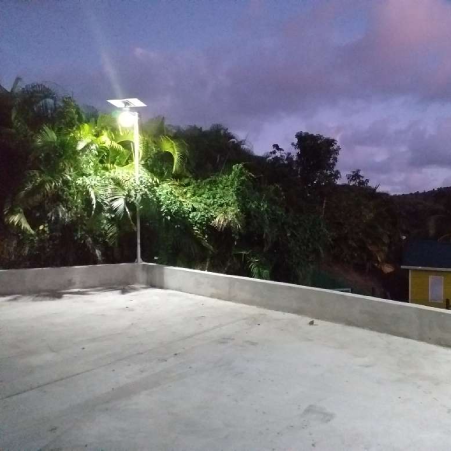

Moon Series Track Record & Global Case Studies
Proven Performance in Municipal Infrastructure and Commercial Landscapes Worldwide
Project Delivery & Service Workflow
1、Demand Analysis
● Consultation
● Requirements Confirmation
● Environmental Assessment
2、Solution Design
● Component Selection
● System Configuration
● Preliminary Quotation
3、Raw Material Procurement
● Supplier Selection
● Quality Inspection
● Production
● Packaging
4、Installation
● Civil Works
● Mounting
● System Debugging
5、Client Training
● Operation Training
● Maintenance Workshop
● Documentation Delivery
6、After-Sales Support
● 24/7 Helpdesk
● Preventive Maintenance
● Spare Parts Guarantee
7、Feedback Integration
● KPI Monitoring
● Design Iteration
● Client Satisfaction Surveys
Need a Customized Solar Street Light Solution
Send us your project requirements, including road width, pole height, installation location, lighting time and quantity. Our team will help recommend a suitable Solar Star Light II configuration.
Request a Professional Solution
Please submit your project details on the right. Our team will provide a professional solution and quote via email within 24 hours.
Related Products
FAQ
Q: Does it include motion sensing?
Moon Light ships with a PIR sensor that gently boosts brightness when people approach, conserving energy the rest of the night.
Q: Where is it best deployed?
Parks, pathways, resorts, and garden walkways—anywhere low-profile, glare-free illumination is preferred.
Q: Is Moon Light considered an integrated solar LED street light?
Yes. The circular design houses panel, battery, controller, and LEDs in a single disc-shaped unit for minimalist aesthetics.
