All-In-Two Solar Street Light
Solar Sailing Light Ⅱ
This All-In-Two solar street light installs fast, delivers wide, uniform lighting, and keeps working through long stretches of cloudy weather—highly suited for highways, industrial zones, business districts, and marina roads.
Learn More About：
All-In-Two Solar Street Light
Download: Solar Sailing Light Ⅱ
Applications:
Advantages
Patented Multi-Peak MPPT TechnologyEquipped with RoadSmart's new patented solar controller, the system adopts advanced multi-peak MPPT technology. Compared to traditional PWM controllers, it tracks the maximum power point in real-time, increasing energy utilization by 15% to 20% and ensuring high charging efficiency even under partial shade.
Intelligent IPC 5.0 Weather AdaptationPowered by our high-precision IPC 5.0 version intelligent power control technology, the light uses AI to automatically judge recent weather conditions. By rationally planning discharge power, it guarantees an ultra-long battery autonomy of 5–7 continuous rainy days.
Smart Charge & Discharge ManagementFeaturing double protection via integrated software and hardware alongside intelligent equalization technology, the heavy-duty LiFePO4 battery achieves stable cycle charging and discharging for more than 2,000 times, securing a system lifespan of over 10 years.
Intelligent Temperature Control SystemA built-in thermal protection switch automatically manages software operations at extreme temperature limits. It includes an automatic heating function to protect the battery in low-temperature atmospheres, ensuring reliable operation in harsh outdoor environments from -20℃ to 60℃
High-Lumen Professional OpticsIntegrated with our premium LED chips and patented bat-wing lens with polarized light, it delivers exceptional brightness up to 200 lm/W. It ensures uniform ground illumination and wider pole spacing without dark zones, optimized perfectly for highways, industrial parks, and municipal road projects.
Technical Specifications & Model Comparison
Review the complete engineering data and structural configurations for the Solar Sailing Light Ⅱ series. Select the optimal configuration based on your specific roadway luminaire requirements, mounting heights, and battery capacity needs.
| Type | RS-SL80P | RS-SL100P | RS-SL120-A |
| Solar Panel | 60W / 6V | 80W / 18V | 100W / 18V |
| LiFePO4 Battery | 192WH | 256WH | 384WH |
| Charge Cycle Times | 2000 times | ||
| Luminous Flux | 4100-4300LM | 6000-6300LM | 8500-9000LM |
| Lamp Power | 30W | 40W | 60W |
| LED qty | 140pcs | ||
| Lifespan of LED | 50000hrs | ||
| Color Temperature | 3000-7500K | ||
| Light Distribution | Batwing lens with polarized light | ||
| Lighting time(full charged) | 5-7 rainy days | ||
| Working temperature | -20℃~60℃ (Charge above 0℃) | ||
| Top diameter of pole | 60mm | ||
| Mounting height | 6-7m | 7-8m | 8-10m |
| Installation spacing | 20-40m | ||

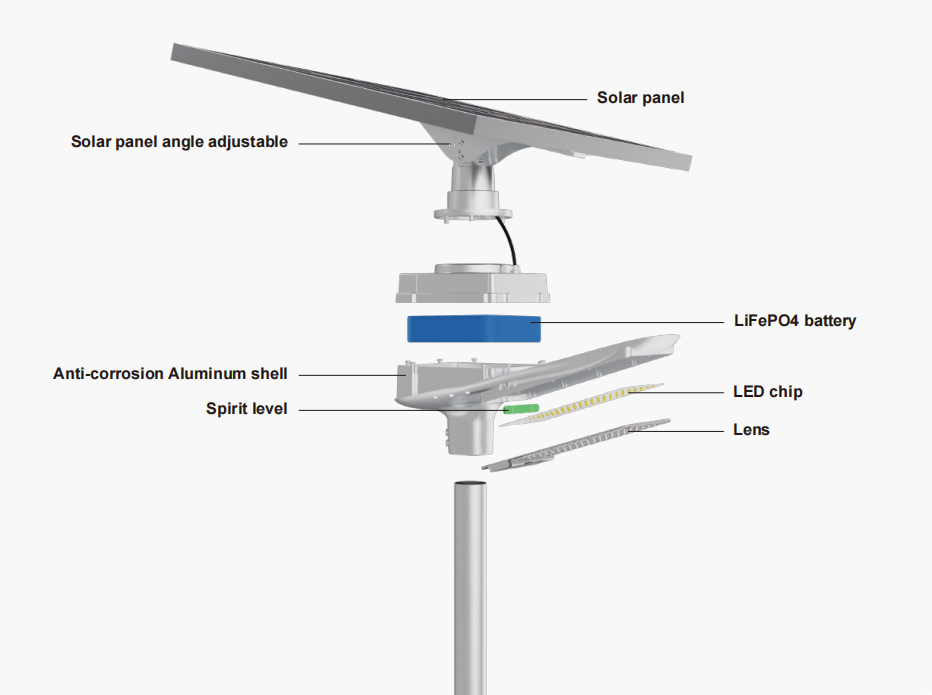

Key Features & Technologies
Hollow Shell Design
Open-back housing accelerates heat dissipation, extending electronic lifespan.
Read More
Mono Solar Panel
Integrated panel captures maximum sunlight in compact form.
Read More
Anti-Corrosion Aluminum Shell
Marine-grade alloy withstands harsh coastal or desert climates.
Read More
Built-In Microwave Radar Sensor
Motion detection dims when no activity, saving energy and prolonging lighting hours.
Read More
140 High-Efficiency LED Chips
A professional optical configuration combined with a batwing lens widens and balances the beam pattern, delivering uniform roadway illumination.
Read More
Rotating Holder
Adjustable bracket fits multiple pole angles for optimal sun exposure and beam aim.
Read More

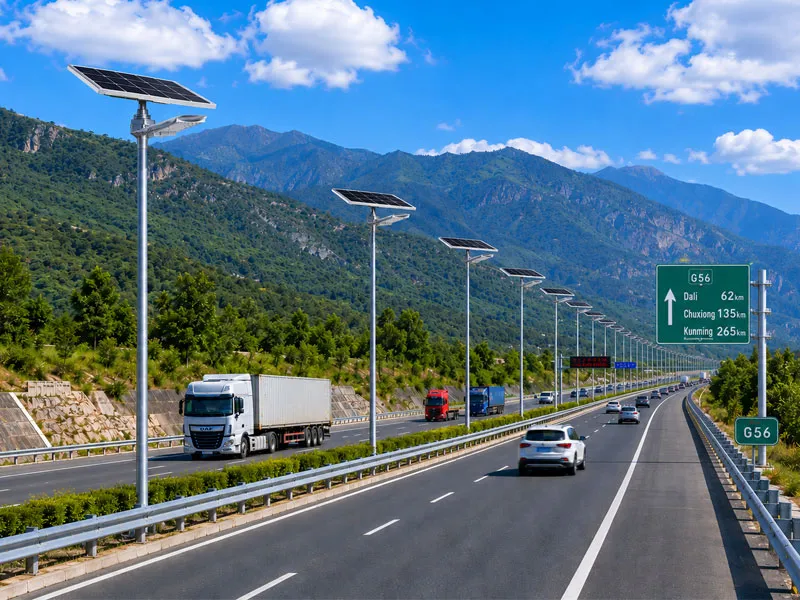

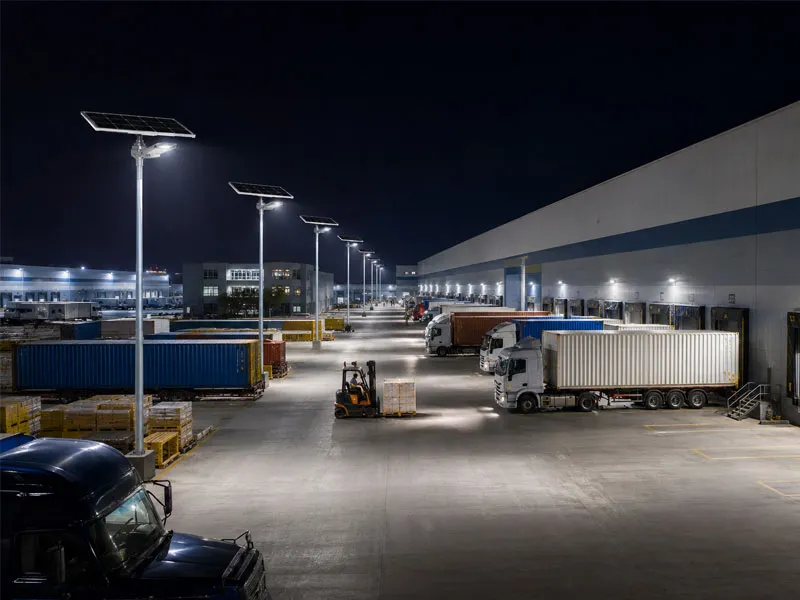

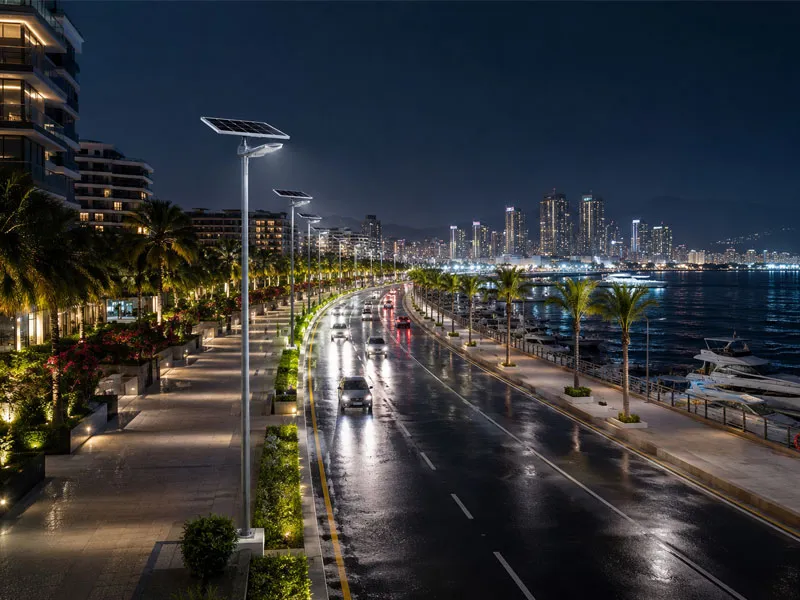

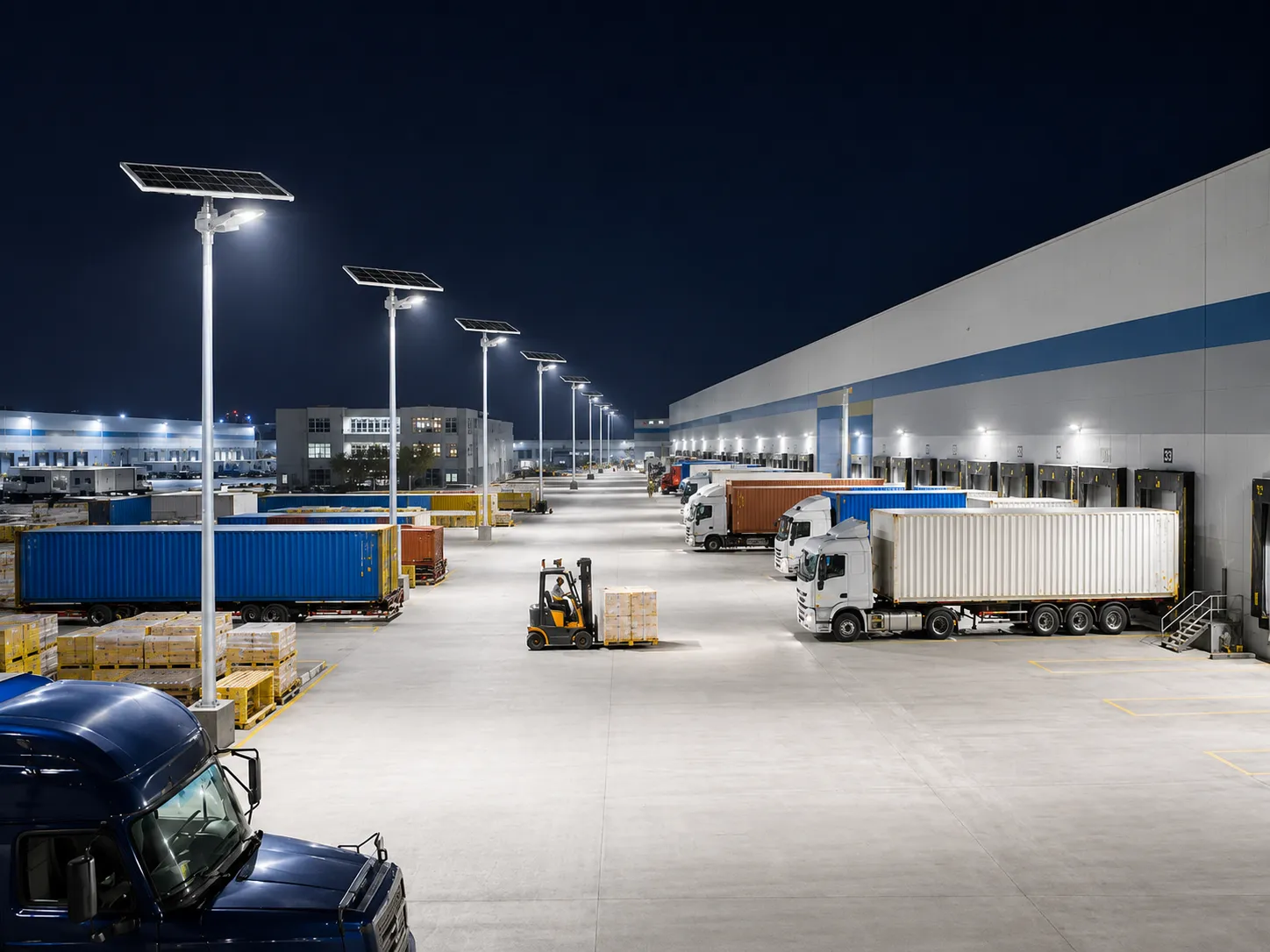

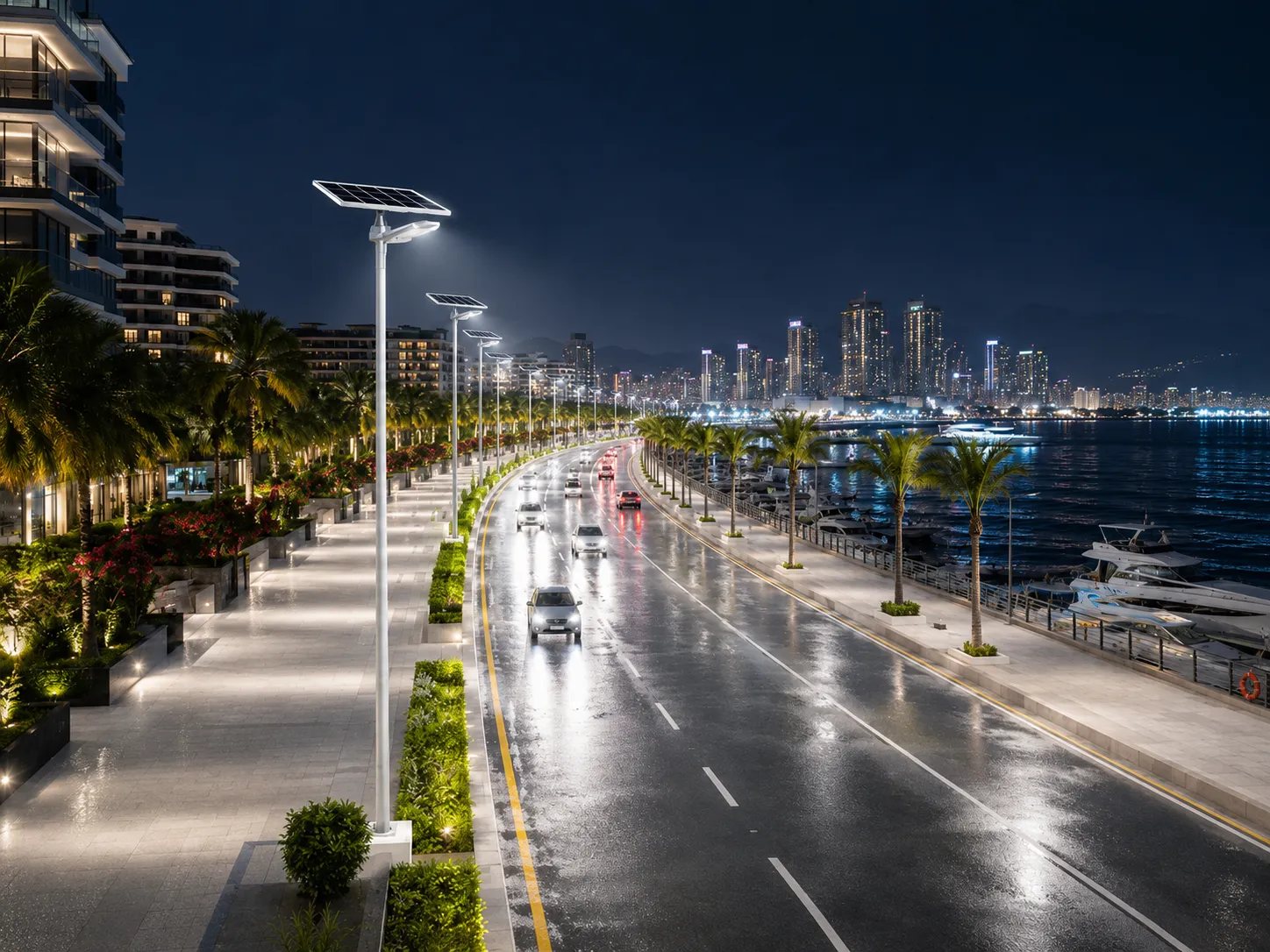

Applications and Solar Lighting Solutions
The following are common operational environments for the Solar Sailing Light Ⅱ series. This system adaptable to various outdoor infrastructure projects, allowing configuration selection based on road classifications, regional wind load requirements, and technical specifications.

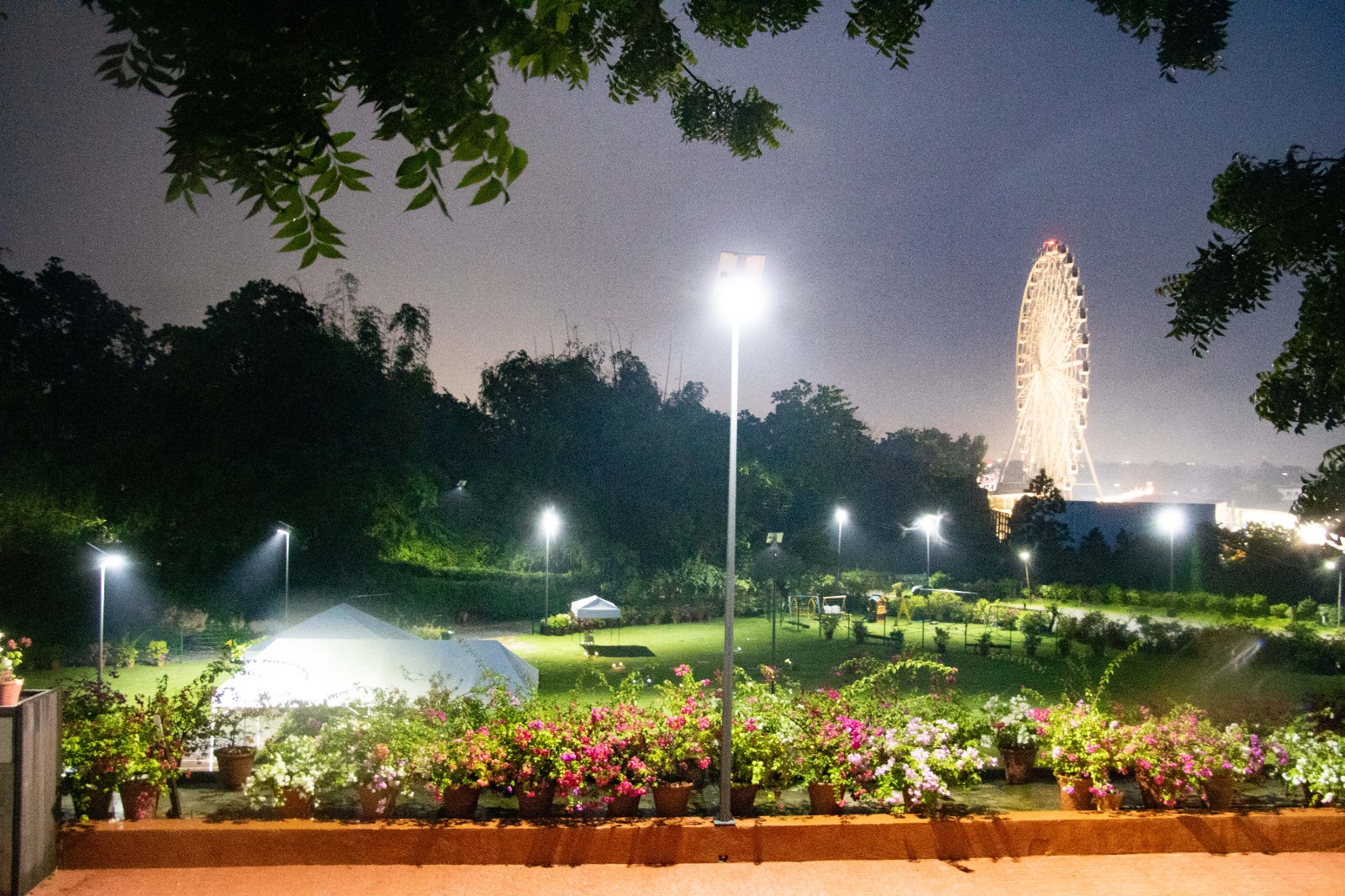

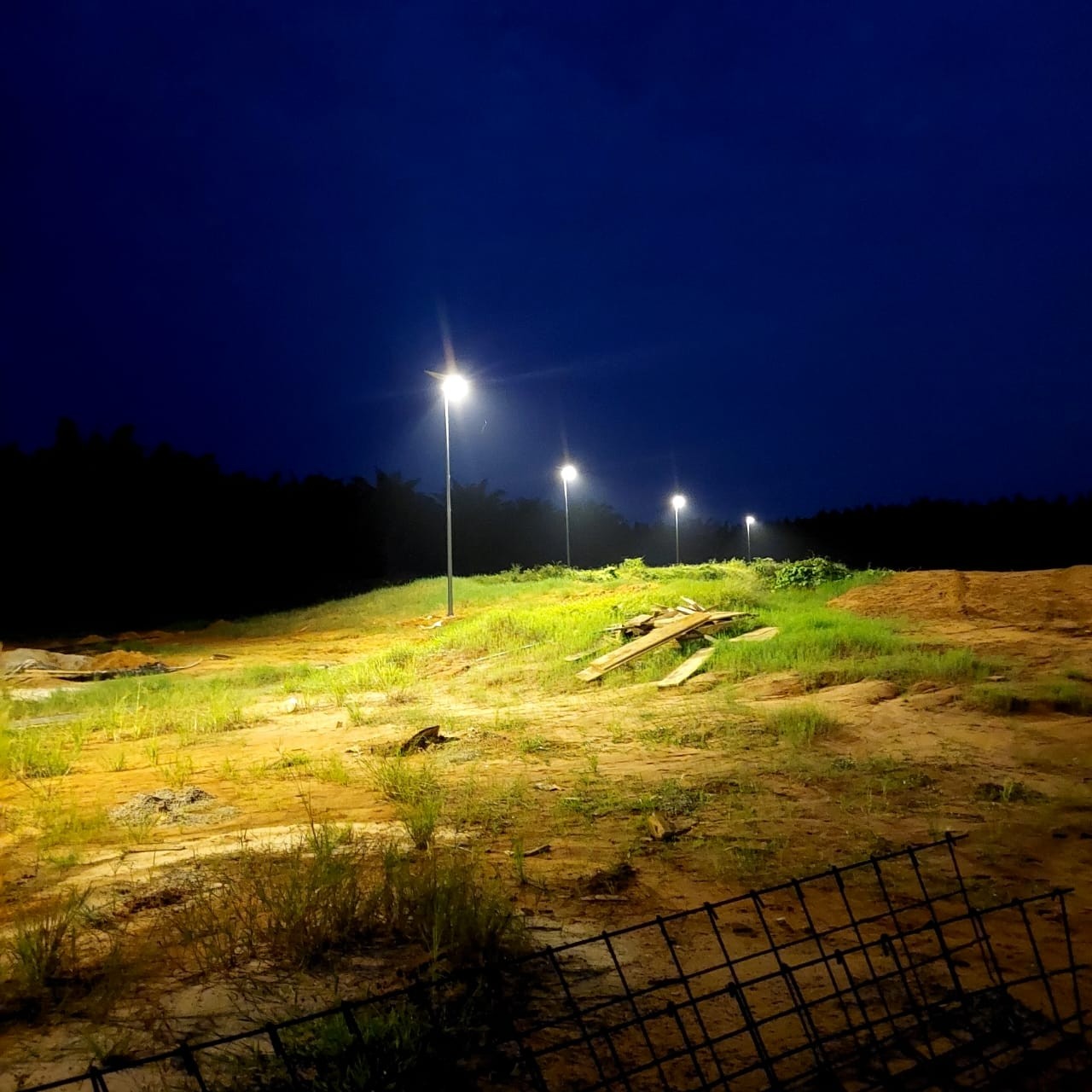

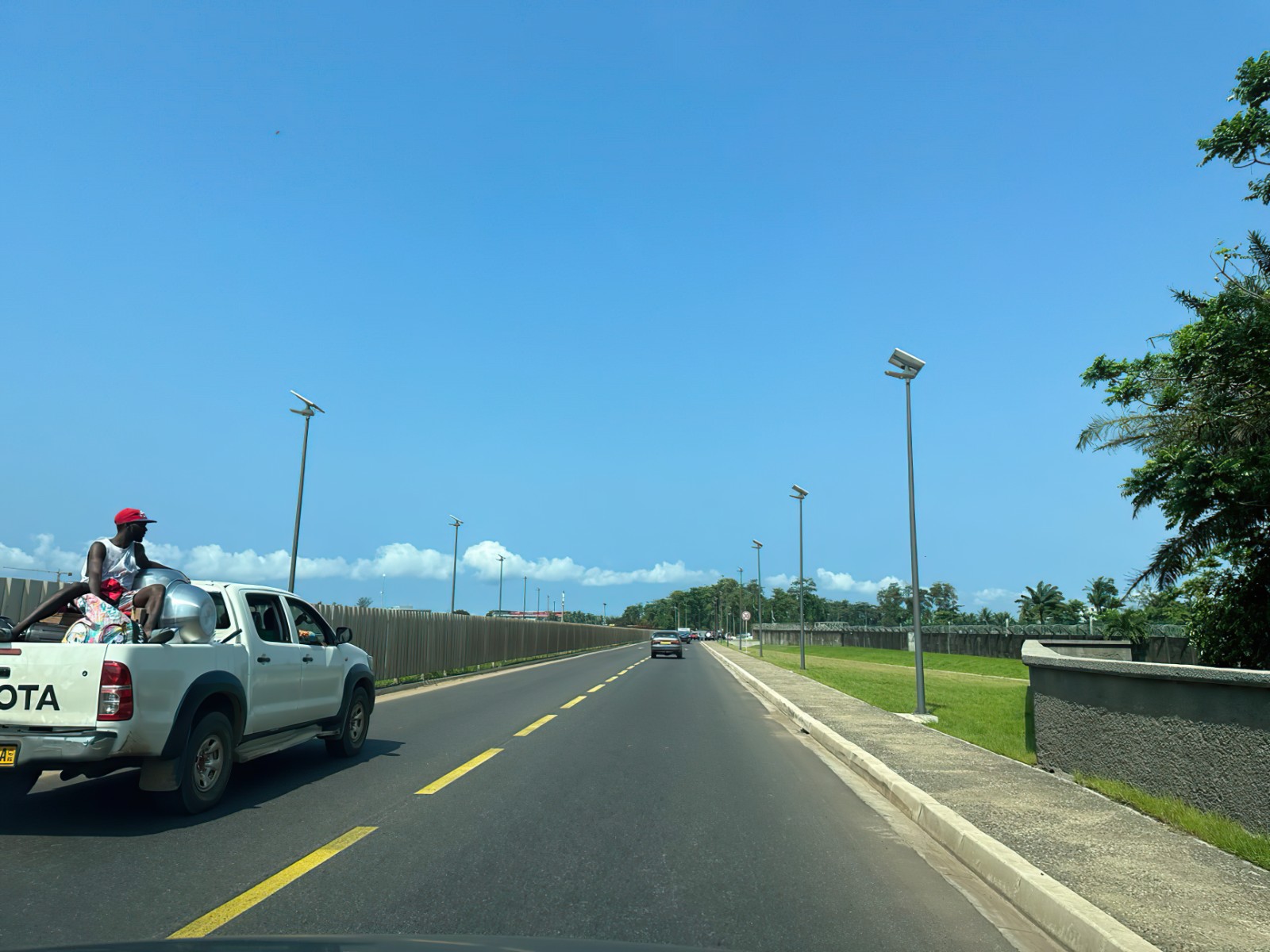

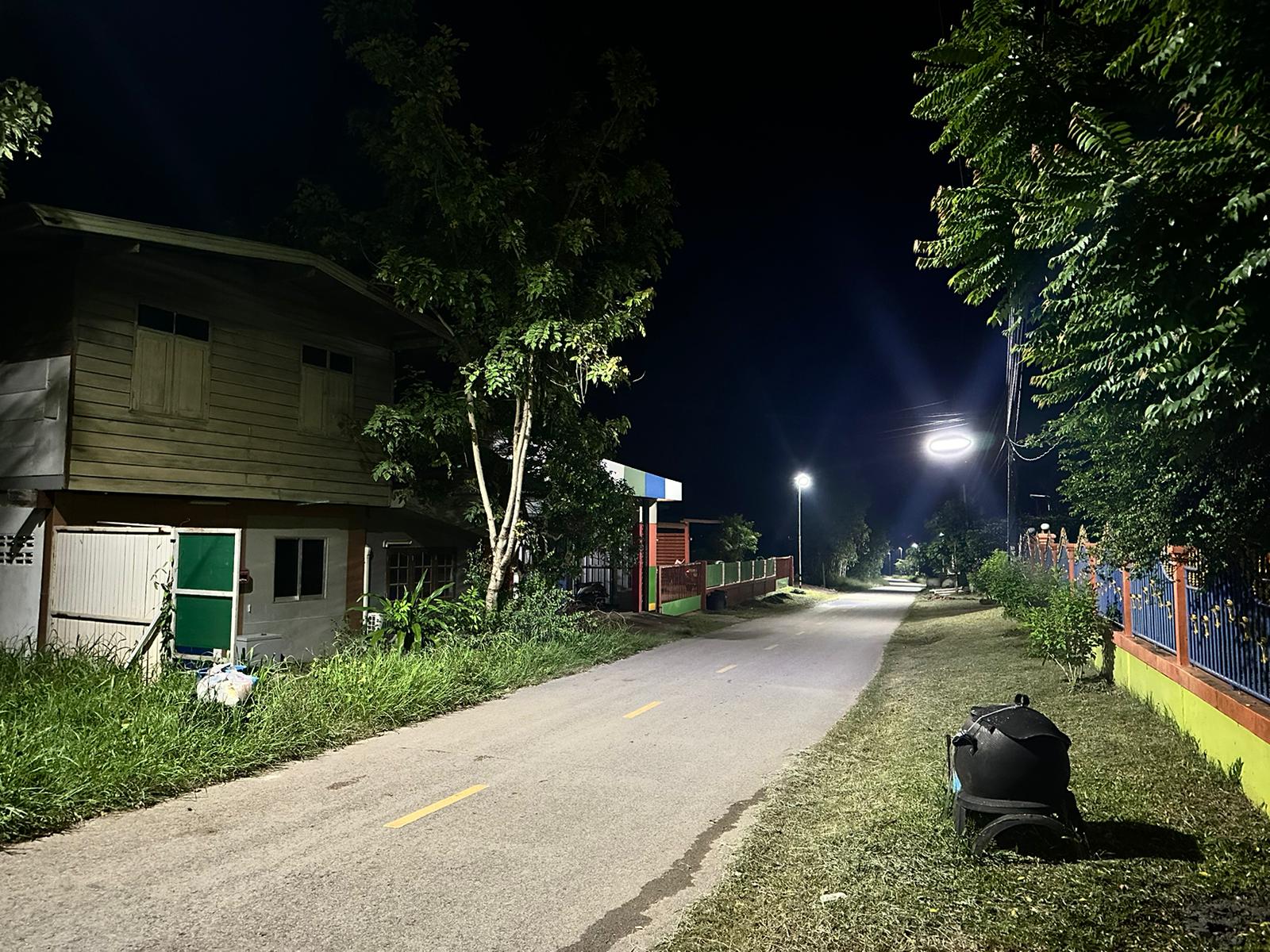

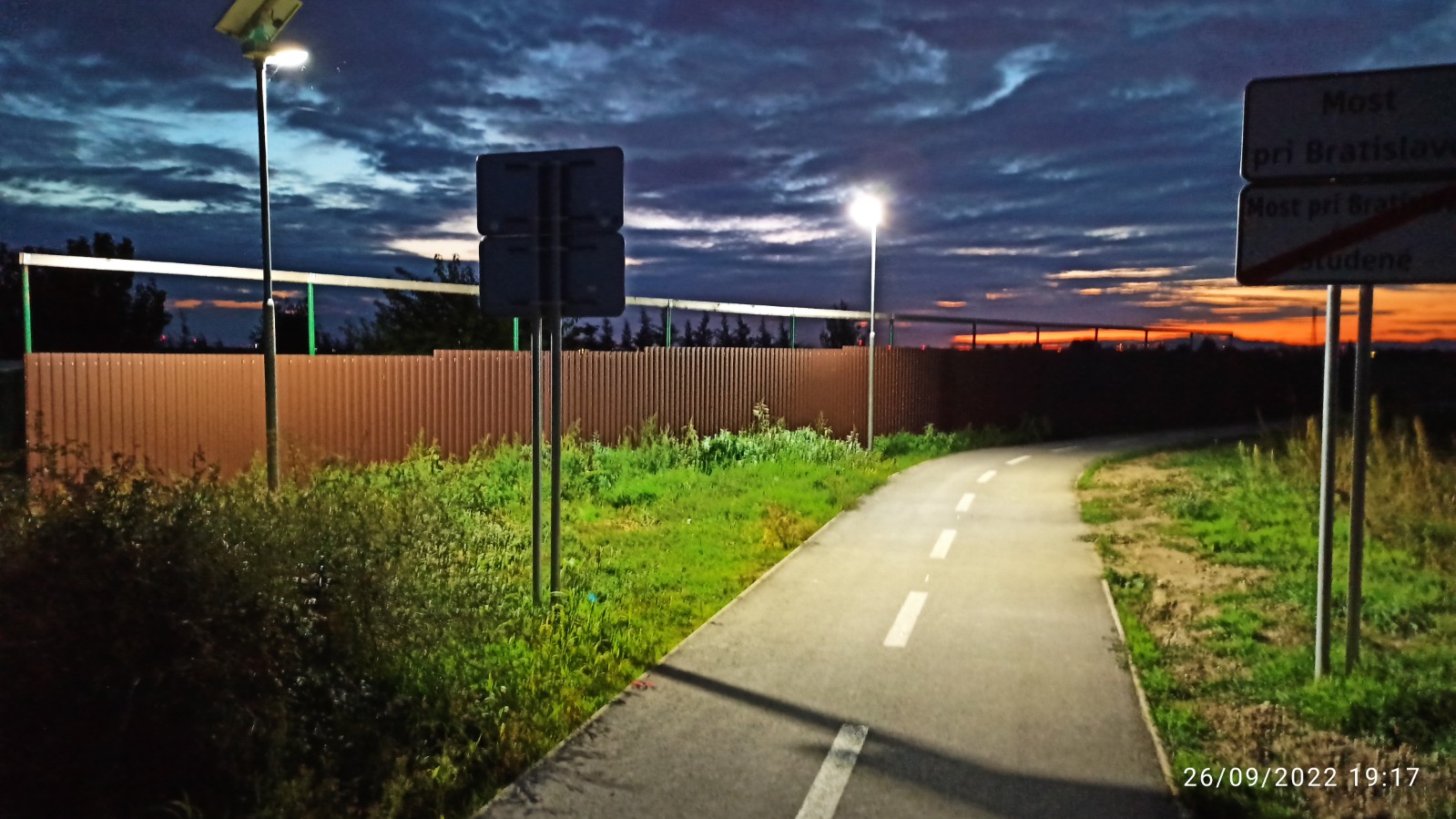

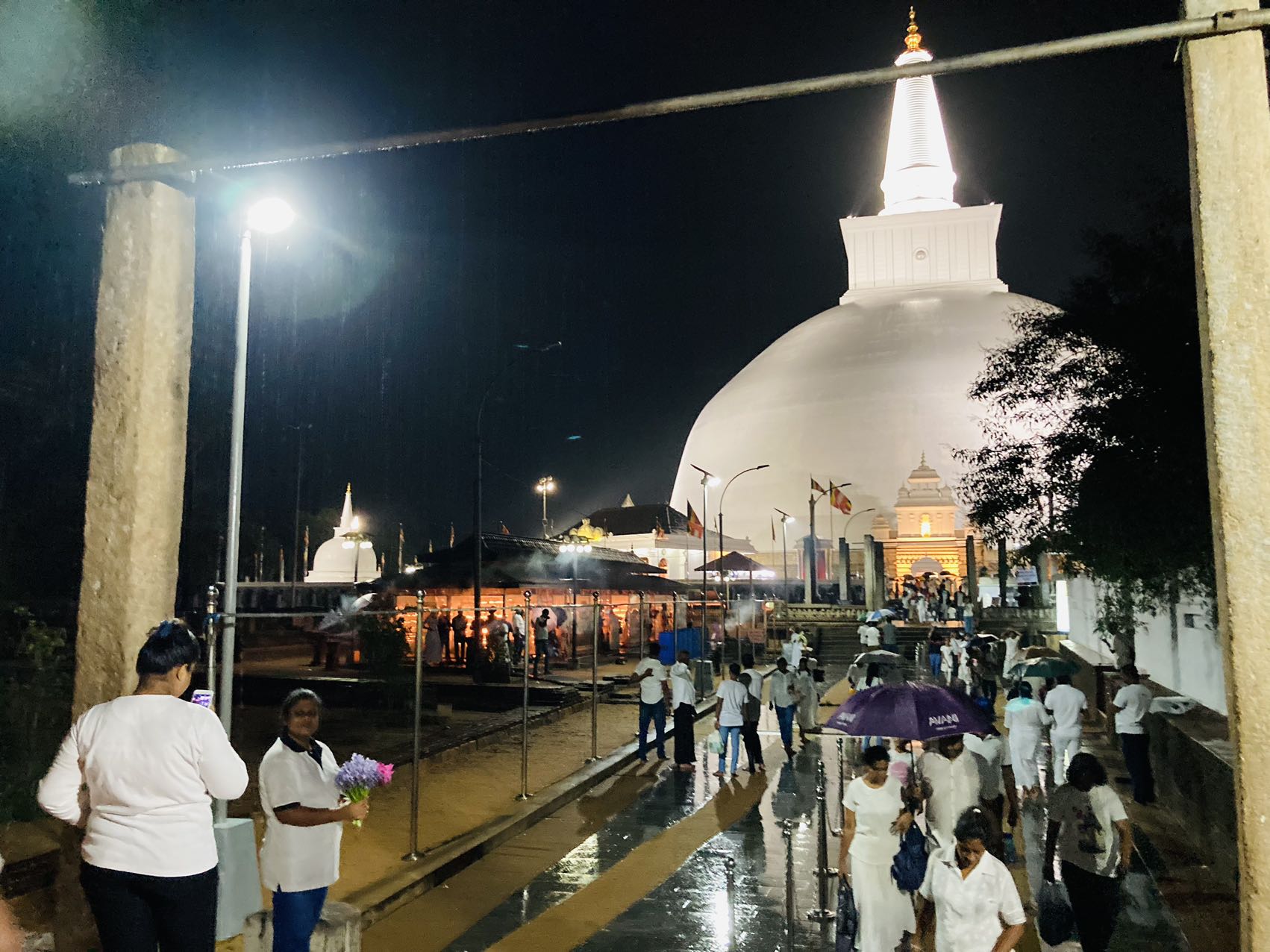

Global Engineering Projects
Technical Performance Verified Across Diverse Climates
Request an Engineering Proposal for Your Region
Planning a municipal roadway or industrial lighting project? Contact our engineering team for a customized dialux simulation, wind-load calculation, and bulk manufacturing quotation.
OEM/ODM Customization Engineering Proces
RoadSmart delivers systemic OEM/ODM modification architectures tailored to precise technical specifications, local ambient conditions, and client compliance matrices. Our engineering pipeline ensures regional optimization from initial parameters to final manufacturing.
1、Demand Analysis
● Consultation
● Requirements Confirmation
● Environmental Assessment
2、Solution Design
● Component Selection
● System Configuration
● Preliminary Quotation
3、Raw Material Procurement
● Supplier Selection
● Quality Inspection
● Production
● Packaging
4、Installation
● Civil Works
● Mounting
● System Debugging
5、Client Training
● Operation Training
● Maintenance Workshop
● Documentation Delivery
6、After-Sales Support
● 24/7 Helpdesk
● Preventive Maintenance
● Spare Parts Guarantee
7、Feedback Integration
● KPI Monitoring
● Design Iteration
● Client Satisfaction Surveys
Need a Customized Solar Street Light Solution
Send us your project requirements, including road width, pole height, installation location, lighting time and quantity. Our team will help recommend a suitable Solar Star Light II configuration.
Request a Professional Solution
Please submit your project details on the right. Our team will provide a professional solution and quote via email within 24 hours.
Related Products
FAQ
Q: What road classes can it illuminate?
With bat-wing optics and high-efficiency LEDs, Sailing Ⅱ meets typical illumination levels for residential streets, parkways, and marina access roads up to 8 m pole height.
Q: How does it handle coastal corrosion?
The die-cast aluminum housing is salt-spray–tested and anodized, while stainless-steel fasteners keep the fixture rust-free in seaside environments
Q: Is Solar Sailing Light Ⅱ an integrated solar street light?
No, it is an All-In-Two solar street light, which separates the solar panel from the luminaire body for maximum sunlight tracking, but keeps battery and controller integrated for easy installation.
