Split Type Solar Street Light

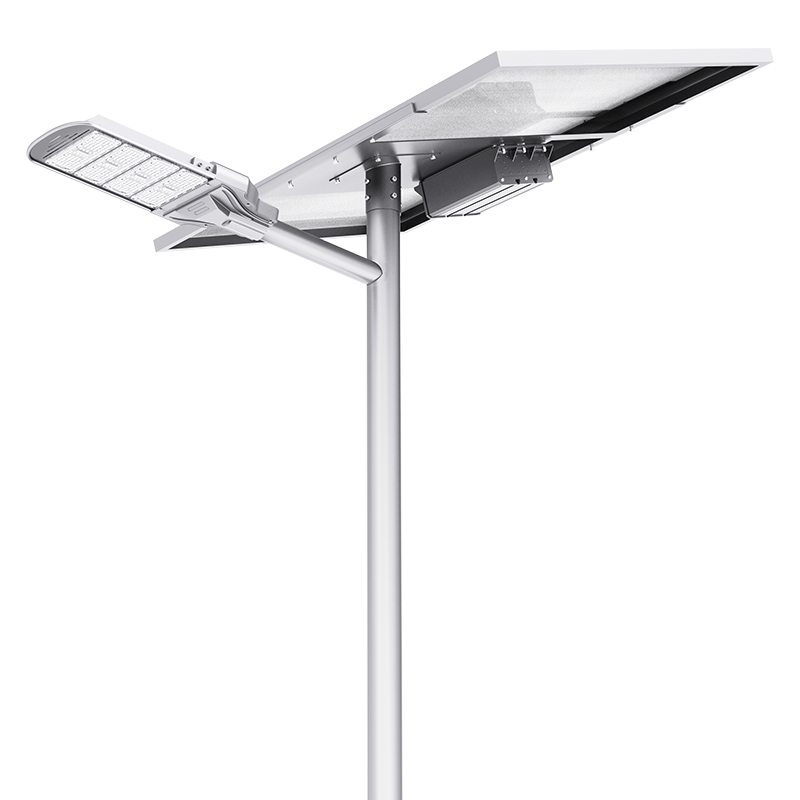

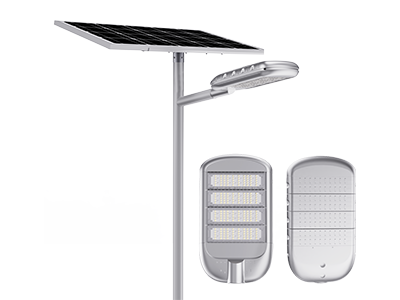

HS Series Solar Street Light
The HS Series features an advanced split-type design with adjustable solar panels to maximize energy conversion. Built with rugged die-cast aluminum, this series delivers high-lumen, stable outdoor illumination, widely applicable for roadways, municipal projects, highways, and industrial zones without any cabling.
Learn More About：
Split Type Solar Street Light
Download: HS Series Solar Street Light
Applications:
Technical Specifications
The HS Series features two high-capacity models—RS-HS300 and RS-HS400—engineered to deliver powerful, stable roadway lighting. Below are the detailed electrical and photometric parameters to assist with your project planning and engineering compliance.
|
Type |
RS-HS300 |
RS-HS400 |
|
Solar panel |
2*150W/18V |
2*200W/18V |
|
LiFePO4 battery |
1536WH |
1920WH |
|
Charge cycle times |
2000 times |
|
|
Luminous flux |
16000LM |
20800LM |
|
Lamp power |
100W |
130W |
|
LED qty |
400pcs |
|
|
Lifespan of LED |
50000 hrs |
|
|
Color temperature |
6000-6500K |
|
|
Light distribution |
Batwing lens with polarized light |
|
|
Lighting time |
5-7 rainy days |
|
|
Working temperature |
-20℃~60℃(Charge above 0°℃) |
|
|
Top diameter of pole |
60mm |
|
|

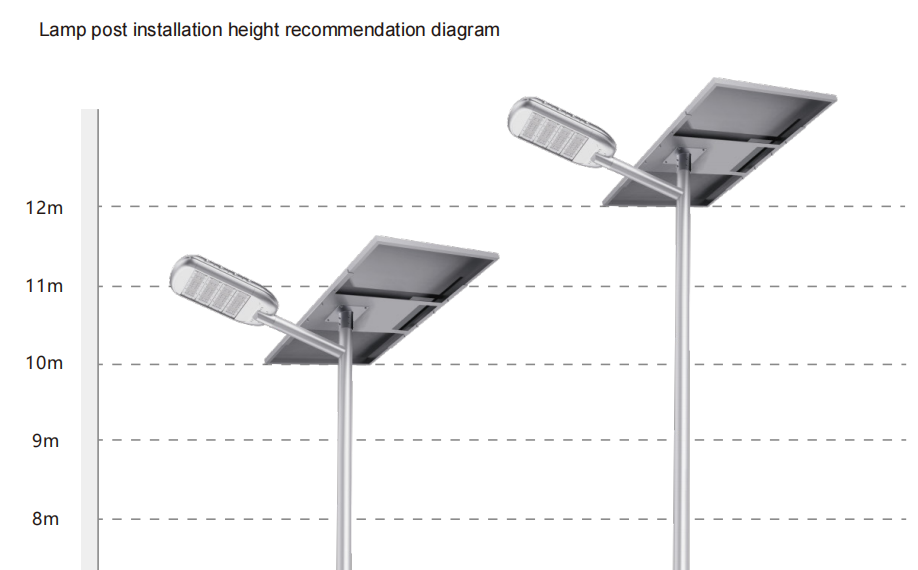

Mounting height |
8-10m |
8-12m |
|
Installation spacing |
20-40m |
|
Advantages
Multi-Peak MPPTAdopting proprietary multi-peak MPPT technology, the integrated solar controller tracks the maximum power point in real time, optimizes solar panel conversion efficiency, and ensures stable performance under partial shading conditions.
Intelligent Temperature ControlThe system features software-driven thermal protection. It triggers an automatic shut-off at high-temperature limits to prevent degradation and activates low-temperature heating protection to sustain battery health, extending the overall system lifespan.
Advanced Charging ModeUtilizing Maximum Power Point Tracking (MPPT), this system achieves a 15% to 20% increase in energy utilization efficiency compared to traditional PWM controllers, significantly enhancing power harvesting.
Charge and Discharge ManagementDual hardware and software layers provide comprehensive overcharge and over-discharge protection. Combined with intelligent cell equalization technology, the system supports over 2,000 complete charge-discharge cycles.
3.2V High-Efficiency SysteSupporting a maximum light source output of 160W, the optimized 3.2V system configuration achieves up to four times the battery operational efficiency of standard 12V/24V alternatives, enhancing overall product stability.
Detail Showcase
Battery Box
Pole-mounted enclosure simplifies maintenance and keeps weight off the luminaire.
Solar Panel
High-output mono array fuels extended runtime even in winter.
Installation
Slip-fitter bracket slots onto standard poles for tool-light setup.

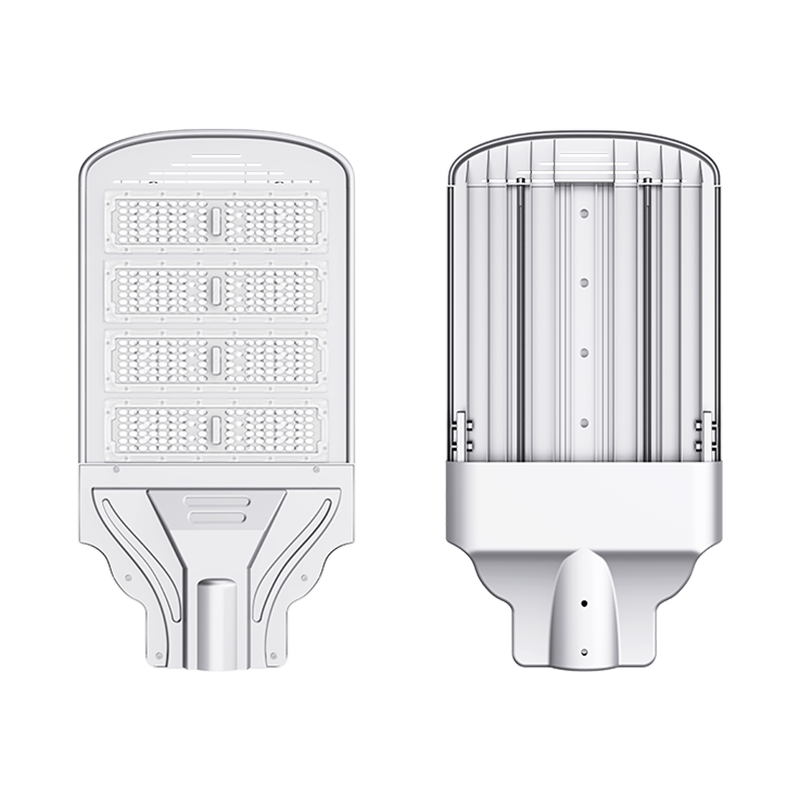

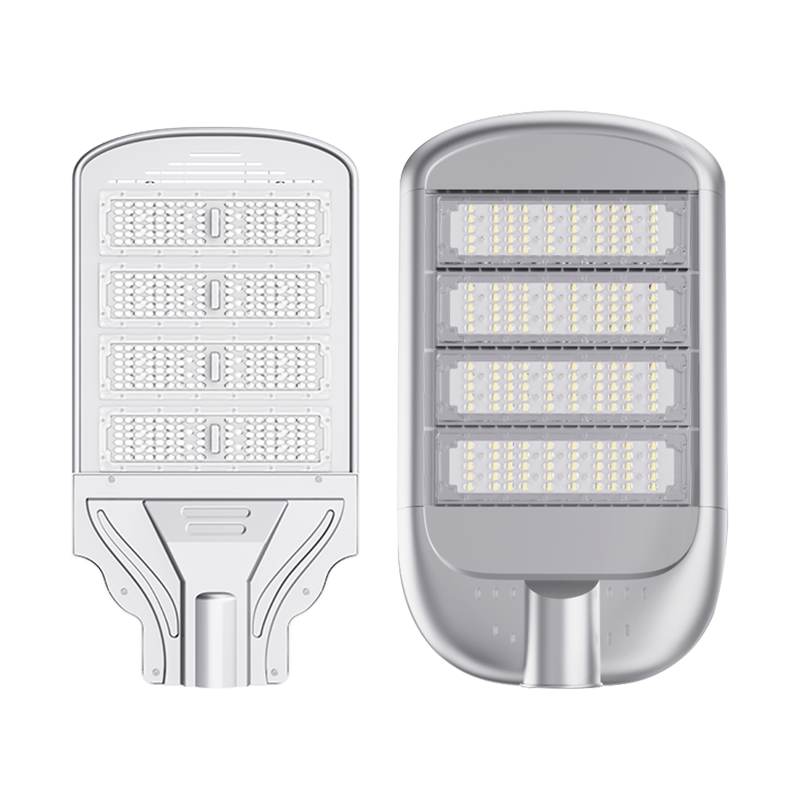

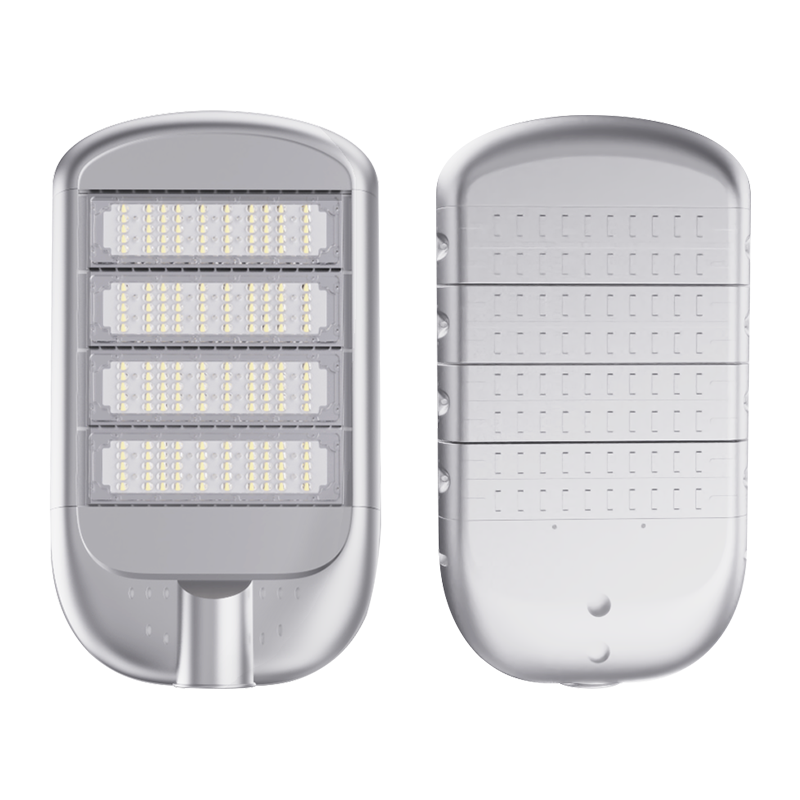

Two Lamp Heads
Choose star-shaped or flat lens to match landscape aesthetics.
Working Mode
Preset schedules and motion dimming selectable via handheld remote.
Beam Angle
Bat-wing optics spread uniform, glare-free light across pathways.

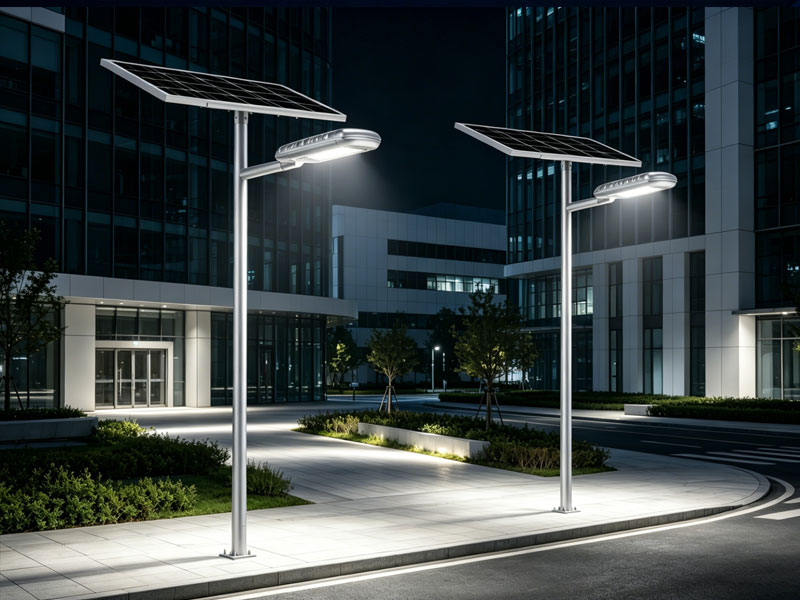

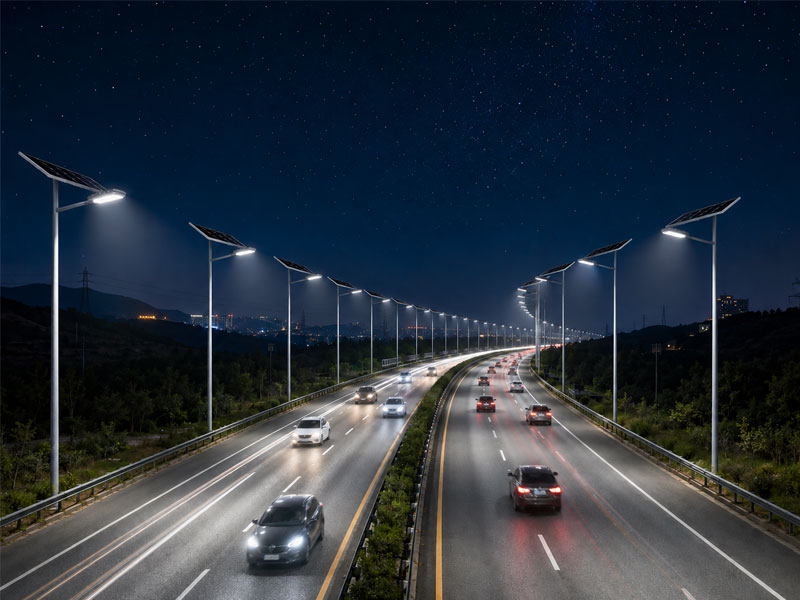

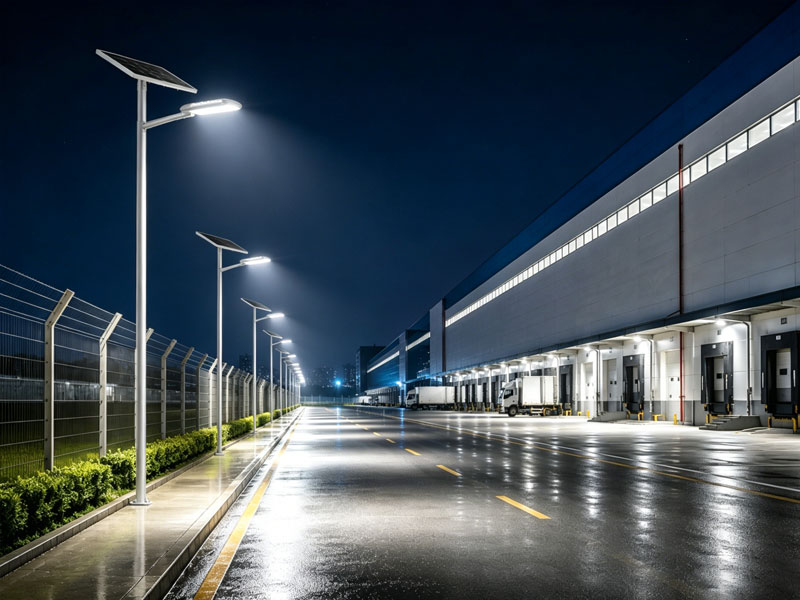

Applications and Solar Lighting Solutions
HS Series Split Solar Street Light delivers high-output, reliable illumination across global municipal roadways, highways, and infrastructure projects.
Project

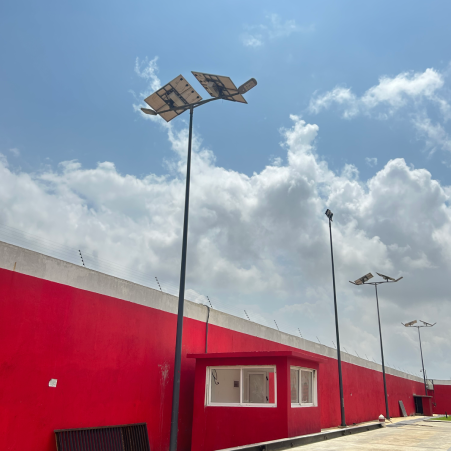

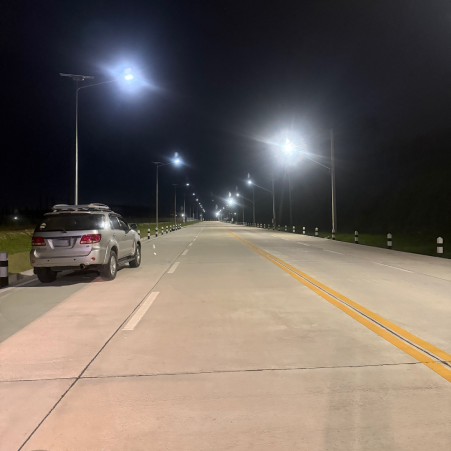

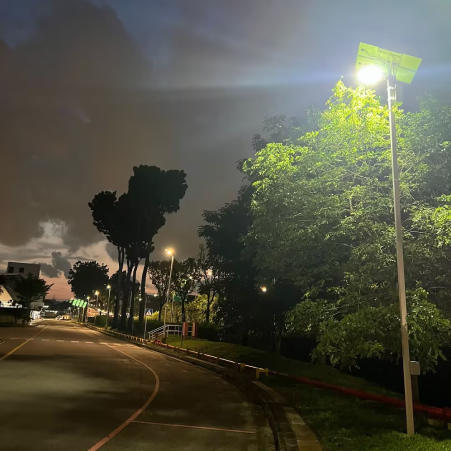

Global Engineering Case Studies: HS Series Project Deployments
OEM/ODM Engineering Customization Process
Tailored technical configurations are engineered to align with specific project scopes, local environmental factors, and regional tender specifications.
1、Demand Analysis
● Consultation
● Requirements Confirmation
● Environmental Assessment
2、Solution Design
● Component Selection
● System Configuration
● Preliminary Quotation
3、Raw Material Procurement
● Supplier Selection
● Quality Inspection
● Production
● Packaging
4、Installation
● Civil Works
● Mounting
● System Debugging
5、Client Training
● Operation Training
● Maintenance Workshop
● Documentation Delivery
6、After-Sales Support
● 24/7 Helpdesk
● Preventive Maintenance
● Spare Parts Guarantee
7、Feedback Integration
● KPI Monitoring
● Design Iteration
● Client Satisfaction Surveys
Need a Customized Solar Street Light Solution
Send us your project requirements, including road width, pole height, installation location, lighting time and quantity. Our team will help recommend a suitable Solar Star Light II configuration.
Request a Professional Solution
Please submit your project details on the right. Our team will provide a professional solution and quote via email within 24 hours.
Related Products
FAQ
Q: Can it handle rain and wind?
Absolutely. The IP65-sealed aluminum housing resists water ingress, dust and coastal corrosion.
Q: Does it have energy-saving features?
Yes. A built-in motion sensor dims the light when no one is nearby, extending battery life.
Q: What makes Star Light HS ideal for decorative walks?
Its star-shaped lens and all-in-one body create architectural flair while supplying bright, balanced garden solar lighting.
