Split Type Solar Street Light
KP Series Split Solar Street Light
The KP Series split solar street light is designed for road, highway, parking lot, and municipal lighting projects. Its separate solar panel design supports flexible installation, stable backup power, and easier configuration for different site conditions.
Learn More About：
Split Type Solar Street Light
Download: KP Series Split Solar Street Light
Applications:
| Type | KP-200 | KP-300 |
| Solar Panel | 200W /18V | 250W / 18V |
| LiFePO4 Battery | 960WH | 1280WH |
| Lifespan | 50000hrs | |
| Luminous Flux | 12800LM | 16000LM |
| Lamp Power | 80W | 100W |
| LED qty | 240pcs | |
| Color Temperature | 6000-6500K | |
| Light Distribution | Batwing lens with polarized light | |
| Lighting time(full charged) | 5-7 rainy days | |
| Working temperature | -20℃~60℃ (Charge above 0℃) | |
| Mounting height | 8-11m | 9-12m |
| Installation spacing | 30-40m | |
Specifications can be adjusted according to road width, pole height, installation spacing, lighting hours, and backup-day requirements.
Model Selection for Project Use
KP-200 is suitable for 8-11m pole height, urban roads, parking lots, campuses, and general project lighting.
KP-300 is suitable for 9-12m pole height, wider roads, highways, industrial areas, and projects requiring higher lumen output or longer backup time.
RoadSmart can adjust the solar panel, battery capacity, LED power, lighting mode, and backup-day configuration according to project drawings and site conditions.
Key Advantages for Split Solar Street Light Projects
Light Efficiency ManagementEquipped with 140pcs super-high efficiency LED chips, the system delivers an exceptional source light efficiency up to 200lm/W. It helps provide higher brightness at the same wattage while supporting longer service life and improved energy efficiency.
Patented Bat-Wing LensThe KP Series optical design helps improve road light distribution and lateral coverage. The polarized light design directs more illumination onto the road surface and helps reduce dark areas for project lighting.
IPC 5.0 Intelligent Power ControlPowered by IPC 5.0 technology, this high-precision intelligent power management system utilizes AI algorithms to monitor real-time weather changes. It automatically adjusts discharge power to help maintain stable lighting performance during rainy periods.
Advanced Charge & Discharge ManagementWith robust dual protection (software & hardware) and intelligent equalization technology, the battery's charge and discharge cycles are precision-managed. This helps protect battery health, supports over 2,000 cycles, and helps support long-term operational stability.
Intelligent Mode Memory ManagementThe integrated system features a smart mode memory storage function. Once the lighting mode is configured during installation, it can be stored for future operation, reducing the need for repeated manual resetting.

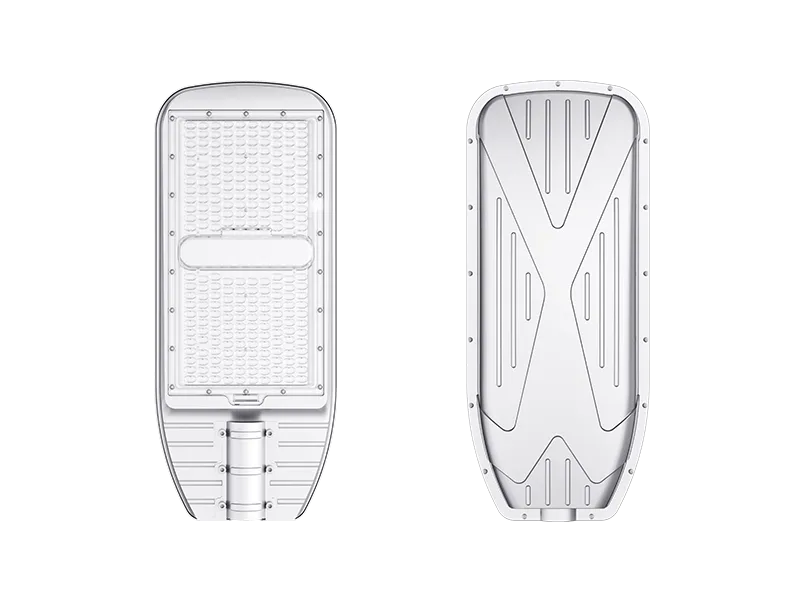

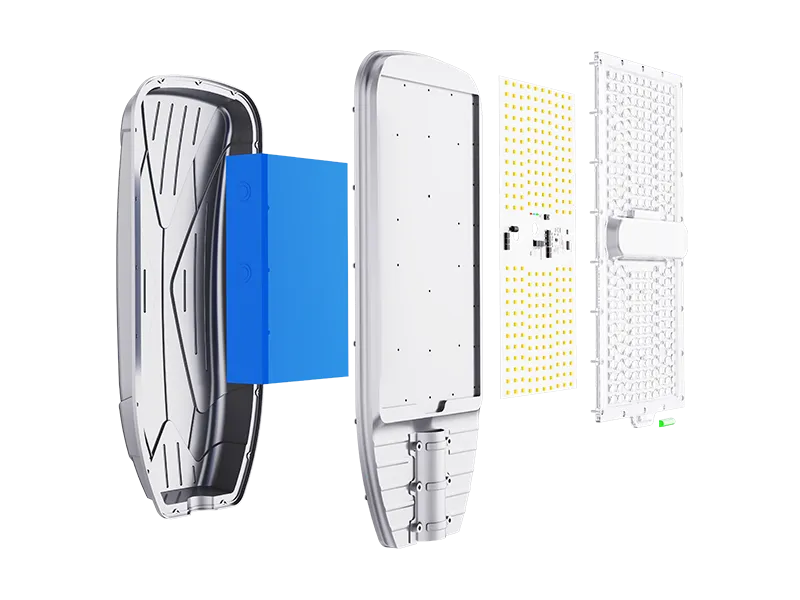

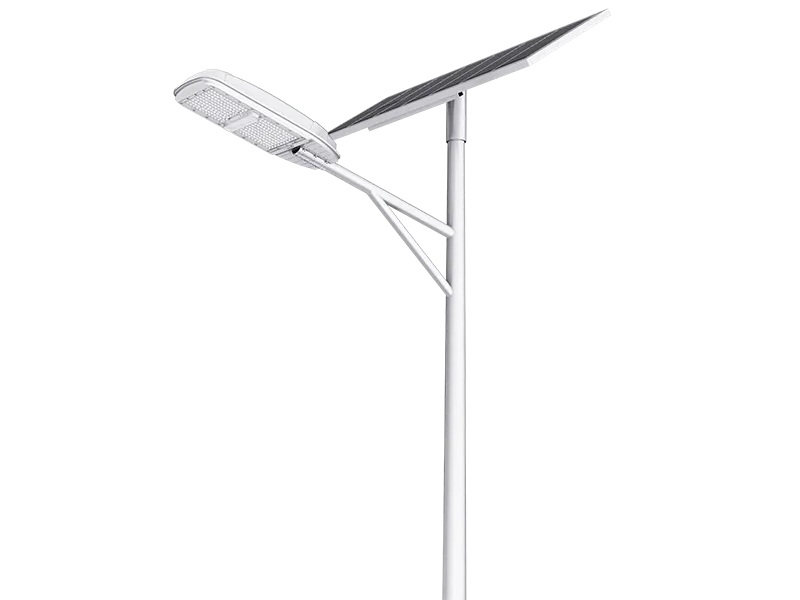

KP Series Components and Detail Showcase
LiFePO₄ Battery
Grade-A LiFePO4 battery cells support stable power output, long service life, and backup-day requirements for road projects.
Read More
Solar Panel
High-efficiency solar panels can be oriented separately to improve charging performance under different site conditions.
Read More

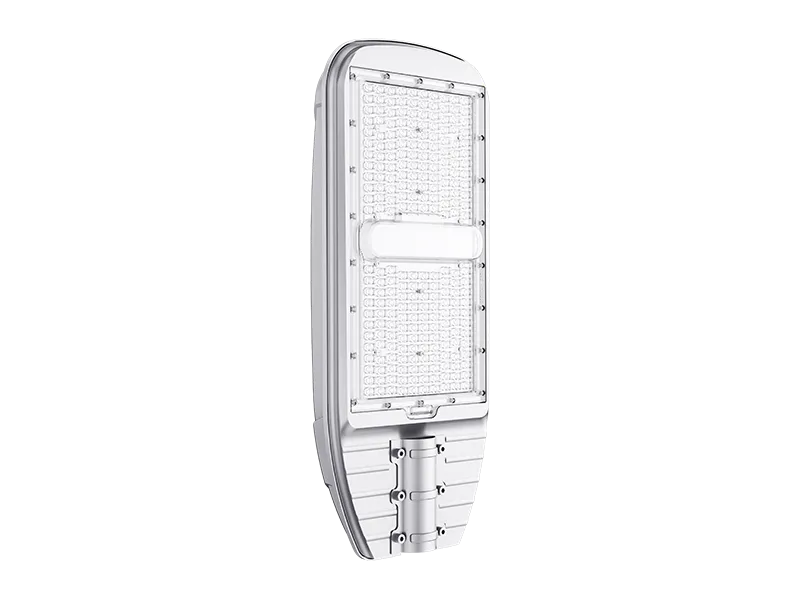

LED Chip / Light Source
High-efficiency LED light source supports road visibility, uniform illumination, and project lighting requirements.
Read More
Lamp Shell
Durable aluminum lamp housing supports split-type road lighting installation and long-term outdoor operation.
Read More
Bat-Wing Lens
RoadSmart optical design helps improve beam distribution, reduce dark areas, and support safer road visibility.
Read More
IPC 5.0 Technology
Five-stage intelligent power,intelligent algorithm to achieve perfect balance of
brightness and discharge time.
Read More

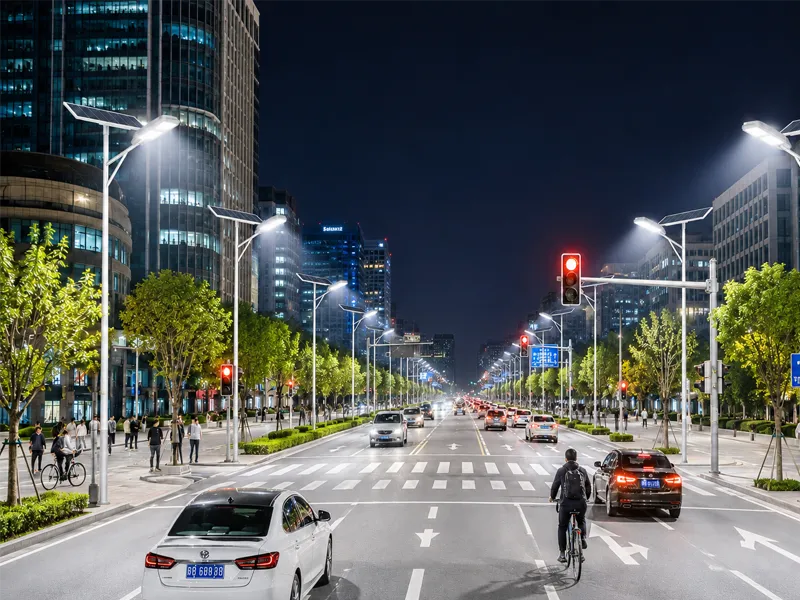

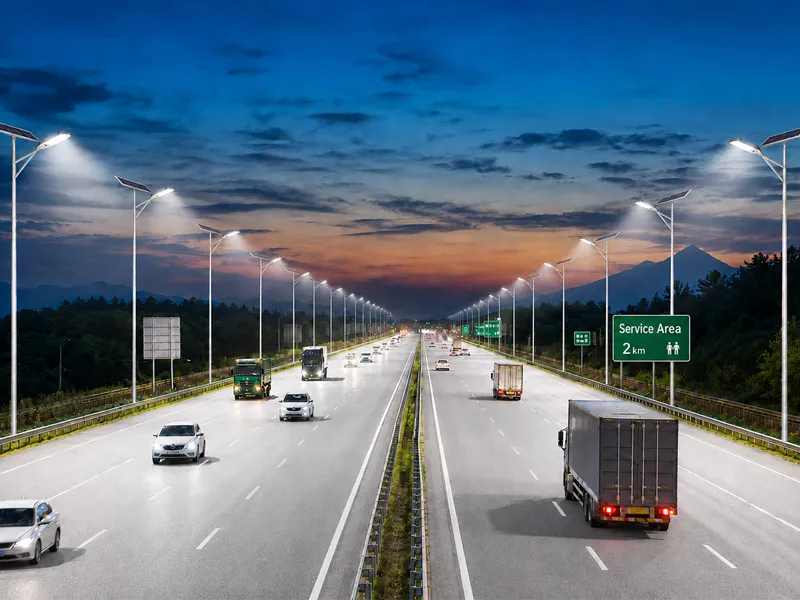

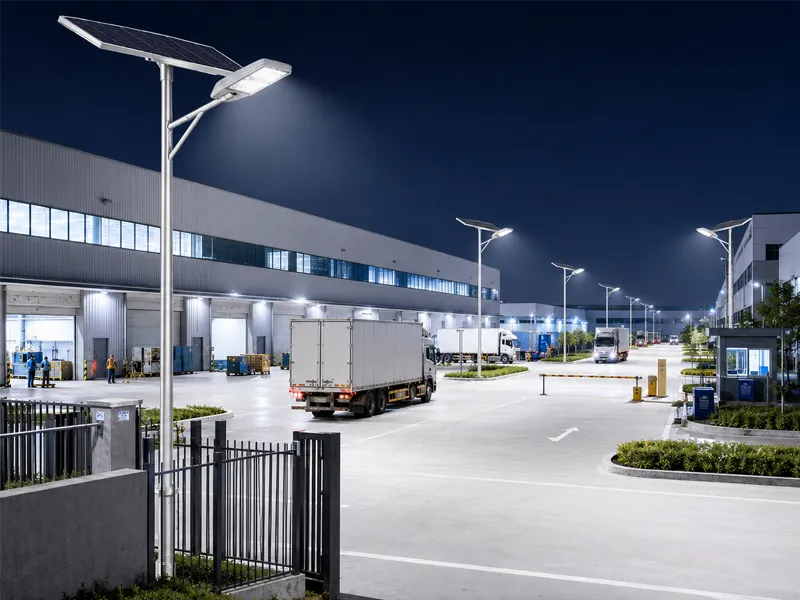

Applications and Solar Lighting Solutions
The KP Series is suitable for highways, urban roads, parking lots, and industrial perimeters where flexible solar panel direction and stable backup power are required. RoadSmart can support model selection, lighting configuration, and quotation based on road width, pole height, working hours, and site drawings.
Project Configuration and Delivery Support
RoadSmart supports project-based configuration and delivery for contractors, EPC companies, distributors, and municipal lighting projects. Our team can assist with model selection, lighting configuration, technical documents, production follow-up, and after-sales support.
1、Project Requirement Review
● Road Width
● Pole Height
● Installation Spacing
● Working Hours
● Backup Days
● Project Location
2、Lighting Configuration
● Solar Panel Power
● Battery Capacity
● LED Wattage
● Controller Mode
● Lighting Schedule
3、Drawing or Sample Confirmation
● Product Details
● Installation Layout
● Technical Documents
● Project Requirements
4、Production and Quality Inspection
● Key Components
● Assembly Process
● Waterproof Structure
● Finished Product Check
5、Packing and Shipping Support
● Packing
● Labeling
● Shipping Documents
● Delivery Coordination
6、After-Sales Technical Support
● Installation Guidance
● Technical Support
● Follow-Up Assistance
● Project Operation Support
Need a Customized Solar Street Light Solution
Send us your project requirements, including road width, pole height, installation location, lighting time and quantity. Our team will help recommend a suitable Solar Star Light II configuration.
Request a Professional Solution
Please submit your project details on the right. Our team will provide a professional solution and quote via email within 24 hours.
Related Products
FAQ
Q: Why choose a split solar street light design?
A split solar street light allows the solar panel, battery, LED fixture, and controller to be configured separately. This helps improve solar panel orientation, supports flexible installation, and makes the system easier to adapt to different road widths, pole heights, and site conditions.
Q: Do you provide support for contractors and distributors?
Yes. RoadSmart supports contractors, EPC companies, distributors, and project buyers with product selection, lighting configuration, OEM/ODM options, technical documents, and project-based quotation support.
Q: Is the KP Series suitable for highway lighting projects?
Yes. The KP Series can be used for highway and main road lighting projects, especially where grid wiring is difficult or installation requires independent solar-powered lighting systems.
Q: What information is needed for a quotation?
To provide a suitable configuration and quotation, we usually need the road width, pole height, installation spacing, required lighting hours, backup rainy days, project location, and quantity. Site drawings or lighting requirements are also helpful.
Q: Can the KP Series be customized for different projects?
Yes. RoadSmart can support customized solar panel power, battery capacity, LED wattage, lighting mode, working hours, pole height, and installation layout according to project drawings and local sunlight conditions.
Q: What is the KP Series split solar street light used for?
The KP Series split solar street light is suitable for highways, urban roads, parking lots, industrial areas, campuses, and municipal lighting projects where flexible solar panel installation and stable nighttime lighting are required.
