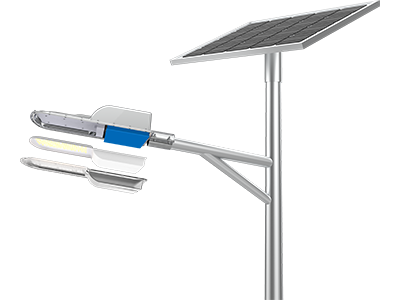

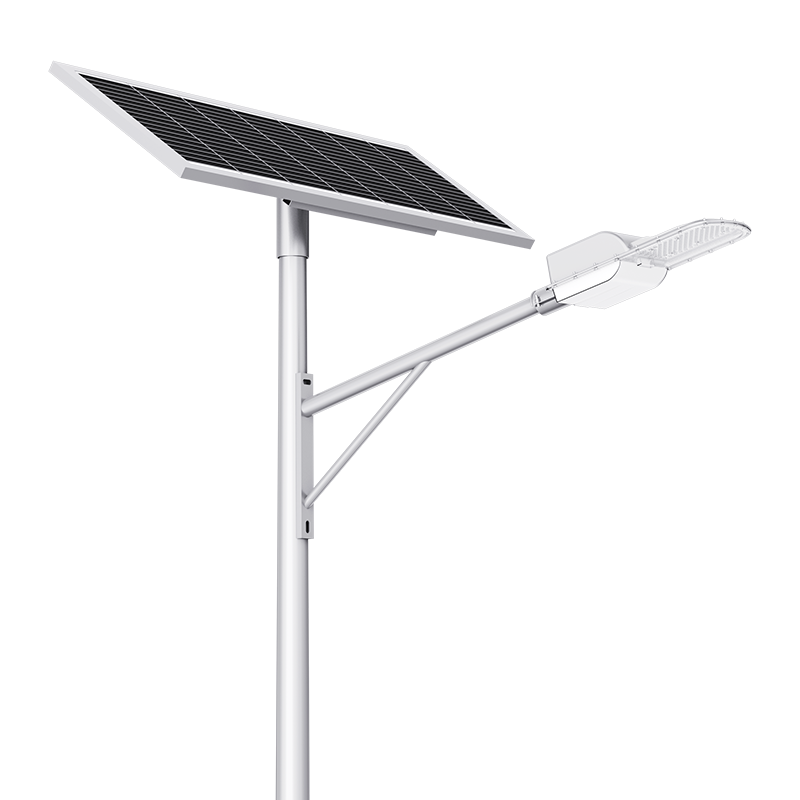

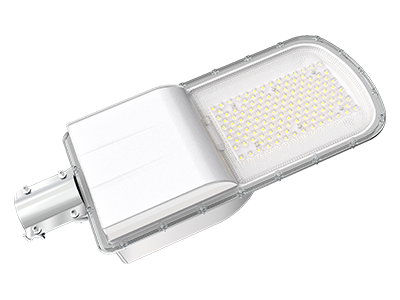

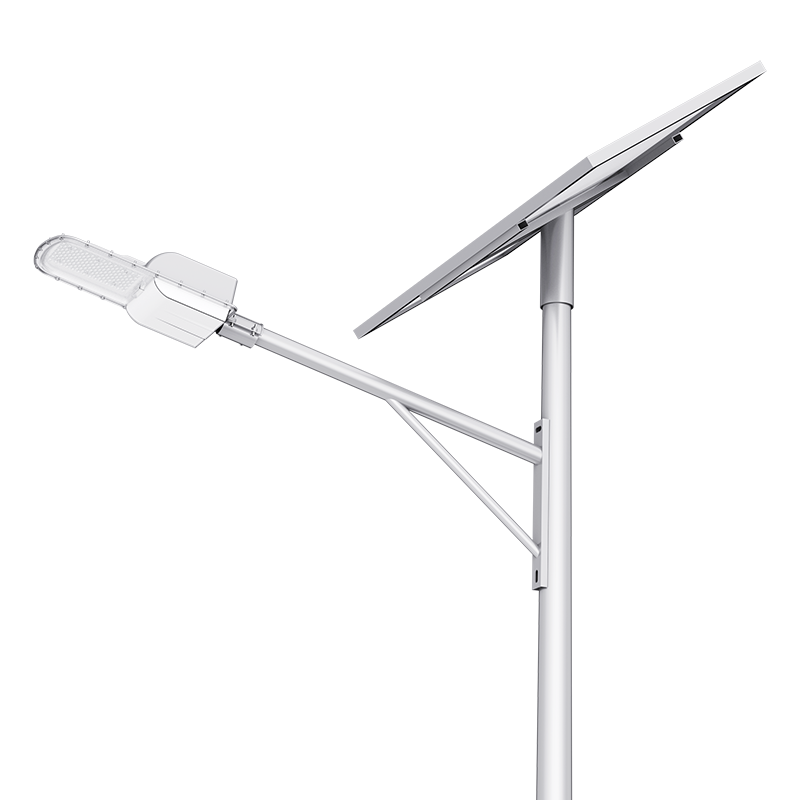

YH Series Solar Street Light

YH Series Technical Specifications

Compare the detailed technical parameters of YH-100-M and YH-120-M models. Engineered with industrial-grade components, these split-type configurations ensure sustained luminous flux and reliable thermal management under diverse outdoor environments.

Advantages

Light Efficiency Management

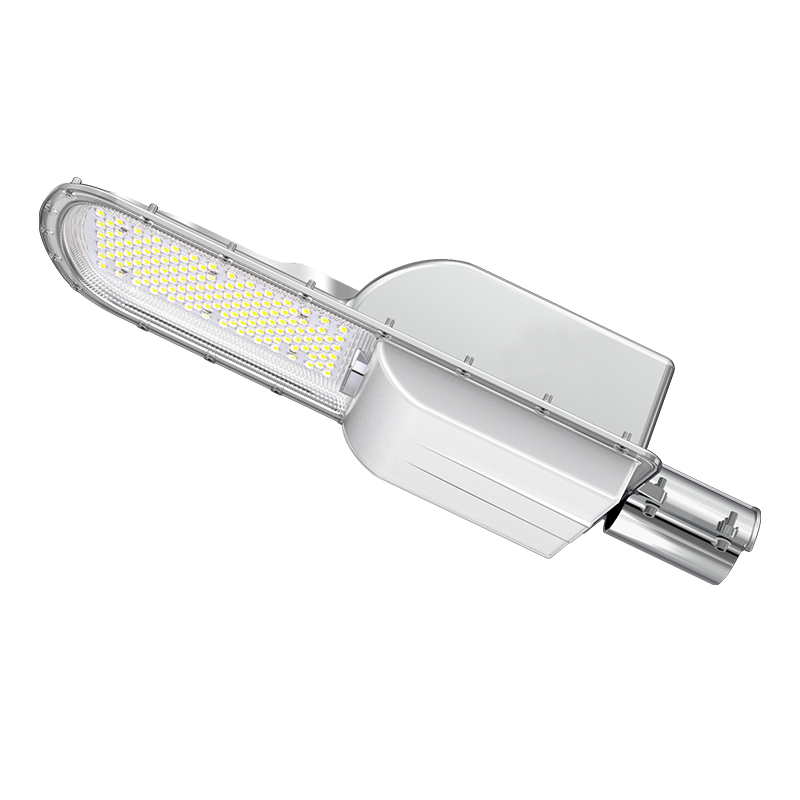

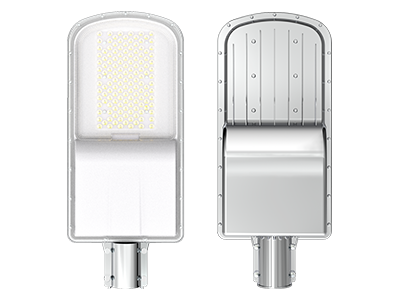

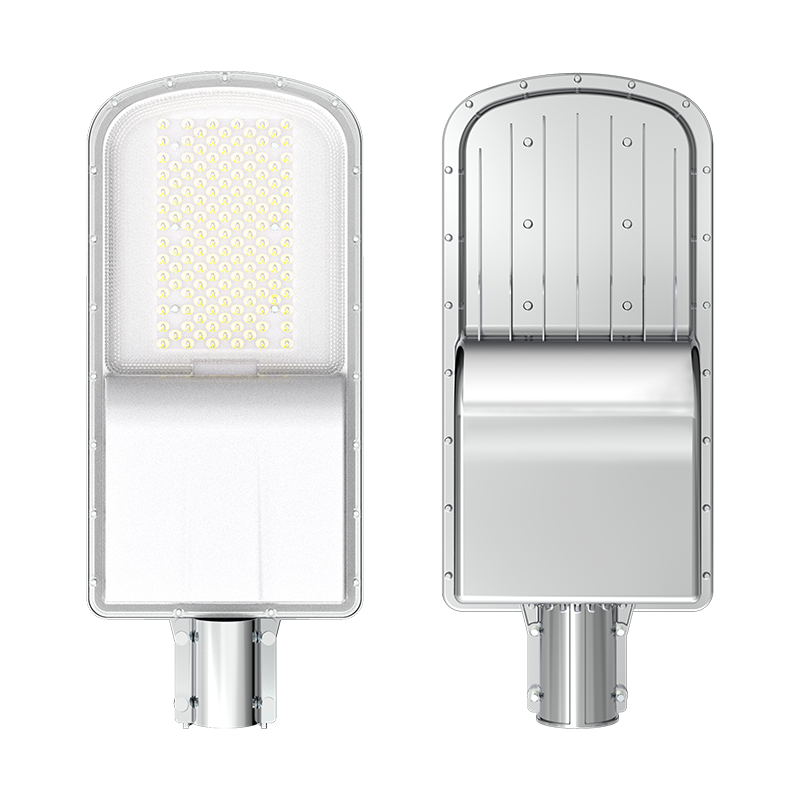

Powered by 140 premium high-efficacy LED chips, the entire system delivers an impressive 200 lm/W output. It offers superior brightness and extended operational lifespan compared to conventional configurations at equivalent wattages.

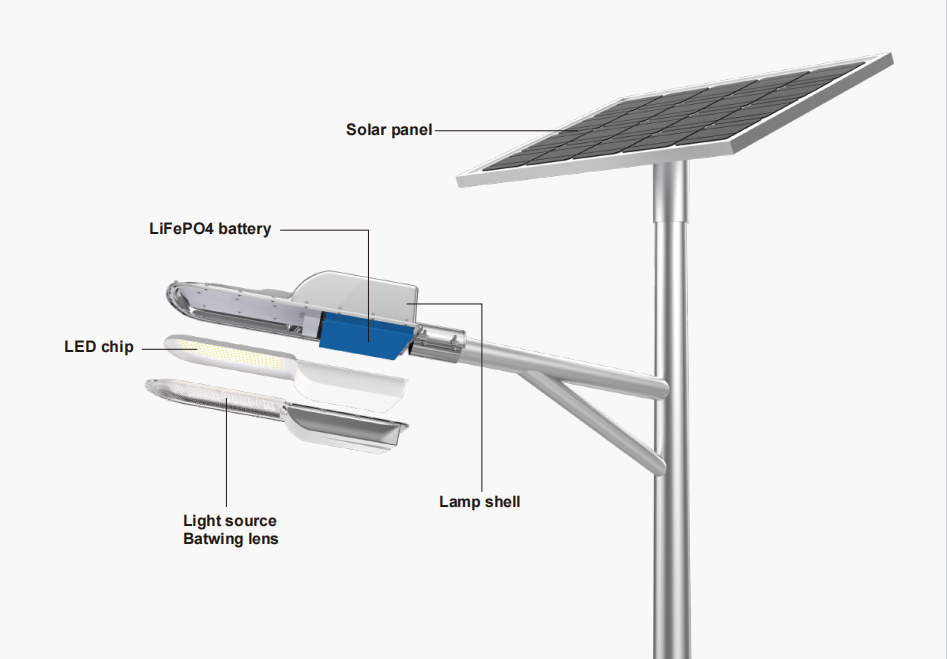

Patented Bat-Wing Lens

Features an engineered distribution lens that significantly widens the illumination footprint, maximizing effective ground coverage and ensuring uniform uniformity across the roadway.

IPC 5.0 Intelligent Power Control

Utilizes proprietary smart algorithms to analyze recent weather patterns and optimize power discharge profiles. This intelligent adaptation ensures sustained autonomy for over 7 consecutive rainy days.

3.2V MPPT Technology up to 160W

Supports a maximum light source output of up to 160W. When engineered alongside optimized low-voltage architectures, battery operational lifespans are enhanced by up to 4x compared to traditional 12V/24V systems.

Patented Multi-Peak MPPT Tracking

Deploys an innovative solar controller capable of real-time multi-peak maximum power point tracking. This advanced logic substantially maximizes solar panel conversion efficiency even during partial shading conditions.

Applications and Solar Lighting Solutions

YH Series split type led solar street lights are suitable for municipal roadways, highways, and industrial infrastructure. Built for long-term reliability, this lighting solution adapts to your precise engineering specifications and tender requirements.

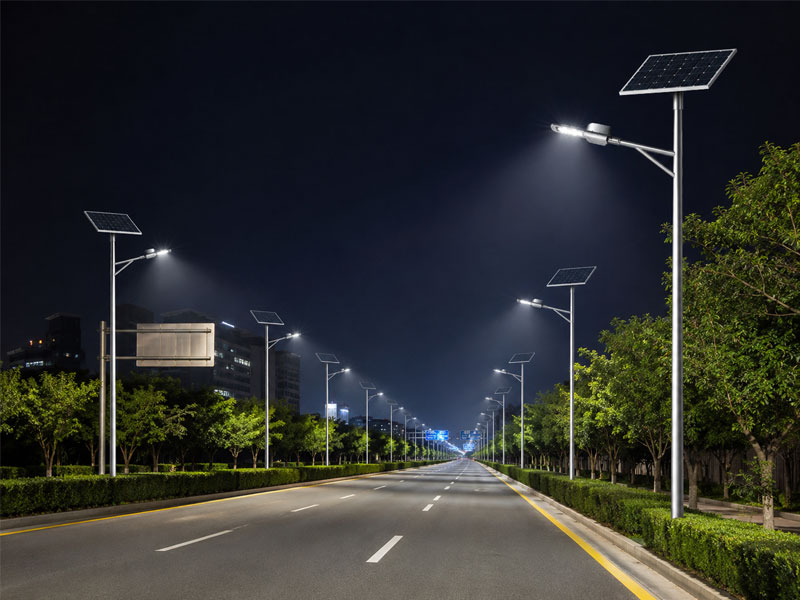

Urban Roadways & Arterial Highways

Suitable for double-lane roadways requiring an installation height of 8-10m. Featuring a patented batwing lens with polarized light, the system supports a standard 20-40m installation spacing, maximizing lateral light distribution while maintaining uniform brightness across multiple driving lanes.

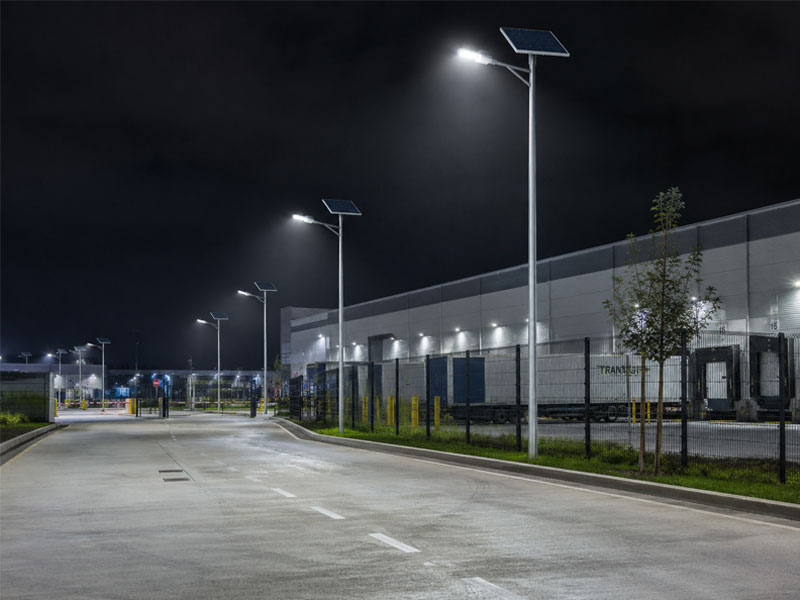

Industrial Perimeters & Logistics Parks

Compliant with the outdoor safety and surveillance lighting needs of factory perimeters and logistics infrastructure. Configured with a 140pcs LED source and a rugged housing, it provides stable illumination at a 7-8m mounting height to support continuous facility monitoring and asset protection.

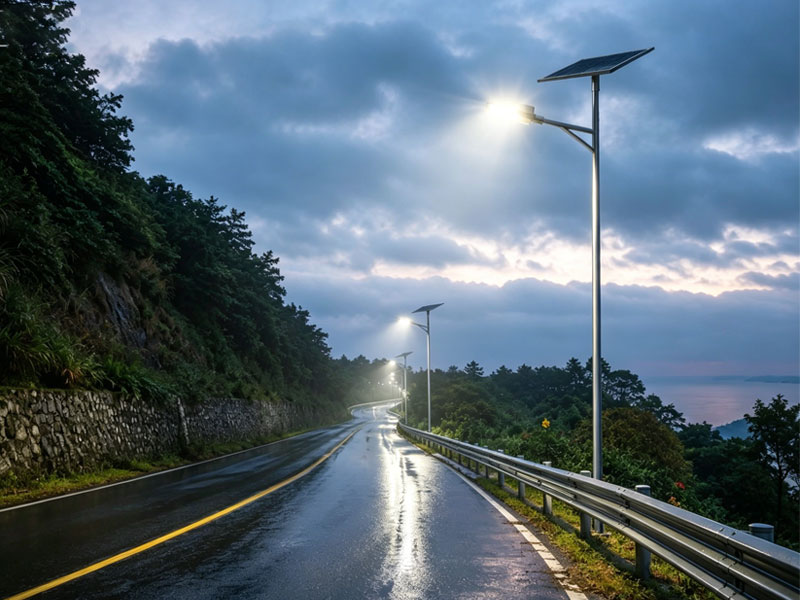

Infrastructure Projects in Challenging Environments

Applicable to regions facing high humidity or extended seasonal rainfall. Engineered with heavy-duty monocrystalline solar panels and large-capacity LiFePO4 batteries, the system sustains normal operations for 5-7 continuous rainy days and functions efficiently across a temperature range from -20°C to 60°C.

Project Case Study

Real-World Performance: YH Series in Action

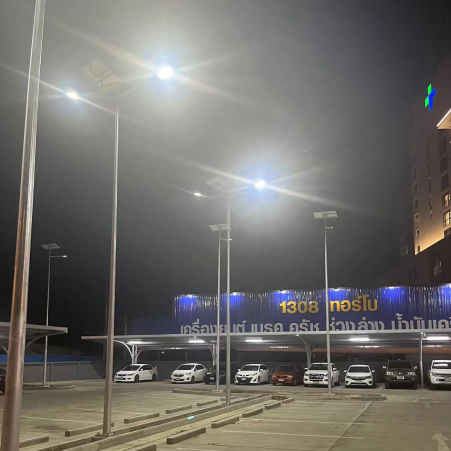

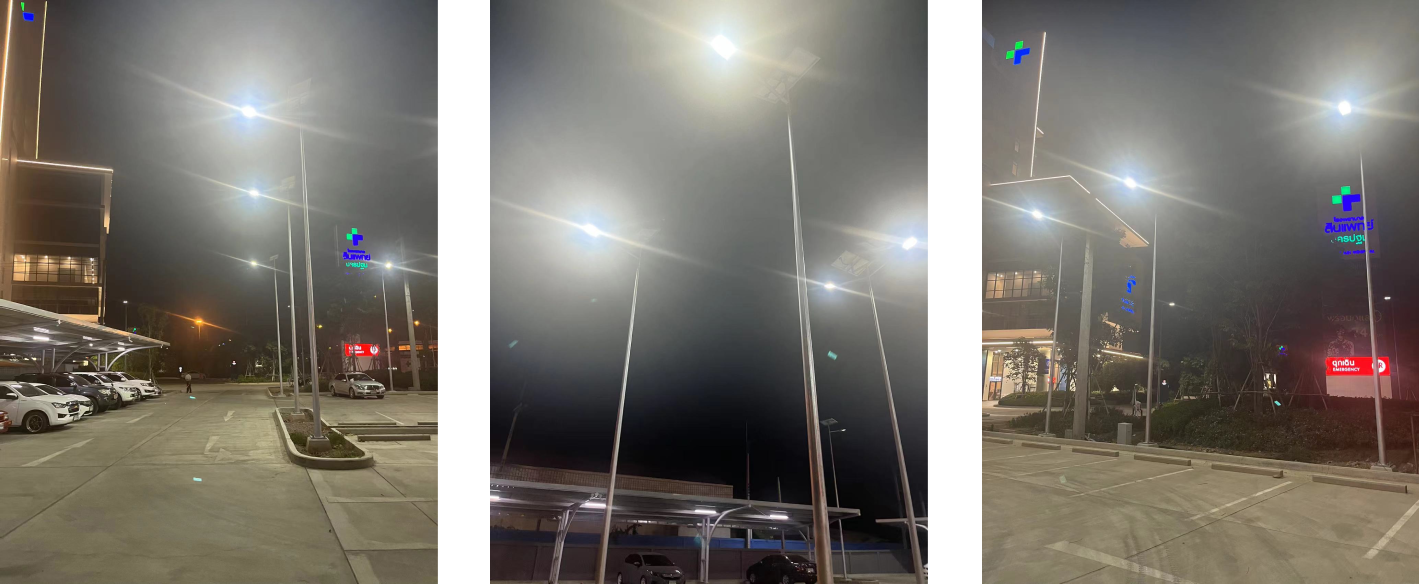

Thailand City Parking Lot Lighting Project: YH-120-M Split-Type Solar Streetlight

Project Type: City Parking Lot Lighting Project

Project Location: Thailand

Solar Street light System Data:

·Luminous Flux: 8000 lm

·Color Temperature: 6000K

·Solar Panel: 120W/18V

·Battery: 384Wh Lithium Iron Phosphate Battery

The YH Series serves as a reliable lighting option for municipal roadways and commercial property development, providing an alternative in areas where traditional grid trenching and cabling involve high costs or environmental constraints.

Built with stable LiFePO₄ battery storage and high-efficacy LED modules (200 lm/W), this series complies with standard outdoor illumination requirements. The integrated power management system automatically adapts energy discharge based on regional weather patterns, delivering continuous, zero-carbon performance across changing seasons.
