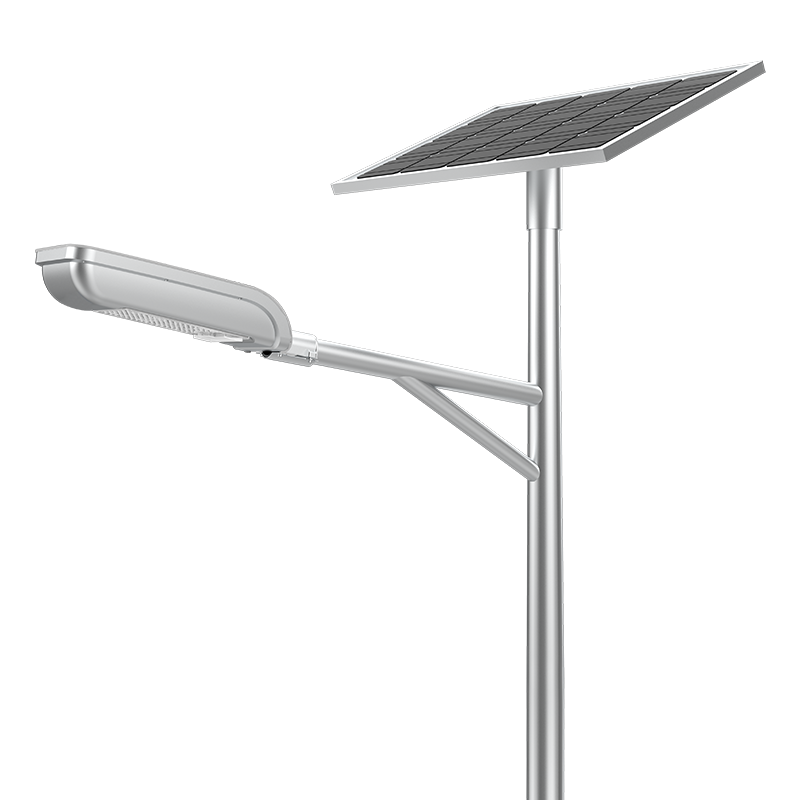

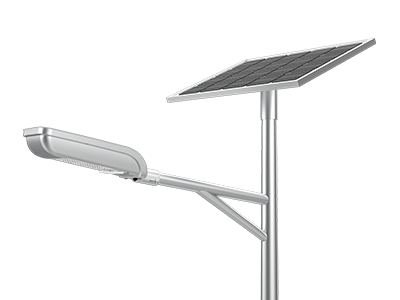

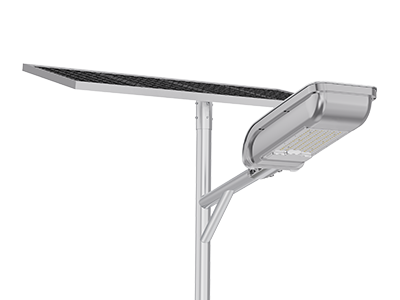

Split Type Solar Street Light
YP Series Solar Street Light
High-performance split type solar street light engineered for versatile road and project lighting. Equipped with a single-string intelligent MPPT controller and ultra-clear optical lens to maximize every ray, the YP series features independently adjustable components, making it the premier choice when heavy-duty, dependable solar road lighting is required.
Learn More About：
Split Type Solar Street Light
Download: YP Series Solar Street Light
Applications:
| Type | YP-150 | YP-200-A | YP-200 |
| Solar Panel | 150W /18V | 150W / 18V | 200W / 18V |
| LiFePO4 Battery | 512WH | 640WH | 640WH |
| Charge Cycle Times | 2000 times | ||
| Luminous Flux | 9600LM | 12800LM | 12800LM |
| Lamp Power |
60W |
70W | 70W |
| LED qty | 140pcs | ||
| Lifespan of LED | 50000hrs | ||
| Color Temperature |
6000-7500K |
||
| Light Distribution |
Batwing lens with polarized light |
||
| Lighting time(full charged) | 5-7 rainy days | ||
| Working temperature | -20℃~60℃ (Charge above 0℃) | ||
| Top diameter of pole | 60mm | ||
| Mounting height | 8-10m | ||
| Installation spacing | 20-40m | ||
Advantages
Light Efficiency ManagementEquipped with 140pcs super-high efficiency LED chips, the system delivers an exceptional source light efficiency up to 200lm/W. It provides higher brightness at the same wattage, significantly extending the system's lifetime and maximizing energy savings.
Patented Bat-Wing LensFeaturing our custom patented bat-wing optical lens, the YP series optimizes light distribution to achieve a much wider lateral coverage. This professional polarized light design eliminates waste, directing maximum illumination precisely onto the road surface.
IPC 5.0 Intelligent Power ControlPowered by IPC 5.0 technology, this high-precision intelligent power management system utilizes AI algorithms to monitor real-time weather changes. It automatically and rationally optimizes discharge power, ensuring reliable, continuous lighting even during extended rainy seasons.
Advanced Charge & Discharge ManagementWith robust dual protection (software & hardware) and intelligent equalization technology, the battery's charge and discharge cycles are precision-managed. This extends battery health to support over 2,000 continuous cycles, guaranteeing long-term operational stability.
Intelligent Mode Memory ManagementThe integrated system features a smart mode memory storage function. Once the lighting mode is configured during installation, it is permanently preserved, allowing for hassle-free, one-time operation without the need for manual resetting.

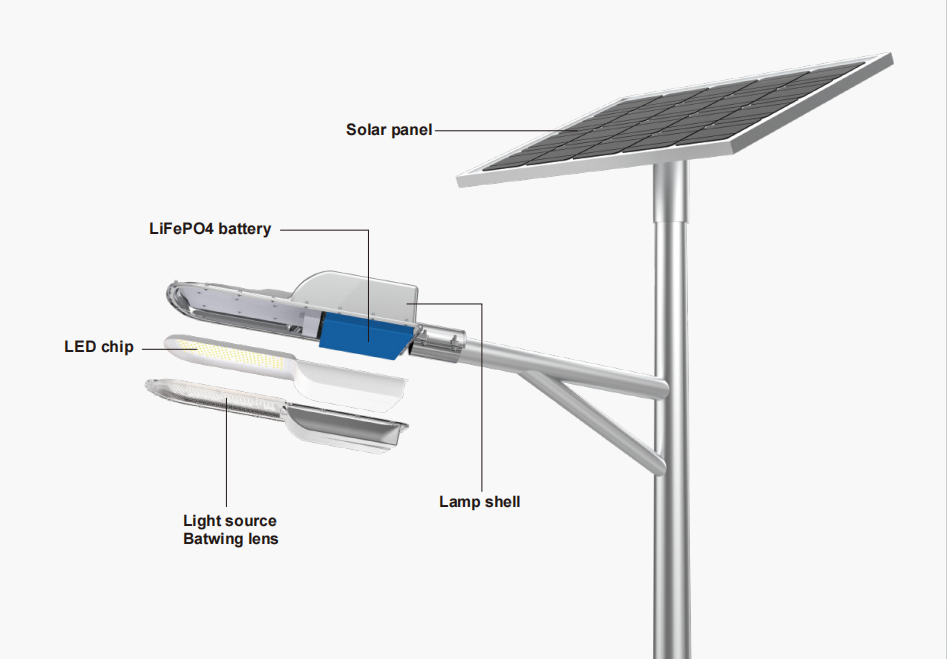

Detail Showcase
LiFePO₄ Battery
Grade-A cells deliver stable power and long service life across all three families.
Read More
Solar Panel
High-efficiency mono modules matched to each model's power draw.
Read More
LED Chip / Light Source
Premium 3030 or 5050 LEDs tuned for garden ambience or accent beams.
Read More

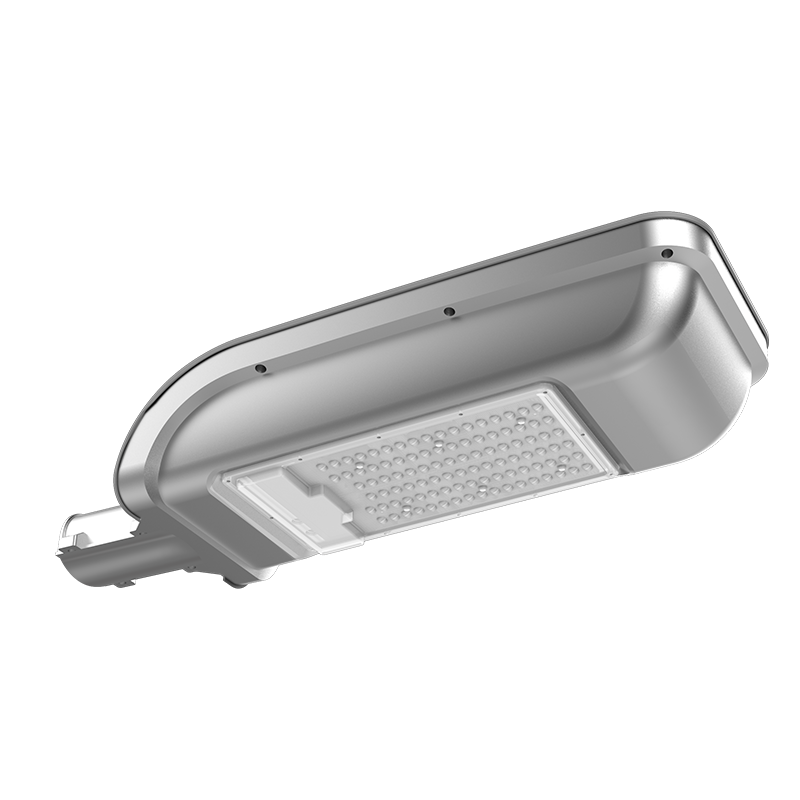

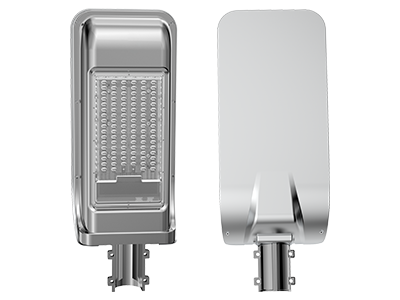

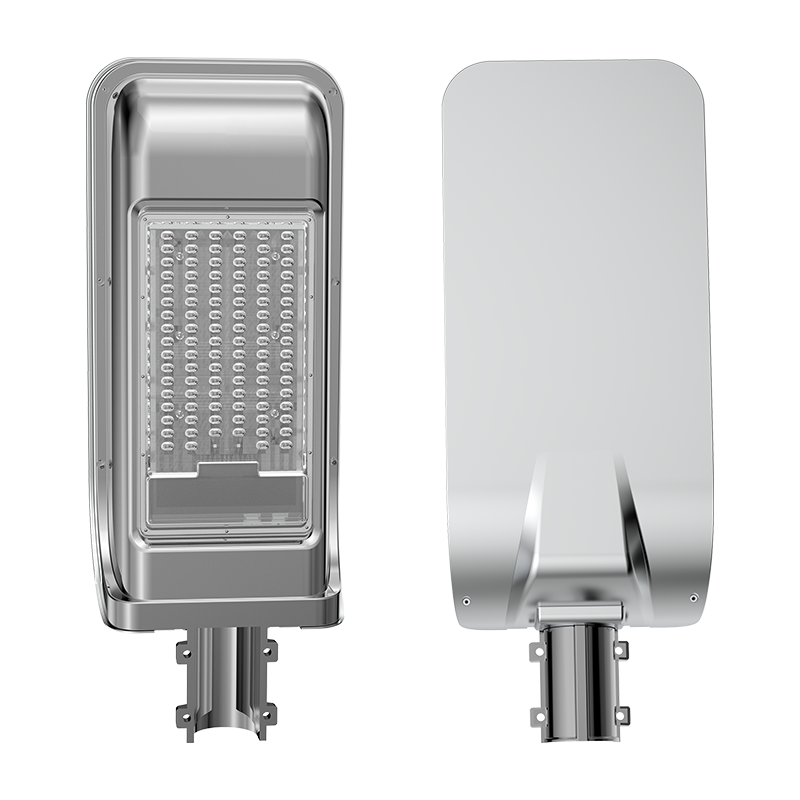

Lamp Shell
Anodised or powder-coated aluminum housings in post, spike or globe formats withstand outdoor extremes.
Read More
Bat-Wing Lens
RoadSmart's patented optic widens beam spread, eliminating dark spots while keeping glare low.
Read More
IPC 5.0 Technology
Five-stage intelligent power,intelligent algorithm to achieve perfect balance of
brightness and discharge time.
Read More
Applications and Solar Lighting Solutions

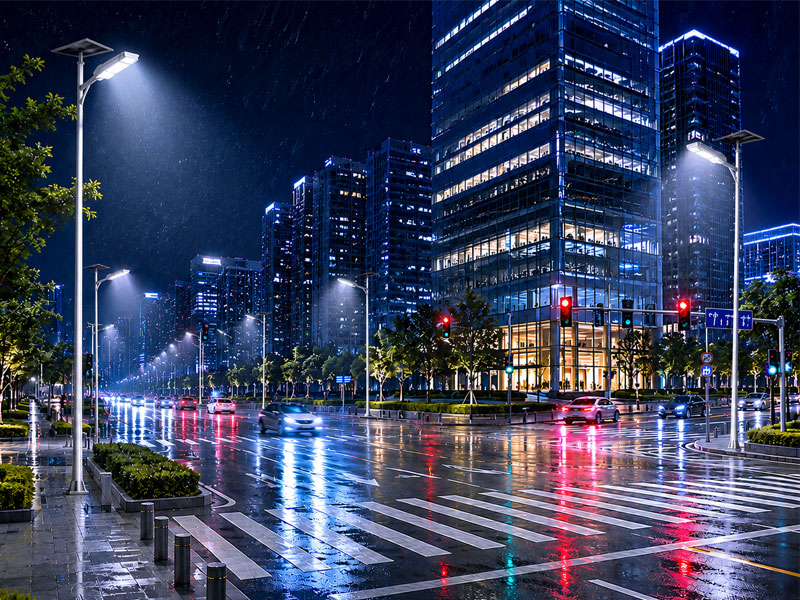

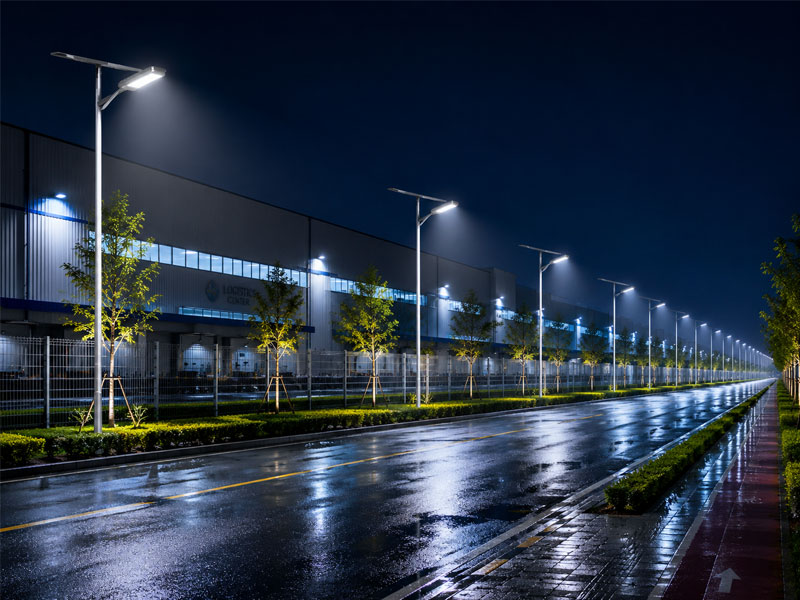

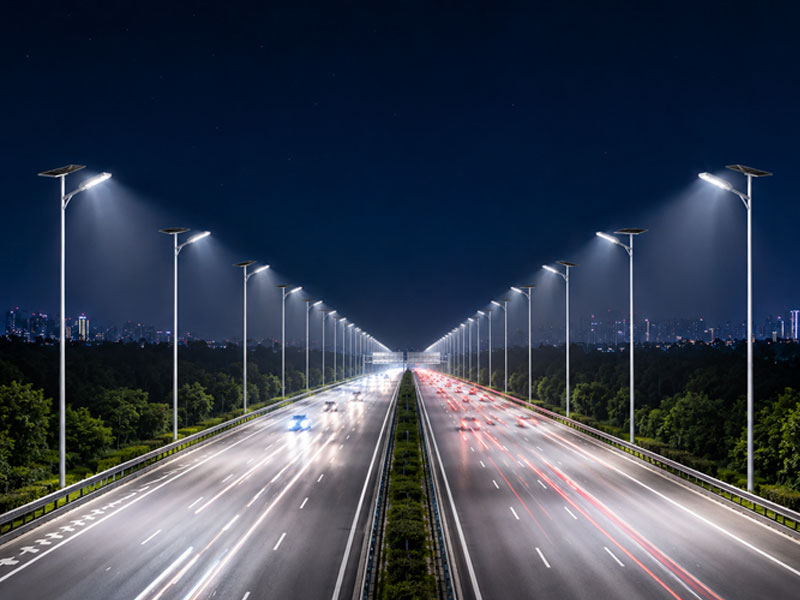

Discover how the RoadSmart YP Series Solar Street Light perfectly illuminates global municipal highways and infrastructure projects. Masterfully engineered for urban main roads, highways, and expansive industrial perimeters, this high-performance lighting solution supports robust pole-mounted installations to seamlessly match your exact engineering blueprints. Contact our technical expert team today to get a direct factory quote and select the optimal specifications tailored to your regional tender requirements and project budgets.
Project

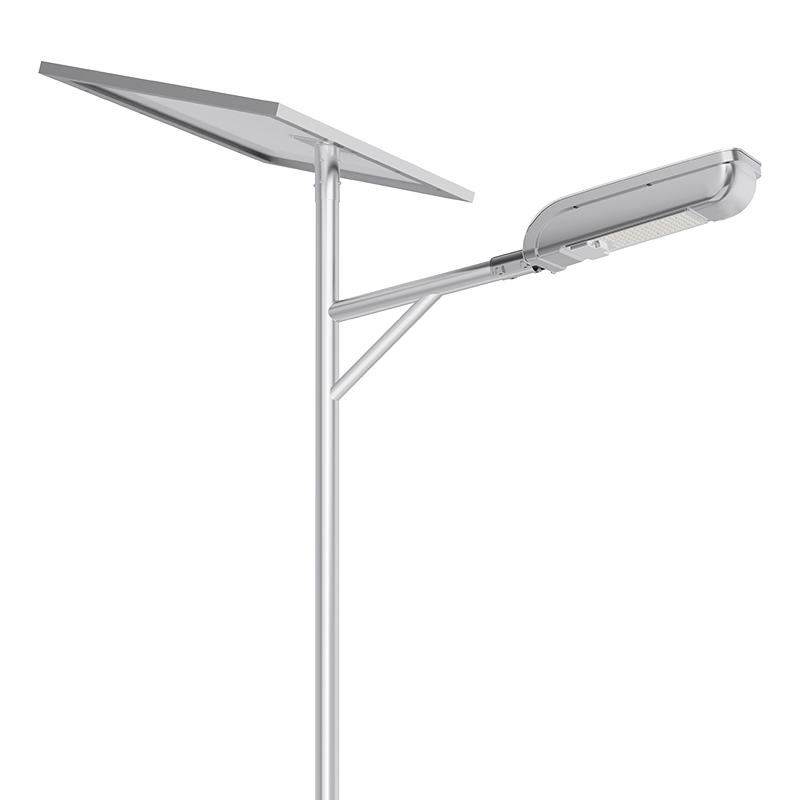

Engineered for Adaptability: The YP Series Adjustable Solar Street Light

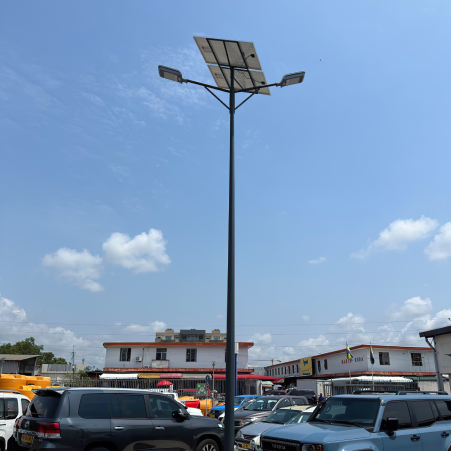

Nigeria Parking Lot Lighting Project: YP-200 Split-Type Solar Streetlight
Project Details:
Project Type: Commercial Logistics Hub & Municipal Parking Illumination
Project Location: Nigeria
Solar Street light System Data:
· Luminous Flux: 12,800 Lumens (Ultra-Bright Output)
· Color Temperature: 6000K (Crisp White Security Light)
· Solar Panel: 200W / 18V Monocrystalline
· Battery Specification: 640Wh Heavy-Duty LiFePO4 Battery
· Installation Blueprint: 8-Meter Pole Height / 35-Meter Spacing

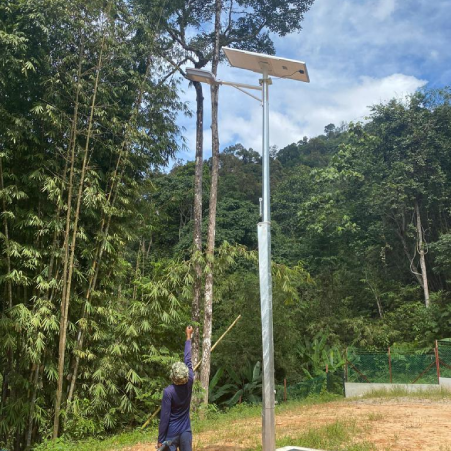

Cameroon Farm Lighting Project: YP-200 Split-Type Solar Streetlight
Project Details:
Project Type: Farm Lighting Project
Project Location: Cameroon
Solar Streetlight System Data:
· Luminous Flux: 12800 lumens
· Color Temperature: 6000K
· Solar Panel: 200W/18V
· Battery: 640Wh Lithium Iron Phosphate Battery
Equipped with a high-capacity LiFePO4 battery and smart management, the YP series ensures 5-7 days of rainy-day autonomy. Its aerodynamic, wind-resistant design makes it an incredibly safe, stable infrastructure choice for coastal and high-wind regions. It is more than a light—it is a sustainable, low-maintenance 10-year+ investment.
OEM/ODM Customization and Product Downloads
RoadSmart supports OEM/ODM customization based on project needs, local market conditions and customer branding requirements.
1、Demand Analysis
● Consultation
● Requirements Confirmation
● Environmental Assessment
2、Solution Design
● Component Selection
● System Configuration
● Preliminary Quotation
3、Raw Material Procurement
● Supplier Selection
● Quality Inspection
● Production
● Packaging
4、Installation
● Civil Works
● Mounting
● System Debugging
5、Client Training
● Operation Training
● Maintenance Workshop
● Documentation Delivery
6、After-Sales Support
● 24/7 Helpdesk
● Preventive Maintenance
● Spare Parts Guarantee
7、Feedback Integration
● KPI Monitoring
● Design Iteration
● Client Satisfaction Surveys
Need a Customized Solar Street Light Solution
Send us your project requirements, including road width, pole height, installation location, lighting time and quantity. Our team will help recommend a suitable Solar Star Light II configuration.
Request a Professional Solution
Please submit your project details on the right. Our team will provide a professional solution and quote via email within 24 hours.
Related Products
FAQ
Q: Do they attract insects?
Using a warm-white spectrum and sealed housing, they minimise insect attraction compared with conventional lights.
Q: Are they repositionable?
Yes. The ground spike design lets you relocate fixtures easily to match seasonal planting changes.
Q: What makes YP spike lights premium?
Focused beams, ultra-clear lenses and single-string MPPT charging maximise light output on sculptures and shrubs.
