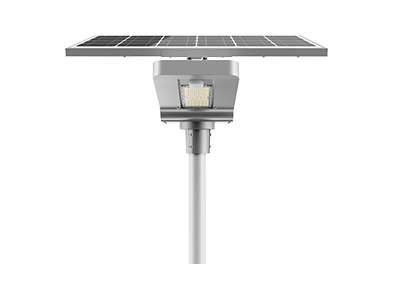

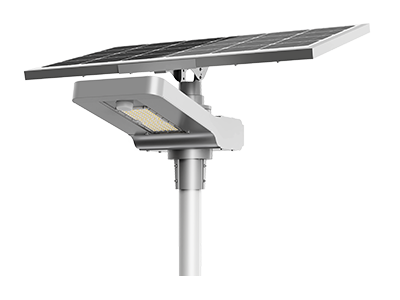

All-In-Two Solar Street Light
Solar Nighthawk Light
integrated solar street lamp
Need high-pole performance without grid wiring? Solar Nighthawk combines a rotatable array and high-output LEDs in a robust integrated solar street lamp that meets major-road standards.
Learn More About：
All-In-Two Solar Street Light
Download: Solar Nighthawk Light
Applications:
Type | SC-NH80 | SC-NH100 | SC-NH150 |
Power | 80W/18V | 100W/18V | 150W/18V |
Material | Mono crystalline silicon | ||
Solar cell efficiency | 19-20% | ||
Capacity | 340WH | 420WH | 575WH |
Charge cycle times | 2000 times | ||
Luminous flux | 4500-5000lm | 6000-6500lm | 7200-7500lm |
Light output | 30W | 40W | 50W |
LED qty | 105pcs | ||
LED chip | Bridgelux | ||
Color temperature | 3000-6000K | ||
CRI | ≥70Ra | ||
Material of lamp head | Aluminum alloy | ||
Elevation angle | 12°(attention to Dialux use) | ||
Lifespan | 50000hrs | ||
Light control voltage | 5V | ||
Light distribution | Batwing lens with polarized light | ||
Beam angle | X-axis:155°Y-axis:50° | ||
Lighting time(fullcharged) | 2-3 rainy days | ||
Operation temperature | -20℃~60℃ | ||
Top diameter of pole | 76mm | ||
Mounting height | 7-8m | 7-8m | 8-10m |
Installation spacing | 10-20m | ||

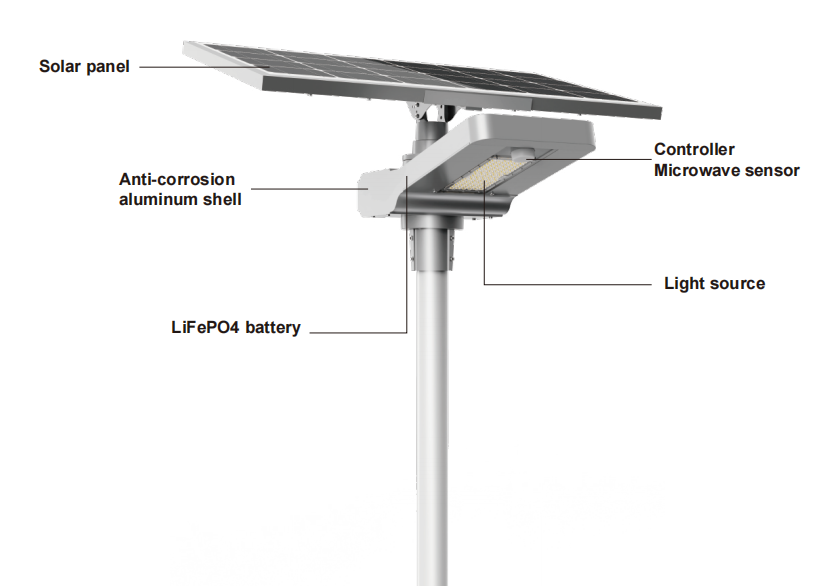

Structure
Lithium Battery
Sealed LiFePO₄ pack delivers long cycle life and stable night-long power.
Read More
PMMA Cover
UV-resistant diffuser shields the LEDs and casts a soft, 360° glow.
Read More
Solar Panel
High-efficiency mono-crystalline disc on the top surface harvests daylight energy.
Read More
Light Source
Low-power SMD LEDs mounted on an aluminum core board for superior heat dissipation.
Read More
Controller
Integrated single-string MPPT regulates charge and discharge for maximum autonomy.
Read More
Microwave Sensor
Radar module detects motion and automatically raises brightness when people approach.
Read More
Delivery
1、Demand Analysis
● Consultation
● Requirements Confirmation
● Environmental Assessment
2、Solution Design
● Component Selection
● System Configuration
● Preliminary Quotation
3、Raw Material Procurement
● Supplier Selection
● Quality Inspection
● Production
● Packaging
4、Installation
● Civil Works
● Mounting
● System Debugging
5、Client Training
● Operation Training
● Maintenance Workshop
● Documentation Delivery
6、After-Sales Support
● 24/7 Helpdesk
● Preventive Maintenance
● Spare Parts Guarantee
7、Feedback Integration
● KPI Monitoring
● Design Iteration
● Client Satisfaction Surveys
Need a Customized Solar Street Light Solution
Send us your project requirements, including road width, pole height, installation location, lighting time and quantity. Our team will help recommend a suitable Solar Star Light II configuration.
Request a Professional Solution
Please submit your project details on the right. Our team will provide a professional solution and quote via email within 24 hours.
Related Products
FAQ
Q: What monitoring options are available?
A tri-colour indicator shows system status on the pole, and an optional LoRa gateway enables remote data logging and alerts.
Q: How tall can the poles be?
Nighthawk is designed for poles from 10 m to 12 m, ensuring uniform light distribution without dark patches.
Q: Is Nighthawk suitable for major highways?
Absolutely. Its high-output LEDs and rotatable array meet road-class lighting levels for multilane boulevards and arterial roads.
