Smart Solar Street Light Design Scheme

Solar street lights provide sustainable, off-grid lighting solutions using renewable energy from the sun. A well-designed solar street light system combines several components to deliver reliable and efficient outdoor illumination without relying on the grid. In this guide, we explore the key design workflow for solar street lights, from energy budgeting to installation and maintenance.

What a Solar Street Light System Includes

A solar street light system consists of several essential components: a solar panel, battery storage, LED light fixture, charge controller, and pole structure. These components work together to provide self-sustained lighting without grid power. The controller regulates energy flows and manages battery charging to ensure consistent illumination.

Solar Street Light Design Workflow

Designing an efficient solar street lighting system involves key steps that ensure optimal performance. These steps include calculating the energy demand, selecting the right components, and adjusting for environmental factors such as shading and seasonal sun exposure.

Step 1 Define the Nightly Load (Energy Budget)

Start by calculating the nightly energy demand. This can be done by multiplying the LED power consumption by the hours of operation and considering dimming profiles or motion sensor functionality.

Step 2 Gather Worst-Month Peak Sun Hours (PSH)

Identify the worst-month PSH for your location. This will help you determine how much energy your solar panels can generate in the least favorable conditions.

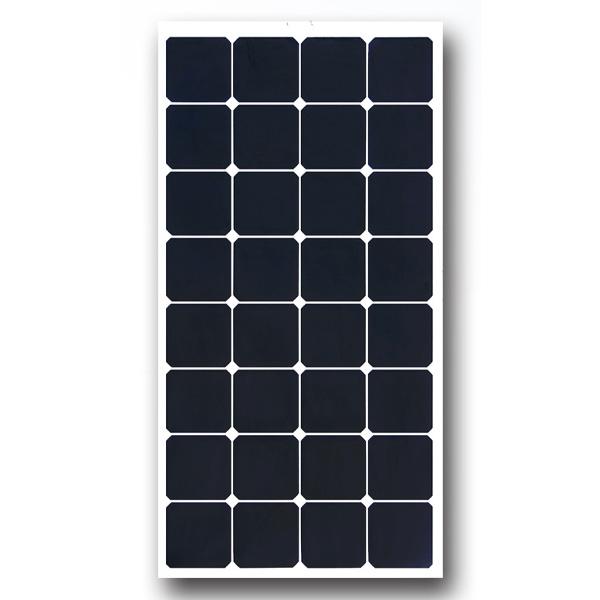

Step 3 Size the Solar Panel

Using the nightly load and the worst-month PSH, calculate the solar panel size required to meet your energy demands. Don’t forget to include a margin for shading, soiling, and weather variability.

Step 4 Size the Battery

The battery capacity should be sized to meet the desired autonomy (number of nights the system should run without sun). The depth of discharge (DoD) must also be considered to ensure battery longevity.

Step 5 Optimize Panel Tilt, Azimuth & Shading Analysis

To maximize energy capture, orient the solar panel towards the sun and adjust the tilt according to the site’s latitude. Conduct a shading analysis to avoid panel obstructions.

Step 6 Pole Height, Spacing & Photometric Design

Determine the pole height and spacing based on the desired lux levels and uniformity. Use lighting design software to ensure your system meets the required lighting standards.

Solar Charge Controller

The controller in a solar street light system is a crucial component, responsible for managing the flow of energy between the solar panel, battery, and LED light fixture. A well-designed controller ensures the system operates efficiently and extends the overall lifespan of the solar street light. It regulates voltage and current, optimizes energy conversion, and prevents damage to sensitive components.

Optical Performance

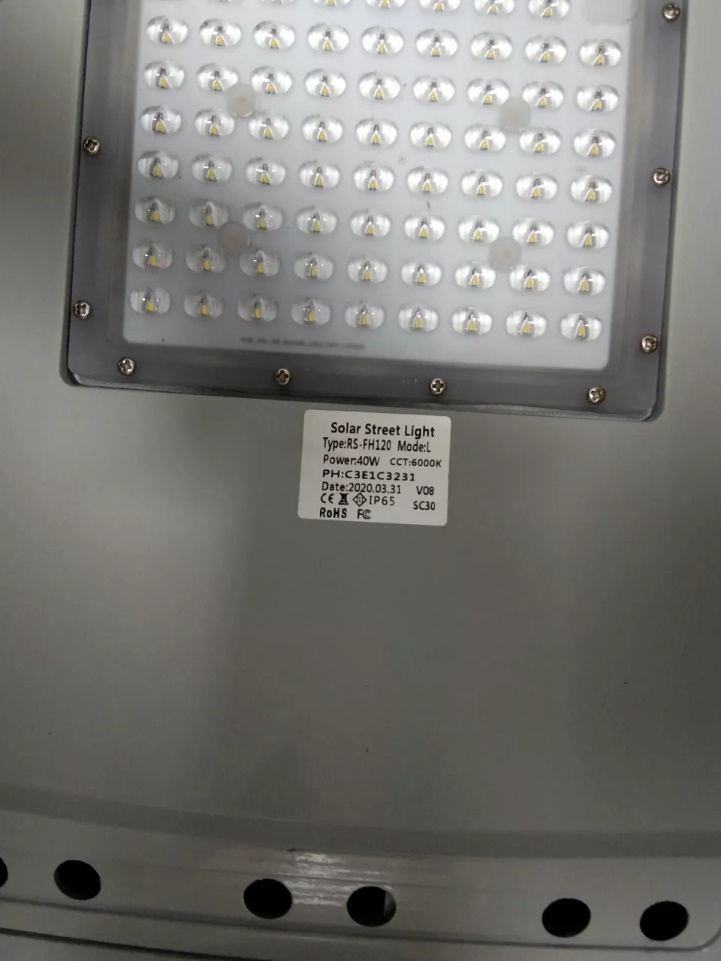

The LED light fixture is the core element of a solar street light system, providing the illumination required for roads, pathways, and other outdoor spaces. Solar street lights are favored for their energy efficiency, long lifespan, and low maintenance compared to traditional street lighting solutions. However, to ensure the lighting is effective and meets required standards, the LED fixture must be carefully chosen and optimized for uniformity, glare reduction, and power efficiency.

Robost design

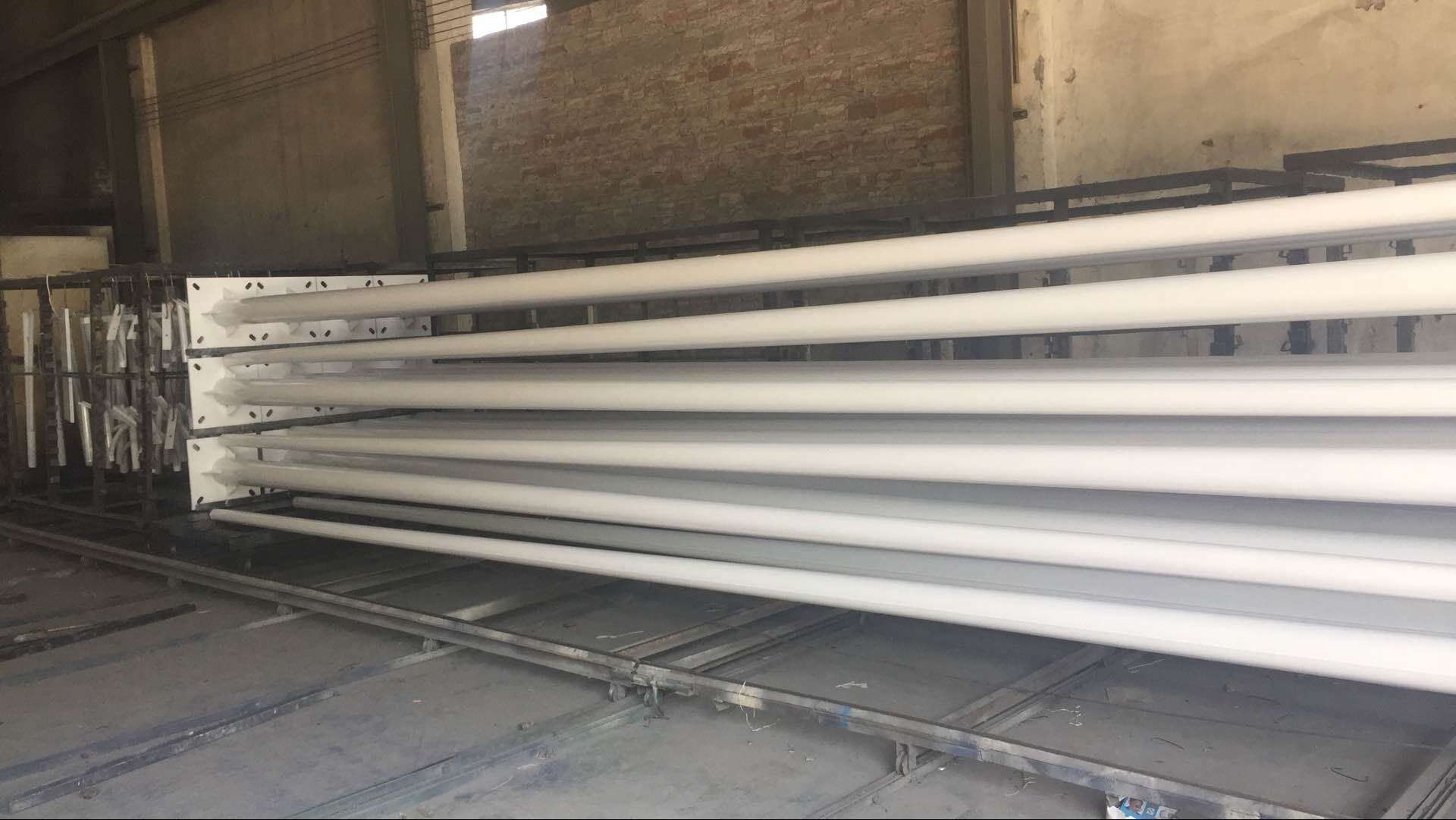

The pole and structure of a solar street light system must be designed to support the weight of the solar panel, light fixture, and any associated components, while also withstanding environmental factors such as wind load, rain, and temperature fluctuations. Choosing the right materials and designing the structure to meet local regulations is crucial for long-term system durability and safety.

Conclusion

The design and installation of solar street lighting systems are critical to ensuring reliable, efficient, and cost-effective illumination. With a well-thought-out approach to controller functions, LED and optics, and pole design, solar street light systems can provide long-lasting, energy-efficient lighting for a variety of commercial, municipal, and residential applications. By following these design principles and optimizing key components, you can create solar lighting systems that are not only effective but also environmentally sustainable and economically viable.
