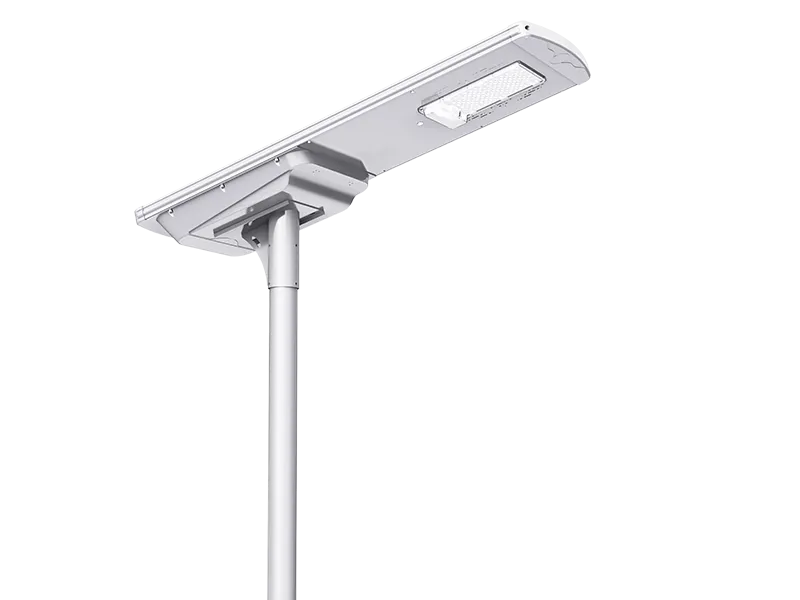

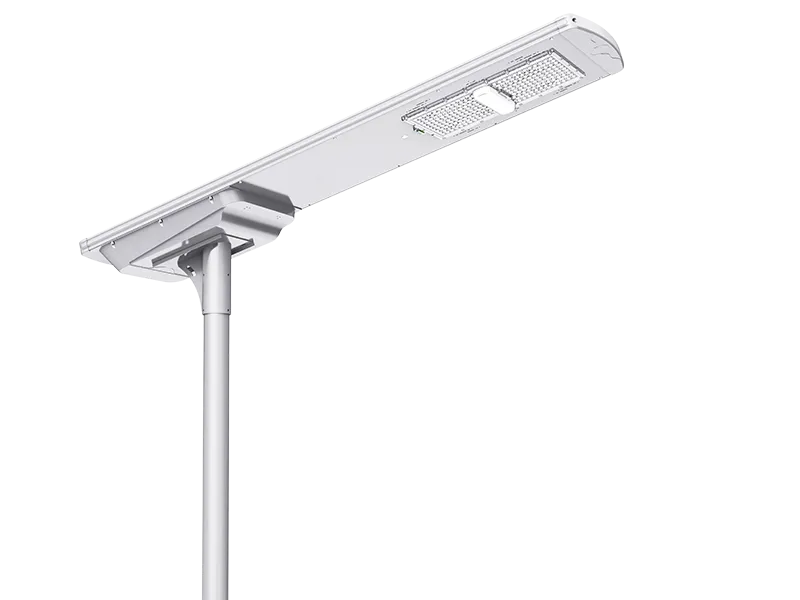

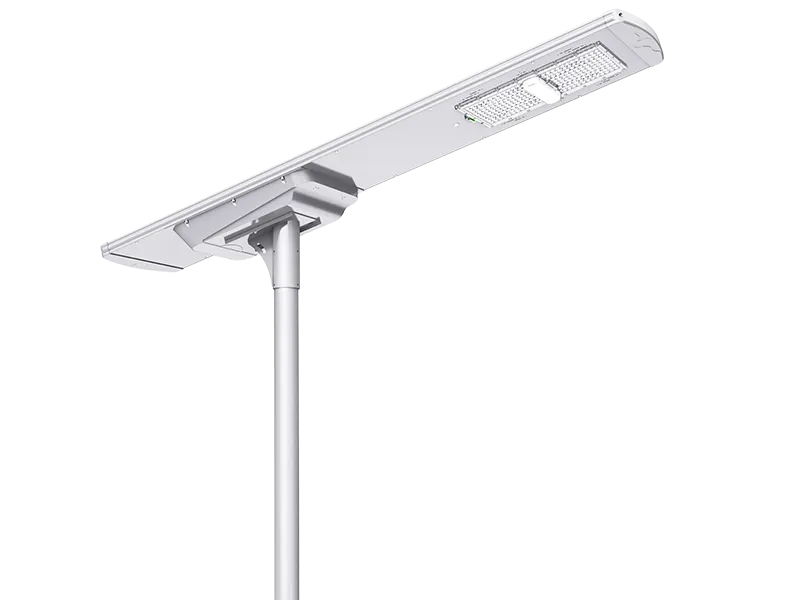

All in One Solar Street Light
RSG Series
The RSG Series is suitable for commercial, municipal and industrial outdoor lighting projects. Featuring an integrated solar panel, LiFePO₄ battery, intelligent MPPT controller and high-efficiency LED module, it provides reliable lighting performance with simplified installation and low maintenance.
Learn More About：
All in One Solar Street Light
Download: RSG Series
Applications:
Technical Specifications
Review the key technical specifications of the RSG Series to compare models and choose the ideal solution for municipal roads, parking lots and commercial outdoor lighting projects.
| Model | RSG-90 | RSG-120 | RSG-150 |
| Solar Panel | 90W / 18V | 120W / 18V | 150W / 18V |
| Battery Capacity (LiFePO₄) | 384 Wh | 640 Wh | 960 Wh |
| Battery Cycle Life | ≥2,000 Cycles | ||
| Luminous Flux | 10,000 lm | 15,000 lm | 18,000 lm |
| Beam Angle | 150° × 70° | ||
| LED Lifetime | ≥50,000 Hours | ||
| Color Temperature | 3000K–7500K | ||
| Optical Distribution | Batwing Lens with Polarized Light | ||
| Lighting Autonomy | 5–7 Rainy Days | ||
| Operating Temperature | -20°C to +60°C (Charging Above 0°C) | ||
| Pole Mount Diameter | Ø76 mm | ||
| Recommended Installation Height | 6–8 m | 8–10 m | 10–12 m |
| Recommended Pole Spacing | 20–40 m | ||
*Need more technical information? Contact our engineering team to receive the complete datasheet, IES files, DIALux lighting simulation and customized project recommendations.
Advantages
Designed to provide reliable performance, simplified installation and long-term value for municipal, commercial and industrial outdoor lighting projects.
High-Efficiency LED LightingUp to 180 lm/W luminous efficiency delivers bright, uniform illumination while improving energy utilization and reducing long-term operating costs.
Long-Life LiFePO₄ BatteryGrade-A LiFePO₄ battery technology provides stable performance, extended service life and reduced maintenance requirements for demanding outdoor lighting projects.
Smart Lighting ControlIntegrated motion sensing and intelligent lighting control improve energy efficiency while optional IoT connectivity enables remote monitoring and management.
Built for Harsh EnvironmentsDie-cast aluminum housing with IP65 protection delivers reliable performance in rain, dust and challenging outdoor environments.
Simplified InstallationIntegrated all-in-one design minimizes installation time, reduces onsite wiring and simplifies deployment for municipal and commercial lighting projects.

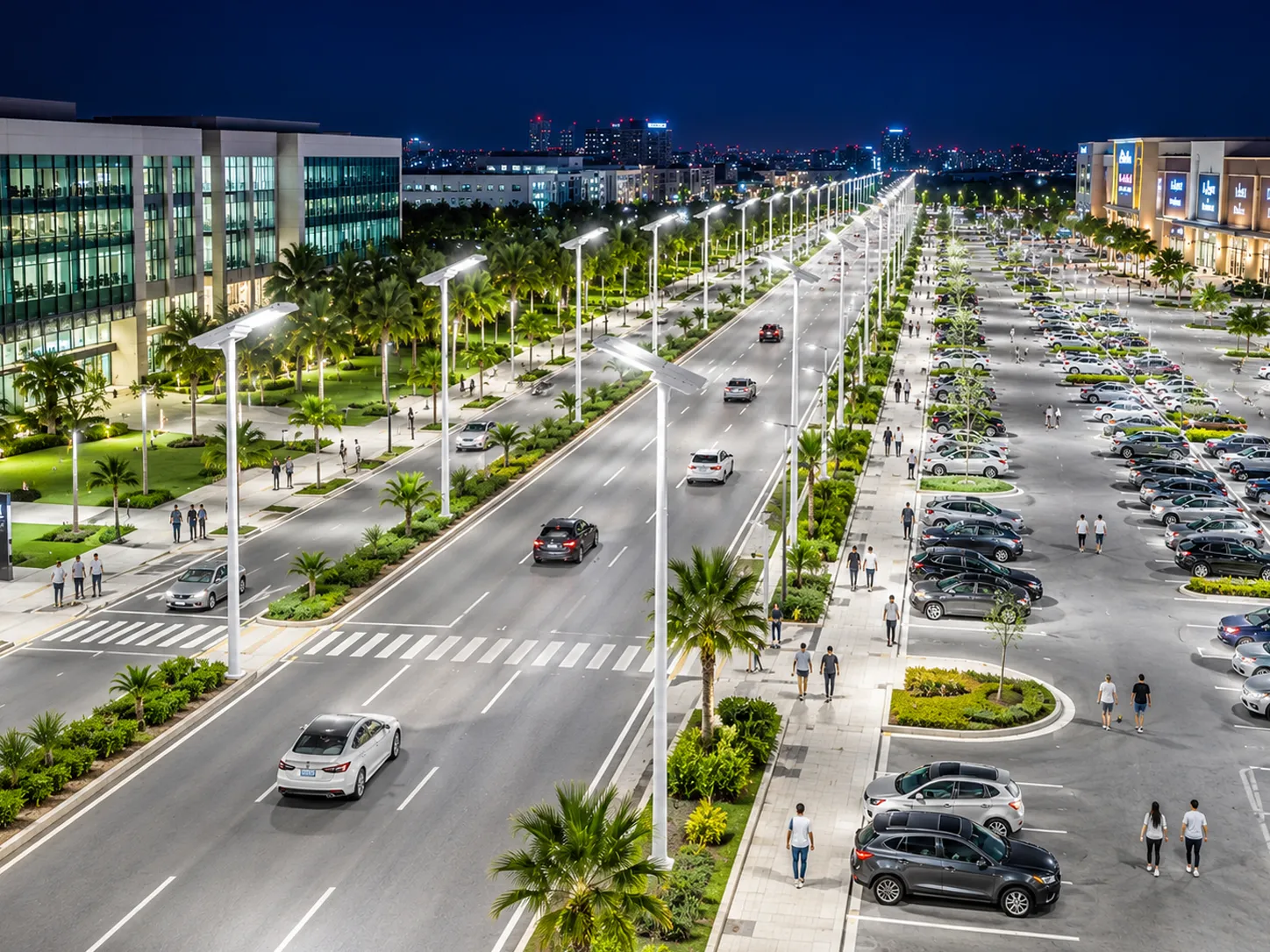

Applications and Solar Lighting Solutions

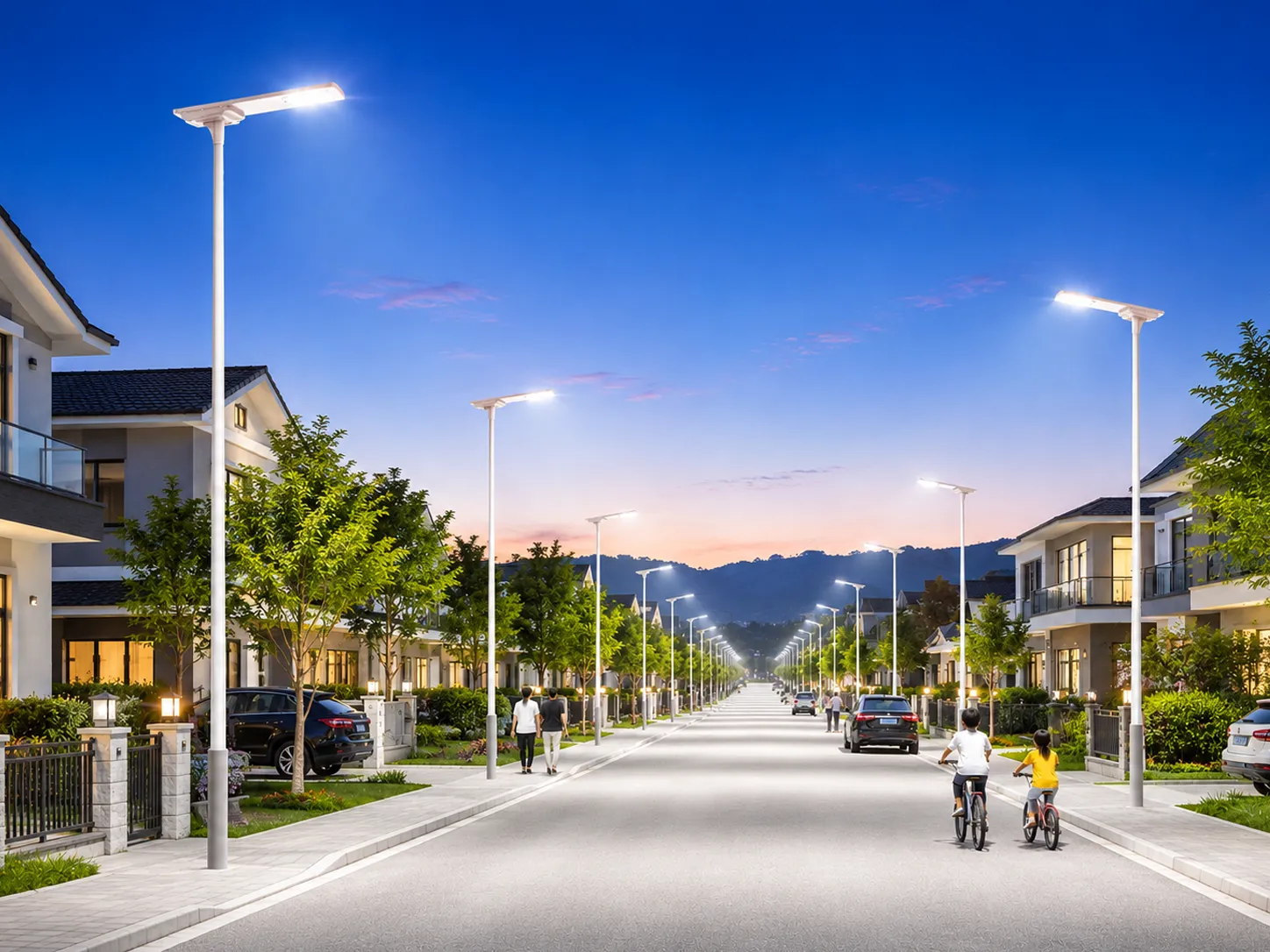

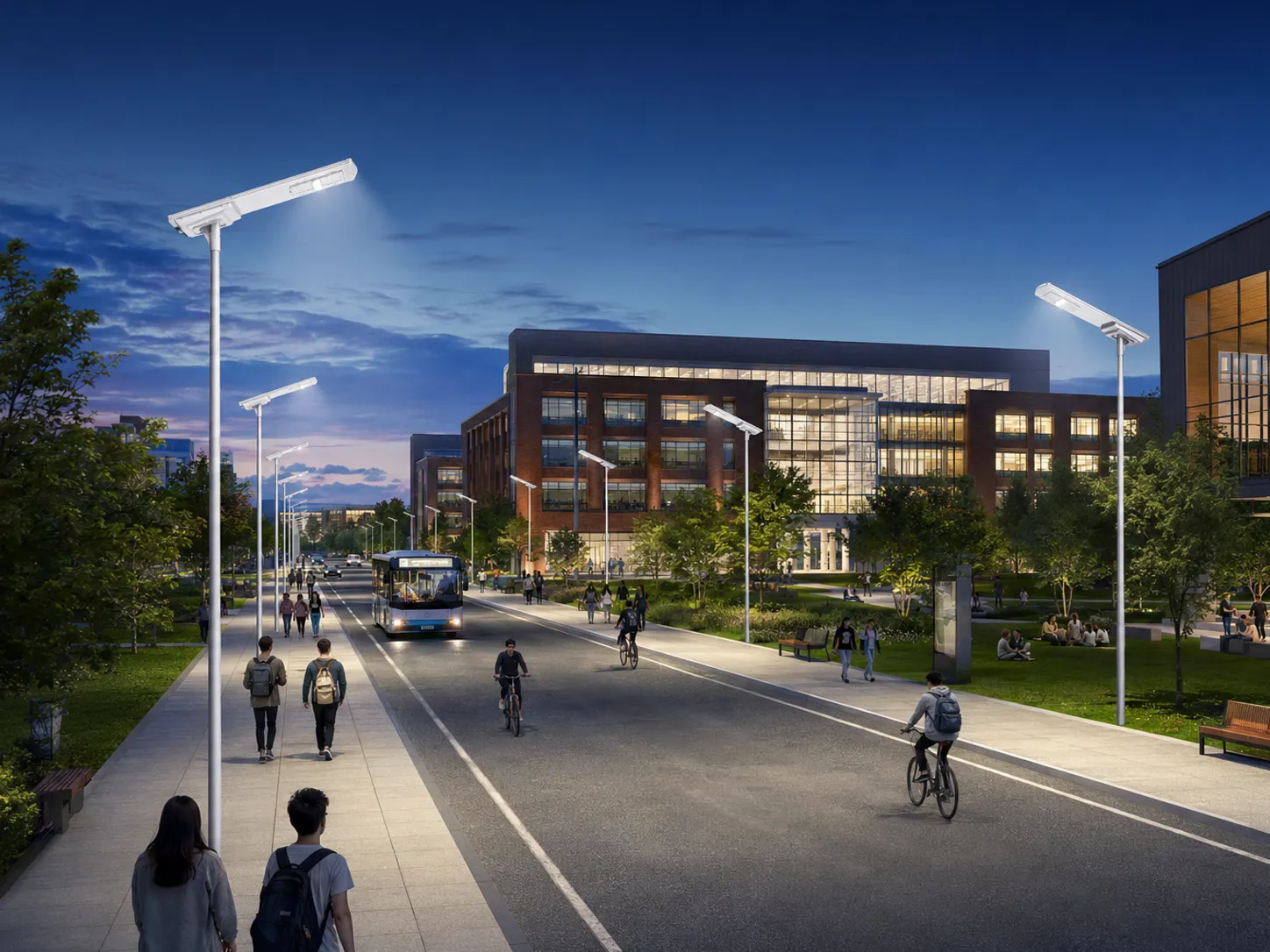

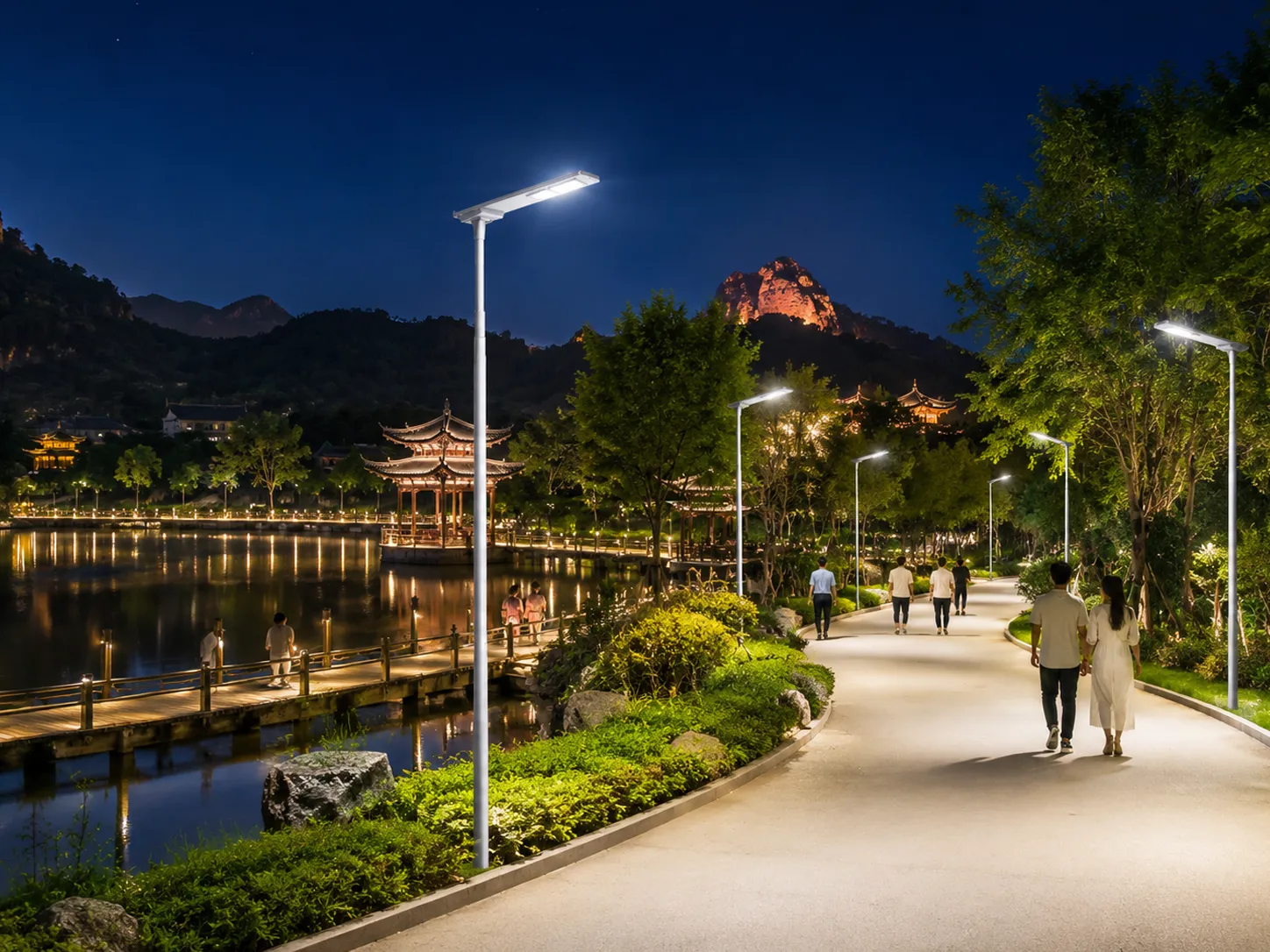

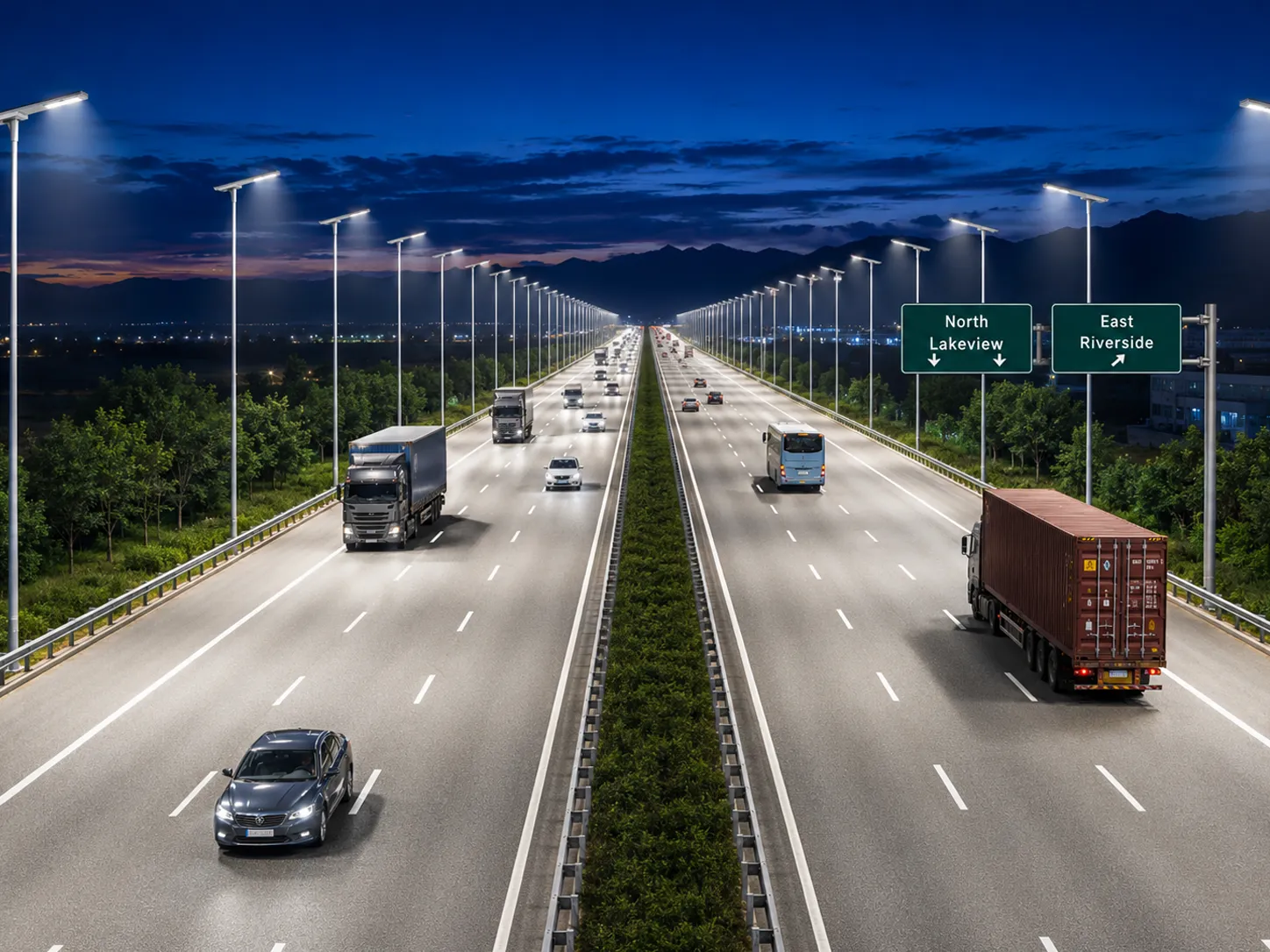

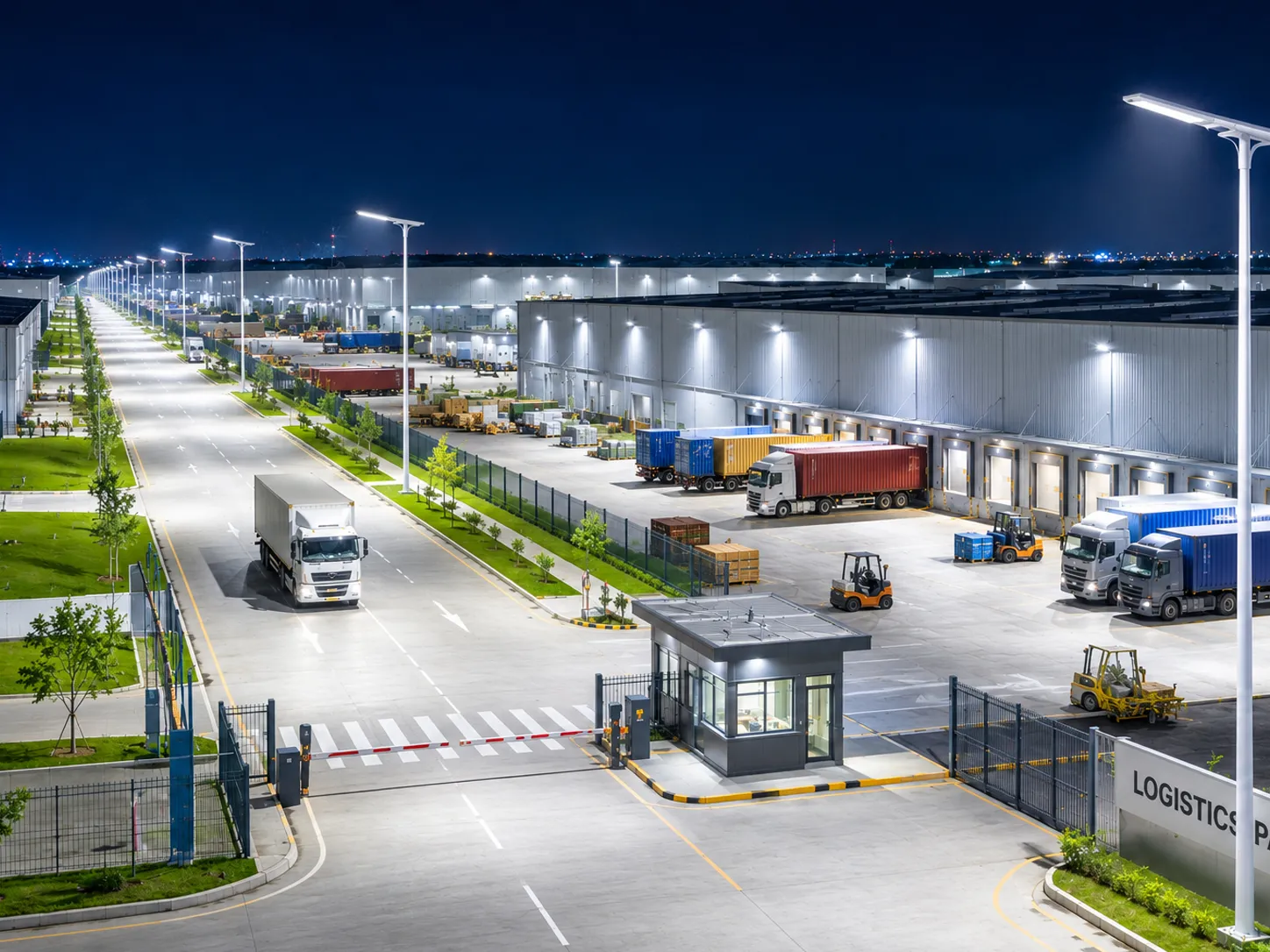

The RSG Series fits roads, parking lots, campuses, and industrial sites that need integrated solar lighting with simpler installation and lower wiring costs.
Engineering Support for Solar Street Light Projects
1、Project Requirement Review
● Road Width Assessment
● Pole Height Confirmation
● Lighting Hour Planning
2、Model & Configuration Advice
● Wattage Selection
● Battery Capacity Matching
● Solar Panel Sizing
3、Lighting Layout Support
● Pole Spacing Reference
● Installation Layout Suggestion
● Application Matching
4、Installation Guidance
● Mounting Advice
● Bracket & Foundation Reference
● Start-Up Check Support
5、Project Document Support
● Datasheets
● Specification Sheets
● Configuration Records
6、After-Sales Technical Assistance
● Troubleshooting Support
● Maintenance Guidance
● Spare Parts Advice
7、Project Follow-Up
● Sample Evaluation
● Delivery Coordination
● Ongoing Project Communication
Need a Customized Solar Street Light Solution
Send us your project requirements, including road width, pole height, installation location, lighting time and quantity. Our team will help recommend a suitable Solar Star Light II configuration.
Request a Professional Solution
Please submit your project details on the right. Our team will provide a professional solution and quote via email within 24 hours.
Related Products
FAQ
Q: Can the RSG Series configuration be adjusted for project requirements?
Yes. Configuration can be adjusted according to road width, pole height, installation spacing, lighting hours, and backup-day requirements.
Q: Is the RSG Series suitable for municipal lighting projects?
Yes. The RSG Series is suitable for community roads, municipal streets, parking lots, industrial parks, and other outdoor lighting projects, depending on the selected configuration.

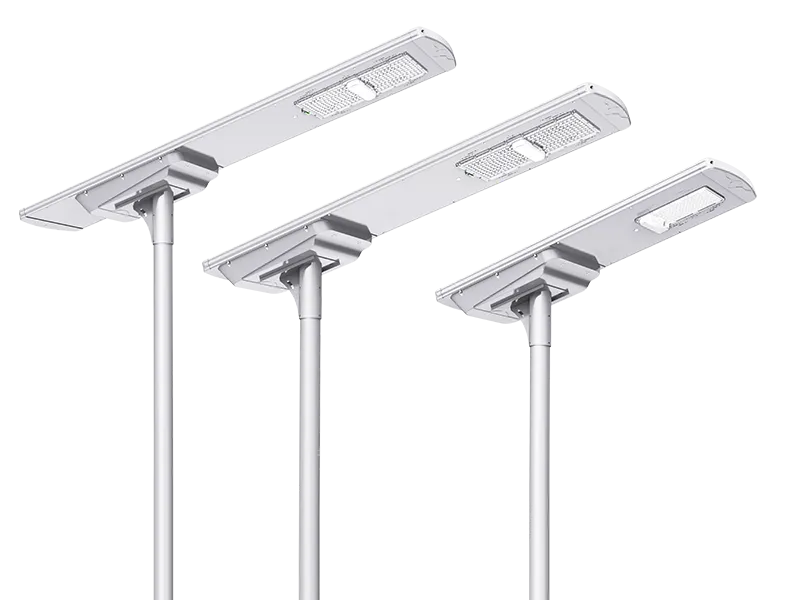

Q: What is the difference between RSG-90, RSG-120, and RSG-150?
The three models share the same series design, while size, system configuration, and recommended application range vary by model.
Q: What wattage options are available in the RSG Series?
The RSG Series is available in 90W, 120W, and 150W configurations for different road widths, pole heights, and lighting requirements.
