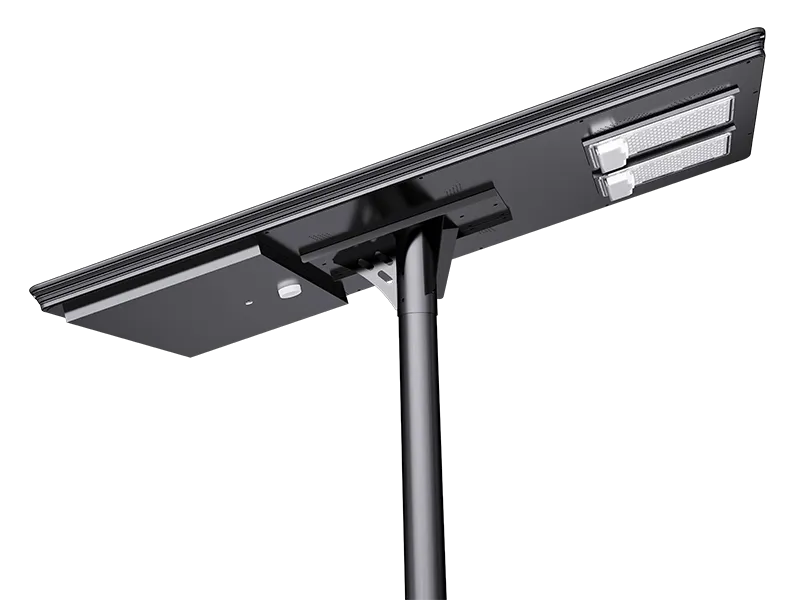

Solar Star Light - Ⅱ All in One Solar Street Light
Solar Star Light II is an all in one solar street light for roads, parking lots, industrial parks and municipal projects.
It integrates the solar panel, LiFePO4 battery, LED light source and controller into one unit, with configurations selected according to project requirements.
Share your road width, pole height, installation spacing, lighting hours and backup-day requirements to identify a suitable ST2 model.
- Integrated Design
- 60W–260W Solar Panel Options
- LiFePO4 Battery
- 6,000–25,000 lm Configurations
- 0–90° Adjustable Bracket
- Battery Status Indicator
Solar Star Light II Video
Solar Star Light II Specifications and Model Selection
Solar Star Light II is an all in one solar street light available in six ST2 models. Compare each model’s solar panel, LiFePO4 battery, luminous flux and recommended mounting height against your project requirements.
| Type | ST2-60 | ST2-80 | ST2-120 | ST2-160 | ST2-210 | ST2-260 |
| Solar Panel | 60W / 18V | 80W / 18V | 120W / 18V | 160W / 18V | 210W / 18V | 260W / 18V |
| LiFePO4 Battery | 240Wh | 384Wh | 640Wh | 960Wh | 1536Wh | 1920Wh |
| Charge Cycle Times | 2000 times | |||||
| Luminous Flux | 6000 lm | 10000 lm | 15000 lm | 18000 lm | 21000 lm | 25000 lm |
| LED Quantity | 140 pcs | 240 pcs | 280 pcs | |||
| LED Lifespan | 50000 hours | |||||
| Color Temperature | 3000–7500K | |||||
| Light Distribution | Batwing lens with polarized light | |||||
| Lighting Time (Full Charge) | 5–7 rainy days | |||||
| Working Temperature | -20°C to 60°C (charge above 0°C) | |||||
| Top Diameter of Pole | 60 mm | 60 mm | 76 mm | 76 mm | 76 mm | 76 mm |
| Mounting Height | 6–7 m | 6–8 m | 8–10 m | 10–12 m | 10–12 m | 10–15 m |
| Installation Spacing | 20–40 m | |||||
How to Choose the Right ST2 Model
ST2-60 and ST2-80 are listed for mounting heights of 6–7 m and 6–8 m, with luminous flux ratings of 6000 lm and 10000 lm respectively.
ST2-120 is listed for an 8–10 m mounting height and 15000 lm. ST2-160 and ST2-210 are both listed for 10–12 m, with luminous flux ratings of 18000 lm and 21000 lm.
ST2-260 is listed for a mounting height of 10–15 m and 25000 lm. Confirm the final model against the road layout and required lighting performance.
Share these project details for a configuration recommendation:
- Road width
- Pole height
- Installation spacing
- Required lighting hours
- Backup-day requirements

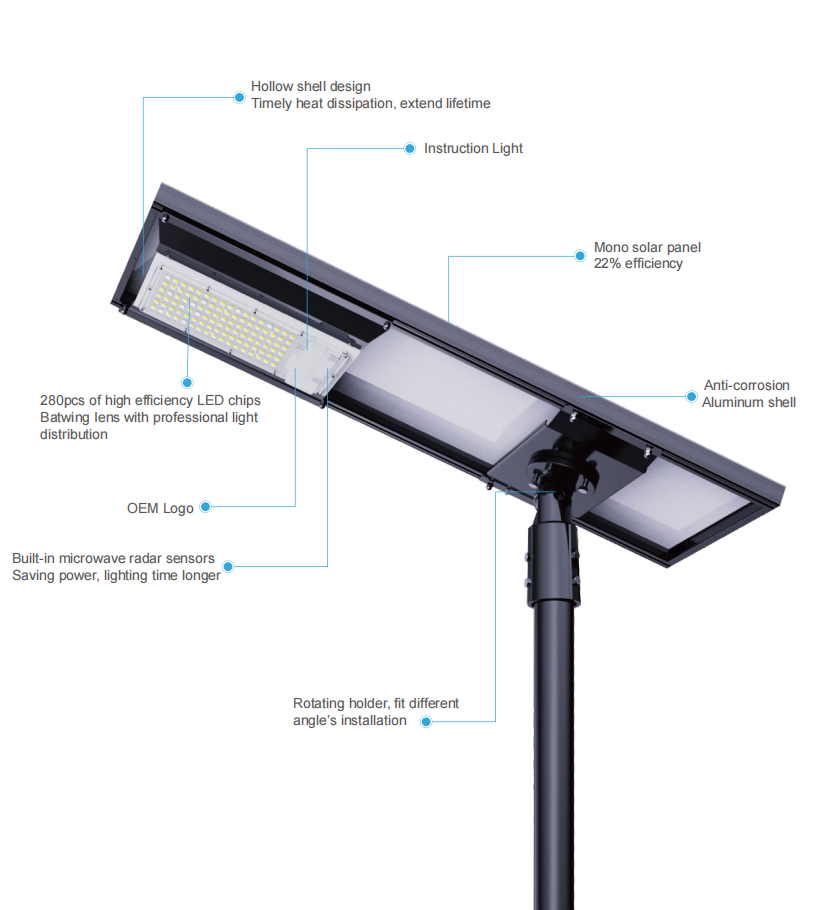

Solar Star Light - Ⅱ Advantages
This all in one solar street light integrates the solar panel, LiFePO4 battery, LED module and controller in one fixture, with adjustable mounting and multiple output options for project selection.

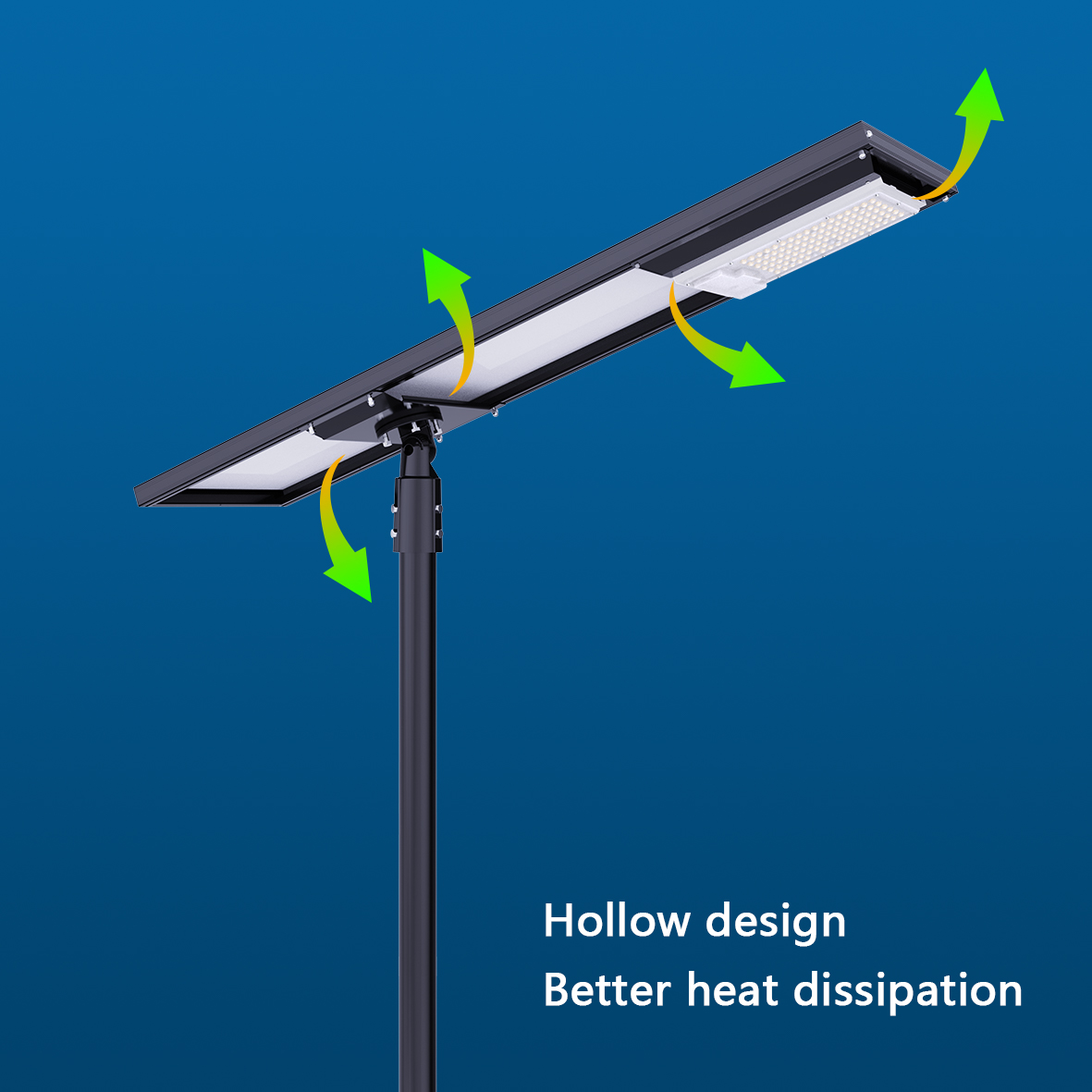

Hollow Chassis for Heat Dissipation
The hollow chassis allows airflow around the fixture to support heat dissipation during outdoor operation.

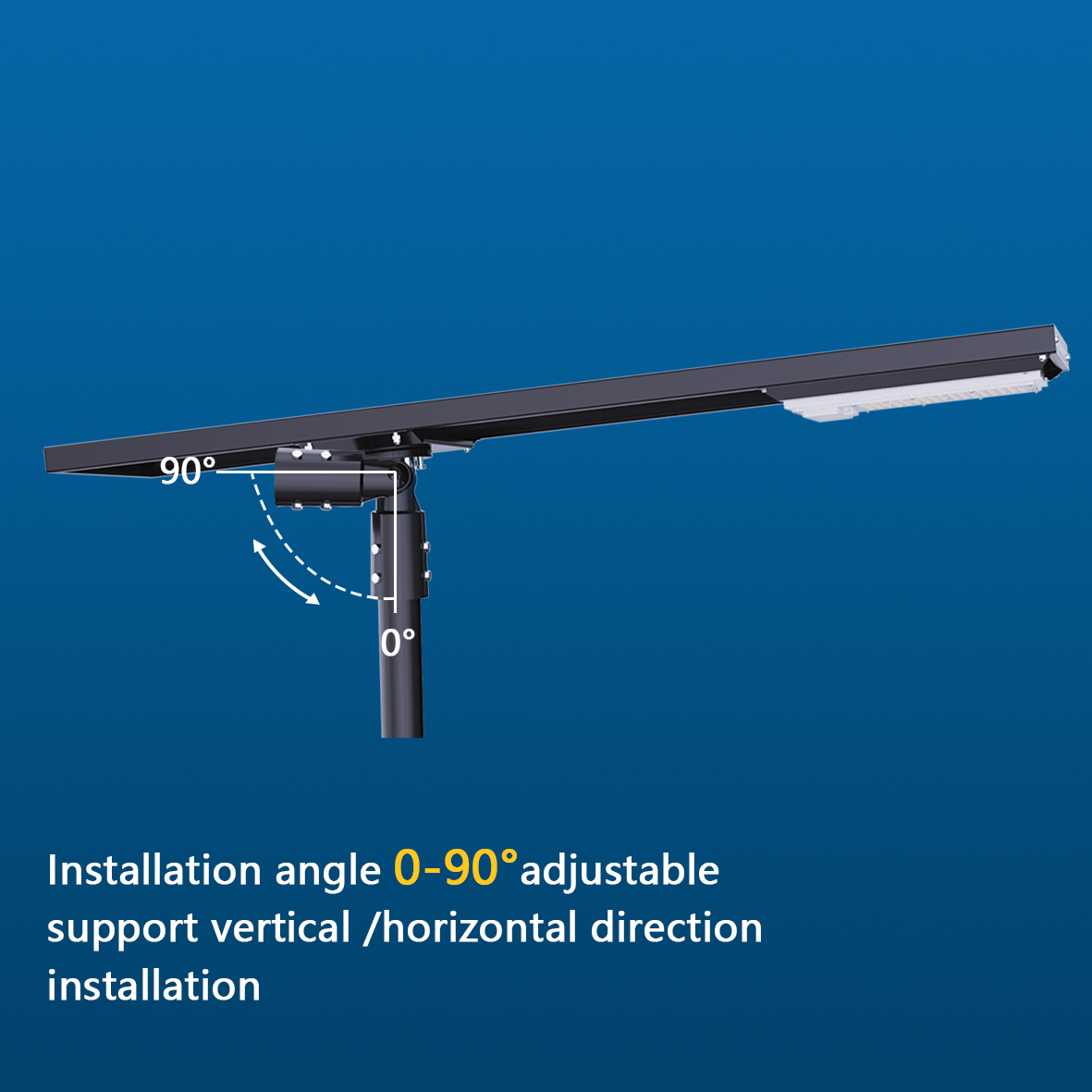

0–90° Adjustable Mounting Bracket
The adjustable bracket lets installers set the fixture angle from 0° to 90° according to pole direction and project layout.
Integrated System Design
The solar panel, LiFePO4 battery, LED module and controller are combined in one fixture, reducing the need for separate system wiring.

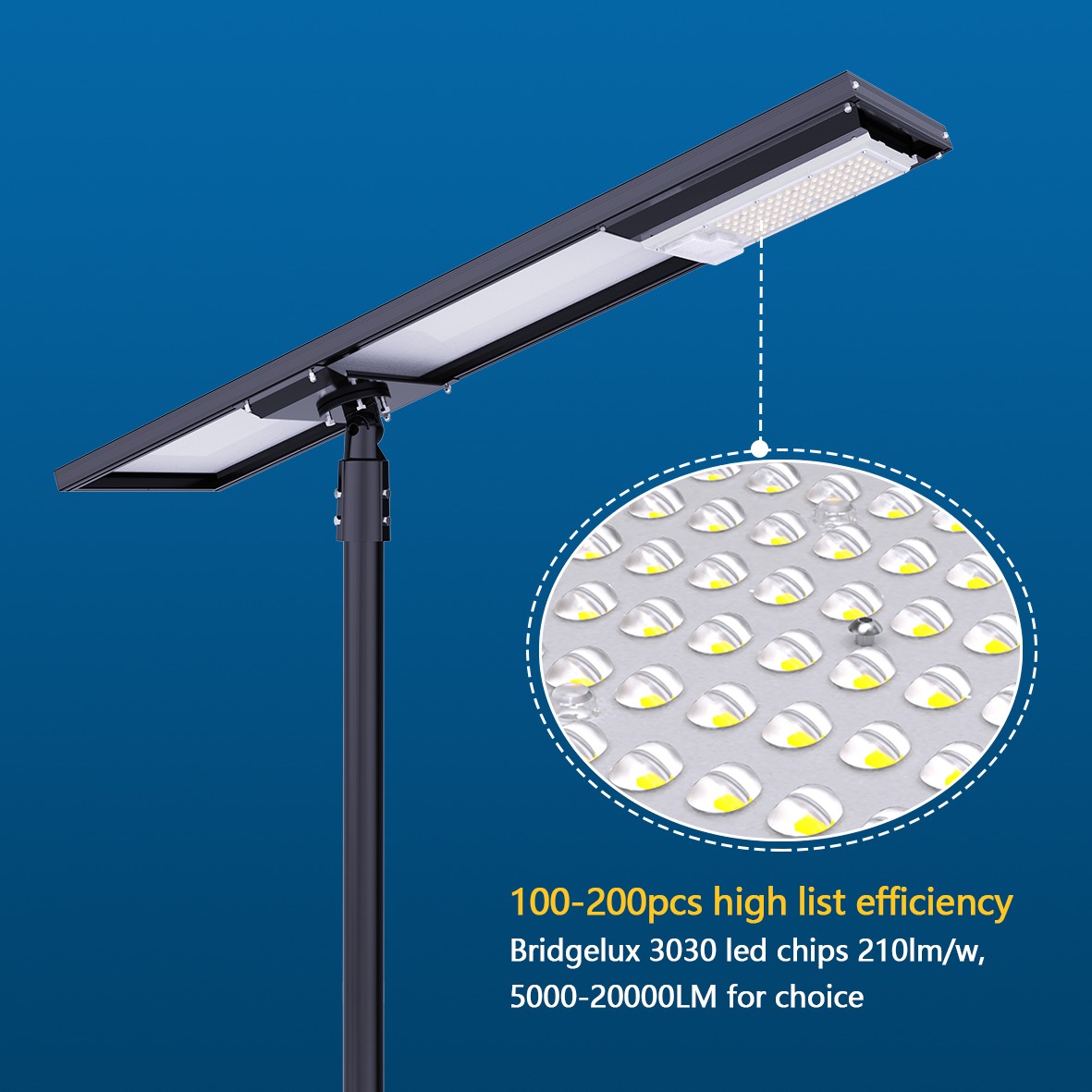

Luminous Flux Options
The ST2 range offers luminous flux options from 6,000 to 25,000 lm for comparison against project lighting requirements.

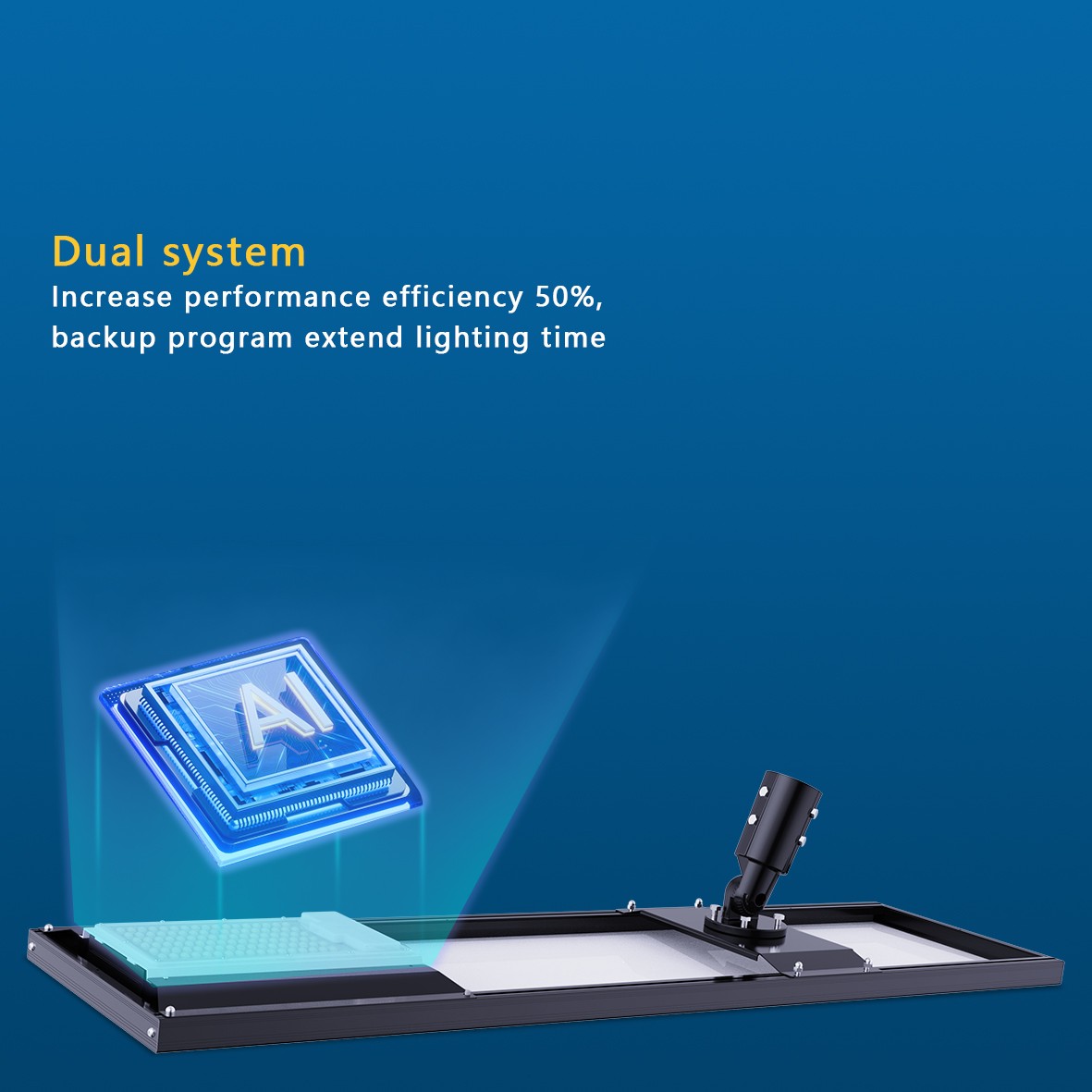

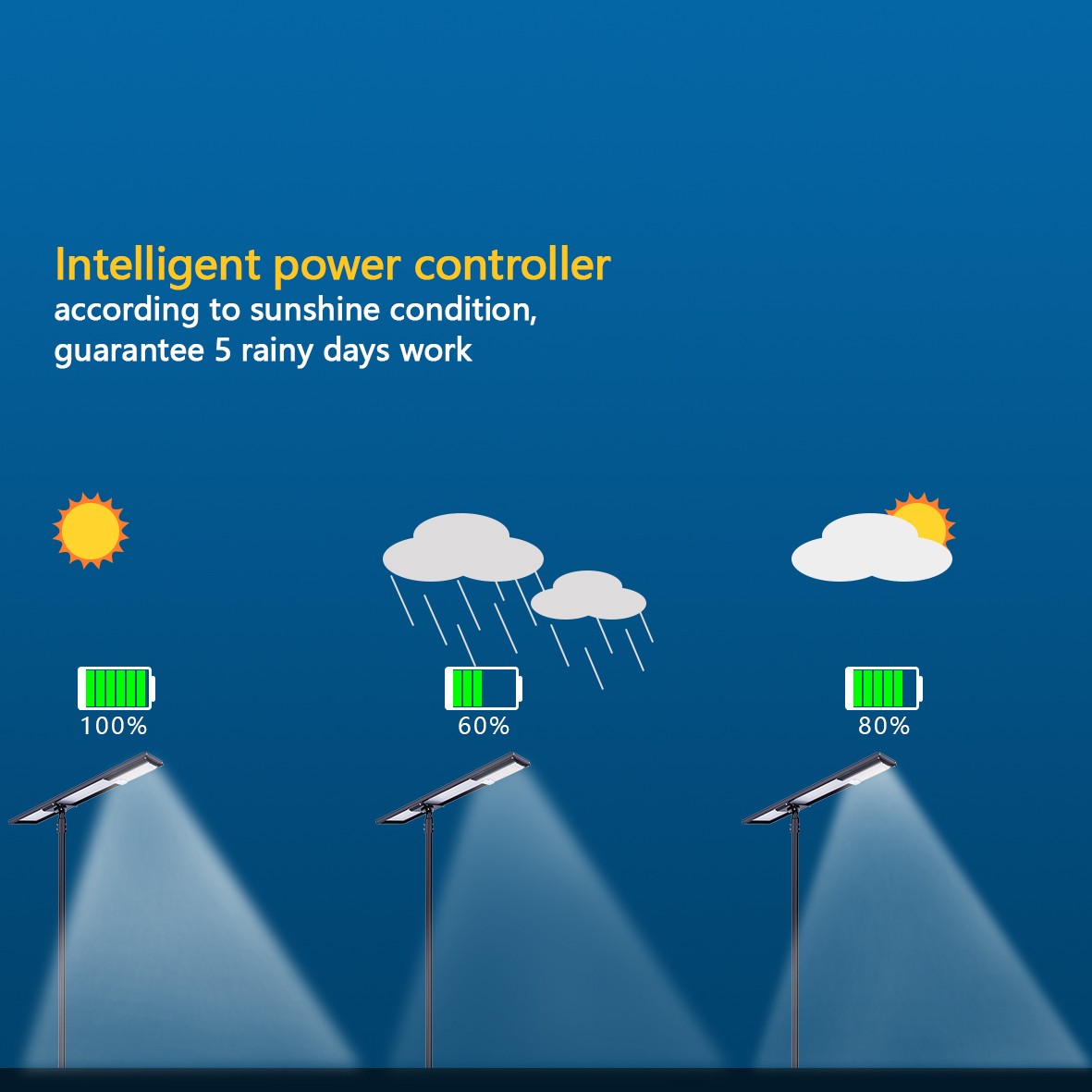

LiFePO4 Battery and Energy Control

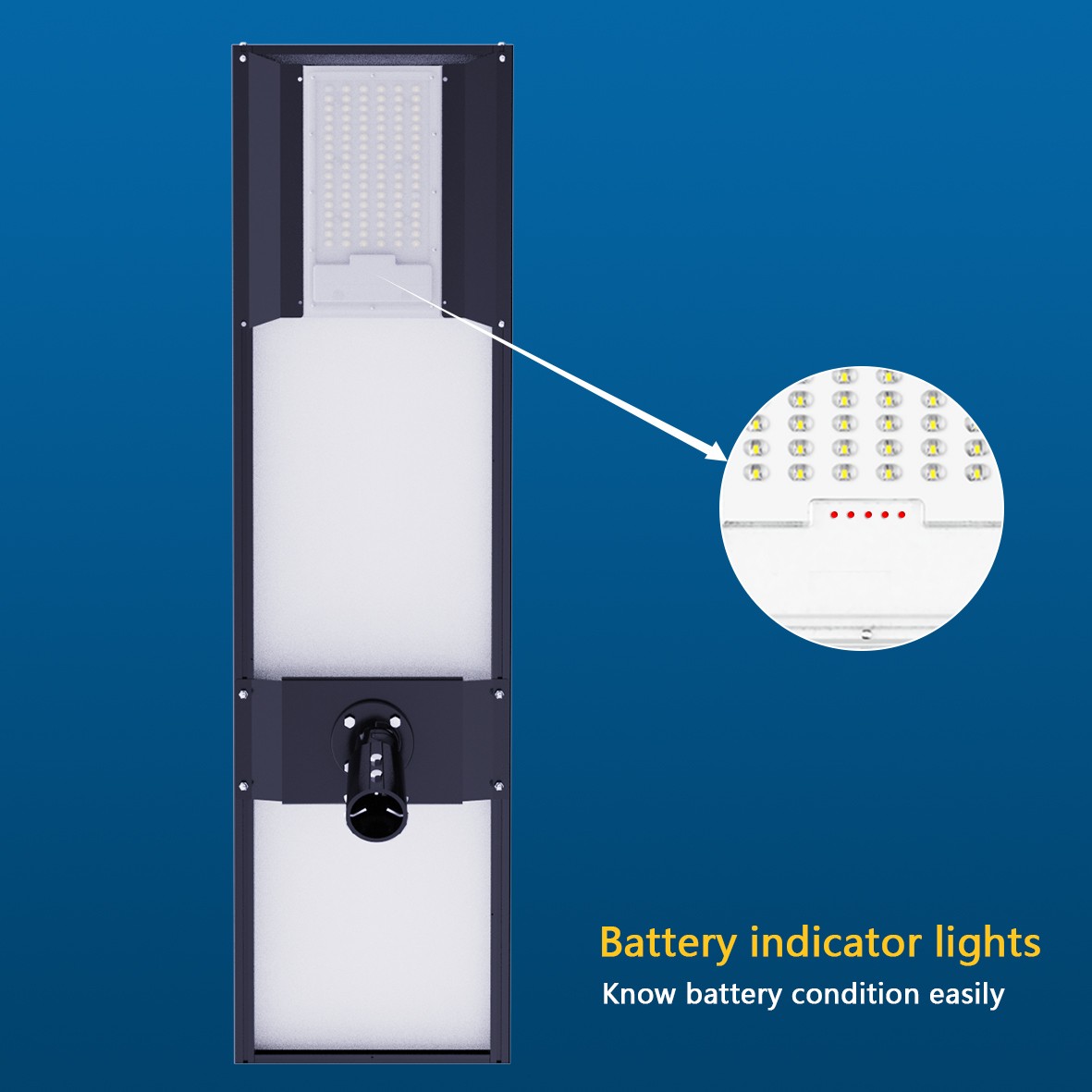

The system uses a LiFePO4 battery with a listed cycle life of 2,000 charge cycles. An external indicator shows battery status, while the controller manages the lighting system.
Applications and Solar Lighting Solutions
Solar Star Light II is an all in one solar street light for municipal roads, parking lots, industrial parks and rural roads. Select a model according to road width, pole height, installation spacing, lighting hours and backup-day requirements.
Municipal Roads
For municipal road lighting, compare road width and pole height with the selected model’s luminous flux and installation spacing. Share the site layout and required lighting hours to help determine a suitable configuration.
Parking Lots
Solar street lights for parking lots can be planned around vehicle routes, pedestrian areas, pole locations and the required site coverage. Consider mounting height, pole spacing and expected lighting hours when comparing models.
Industrial Parks
Industrial solar street lights can be considered for park roads, entrances, storage areas and loading zones. Compare operating hours, installation spacing and backup-day requirements with the available ST2 models.
Rural Roads and Village Paths
Integrated solar street lights are an option for village roads, community paths and other outdoor public areas. Choose the model based on road layout, pole height, installation spacing and the local lighting schedule.
Highways and Main Roads
For wider roads and main-road projects, confirm the required lighting levels and layout before choosing a model. Compare road width, mounting height and pole spacing with the available ST2 configurations.
Solar Star Light - Ⅱ Detail Showcase

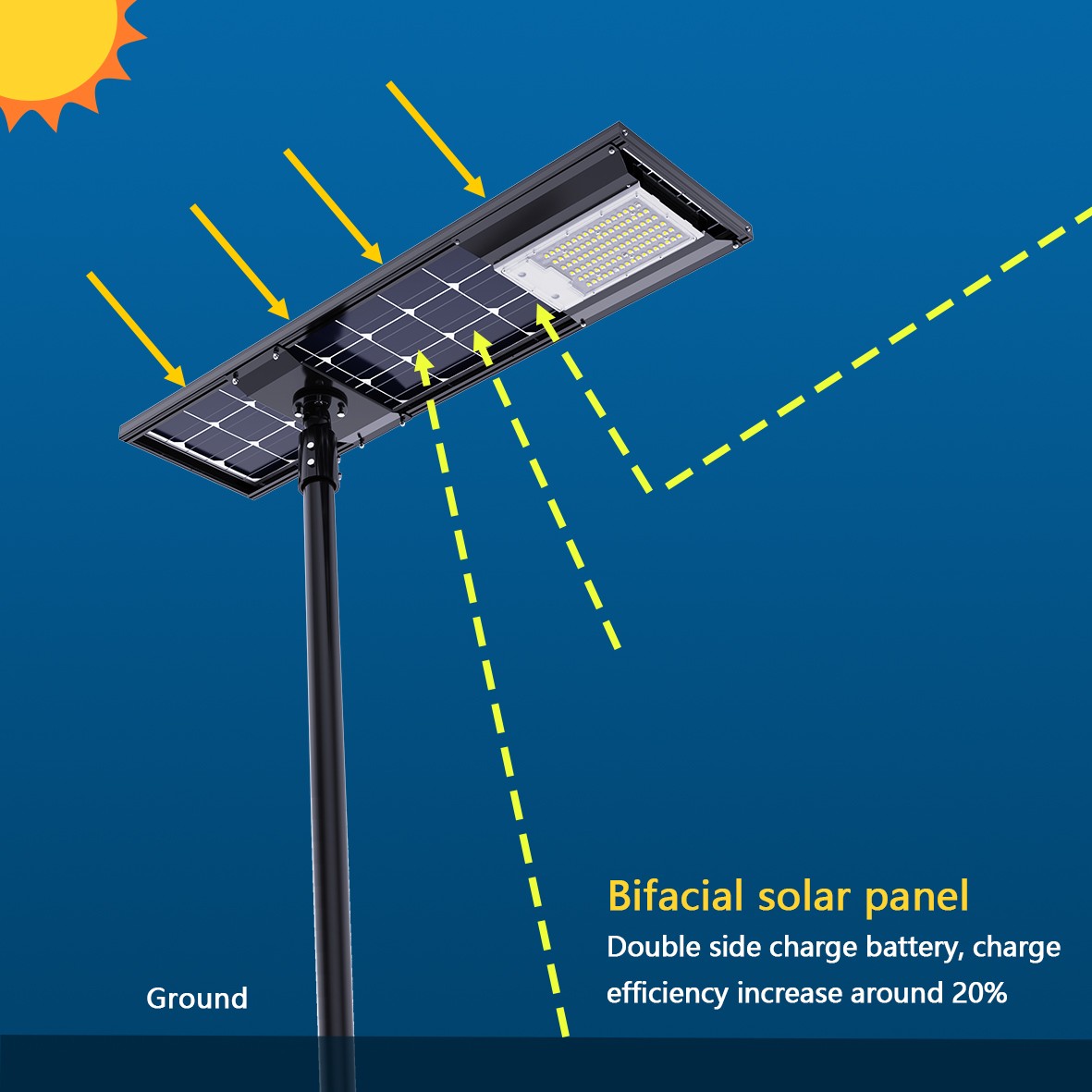

Monocrystalline Solar Panel
The monocrystalline solar panel supplies solar energy to the integrated lighting system.
Adjustable Solar Panel Angle
The 0–90° adjustable bracket lets installers set the panel angle to suit pole orientation and site conditions.
Aluminum Alloy Housing
The aluminum alloy housing forms the outer body of the light and encloses its internal components.
LiFePO4 Battery
The LiFePO4 battery is housed within the fixture arm as part of the integrated system.
Built-In Spirit Level
The built-in bubble level gives installers a visual reference when aligning the light on the pole.
Batwing Lens
The Batwing lens with polarized light shapes the fixture’s light distribution for outdoor lighting applications.
Solar Street Light Project References
Solar Star Light II is used in real outdoor lighting projects, not only for standard product display. Project references help buyers understand how the product is applied in different climates, installation conditions, and project types.

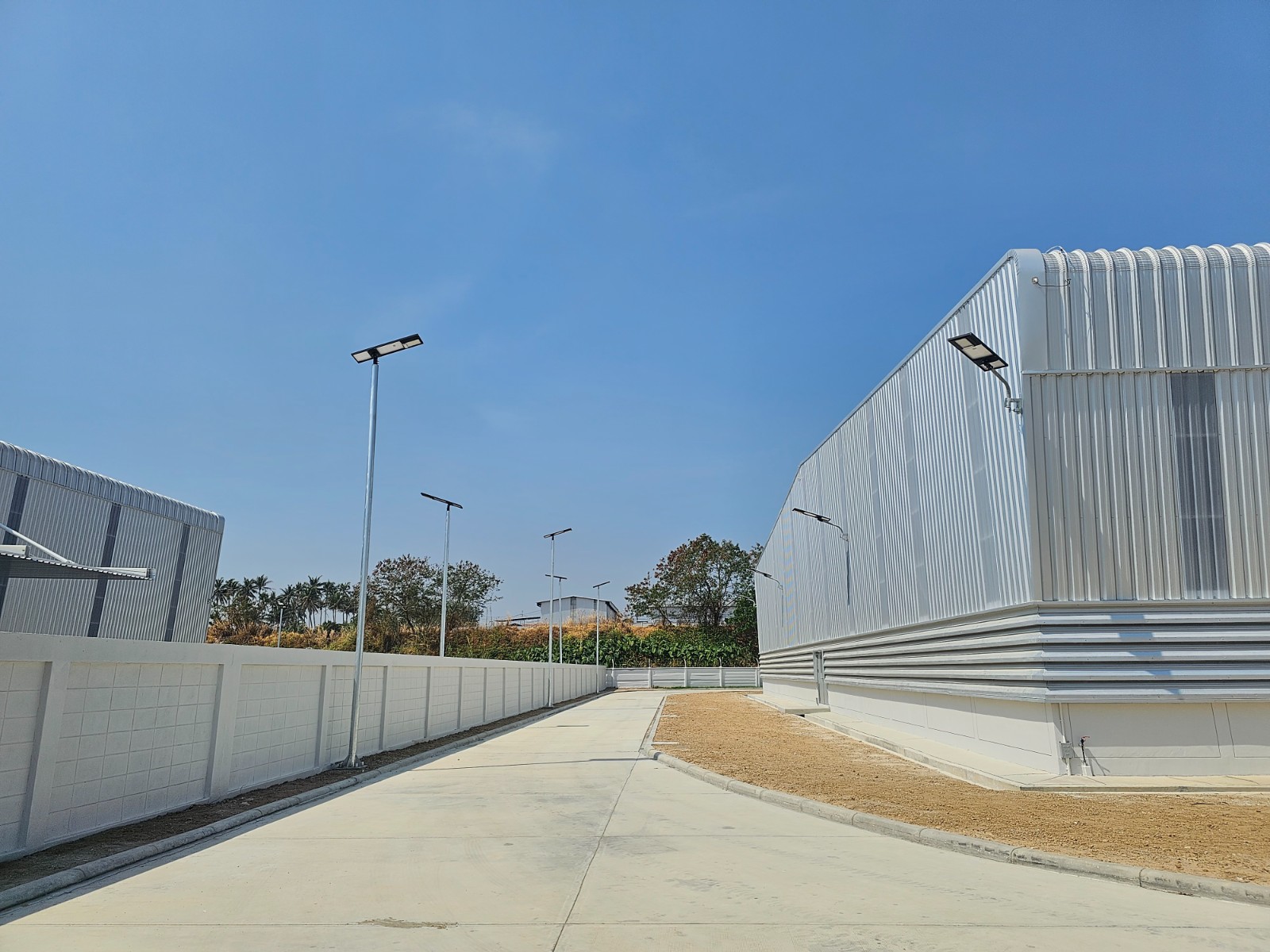

Solar Street Lighting Project in Thailand
Solar Star Light II was used for outdoor lighting in an industrial area. The integrated design helped simplify installation and supported stable lighting for daily site operation.

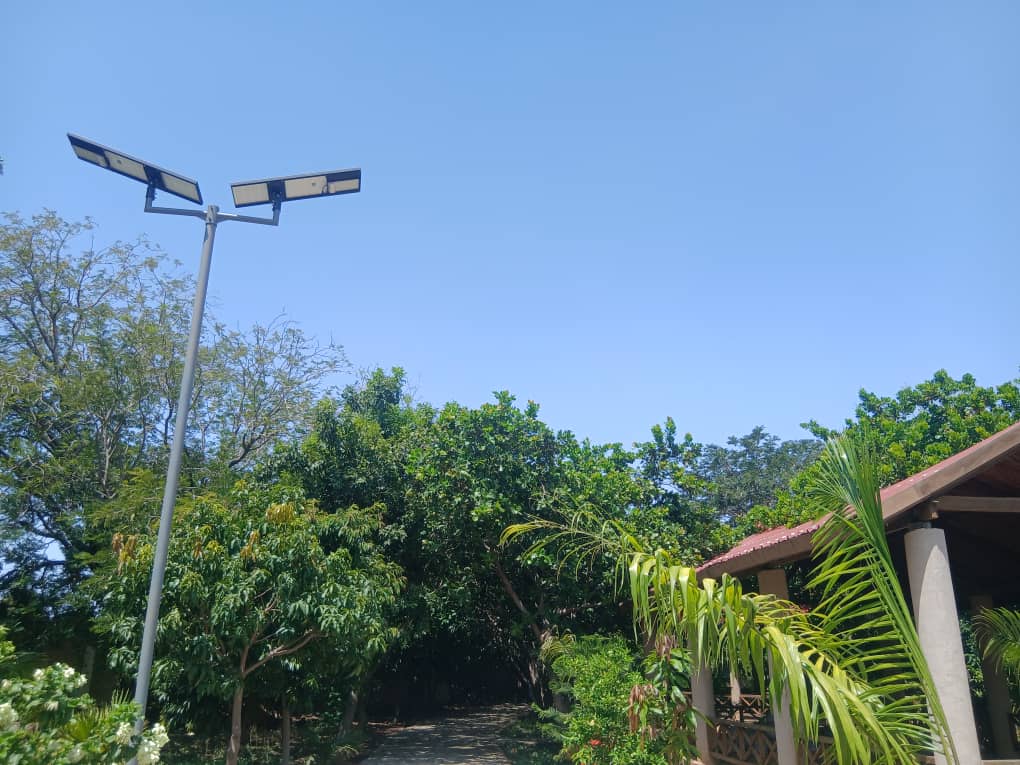

All in One Solar Street Light Project in Burkina Faso
For road lighting projects in areas with limited grid access, Solar Star Light II provided an off-grid lighting solution that helped reduce cable construction and grid dependence.

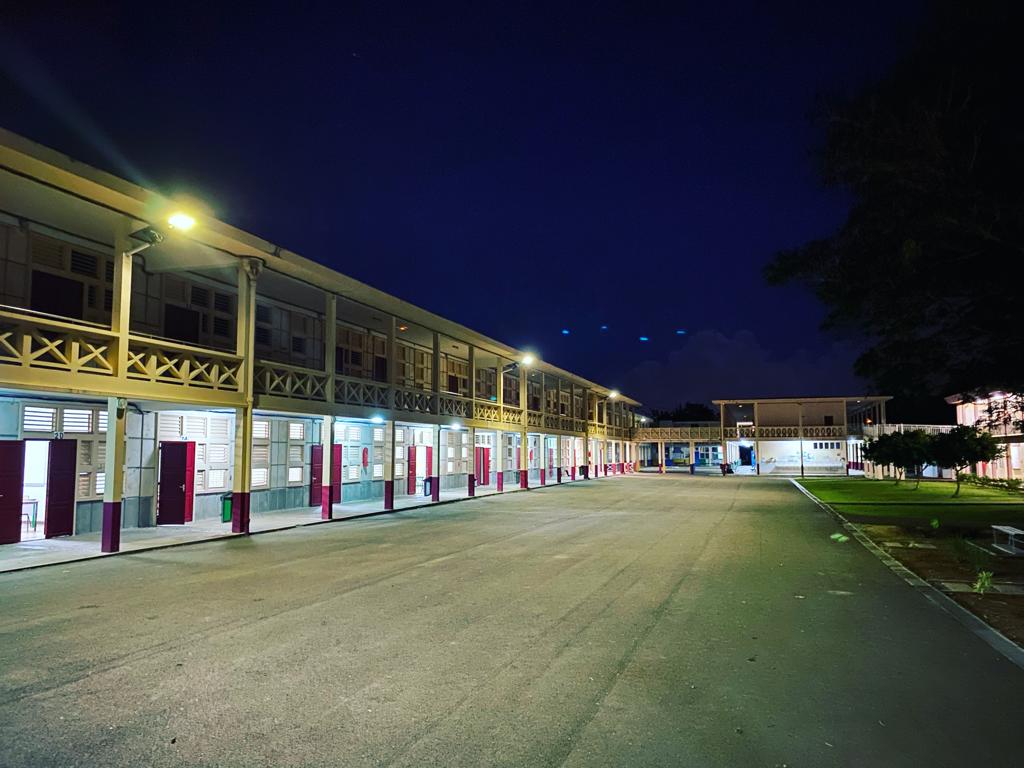

Outdoor Solar Lighting Project in France
Solar Star Light II supported outdoor public lighting with a clean energy solution, helping reduce electricity use and simplify maintenance work.
RoadSmart Manufacturing Strength
RoadSmart focuses on solar street lights and smart solar lighting solutions for global projects. With experience in R&D, manufacturing, project support, and OEM/ODM customization, RoadSmart supports customers from product selection to project solution design and specification matching.
Solar Star Light II Project Delivery Process
Share your project layout and lighting requirements to begin model selection and configuration. The process covers requirement review, model confirmation, production preparation, installation and project follow-up.
1. Project Requirements
● Road type and width
● Pole height and installation spacing
● Lighting hours and backup-day requirements
2. Model and Configuration
● Compare ST2-60 to ST2-260 models
● Review panel, battery and lumen options
● Confirm the project configuration
3. Order Preparation
● Confirm selected models and quantities
● Review order specifications
● Prepare production and packaging
4. Installation and System Check
● Prepare poles and installation locations
● Mount the selected fixtures
● Check the system after installation
5. Operation Guidance
● Product operation instructions
● Basic maintenance guidance
● Product documentation
6. After-Sales Support
● Product use and maintenance questions
● Support needs reviewed by project
● Spare-parts requirements confirmed as needed
7. Project Follow-Up
● Collect installation and site feedback
● Review operating requirements
● Confirm any follow-up support needs
Get a Solar Star Light II Project Quote
Share your road width, pole height, installation spacing, lighting hours, backup-day requirements and project quantity. We’ll review the details and recommend a suitable ST2 configuration.
Request a Professional Solution
Please submit your project details on the right. Our team will provide a professional solution and quote via email within 24 hours.

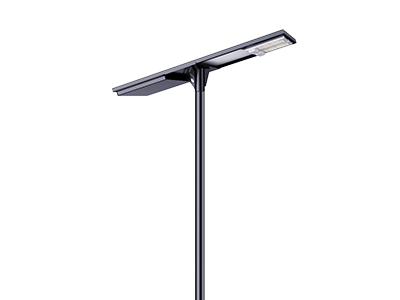

Related Products
FAQ
Q: Can Solar Star Light II be customized for different project requirements?
Q: Do you support OEM branding for Solar Star Light II?
Q: How many rainy or backup days can Solar Star Light II be designed for?
Q: How should pole spacing be determined for Solar Star Light II?
Q: What is the recommended mounting height for Solar Star Light II?
The recommended mounting height depends on the selected model and project layout. In general, ST2-60 and ST2-80 are suitable for about 6 to 8 meters, ST2-120 for around 8 to 10 meters, ST2-160 and ST2-210 for around 10 to 12 meters, and ST2-260 can be considered for wider roads and higher pole configurations. Final selection should be based on road width, required brightness, pole spacing and lighting hours.
Q: Where does it work best?
Residential streets, hotel drives, resorts and parks—anywhere you need elegant, glare-free all in one solar street lighting.
Q: Can I optimise panel angle after installation?
Yes. The bracket lets you set or change tilt on-site, maximising solar harvest across seasons and latitudes.
Q: Why choose Star Light Ⅱ over other all-in-one solar LED street lights?
Its ultra-slim body, tilt-adjustable panel and high-efficiency LEDs offer upscale aesthetics plus easy, cable-free installation.
