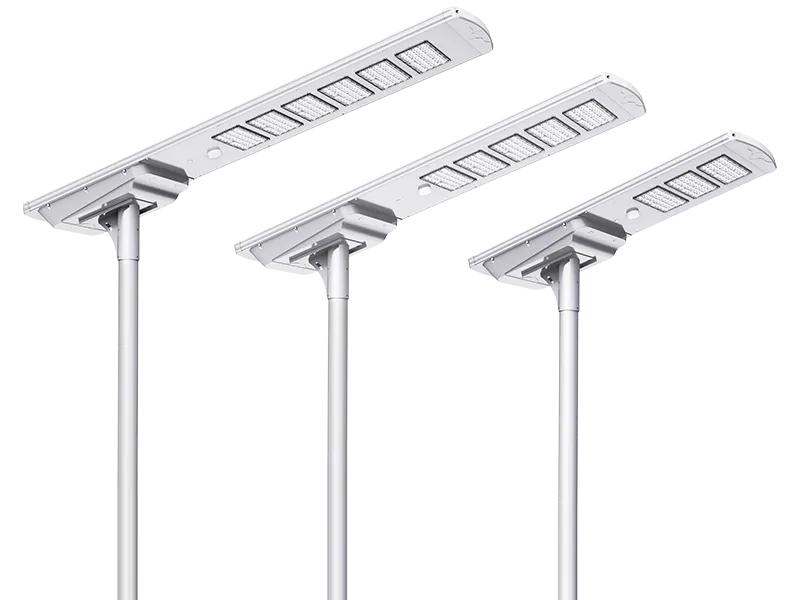

RSG Pro Series
The RSG-Pro Series offers three multi-module solar street light configurations—RSG-90-Pro, RSG-120-Pro and RSG-150-Pro—with 10,000-18,000 lm output for municipal roads, industrial parks and outdoor lighting projects.
Compare panel power, battery capacity and mounting height to match your road layout, lighting schedule and local solar conditions.
- 10,000-18,000 lm Output
- 90-150 W Solar Panel
- 384-960 Wh LiFePO4 Battery
- 6-12 m Mounting Height
RSG-Pro Series Technical Specifications
Compare the RSG-90-Pro, RSG-120-Pro and RSG-150-Pro multi-module solar street lights for road and outdoor lighting projects.
| Specification | RSG-90-Pro | RSG-120-Pro | RSG-150-Pro |
| LED chip quantity | 108 pcs | 180 pcs | 216 pcs |
| Luminous flux | 10,000 lm | 15,000 lm | 18,000 lm |
| Solar panel | 90 W / 18 V | 120 W / 18 V | 150 W / 18 V |
| Solar cell efficiency | 19-22% | ||
| Solar panel material | Monocrystalline silicon | ||
| Battery capacity | 384 Wh / 120 Ah | 640 Wh / 200 Ah | 960 Wh / 300 Ah |
| Battery type | LiFePO4 | ||
| Lighting autonomy after full charge | 5-7 rainy days | ||
| Beam angle | 150*70° | ||
| LED lifetime | 50000hrs | ||
| IP rating | IP65 | ||
| Operating temperature | -20°C~60°C (Charge above 0°C) | ||
| Color temperature | 3000K-7500K | ||
| CRI | Ra≥70 | ||
| Pole-top diameter | 76 mm | ||
| Recommended mounting height | 6-8 m | 8-10 m | 10-12 m |
| Recommended pole spacing | 20-40 m | ||
*Actual lighting performance depends on road layout, pole spacing, operating schedule and local solar conditions. Contact our engineering team for the complete RSG-Pro datasheet, IES files, DIALux simulation and project recommendations.
Download Full DatasheetRSG-Pro Core Technologies
RSG-Pro combines advanced solar charging, modular hardware and intelligent lighting control for reliable road lighting projects.
3.2V Multi-Peak MPPT
An independent 3.2V high-power controller uses multi-peak tracking to improve solar charging under changing sunlight conditions.
Multi-PCB Modular Design
Multi-PCB construction supports a modular lamp structure and helps simplify transportation, installation and maintenance.
Intelligent Power Control 5.0
The remote control supports L, M, T and U lighting modes for dimming, activity-responsive lighting and highlight operation.
RSG-Pro Applications for Roads and Public Areas
RSG-Pro multi-module solar street lights can be evaluated for municipal roads, parking areas, campuses and adjoining outdoor spaces. Final selection should follow the site layout, lighting schedule and local solar conditions.
Municipal Roads
Compare the 10,000-18,000 lm configurations according to road width, junctions, pole positions and recommended mounting heights from 6 to 12 m.
Parking Areas and Connecting Roads
Mark parking bays, vehicle lanes and entrances separately so the RSG-Pro lighting distribution can be checked against the complete site layout.
Campus Roads and Public Areas
Review trees, building edges, solar exposure and required lighting hours before choosing the RSG-Pro model and lighting mode.
RSG-Pro Technical Documents and Project Support
Request the technical information needed to review RSG-Pro configurations for road and outdoor lighting projects.
Model and Configuration Review
Confirm the RSG-90-Pro, RSG-120-Pro or RSG-150-Pro configuration, including luminous flux, solar panel power, battery capacity and mounting height.
IES and DIALux Support
Request the matching IES file, DIALux project information and technical data for the selected RSG-Pro model.
Layout and Project Review
Share the road layout, pole spacing, mounting height, lighting hours and project requirements for a configuration review.
Need an RSG-Pro Project Solution?
Share your project location, site dimensions, pole details, lighting hours and quantity. Upload your layout or existing pole photos if available. Our team will review the RSG-Pro configuration and prepare a quotation with the requested technical documents.
Request a Professional Solution
Please submit your project details on the right. Our team will provide a professional solution and quote via email within 24 hours.
